CMOS Type LDO Linear Regulator , 300mA High PSRR , Linear Regulator-BL8063G

Introduction

BL8063G series is a group of positive voltage output, low power consumption, low dropout voltage regulator.
BL8063G can provide output value in the range of 1.0V~3.6V every 0.1V step. It also can be customized on command.
BL8063G includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module.
BL8063G has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.

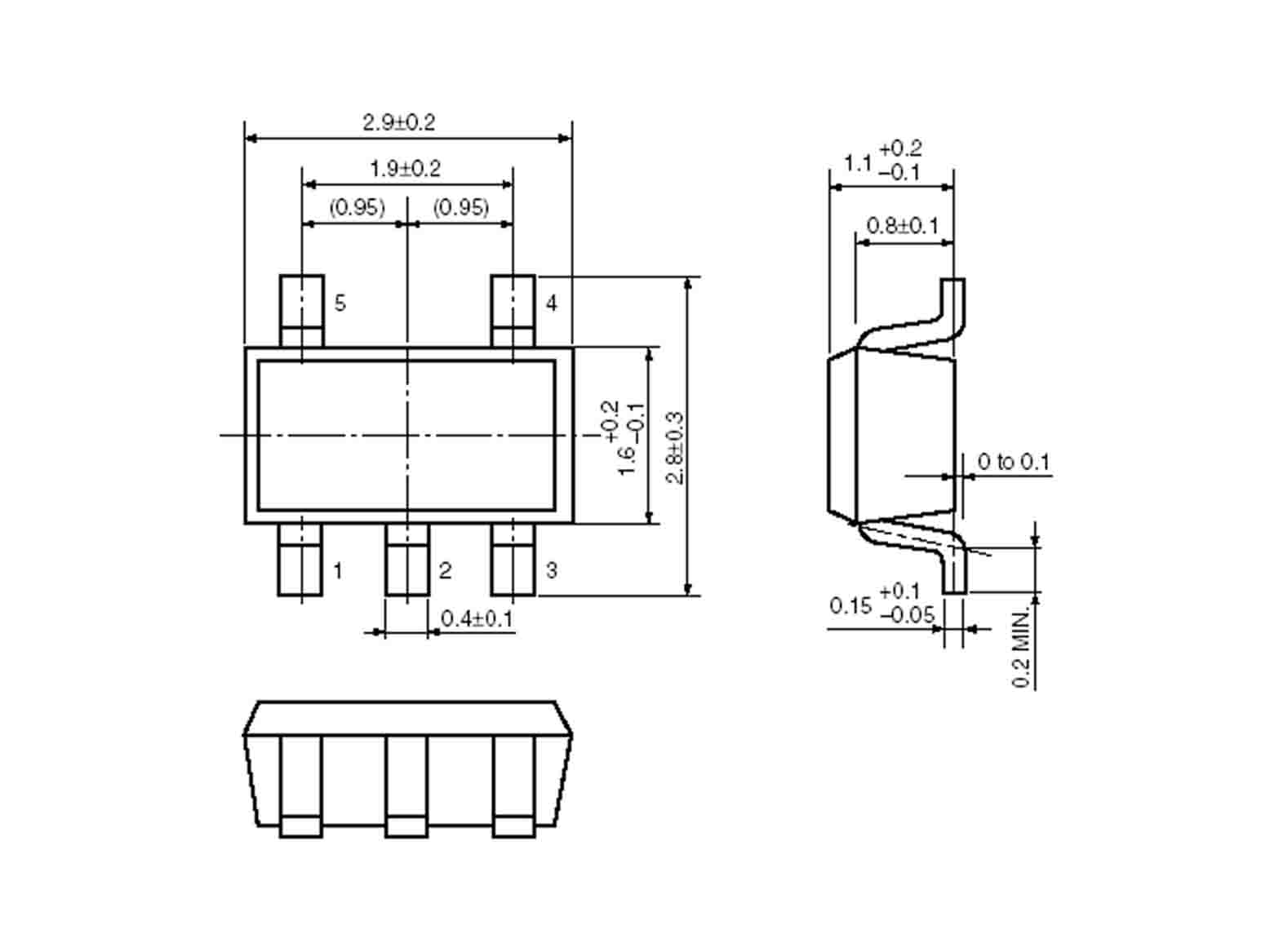

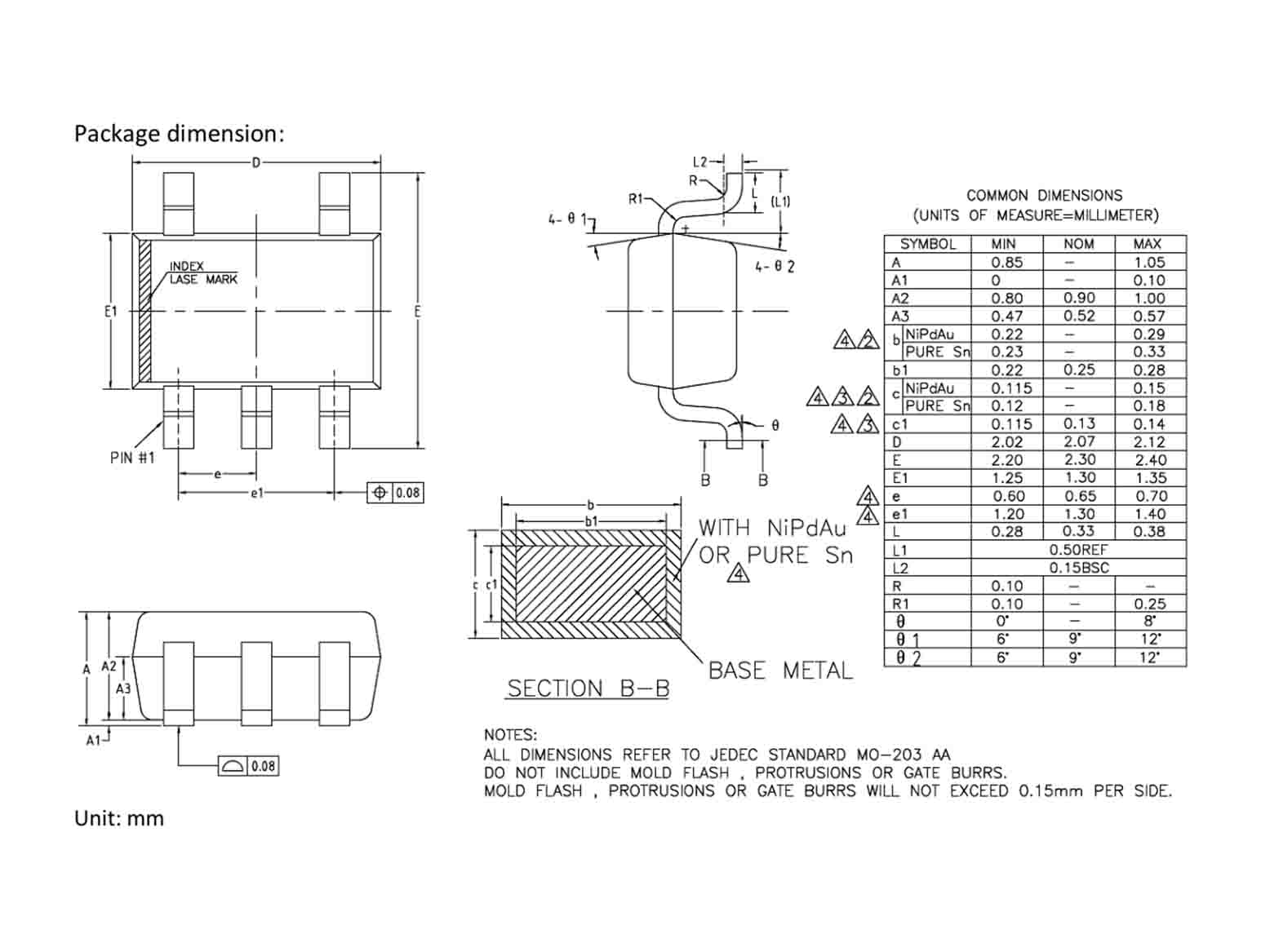

BL8063G is available in SC70-5, SOT23-3, SOT23-5 and DFN1x1-4 packages which are lead-free.

Advantage

1、Low power consumption: 60μA (Typ.)
2、Standby mode: 0.1μA
3、Low dropout voltage: 65mV @100mA @VOUT=3.3V (Typ.)
4、High PSRR: 70dB@1KHz (Typ.)
5、Low temperature coefficient: ±100ppm/C
6、Excellent line regulation: 0.05%/V
7、Output voltage range: 1.0V~3.6V
8、Highly accurate: ±2%
9、Build-in chip enable
10、Thermal shutdown
11、Overcurrent protection

Applications

• Power source for cellular phones and various kind of PCSs
• Battery powered equipment
• Power management of MP3, PDA, DSC, mouse, PS2 games
• Reference voltage source
• Regulation after switching power
