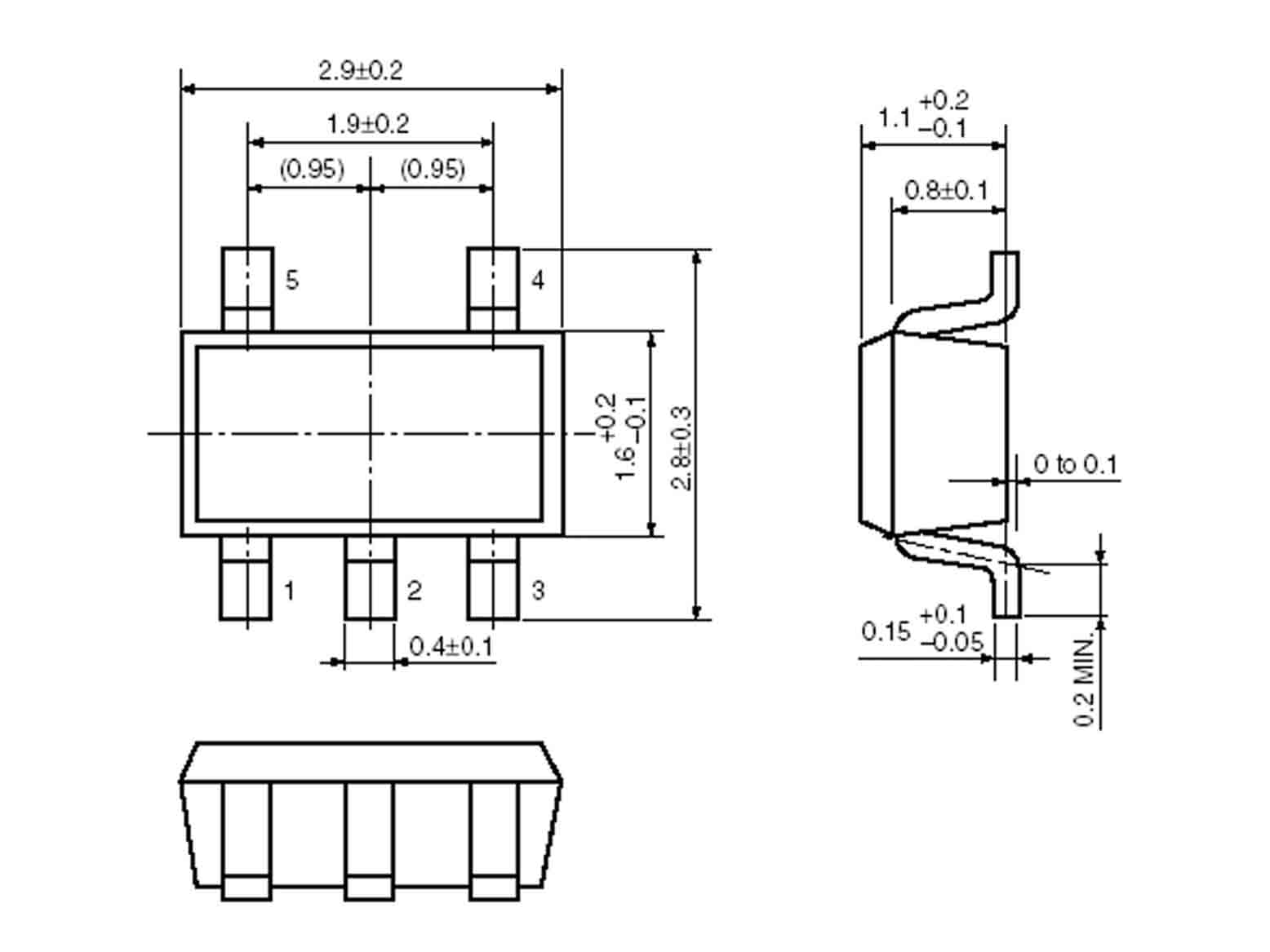

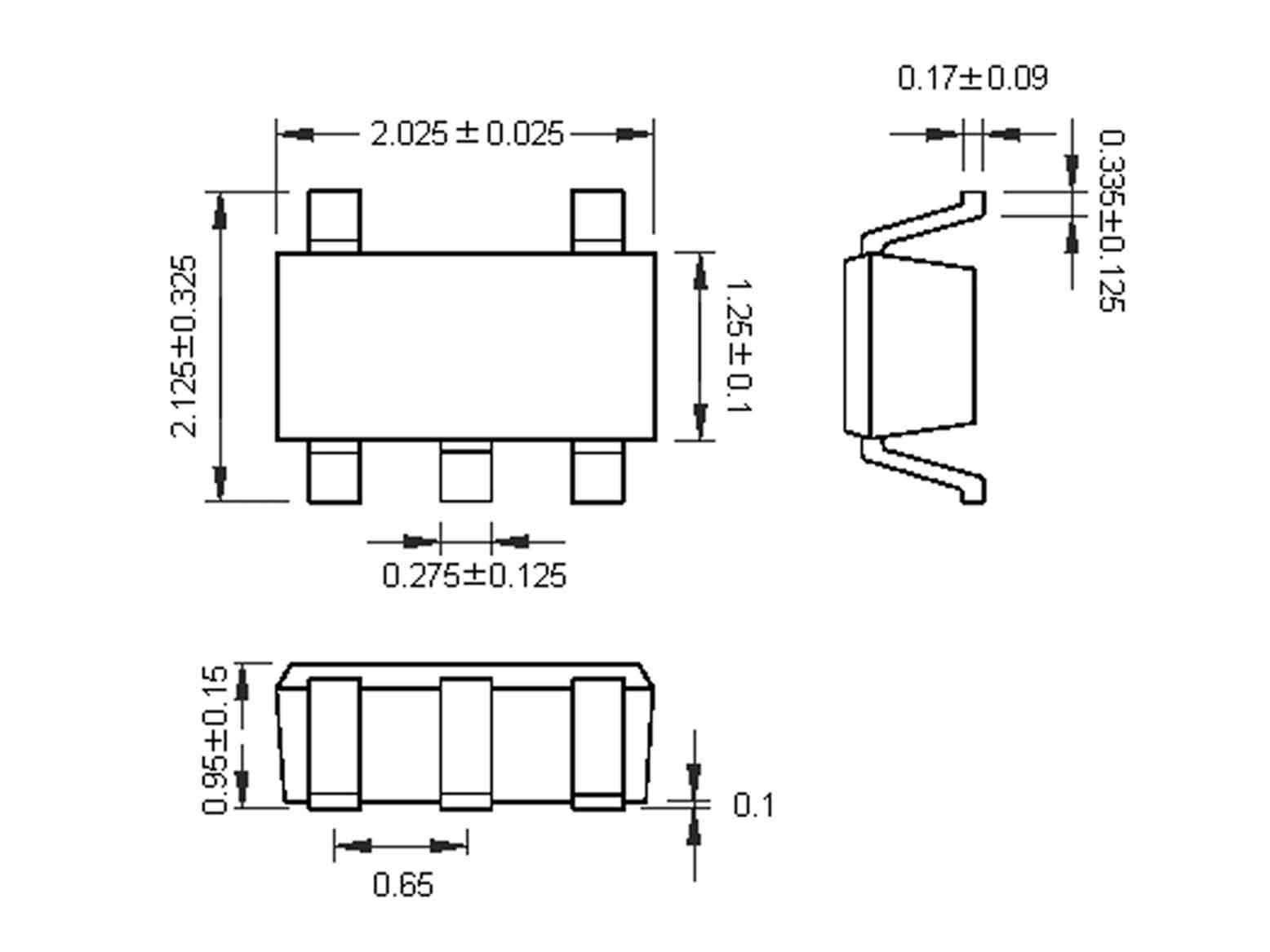

BL8063 series are a group of positive voltage output, low power consumption, low dropout voltage regulators. BL8063 can provide output value in the range of 1.0V~4.5V every 0.1V step. It also can be customized on command. BL8063 can also work under a wide input voltage ranging from 2V to 6V. BL8063 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module. BL8063 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%. BL8063 is available in SOT-23-3, SOT-23-5, SC-70-5 and DFN1x1-4 packages which is lead free.
1、Input voltage range: 2 – 6V
2、Output voltage range: 1.0V~4.5V (customized
3、on command every 0.1V step)
4、Low power consumption: 35μA (Typ.)
5、Low output noise (47μVRMS)
6、Shutdown mode: 0.1uA
7、Low dropout voltage: 300mV@300mA (Typ.)
8、High ripple rejection:70dB@1KHz (Typ.)
9、Low temperature coefficient: ±100ppm/C
10、Excellent line regulation: 0.05%/V
11、Build-in chip enable circuit
12、Highly accurate: ±2%
13、Output current limit
14、Fold-back output short circuit protection
1、Power source for cellular phones and various kinds of PCSs
2、Battery powered equipment
3、Power management of MP3, PDA, DSC, Mouse,PS2 games
4、Reference voltage source
5、Regulation after switching power
