CMOS Type LDO Linear Regulator， 300mA Low Consumption Linear Regulator

Introduction

BL8552 series are a group of positive voltage output, high precise, and high PSRR and low power consumption voltage regulator. Voltages are selectable in 100mV steps within a range of 1.2V to 3.6V. It also can be customized on command.
BL8552 series have excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within ±2%.

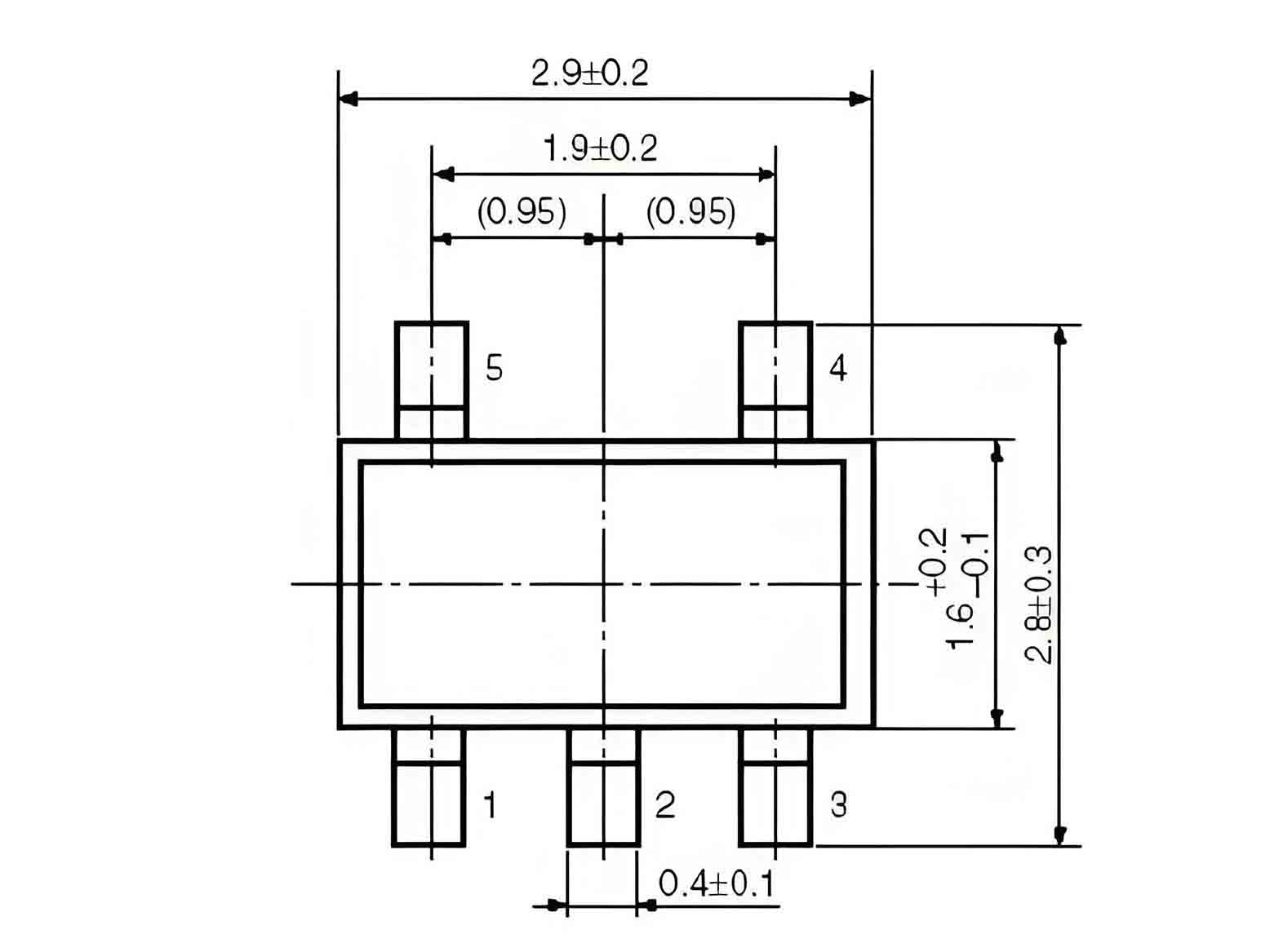

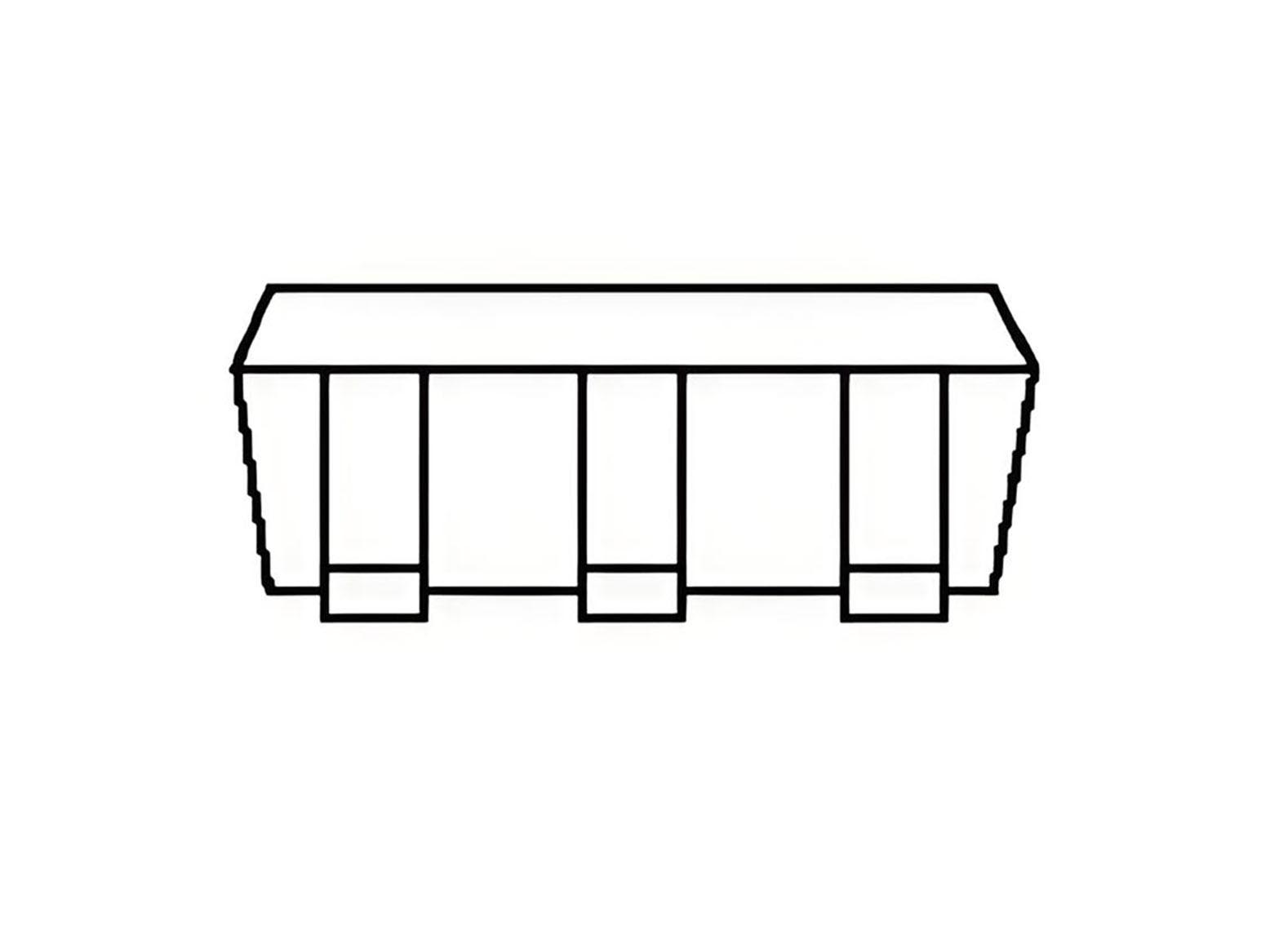

BL8552 series are available in SOT-23-3, SOT-23-5 and SOT-89-3 packages, which are lead (Pb)- free.



Advantage

1、Low quiescent current: 2uA at 5V
2、60dB PSRR at 100Hz
3、Low output noise: 44uVRMS
4、Low dropout: 280mV at 150mA load
5、Low temperature coefficient: ±100ppm/℃
6、Excellent line regulation: 0.05%/V
7、Highly accurate: ±2%



Applications

1、Reference voltage source
2、Battery powered equipment
3、Hand-hold equipment
4、Wireless LAN
5、GPS receivers
