BL8555 series is a group of positive voltage output, low power consumption, low dropout voltage regulator.
BL8555 can provide output value in the range of 1.2V~5.0V every 0.1V step. It also can be customized on command.
BL8555 includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module.
BL8555 has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. And it uses trimming technique to guarantee output voltage accuracy within±2%.

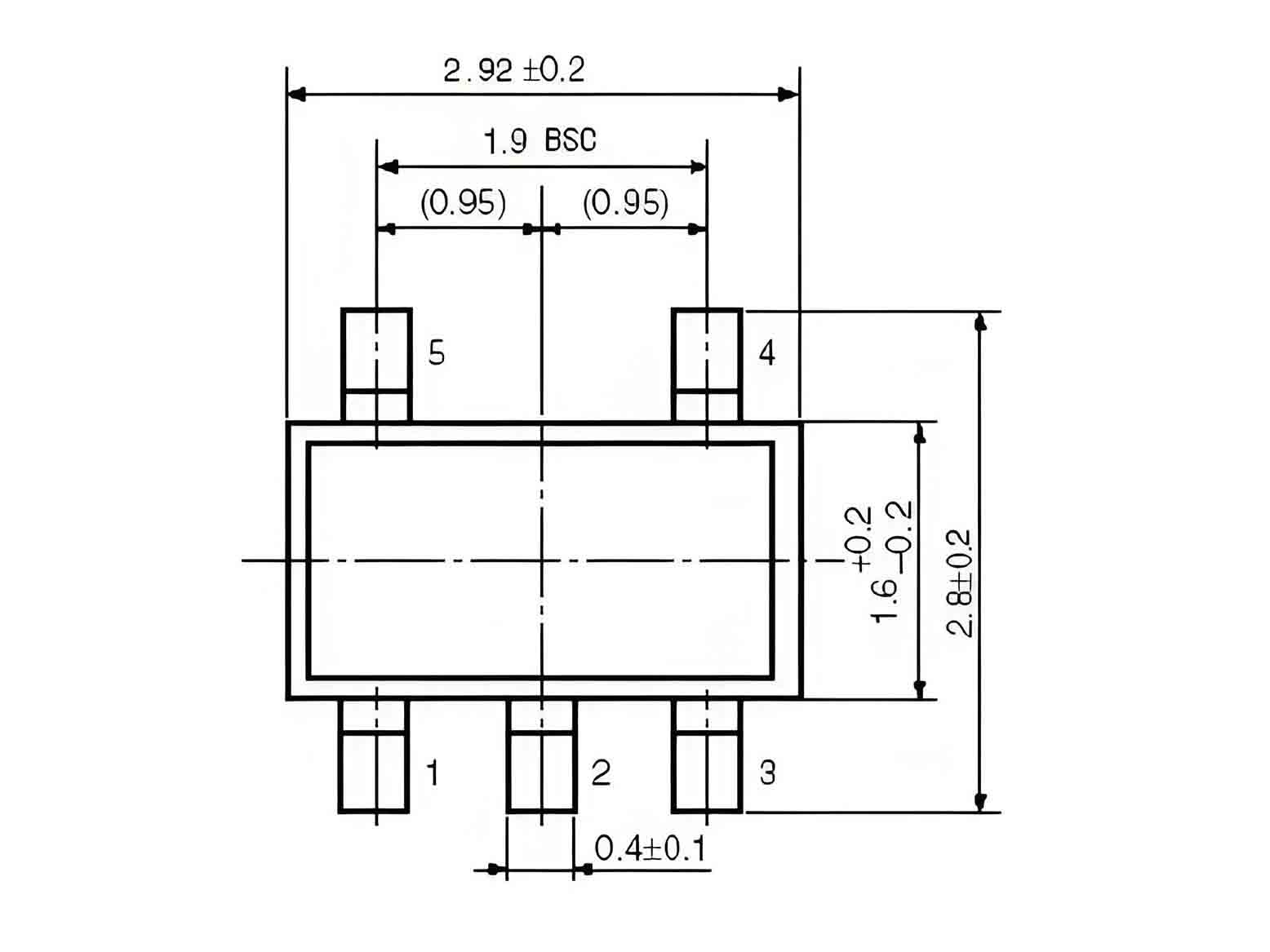

BL8555 is available in SOT-23-5, SC-70-5 packages which is lead free. It also can available in these packages with lead.
1、Low power consumption: 25uA (Typ.)
2、Low output noise (27uVRMS)
3、Standby mode: 0.1uA
4、Low dropout voltage: 0.2V@100mA (Typ.)
5、High ripple rejection: 65dB@1kHz (Typ.)
6、Low temperature coefficient: ±100ppm/C
7、Excellent line regulation: 0.05%/V
8、Build-in chip enable circuit
9、Output voltage range: 1.2V~5.0V，(customized on command every 0.1V step)
10、Highly accurate: ±2% (±1% customized)
11、Output current limit
1、Power source for cellular phones and wireless phone
2、Battery powered equipment
3、Power management of MP3, PDA, DSC, Mouse, PS2 games
4、Reference voltage source
5、Regulation after switching power
