CMOS Type LDO Linear Regulator， 600mA High PSRR, Fast Response Linear Regulator

Introduction

BL8079AG series is a group of positive voltage output, low power consumption, low dropout voltage regulator.
BL8079AG can provide output value adjustable from 0.8V to 5.0V.
BL8079AG includes high accuracy voltage reference, error amplifier, current limit circuit and output driver module with discharge capability.
BL8079AG has excellent load and line transient response and good temperature characteristics, which can assure the stability of chip and power system. It uses trimming technique to guarantee output voltage accuracy within ±2%. And it also provides fold back short-circuit protection, thermal shutdown and output current limit function.

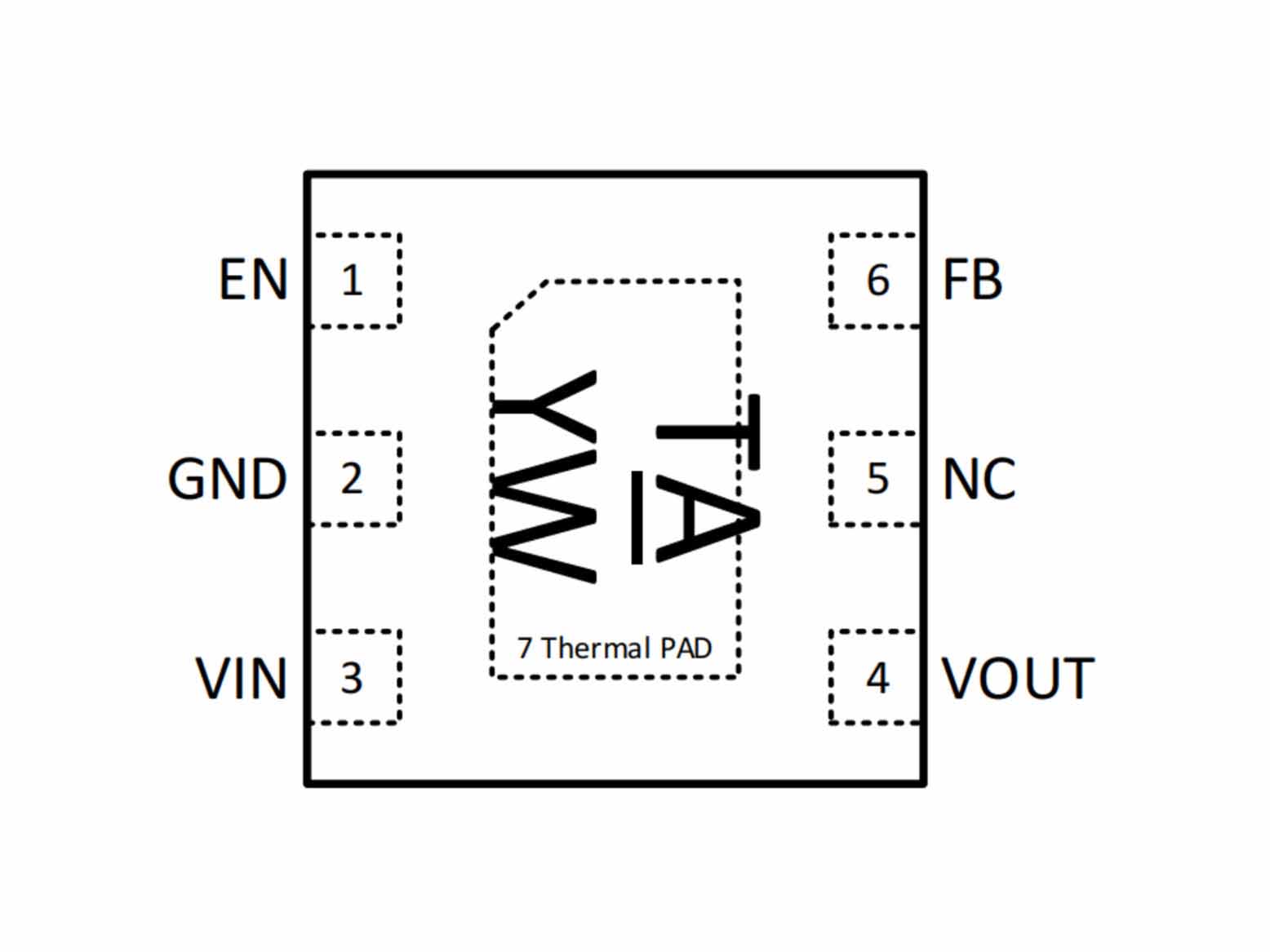

BL8079AG is available in SOT23-5 and DFN2x2-6 package which is lead-free.



Advantage

1、Low power consumption: 65uA (Typ.)
2、Maximum output current: 600mA
3、Low dropout voltage：360mV@IOUT=600mA, VOUT=3.3V
4、Build-in chip enable and discharge circuit
5、Input voltage range: 1.5~6V
6、Adjustable output from 0.8V to 5.0V
7、Output voltage accuracy: ±2%
8、Output current limit
9、Short circuit protection
10、Over temperature protection



Applications

1、Power source for cellular phones and various kind of PCSs
2、Battery powered equipment
3、Power management of MP3, PDA, DSC, mouse，PS2 games
4、Reference voltage source
5、Regulation after switching power
