The BL8036 is a high-efficiency DC-DC step-down converter capable of delivering 3A of output current. It operates over an input voltage range of 4.2V to 28V and provides output voltages as low as 0.8V; its protection features include cycle-by-cycle current limiting, hiccup short-circuit protection, undervoltage lockout and over-temperature protection with automatic recovery. This product has two operating modes, PFM and PWM, and is highly efficient at light loads. It also has an internal loop compensation function that integrates a 150/90mΩ synchronous MOSFET pair, which can reduce external compensation components and simplify the design process. The main applications include distributed power systems, flat-panel TVs and monitors, set-top boxes, etc.
1、Wide input voltage range: 4.2V~28V
2、3A output current
3、0.8V reference voltage
4、Low RDS(ON) integrated power MOSFET (150/90mΩ)
5、Shutdown current: 3μA (maximum)
6、Integrated internal compensation
7、High efficiency at light load
8、Cycle-by-cycle current limit, over-temperature protection with automatic recovery, under-voltage lockout, hiccup short-circuit protection

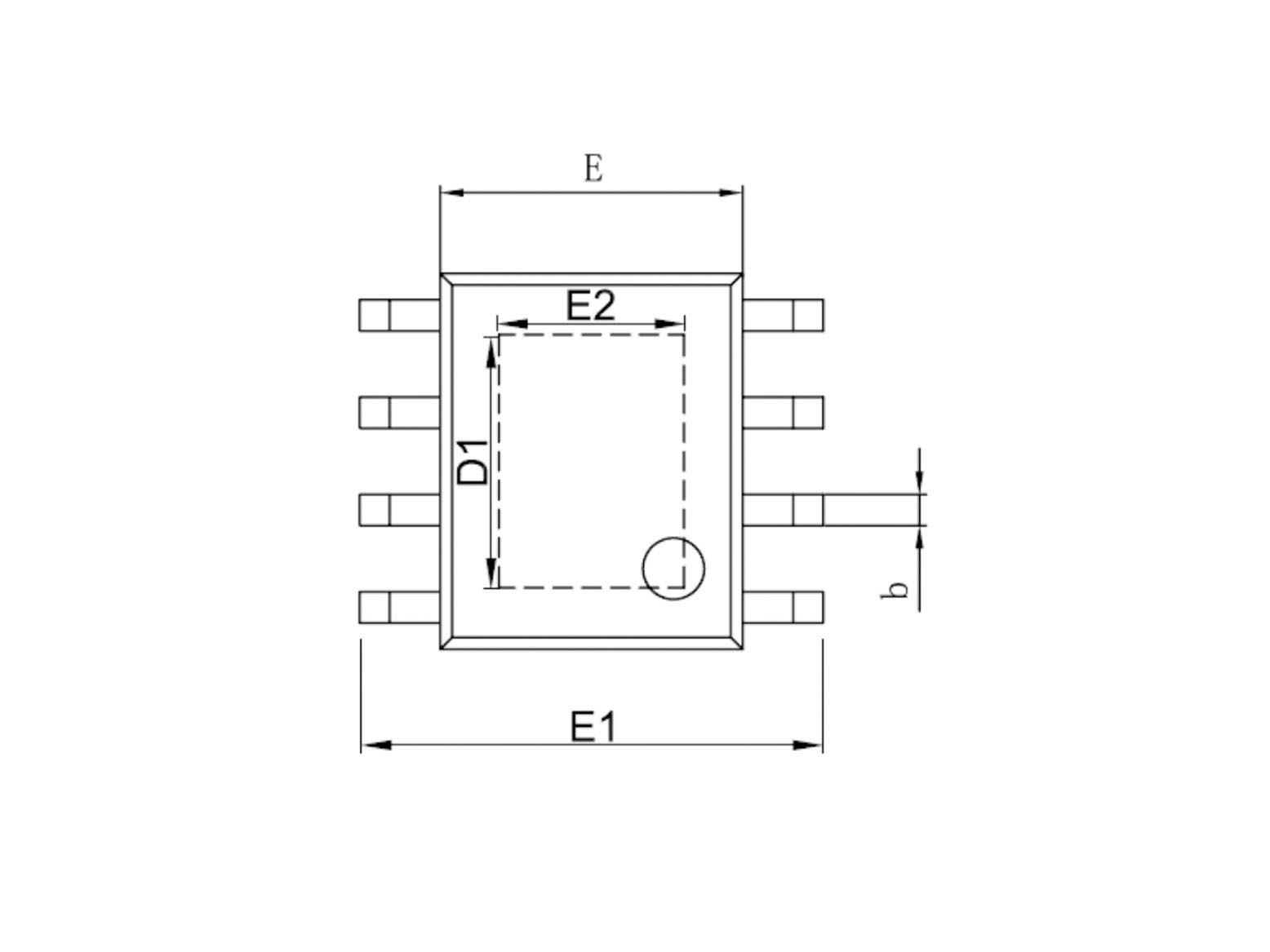

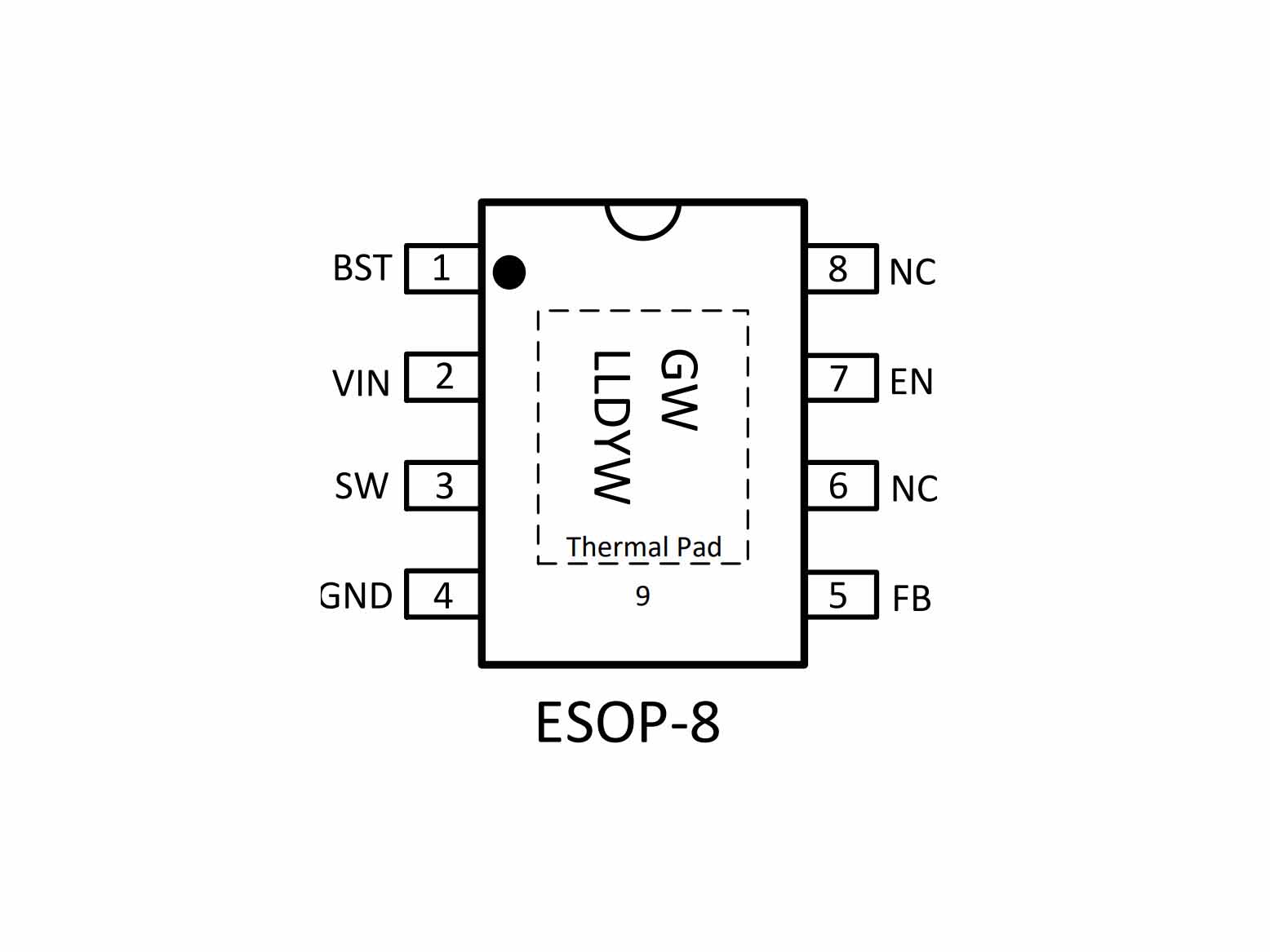

9、Available in ESOP8 package
1、Distributed power system
2、Flat panel television and monitors
3、STB (Set-top-box)
4、Networking, XDSL modem
