The BLL2310C is a high-efficiency, fully integrated, DC-to-DC step-down switching regulators, capable of delivering up to 2A of output current. This device offers two operation modes, PWM and PFM switching control modes, which allows a high efficiency over the wider range of the load.
The BLL2310C guarantees robustness with hiccup-mode output short-circuit protection, cycle-by-cycle current limit, input voltage protection, under voltage lockout and thermal shutdown.

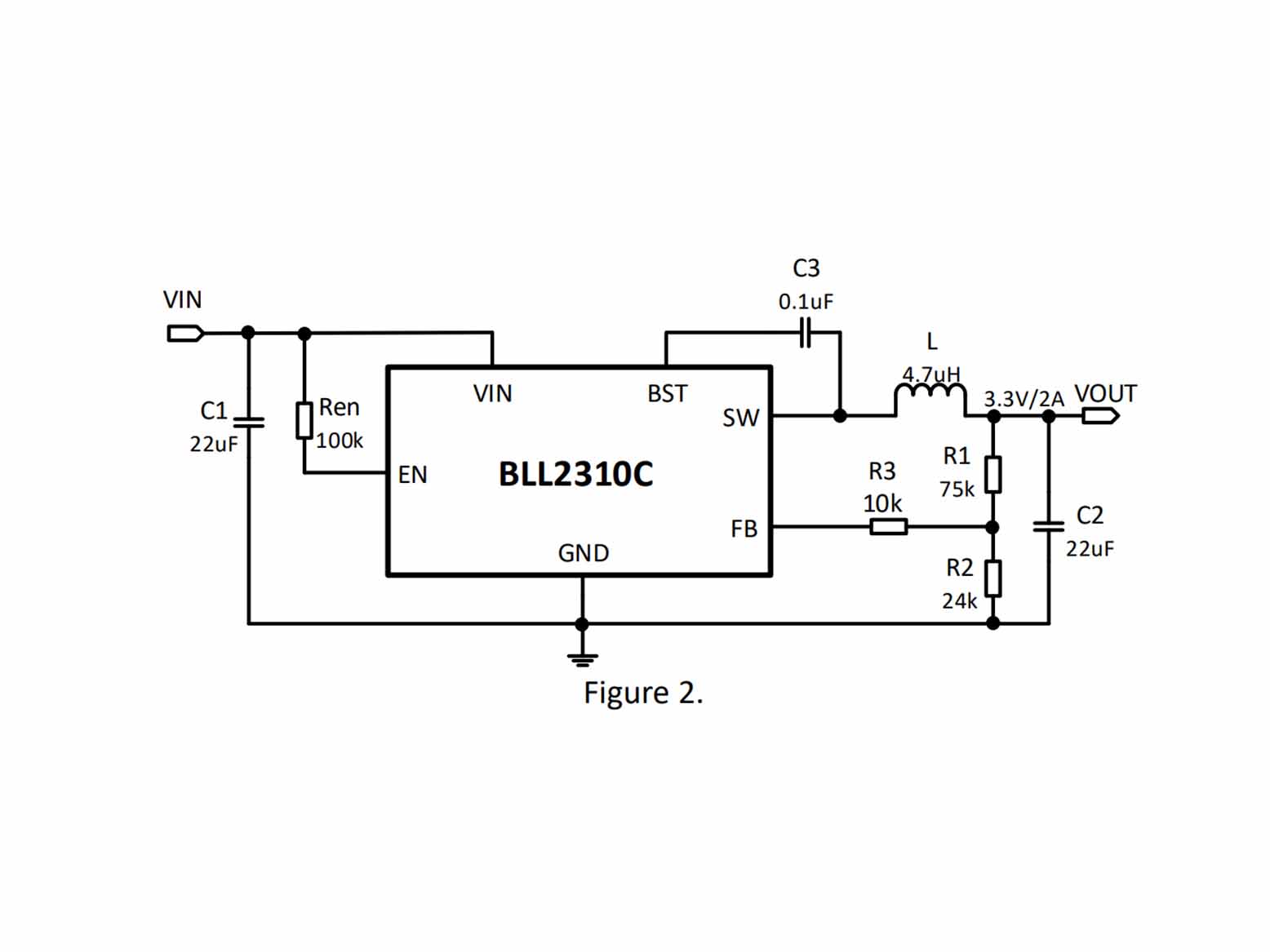

The BLL2310C requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
1、High efficiency: up to 96%
2、1MHz frequency operation
3、2A output current
4、No Schottky diode required
5、4.5V to 18V input voltage range
6、0.8V reference
7、Slope compensated current mode control for excellent line and load transient response
8、Integrated internal compensation
9、Stable with low ESR ceramic output capacitors
10、Over current protection with hiccup-mode
11、Thermal shutdown
12、Inrush current limit and soft start

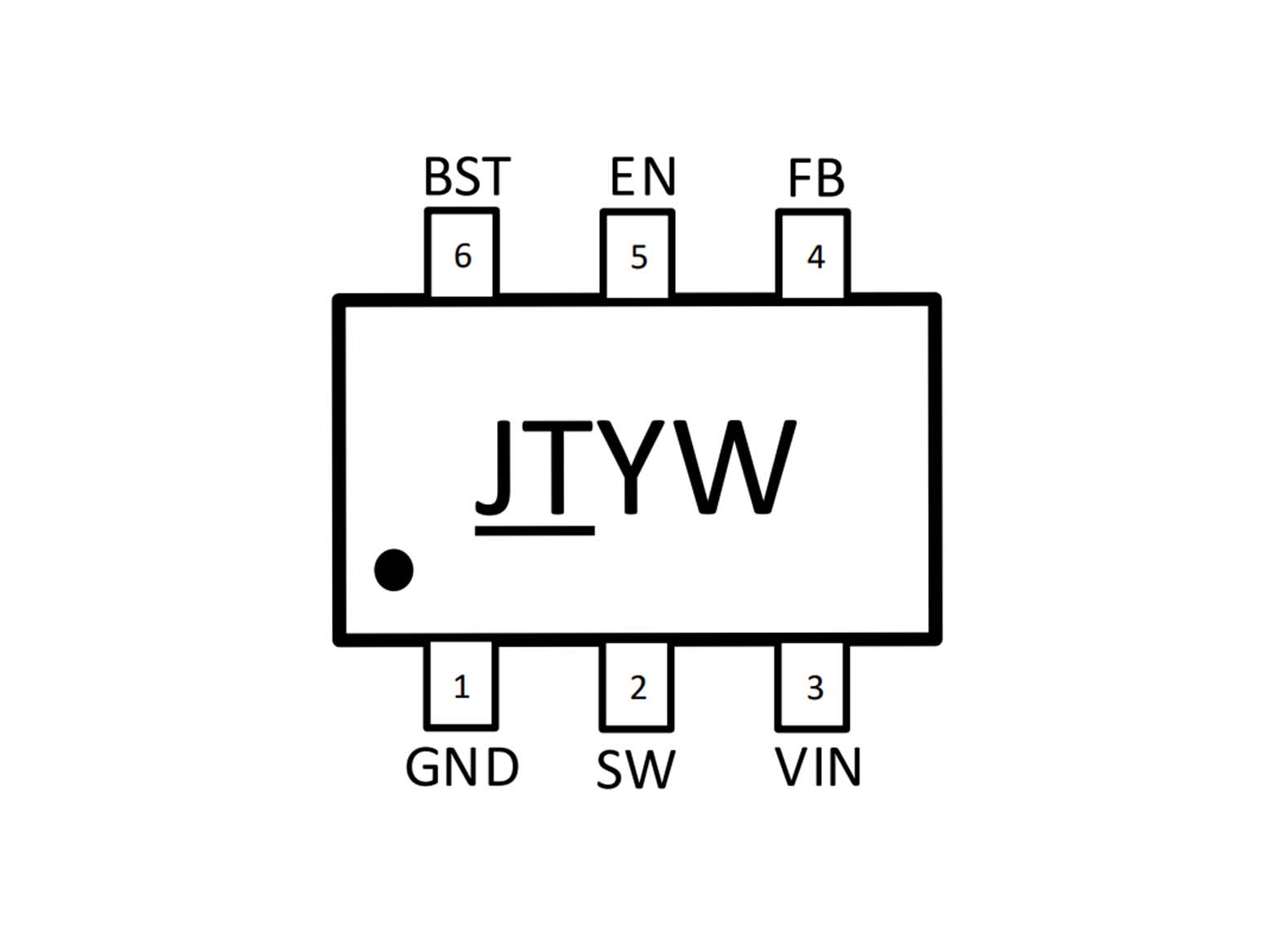

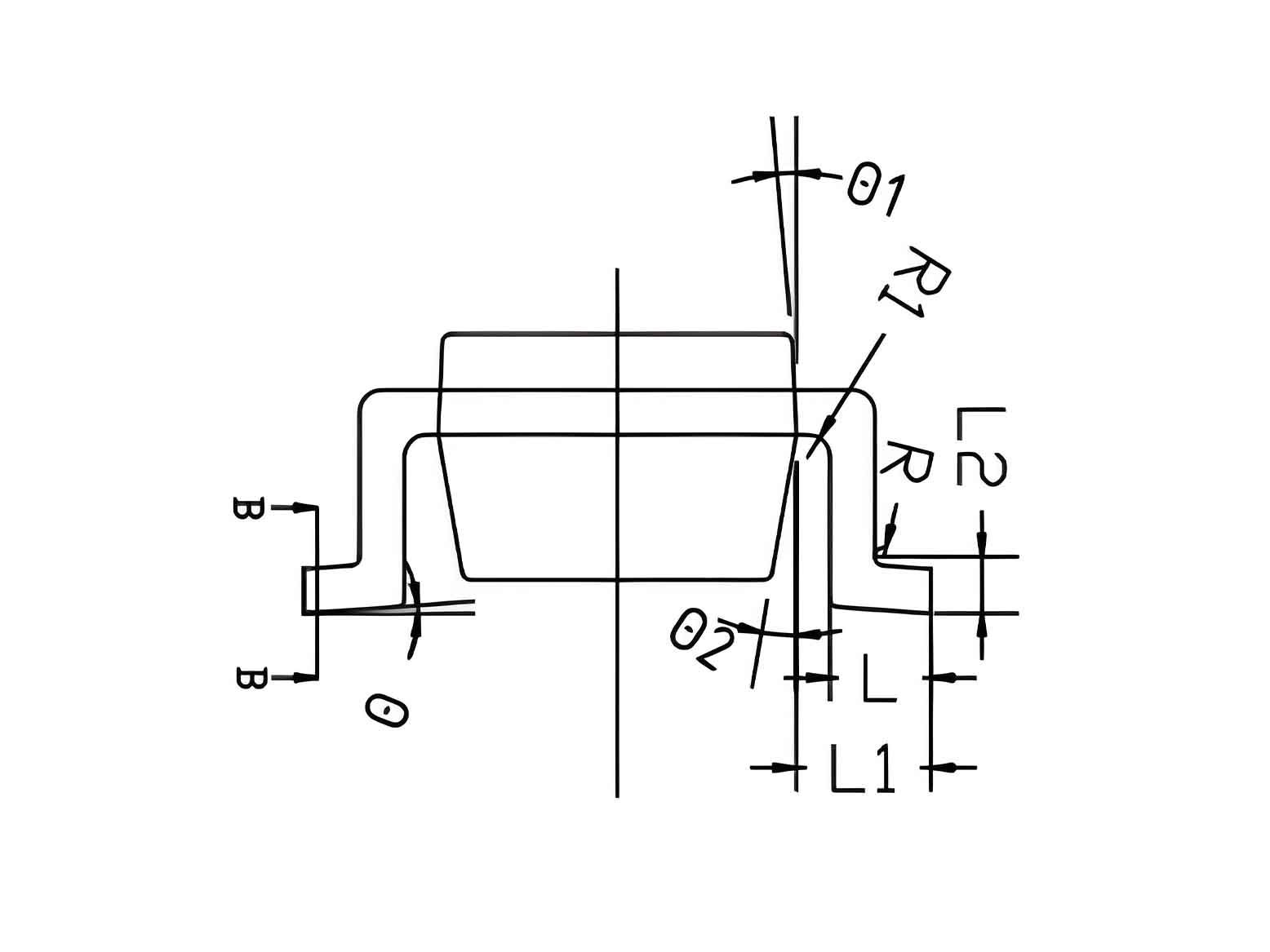

13、Available in SOT23-6
14、-40°C to +85°C temperature range
1、Distributed power systems
2、Digital set top boxes
3、Flat panel television and monitors
4、Wireless and DSL modems
5、Notebook computer
