The BL8032 is a fully integrated, high-efficiency 2A synchronous rectified step-down converter. The BL8032 operates at high efficiency over a wide output current load range. This device offers two operation modes, PWM control and PFM Mode switching control, which allows a high efficiency over the wider range of the load. The BL8032 requires a minimum number of readily available standard external components and is available in a 6-pin SOT23 ROHS compliant package.
1、High Efficiency: Up to 96%
2、500KHz Frequency Operation
3、2A Output Current
4、No Schottky Diode Required
5、4.2V to 18V Input Voltage Range
6、0.8V Reference
7、Slope Compensated Current Mode Control for Excellent Line and Load Transient Response
8、Integrated internal compensation
9、Stable with Low ESR Ceramic Output Capacitors
10、Over Current Protection with Hiccup-Mode
11、Thermal Shutdown
12、Inrush Current Limit and Soft Start

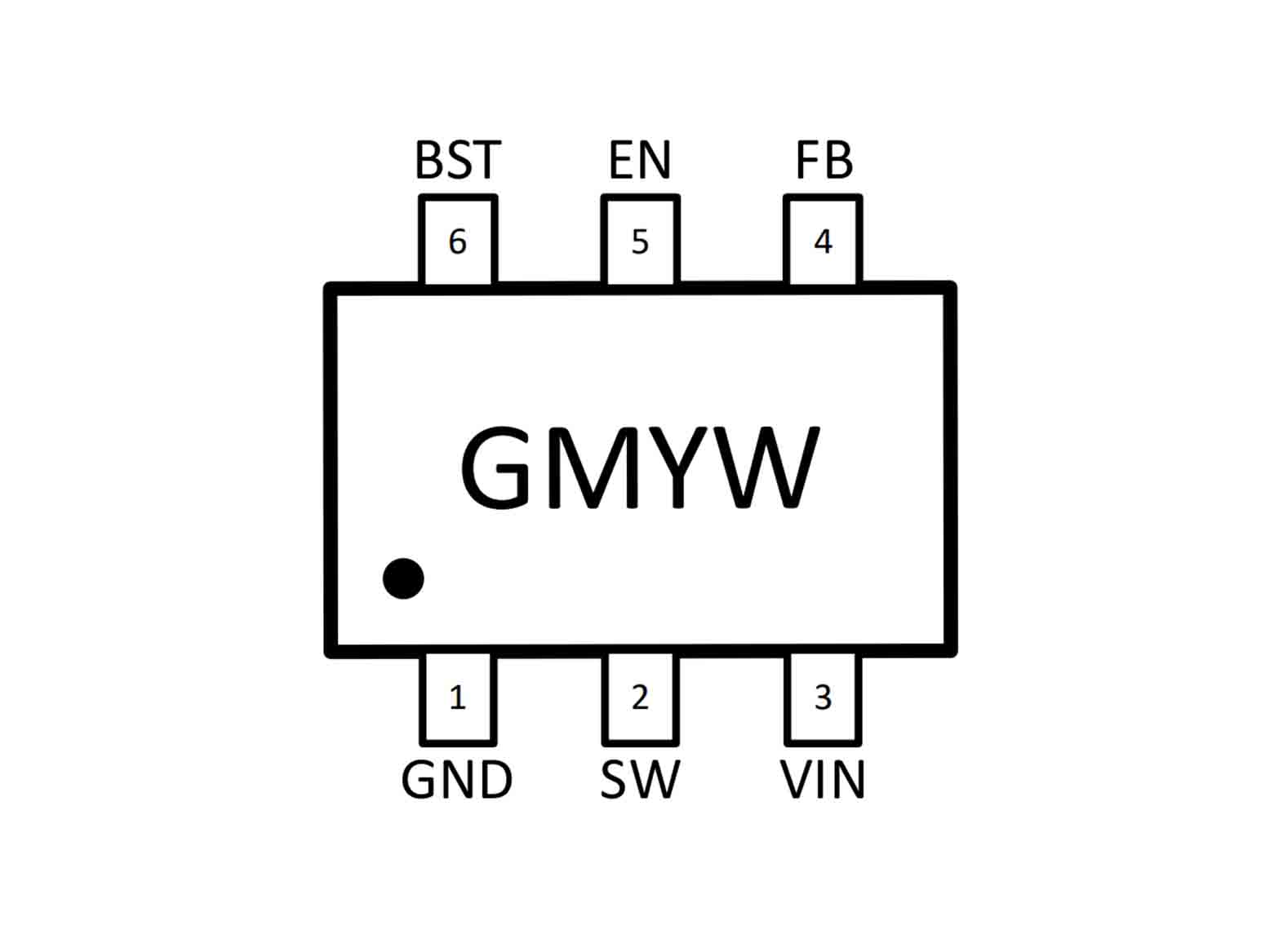

13、Available in SOT23-6
14、-40°C to +85°C Temperature Range
1、Distributed power system
2、Digital set top box
3、Flat panel television and monitor
4、Wireless and DSL modem
5、Notebook computer
