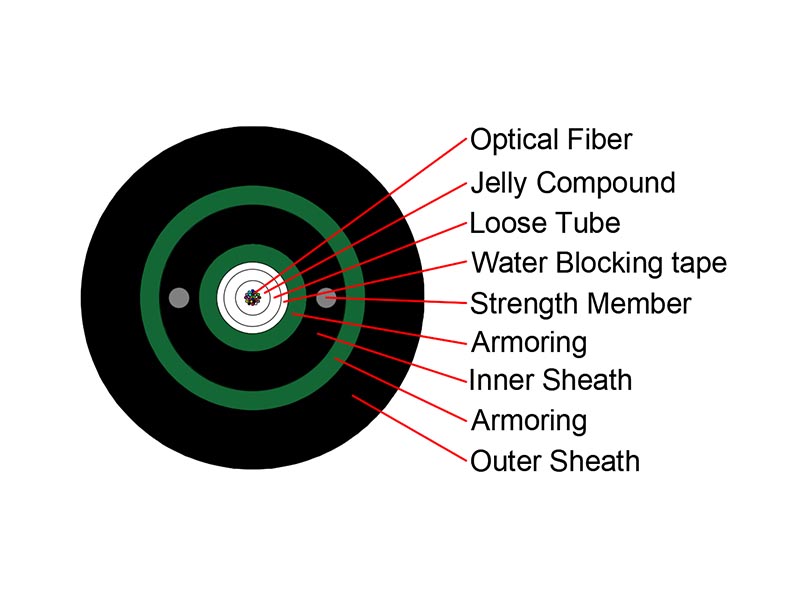

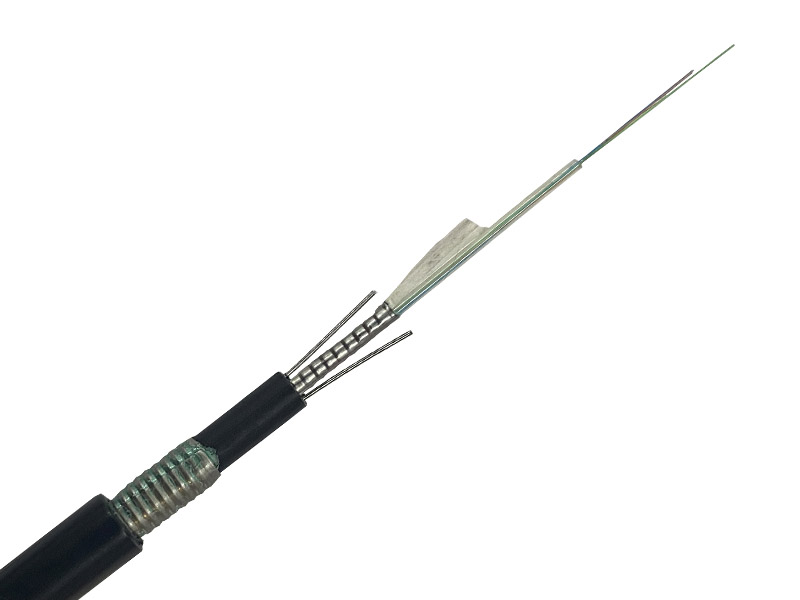

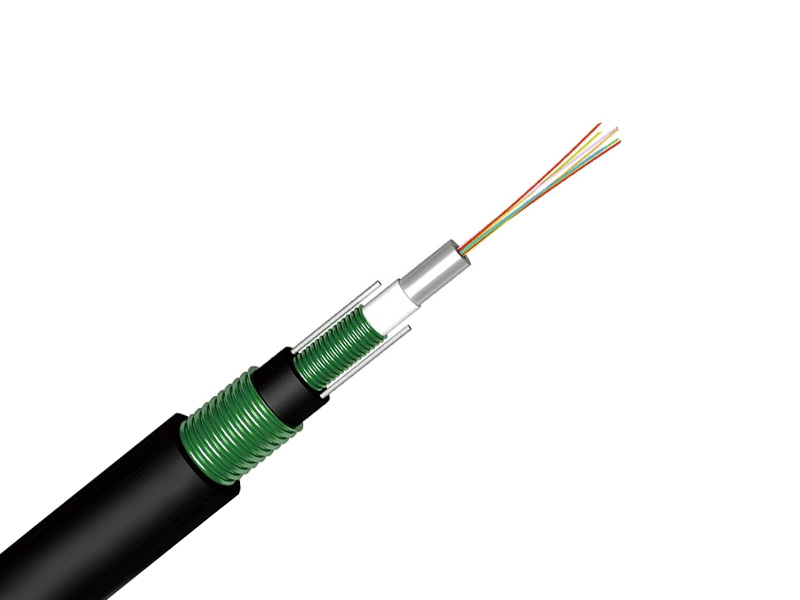

The GYXTW53 type optical cable is a metal reinforced component, a central tube filled type, a steel-polyethylene bonded sheath with steel wires, and a steel-polyethylene sheathed outdoor optical cable for communication. It is composed of a central loose tube, two parallel steel wire reinforcement members and Constructed of double-layer steel-polyethylene sheath.
Send Email
WhatsApp

Fiber Optic Cable,opgw cable,adss cable,ftth drop cable,outdoor fiber cable,indoor fiber cable,air blow fiber cable,Underground Fiber optic cable,Aerial Fiber Optic Cable,Direct Buried Fiber Optic Cable,fiber cable accessories,fiber opticale cable manufacturer,fiber optic cable manufacturer


















Product description

gyxtw53 fiber optic cable

gyxtw53 fiber optic cable,gyxtw53 cable specifications,gyxtw53 cable price,gyxtw53 cable datasheet,gyxtw53 cable installation,gyxtw53 cable manufacturers,gyxtw53 cable types,gyxtw53 cable outdoor use,gyxtw53 cable vs other types,gyxtw53 cable advantages

GYXTW53 cable types

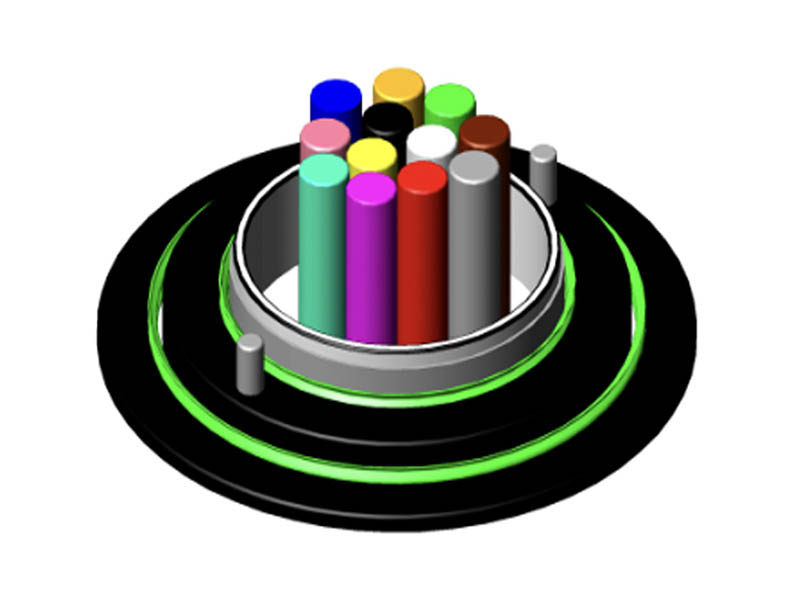

The GYXTW53 type optical cable is a metal reinforced component, a central tube filled type, a steel-polyethylene bonded sheath with steel wires, and a steel-polyethylene sheathed outdoor optical cable for communication. It is composed of a central loose tube, two parallel steel wire reinforcement members and Constructed of double-layer steel-polyethylene sheath.



Laying method:Buried directly, pipeline
Erection Method:Overhead, pipe laying and direct burial
Temperature Range:Storage and operation::-40C ~ +70C;Erection:-15C ~ +60C
Bend radius:Static 10 times the cable diameter,Dynamic 20 times optical cable diameter
Application:Core Network, Metropolitan Area Network, and Access Network ,Applicable to long-distance communication and inter-office communication Outdoor Optical Cable

Fiber Type:G652D;G655C;G657A1;G657A2;50/125;62.5/125;OM3-150;OM3-300;OM4 As Options

g657a1,g657a1 fiber,g657a1 vs g657a2,g657a1 datasheet,g657a1 fiber specification,g657a1 lszh,g657a1 g657a2,g657a1 vs g657b3,g657a1 vs g652d,g 657.a1



GYXTW53 cable advantages:

1、Full-section water-blocking structure ensures good water-blocking and moisture-proof performance
2、The loose tube is filled with special grease to provide critical protection for the optical fiber.
3、Two parallel round steel wires resist both tension and lateral pressure
4、The loose tube is located in the physical center of the optical cable, making construction and operation easy
5、The polyethylene sheath makes the optical cable have good UV resistance
6、The double-layer armored sheath makes the optical cable better resistant to lateral pressure
7、Product service life is more than 25 years



Optical Fiber Colors:

fiber optic cable,fiber optic cable manufacturer,fiber optic cable factory,Fiber opticale cable Manufacturer,OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,Air blow fiber cable,Fiber Optic Cable,opgw cable,adss cable,ftth drop cable,outdoor fiber cable,indoor fiber cable,air blow fiber cable,Underground Fiber optic cable,Aerial Fiber Optic Cable,Direct Buried Fiber Optic Cable,fiber cable accessories,fiber opticale cable manufacturer,fiber optic cable manufacturer,fiber optic cable catalog,fiber optic cable importer,fiber optic cable jumper,fiber optic cable shop,fiber optic cable installation,fiber optic cable indonesia



Loose Tube Colors:

fiber optic cable,fiber optic cable manufacturer,fiber optic cable factory,Fiber opticale cable Manufacturer,OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,Air blow fiber cable,Fiber Optic Cable,opgw cable,adss cable,ftth drop cable,outdoor fiber cable,indoor fiber cable,air blow fiber cable,Underground Fiber optic cable,Aerial Fiber Optic Cable,Direct Buried Fiber Optic Cable,fiber cable accessories,fiber opticale cable manufacturer,fiber optic cable manufacturer,fiber optic cable catalog,fiber optic cable importer,fiber optic cable jumper,fiber optic cable shop,fiber optic cable installation,fiber optic cable indonesia

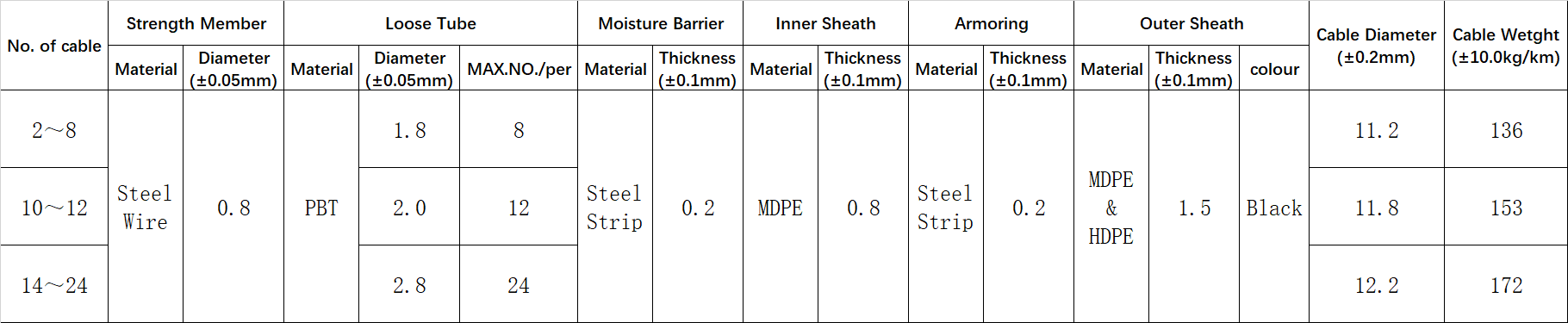

GYXTW53 cable specifications:
