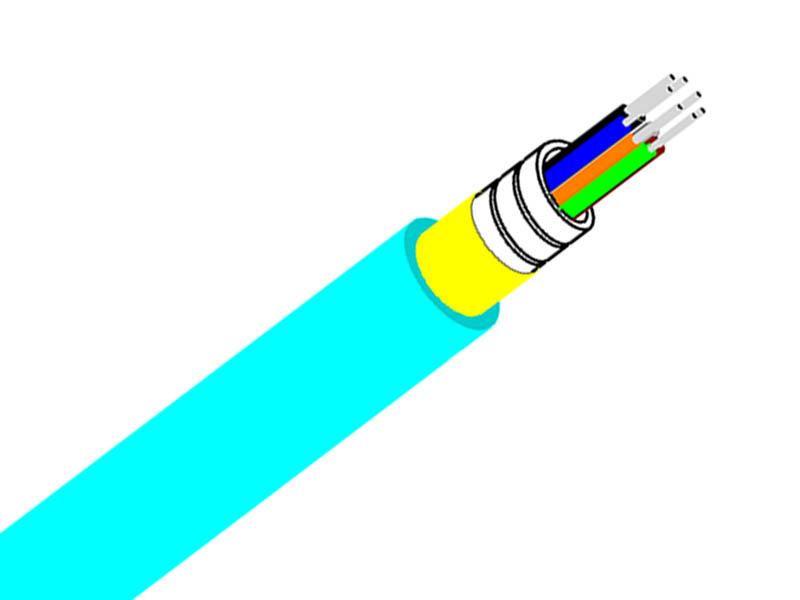

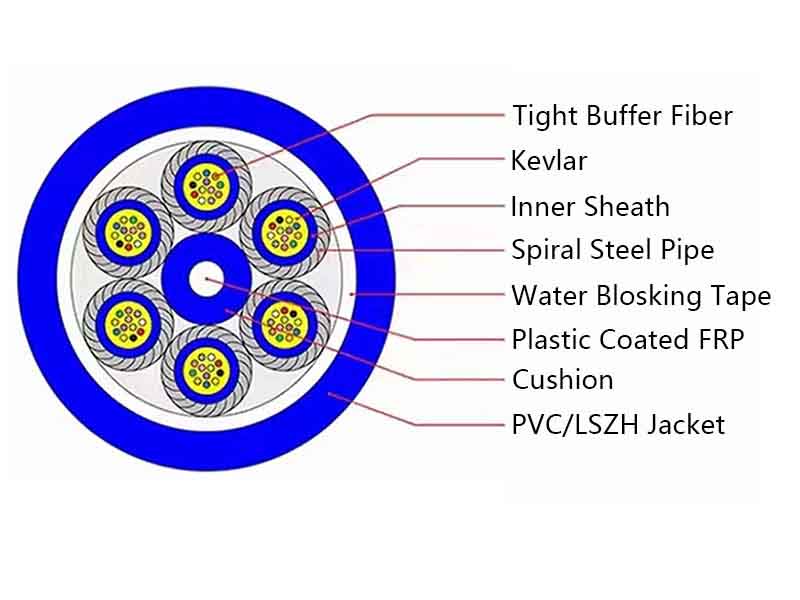

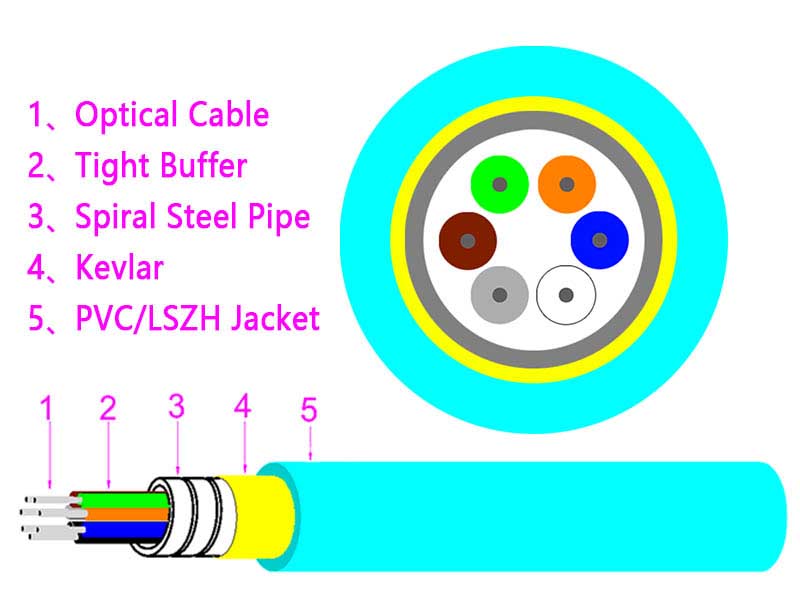

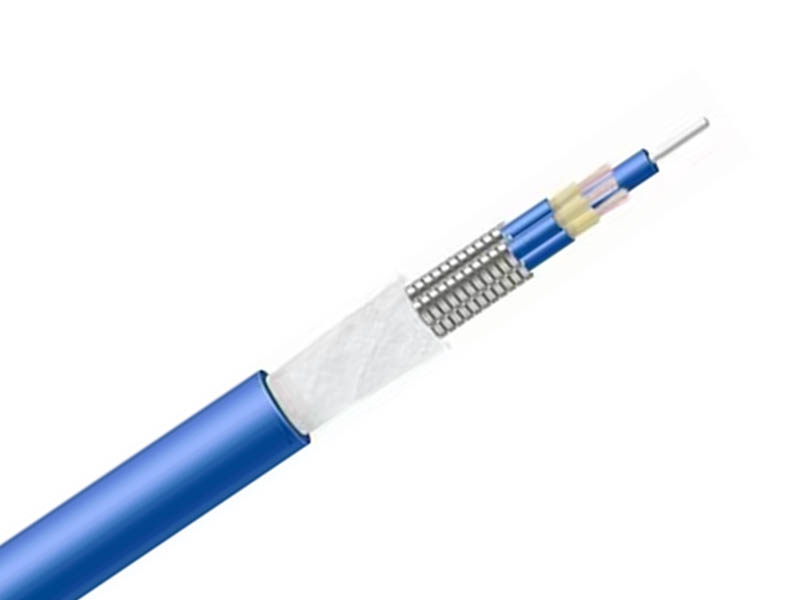

The structure of the optical fiber cable is a multi-strand aramid fiber reinforced with a multi-core bundle mini ф250μm optical fiber surface. A layer of PVC or LSZH inner sheath is extruded on the stranded surface as a subunit, the subunit is wound with a layer of steel wire armor, The sub-unit and the non-metallic reinforcements FRP (and possible mats) are stranded in a circle,wrapped with a dry water-blocking tape between the core and the sheath, and finally the PVC(or LSZH) sheath is extruded cable.
1、Miniature cable, high-strength aramid reinforced,high-performance jacket material protection.
2、Bending radius is small, lightweight, soft, flexible,easy to follow.
3、Flat wire armored to improve the optical cable compression and anti-rat ability.
4、Has good mechanical and environmental performance.
5、Flame retardant or non-flame retardant outer jacket to provide good safety protection.
1、All kinds of connector；
2、Fiber optic pigtails, patch cords；
3、Fiber optic equipment, fiber optic patch panel, fiber to the desk, etc；
4、Fiber optic equipment and instrument；
5、Indoor cabling, building cabling, LAN, etc；
6、Long distance, outdoor/indoor cabling, trunking, etc；
7、Backbone network to the equipment in the building；
8、Small installation space cabling.
Product Standards：
GJASFKV cable comply with Standard YD/T 2488-2013, ICEA-596, GR-409, IEC794, etc.; and meet the requirements of UL approval for OFNR, OFNP
Standard length：2000m, other lengths are also available
Note: The structure’s size and specifications can be desianed according to customer requirements
