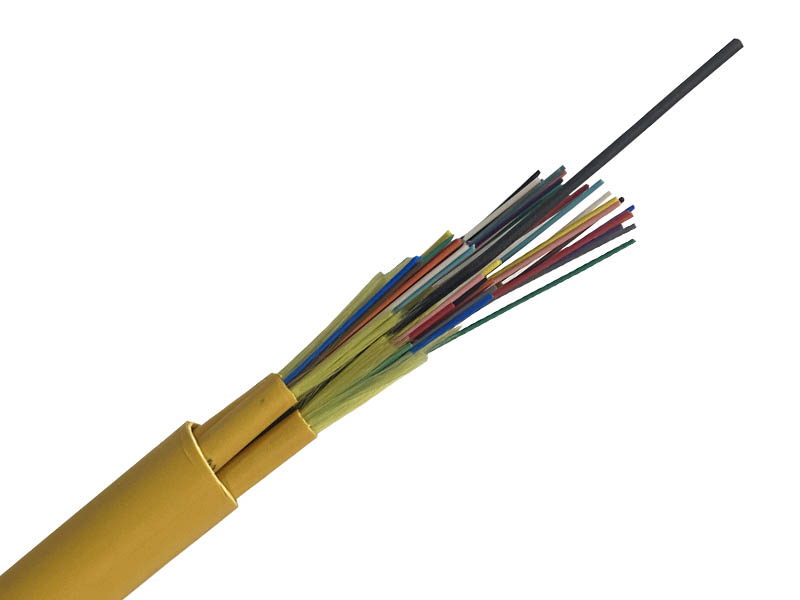

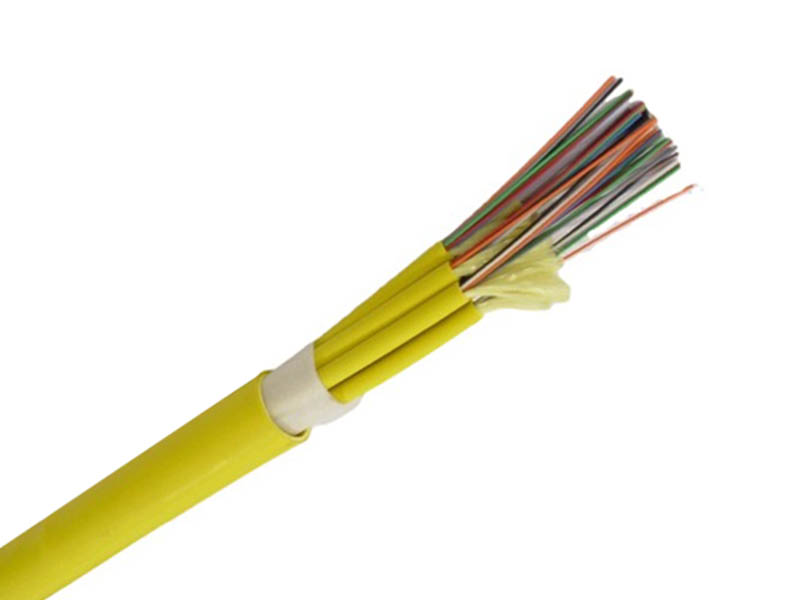

indoor optical fiber cable，GJFJV-16-144cores

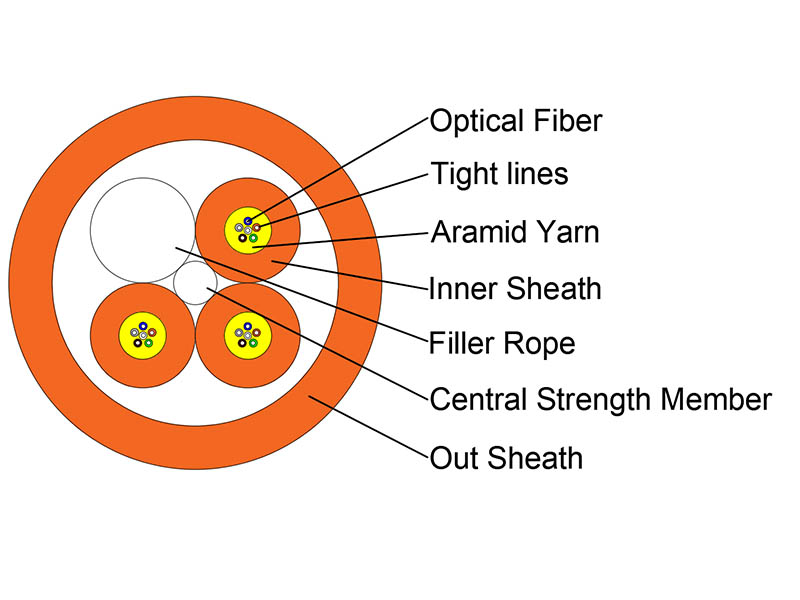

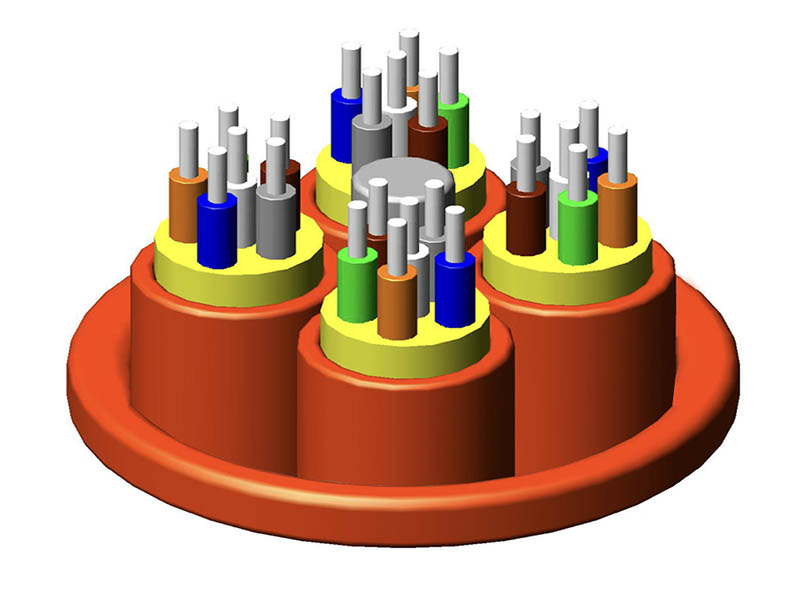

GJFJV cable types

A variety of fiber optic cable structure options can be laid in limited spaces without entanglement. Can be used in conduit trays and channels between buildings. Ideal network fiber optic cables are easy to lay out while ensuring the protection of optical fibers. Easy to plug in and identify. Strip the optical fiber at one time for quick installation and fully support future network applications



Standards：YD/T 1258.2-2015
Temperature Range：Storage and operation:：-40C ~ +70C；Erection：-15C ~ +60C
Laying method: branch wiring indoors and in buildings, multi-core optical fiber jumpers
Bend radius：Static 10 times the cable diameter，Dynamic 20 times optical cable diameter
Application：indoor wiring, single and double-core jumpers and pigtails, local area networks, connecting lines between equipment and instruments, trunk building passages, suspended ceilings, pallets and conduits between buildings
Fiber Type：G652D；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options

Single-mode（SM）



Multi-mode（MM）



GJFJV cable advantages:

1、The tight-buffered optical fiber is easy to strip and use;
2、It has good flame retardant properties (optional);
3、Using aramid reinforcements, the optical cable has strong tensile properties;
4、It has the advantages of corrosion resistance, UV protection, and environmental protection;

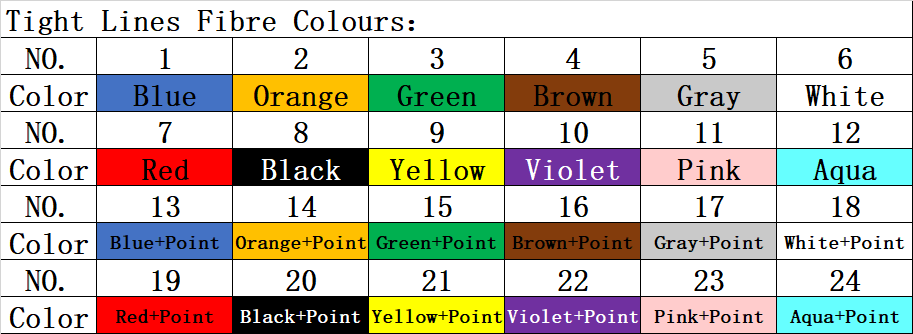

Tight lines Colors:

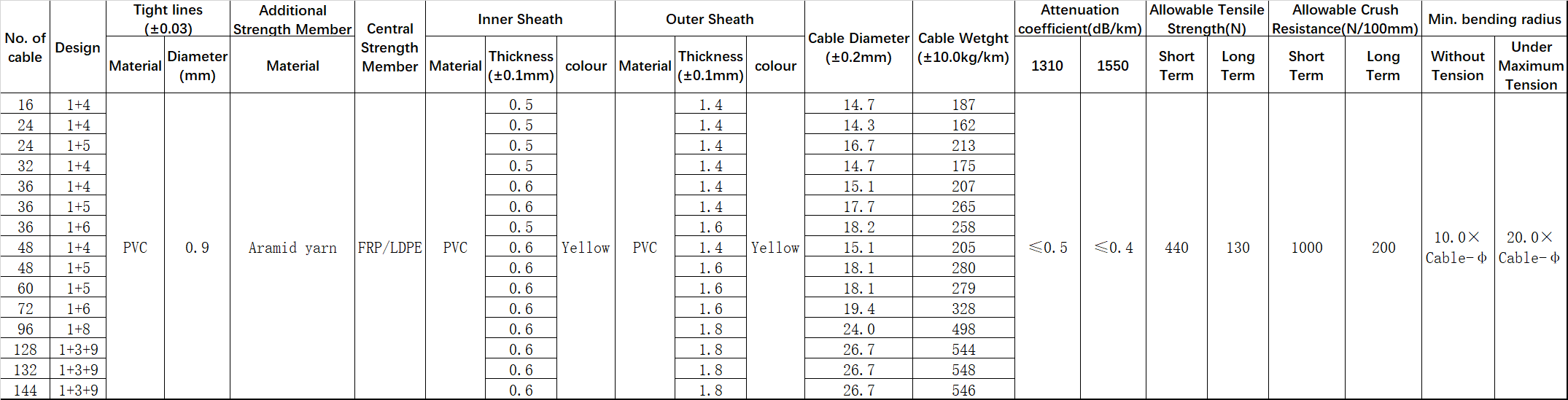

GJFJV cable specifications:

Standard length：2000m, other lengths are also available

Note: The structure’s size and specifications can be desianed according to customer requirements
