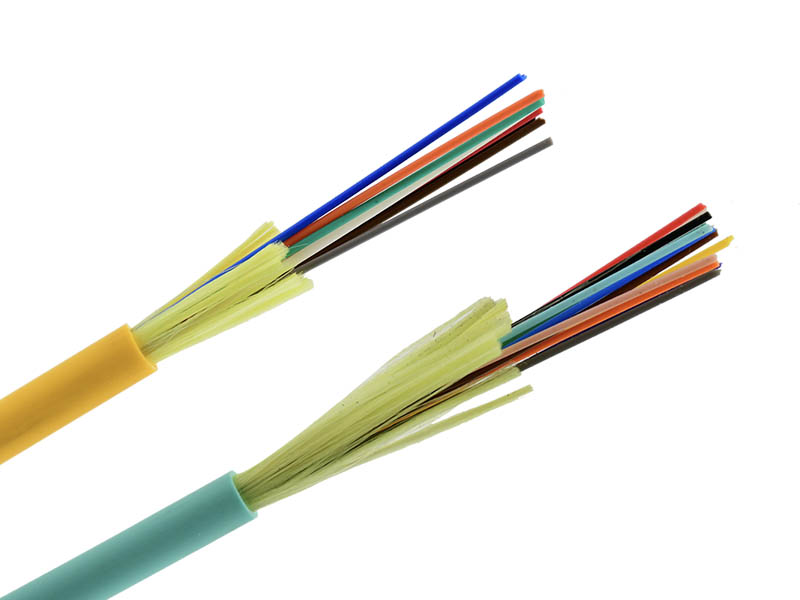

GJFJV cable types

GJFJV optical cable is a single-core tight-buffer indoor optical cable with good flexibility, corrosion resistance, anti-ultraviolet, and environmental protection. Due to the use of aramid reinforcements, the optical cable has strong tensile properties. It can be used for optical fiber movable connection jumpers or pigtails, and can also be used for indoor shaft level and forced ventilation level wiring. It can also be used for connections between instruments and communication equipment.



Standards：YD/T 1258.2-2015
Temperature Range：Storage and operation:：-40C ~ +70C；Erection：-15C ~ +60C
Laying method: branch wiring indoors and in buildings, multi-core optical fiber jumpers
Bend radius：Static 10 times the cable diameter，Dynamic 20 times optical cable diameter
Application：indoor wiring, single and double-core jumpers and pigtails, local area networks, connecting lines between equipment and instruments, trunk building passages, suspended ceilings, pallets and conduits between buildings
Fiber Type：G652D；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options

Single-mode（SM）



Multi-mode（MM）



GJFJV cable advantages:

1、The tight-buffered optical fiber is easy to strip and use;
2、It has good flame retardant properties (optional);
3、Using aramid reinforcements, the optical cable has strong tensile properties;
4、It has the advantages of corrosion resistance, UV protection, and environmental protection;

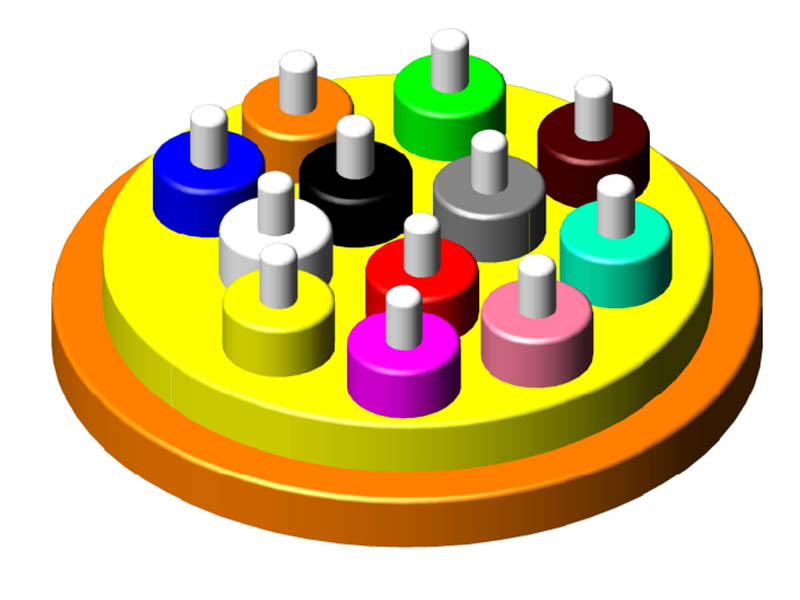

Tight lines Colors:

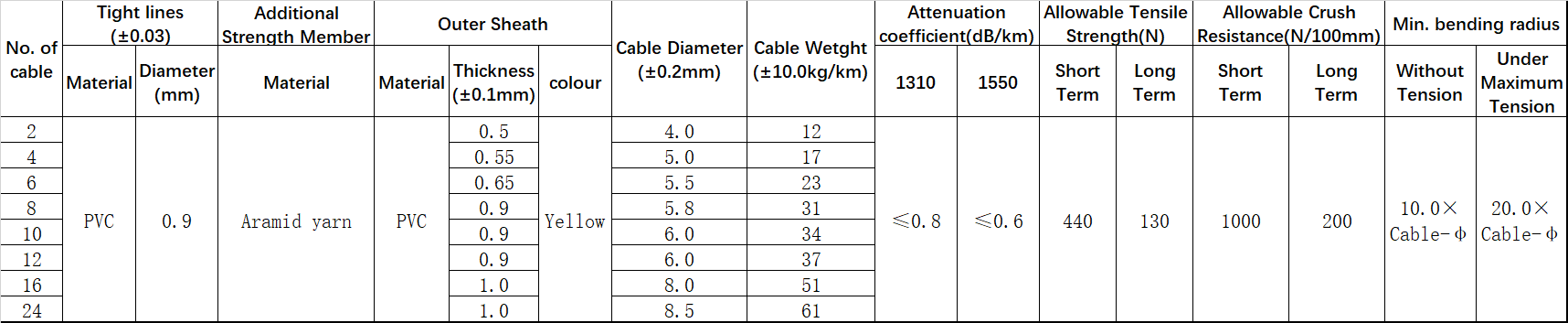

GJFJV cable specifications:

Standard length：2000m, other lengths are also available



Note: The structure’s size and specifications can be desianed according to customer requirements
