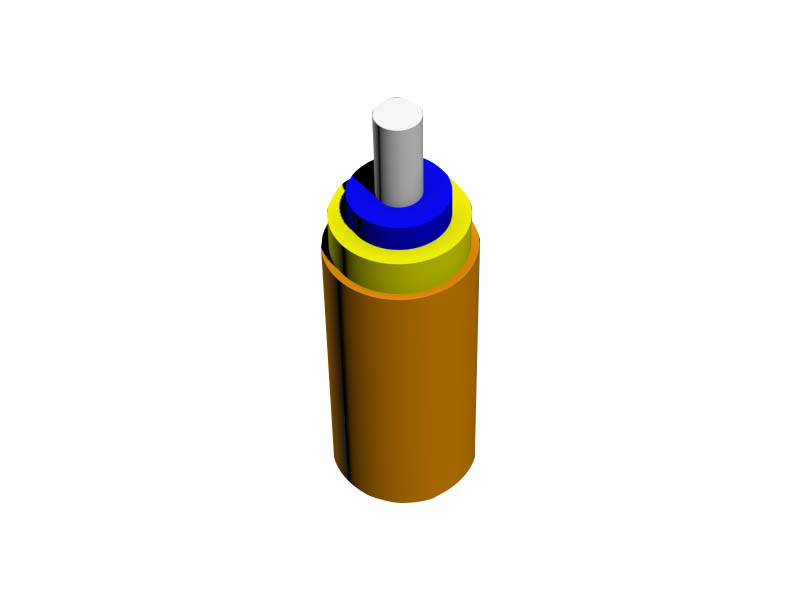

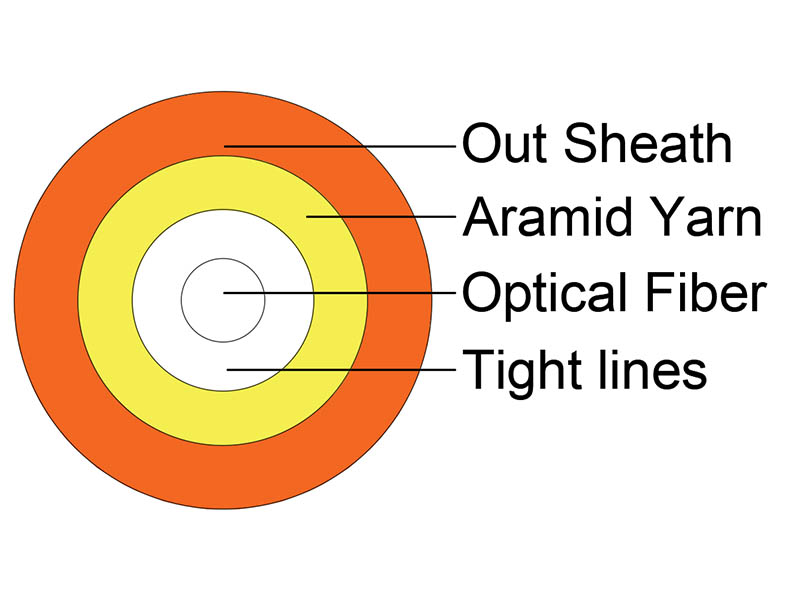

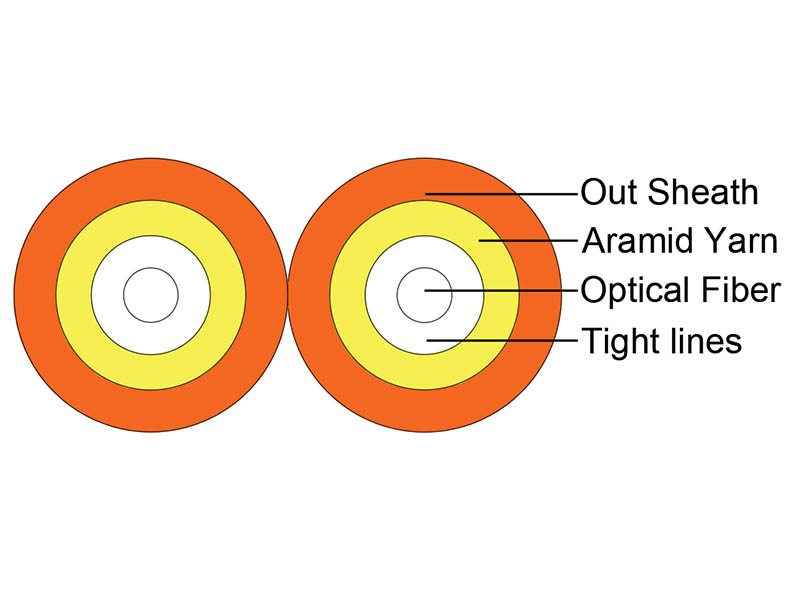

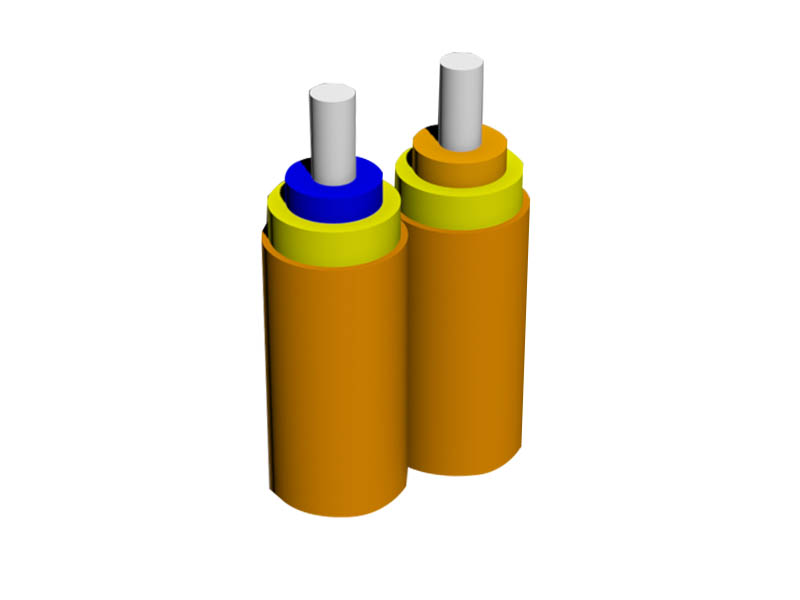

Single and double-core round cables are made by extruding a layer of buffer material (PVC or LSZH) directly outside the optical fiber to a specified size (0.9mm), covered with a layer of aramid fiber as a stress-reinforcing unit, and extruded with a layer of PVC (polymer) on the outside. Vinyl chloride) or LSZH (low smoke halogen-free) sheath protects its internal structure.
1、High-quality fiber core:
High-quality optical fiber is used internally with excellent optical performance to ensure data transmission quality.
2、Aramid reinforcement:
Made of high-strength aramid, the optical cable has good tensile properties.
3、Fire retardant:
Different sheath materials are available to meet different fire protection requirements and are safe and reliable.
Standards：YD/T 1258.2-2015
Temperature Range：Storage and operation:：-40C ~ +70C；Erection：-15C ~ +60C
Laying method: branch wiring indoors and in buildings, multi-core optical fiber jumpers
Bend radius：Static 10 times the cable diameter，Dynamic 20 times optical cable diameter
Application：indoor wiring, single and double-core jumpers and pigtails, local area networks, connecting lines between equipment and instruments, trunk building passages, suspended ceilings, pallets and conduits between buildings
Fiber Type：G652D；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
Single-mode（SM）
Multi-mode（MM）
Cable Parameter

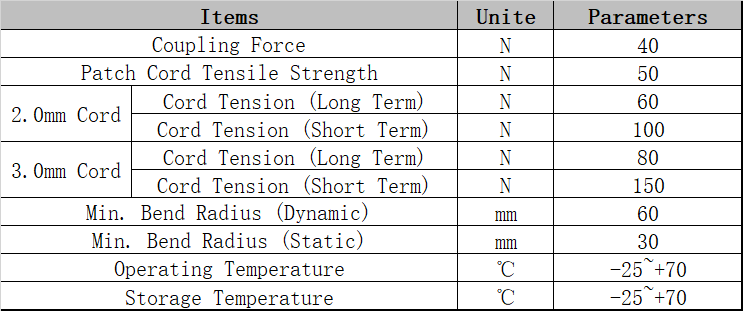

Mechanical Performance
Standard length：2000m, other lengths are also available
