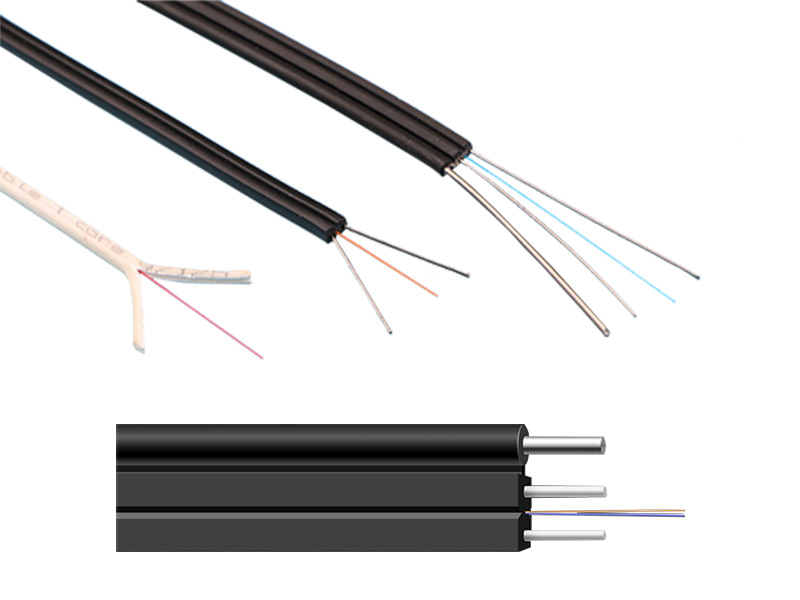

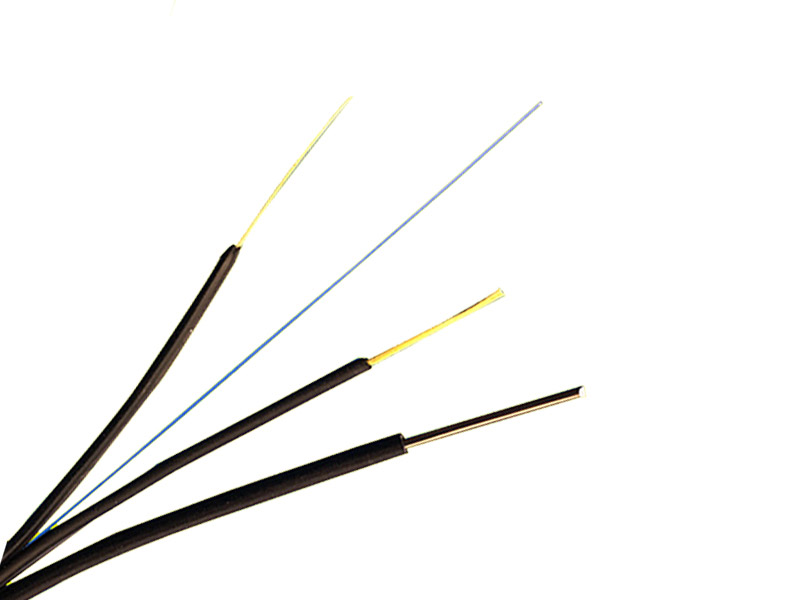

Covered optical cable is an optical cable used to transmit optical signals over short distances inside a building or outdoors. It usually consists of a protective layer with optical fibers and one or more jackets. The protective layer of covered optical cables is usually made of PVC (polyvinyl chloride) or PE (polyethylene), which can provide certain protection and wear resistance while also preventing mechanical damage to the optical fiber.
Strength Member：0.4mm Steel Wire Or 0.5mm FRP
Operating temperature：-40℃～65℃
Jacket Material：PVC、LSZH、PE
Color：Black/Grey/White
Fiber Count：2-12Core
Standards：Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、Special bend-resistant optical fiber provides large bandwidth and good communication transmission characteristics
2、Two parallel FRP or steel wires have good compression resistance and protect the optical fiber.
3、Groove design, easy to separate and connect, simplifying installation and maintenance
4、Small outer diameter, light weight, simple structure and strong practicability
5、Low-smoke halogen-free (LSZH) flame-retardant outer sheath, smooth skin, environmentally friendly and odorless
6、Butterfly incoming optical cable is the best choice for FTTH optical fiber to the home optical cable
User indoor wiring：
In the FTTH project，user indoor wiring is the most complex link，and there are many factors to consider. It is necessary to ensure line safety，indoor aesthetics，and construction convenience. Traditional single-core indoor optical cables can no longer meet the indoor wiring requirements of the current FTTH project. As a substitute for traditional indoor optical cables，Weipuxun leather optical cables can adapt to most indoor wiring conditions. For example，they can turn with a bending radius of 20mm，and can withstand the lateral pressure of people stepping on the optical cables，as well as the drag caused by engineering construction. pull. At the same time，with a variety of on-site connectors，on-site termination and docking can be achieved in the shortest time. Therefore，Weipuxun leather optical cable is the best choice for FTTH indoor wiring.
Vertical and horizontal wiring in the building：
Like user indoor wiring，Weipuxun leather optical cable is also suitable for vertical and horizontal wiring in buildings. Horizontal cabling does not have very strict requirements on optical cables，but vertical cabling must require the optical cable to have a certain tensile strength. Weipu Xun’s leather optical cable can withstand a maximum short-term pull force of 200 Newtons and a long-term pull force of 100 Newtons. Therefore，it can ensure the construction safety and stable performance of vertical wiring of leather optical cables within a certain height range.
Self-supporting overhead home wiring：
The self-supporting“8”figure optical cable has a metal suspension unit，so it has stronger tensile strength and can withstand a span of 50 meters. Optical cables are laid in an overhead manner outdoors. Before entering the home，the metal suspension wire unit is cut and fixed on a special holder. The remaining optical cables are stripped of the metal suspension wires and introduced into the room using leather optical cables.
Pipe entry wiring：
Because pipe mapping optical cables are harder and have higher tensile strength than leather cables，and the cables contain water-blocking materials that can reduce outdoor rainwater erosion，they are more suitable for longer-distance outdoor pipeline laying. Weipuxun pipeline mapping optical cable adopts an all-non-metallic structure，thus avoiding the possibility of lightning entering the room. After the optical cable is installed in the home, its outer sheath，water-blocking material and reinforcement are peeled off，and the middle coated optical cable is directly used for indoor wiring. It inherits all the advantages of indoor wiring of the coated optical cable and at the same time reduces the outdoor and indoor optical cable connections.
