Fiber Optic

gjxh-4b6
FTTH is commonly known as indoor suspended wiring optical cable. With the domestic optical fiber access market showing good development momentum, optical fiber access has become a hot spot in the field of optical communications. In optical fiber access projects, indoor wiring close to users is the most complex link. The bending and tensile properties of conventional indoor optical cables can no longer meet the needs of FTTH (fiber to the home) indoor wiring. The dish-shaped drop-in optical cable for access network (for indoor wiring) places the optical communication unit (optical fiber) in the center, and places two parallel non-metal reinforcements (FRP) or metal reinforcement members on both sides. Finally, extruded black or colored polyethylene Made of vinyl chloride (PVC) or low smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) sheath.
Send Email
WhatsApp

Fiber Optic Cable,opgw cable,adss cable,ftth drop cable,outdoor fiber cable,indoor fiber cable,air blow fiber cable,Underground Fiber optic cable,Aerial Fiber Optic Cable,Direct Buried Fiber Optic Cable,fiber cable accessories,fiber opticale cable manufacturer,fiber optic cable manufacturer


















Product description

types of ftth drop cable

ftth drop,ftth drop cable,ftth drop cable installation,ftth drop cable clamp,ftth drop cable price,ftth drop kabel,ftth drop cable distributor,ftth dropkabel,ftth drop cable cost,ftth drop cable specification,2 core ftth drop cable,types of ftth drop cable,outdoor ftth drop cable,ftth drop cable price,fiber drop cable installation,Drop cable,gjyxch-1b6a1,gjyxch-1b6,gjyxch-2b6,gjyxch-1b6a2,ftth network,ftth installation,ftth technology,ftth speed,ftth cable

ftth drop:

FTTH is commonly known as indoor suspended wiring optical cable. With the domestic optical fiber access market showing good development momentum, optical fiber access has become a hot spot in the field of optical communications. In optical fiber access projects, indoor wiring close to users is the most complex link. The bending and tensile properties of conventional indoor optical cables can no longer meet the needs of FTTH (fiber to the home) indoor wiring.

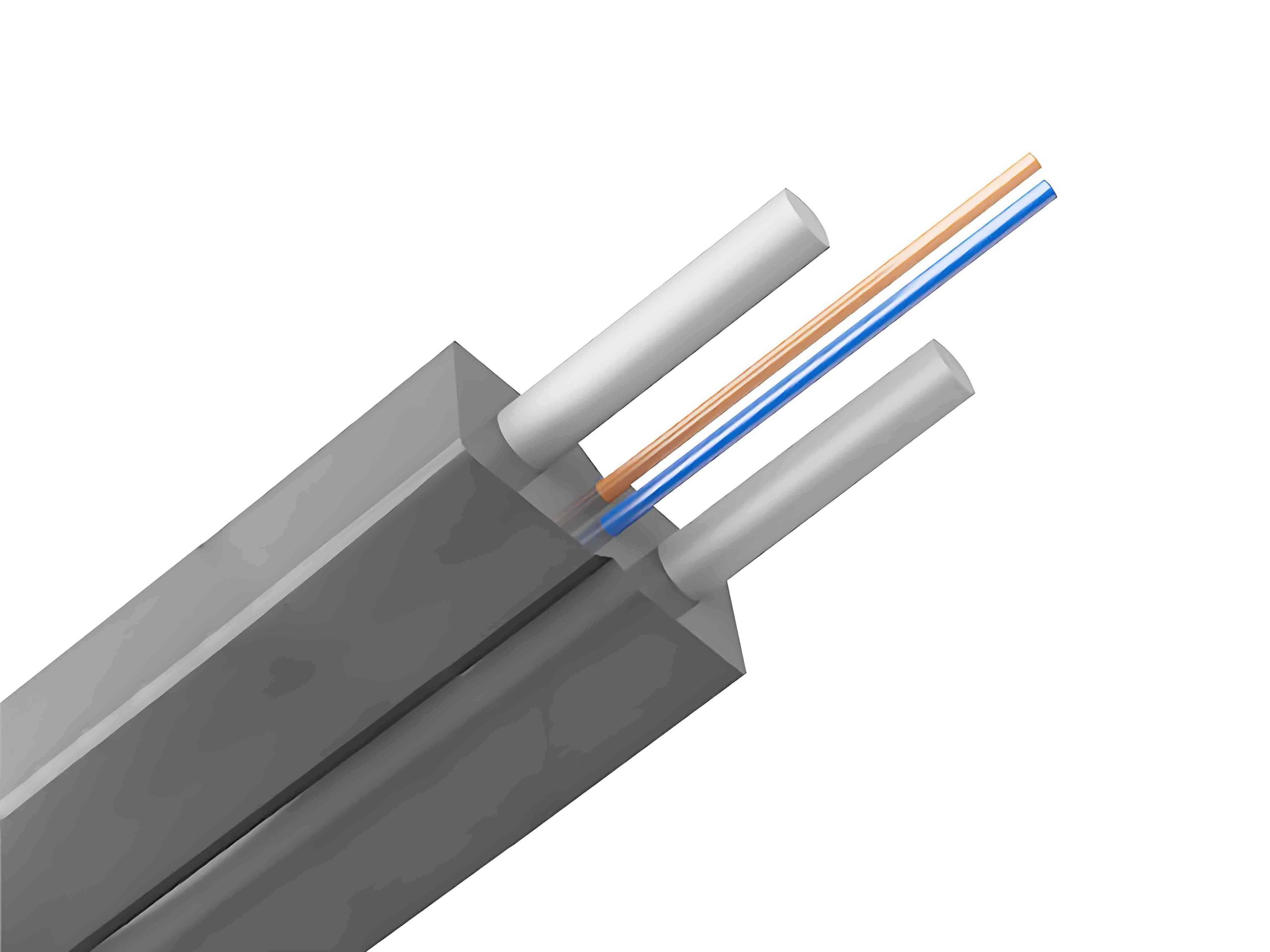

The dish-shaped drop-in optical cable for access network (for indoor wiring) places the optical communication unit (optical fiber) in the center, and places two parallel non-metal reinforcements (FRP) or metal reinforcement members on both sides. Finally, extruded black or colored polyethylene Made of vinyl chloride (PVC) or low smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) sheath.



Strength Member:0.4mm Steel Wire Or 0.5mm FRP

Operating temperature:-40℃~65℃

Jacket Material:PVC、LSZH、PE

Color:Black/Grey/White

Fiber Count:2-12Core

Standards:Comply with standard YD/T 1997-2009, ICEA-596, GR-409, IEC 60794.

g657a1,g657a1 fiber,g657a1 vs g657a2,g657a1 datasheet,g657a1 fiber specification,g657a1 lszh,g657a1 g657a2,g657a1 vs g657b3,g657a1 vs g652d,g 657.a1



ftth drop cable:

1、Special bend-resistant optical fiber provides large bandwidth and good communication transmission characteristics

2、Two parallel FRP or steel wires have good compression resistance and protect the optical fiber.

3、Groove design, easy to separate and connect, simplifying installation and maintenance

4、Small outer diameter, light weight, simple structure and strong practicability

5、Low-smoke halogen-free (LSZH) flame-retardant outer sheath, smooth skin, environmentally friendly and odorless

6、Butterfly incoming optical cable is the best choice for FTTH optical fiber to the home optical cable



Optical Fiber Colors:

fiber optic cable,fiber optic cable manufacturer,fiber optic cable factory,Fiber opticale cable Manufacturer,OPGW cable,ADSS cable,ACSR Cable,FTTH Drop cable,outdoor fiber cable,indoor fiber cable,fiber cable Accessories,Air blow fiber cable,Fiber Optic Cable,opgw cable,adss cable,ftth drop cable,outdoor fiber cable,indoor fiber cable,air blow fiber cable,Underground Fiber optic cable,Aerial Fiber Optic Cable,Direct Buried Fiber Optic Cable,fiber cable accessories,fiber opticale cable manufacturer,fiber optic cable manufacturer,fiber optic cable catalog,fiber optic cable importer,fiber optic cable jumper,fiber optic cable shop,fiber optic cable installation,fiber optic cable indonesia



ftth drop cable installation:

User indoor wiring:

In the FTTH project,user indoor wiring is the most complex link,and there are many factors to consider. It is necessary to ensure line safety,indoor aesthetics,and construction convenience. Traditional single-core indoor optical cables can no longer meet the indoor wiring requirements of the current FTTH project. As a substitute for traditional indoor optical cables,Weipuxun leather optical cables can adapt to most indoor wiring conditions. For example,they can turn with a bending radius of 20mm,and can withstand the lateral pressure of people stepping on the optical cables,as well as the drag caused by engineering construction. pull. At the same time,with a variety of on-site connectors,on-site termination and docking can be achieved in the shortest time. Therefore,Weipuxun leather optical cable is the best choice for FTTH indoor wiring.



Vertical and horizontal wiring in the building:

Like user indoor wiring,Weipuxun leather optical cable is also suitable for vertical and horizontal wiring in buildings. Horizontal cabling does not have very strict requirements on optical cables,but vertical cabling must require the optical cable to have a certain tensile strength. Weipu Xun’s leather optical cable can withstand a maximum short-term pull force of 200 Newtons and a long-term pull force of 100 Newtons. Therefore,it can ensure the construction safety and stable performance of vertical wiring of leather optical cables within a certain height range.



Self-supporting overhead home wiring:

The self-supporting“8”figure optical cable has a metal suspension unit,so it has stronger tensile strength and can withstand a span of 50 meters. Optical cables are laid in an overhead manner outdoors. Before entering the home,the metal suspension wire unit is cut and fixed on a special holder. The remaining optical cables are stripped of the metal suspension wires and introduced into the room using leather optical cables.



Pipe entry wiring:

Because pipe mapping optical cables are harder and have higher tensile strength than leather cables,and the cables contain water-blocking materials that can reduce outdoor rainwater erosion,they are more suitable for longer-distance outdoor pipeline laying. Weipuxun pipeline mapping optical cable adopts an all-non-metallic structure,thus avoiding the possibility of lightning entering the room. After the optical cable is installed in the home, its outer sheath,water-blocking material and reinforcement are peeled off,and the middle coated optical cable is directly used for indoor wiring. It inherits all the advantages of indoor wiring of the coated optical cable and at the same time reduces the outdoor and indoor optical cable connections.
