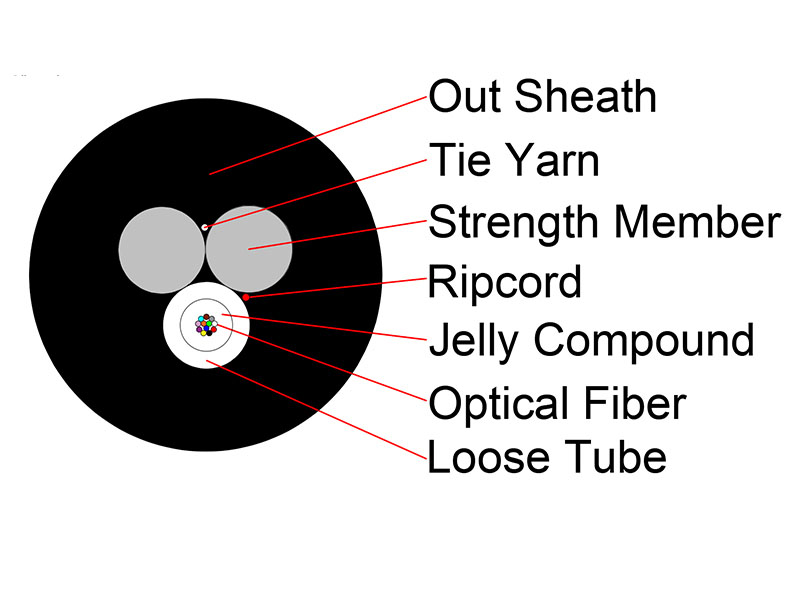

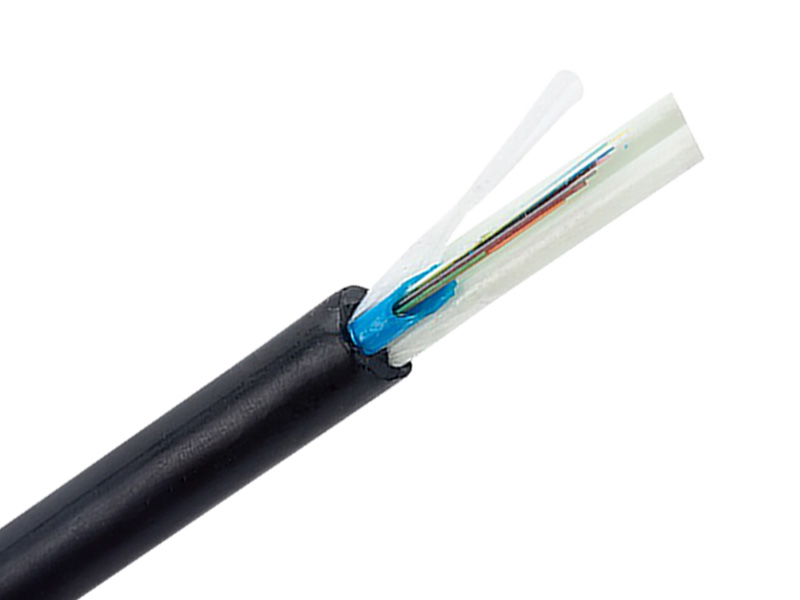

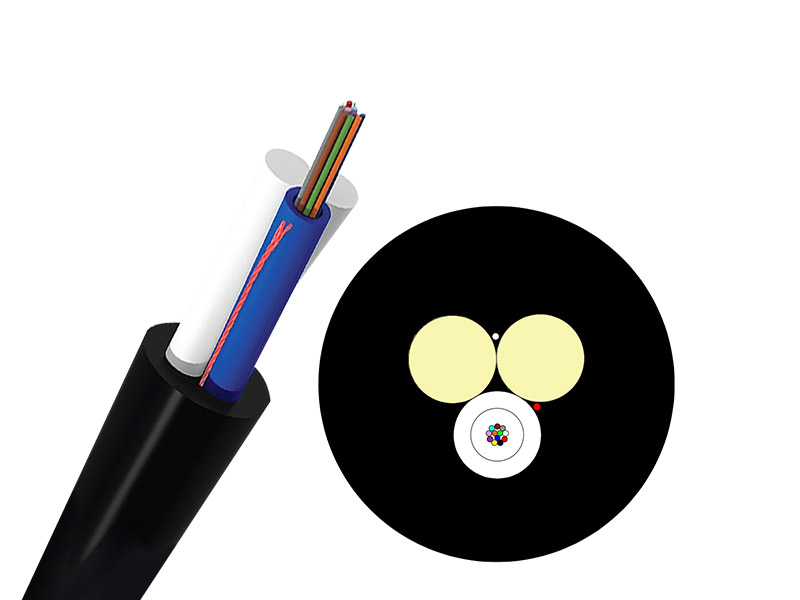

The structure of the optical cable involves encasing 250μm optical fibers within a loose-tube made of high-modulus material, filled with waterproofing compound. The loose-tube and FRP (Fiber Reinforced Plastic) are twisted together in an SZ stranding. Water-blocking yarn is added within the cable core to prevent water ingress, followed by extruding polyethylene to form the cable sheath. A ripcord can be used underneath the cable sheath to tear it open.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Single Loose tube Mini ADSS Cable
Jacket Material：Polyethylene (PE)
Fiber Count：2-24Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：FRP
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.
Product structure：PBT loose tube，FRP，PE sheath

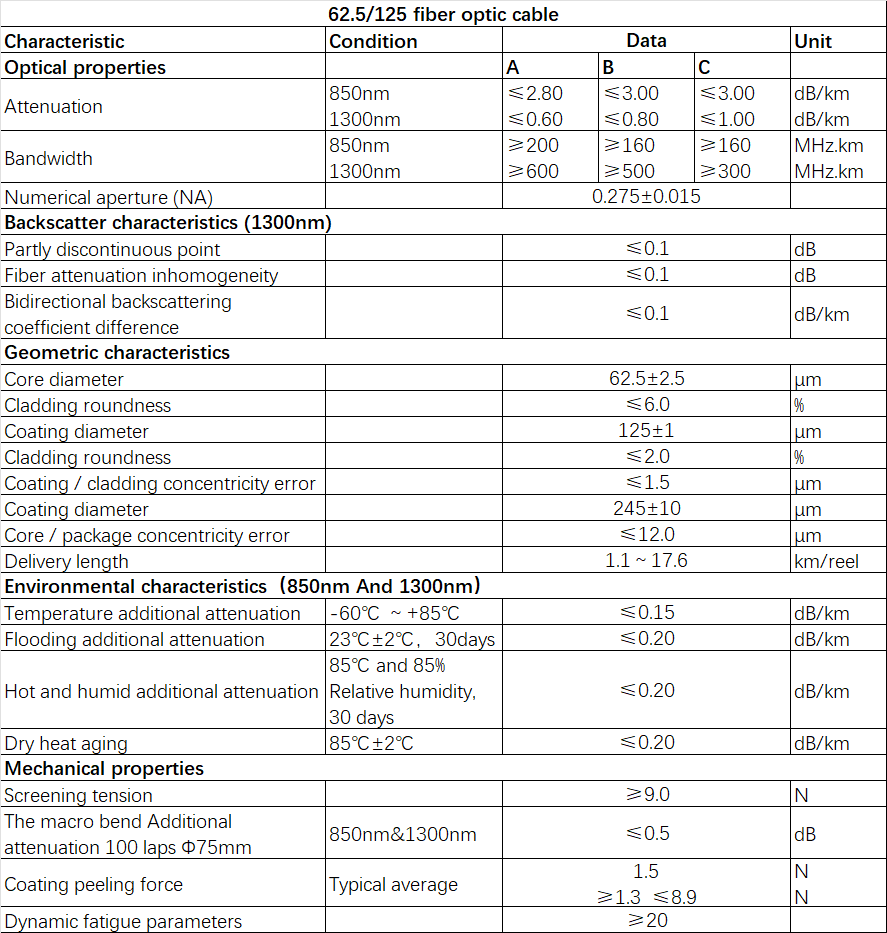

Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、The unique second layer coating and stranding technology provide sufficient space and bending resistance for the optical fiber，thereby ensuring that the optical fiber in the electric cable has good optical performance
2、Precise process control ensures good mechanical properties and temperature performance
3、High-quality raw materials ensure a long service life of the cable
Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.ASU fiber optic cables are used in a wide variety of applications including telecommunications networks, cable television, data centers, industrial automation equipment, military and aerospace, and more. In general, due to the advantages of high bandwidth, long-distance transmission capability and anti-electromagnetic interference, ASU optical cables have a wide range of applications and become an important part of many modern communication and information systems.

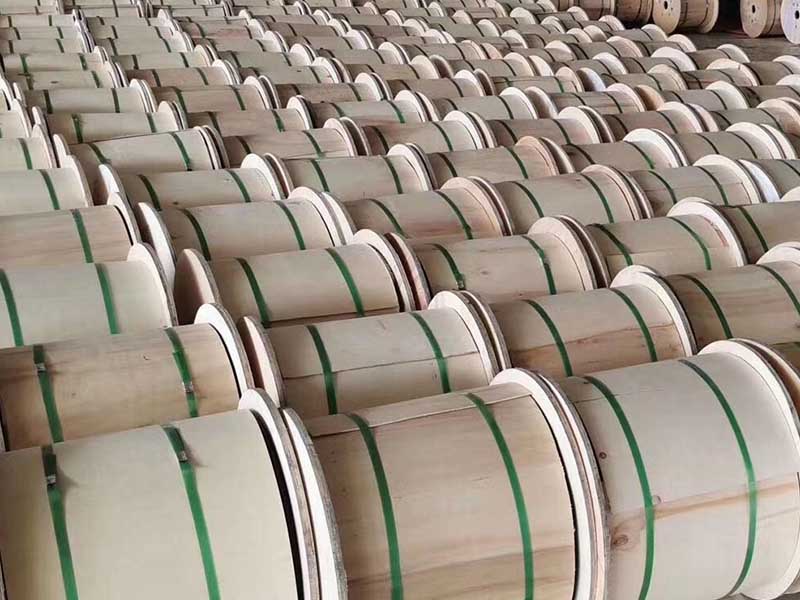

Standard length：2000m, other lengths are also available
