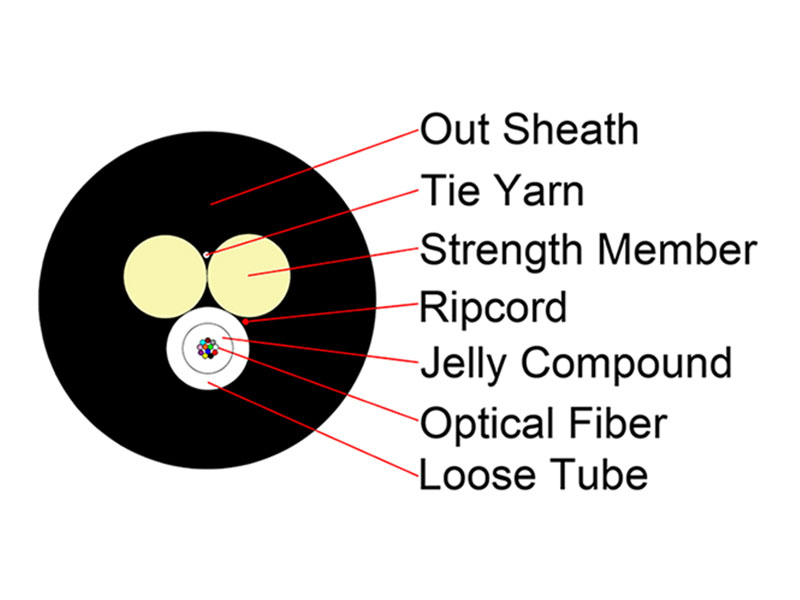

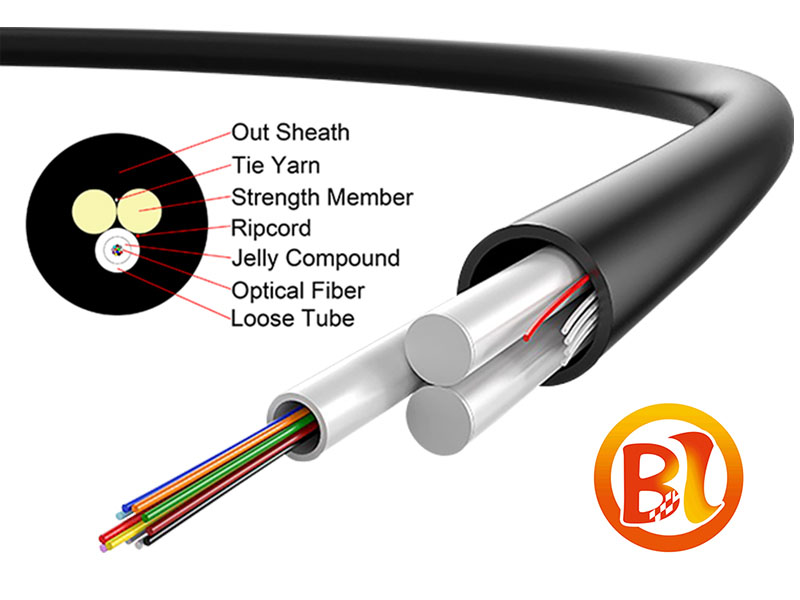

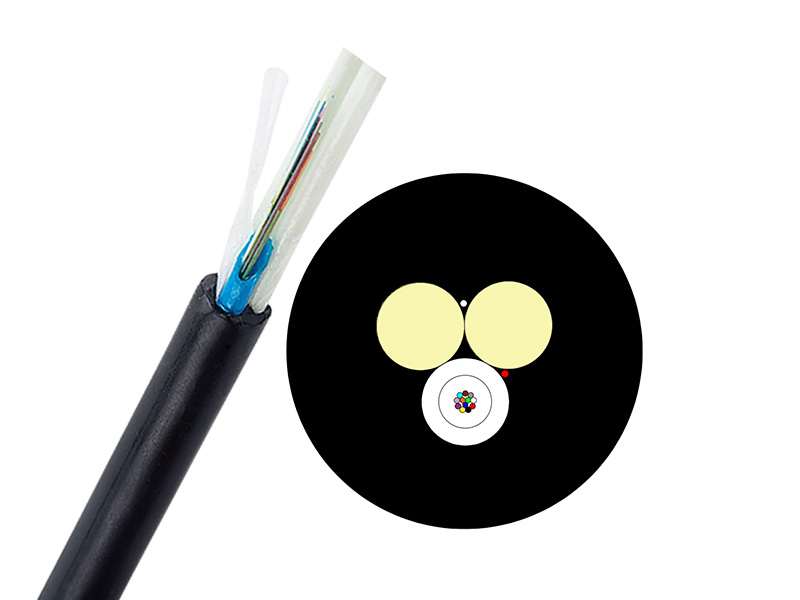

The structure of the optical cable is to insert a 250μm optical fiber into a loose tube made of high modulus material，and the loose tube is filled with a waterproof compound. The loose tube and FRP are twisted together by SZ. Water-blocking yarn is added to the cable core to prevent water seepage，and then a polyethylene sheath is extruded into the cable. A stripper cord can be used to tear the fiber optic cable jacket apart.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Single Loose tube Mini ADSS Cable
Jacket Material：Polyethylene (PE)
Fiber Count：2-24Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：FRP
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.
Product structure：PBT loose tube，FRP，PE sheath
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、The unique second layer coating and stranding technology provide sufficient space and bending resistance for the optical fiber，thereby ensuring that the optical fiber in the electric cable has good optical performance
2、Precise process control ensures good mechanical properties and temperature performance
3、High-quality raw materials ensure a long service life of the cable
Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.ASU fiber optic cables are used in a wide variety of applications including telecommunications networks, cable television, data centers, industrial automation equipment, military and aerospace, and more. In general, due to the advantages of high bandwidth, long-distance transmission capability and anti-electromagnetic interference, ASU optical cables have a wide range of applications and become an important part of many modern communication and information systems.
Standard length：2000m, other lengths are also available
