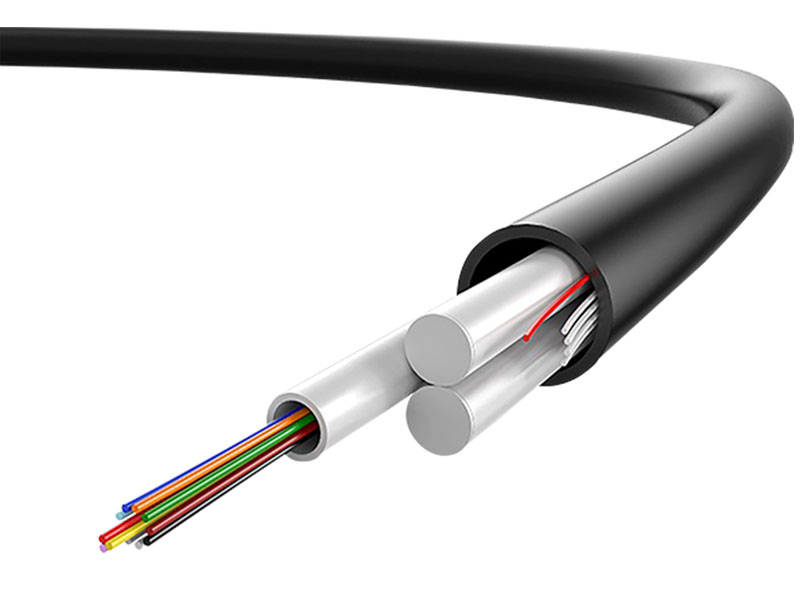

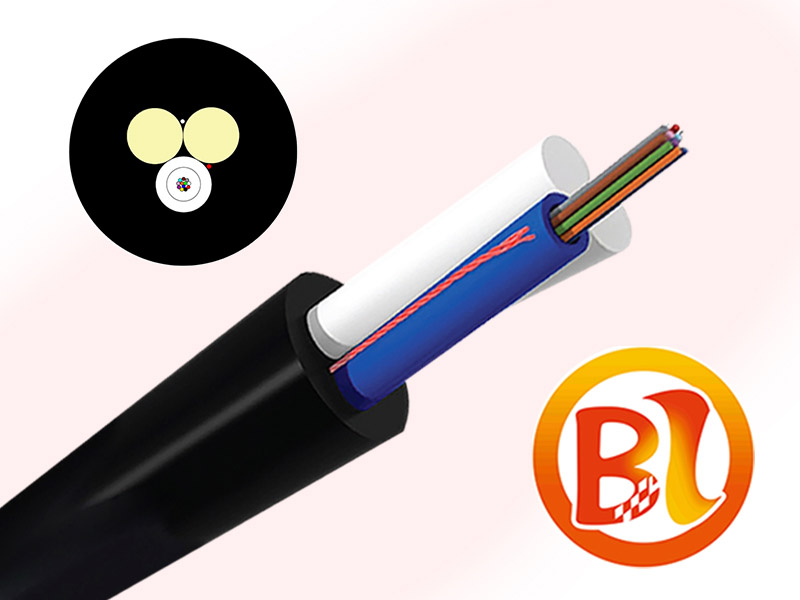

Two parallel fiber reinforced plastic (FRP) elements are placed on the two sides. The ASU fiber optic cable is covered with a single PE outer sheath. Aerial Self-Supported ASU fiber optic cable has a loose tube structure and water-resistant gel compound to provide crucial protection for the fiber. Over the tube, water-blocking material is applied to keep the cable watertigh
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Single Loose tube Mini ADSS Cable
Jacket Material：Polyethylene (PE)
Fiber Count：2-24Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：FRP
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

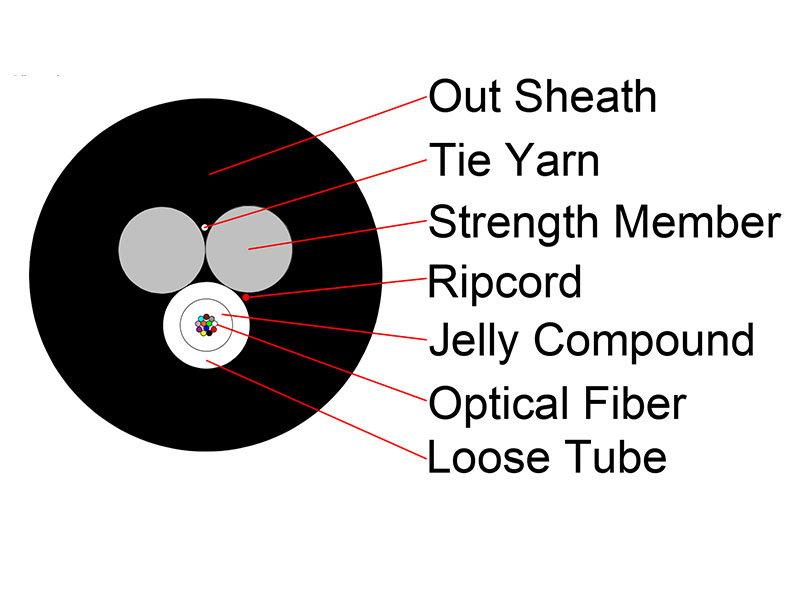

Product structure：PBT loose tube，FRP，PE sheath
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、The unique second layer coating and stranding technology provide sufficient space and bending resistance for the optical fiber，thereby ensuring that the optical fiber in the electric cable has good optical performance
2、Precise process control ensures good mechanical properties and temperature performance
3、High-quality raw materials ensure a long service life of the cable
Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.ASU fiber optic cables are used in a wide variety of applications including telecommunications networks, cable television, data centers, industrial automation equipment, military and aerospace, and more. In general, due to the advantages of high bandwidth, long-distance transmission capability and anti-electromagnetic interference, ASU optical cables have a wide range of applications and become an important part of many modern communication and information systems.
Standard length：2000m, other lengths are also available
