adss cable–400M

ADSS stands for "All-Dielectric Self-Supporting" cable. It is a type of optical fiber cable that is specifically designed for use in overhead applications，such as along power lines，utility poles，or other aerial installations. ADSS cables are unique in that they do not require a metallic conductor or support messenger wire to bear the weight of the cable itself. Instead, ADSS cables are designed to be self-supporting，which means they can be strung along a pole or tower without the need for additional support structures.

Send Email

Product description

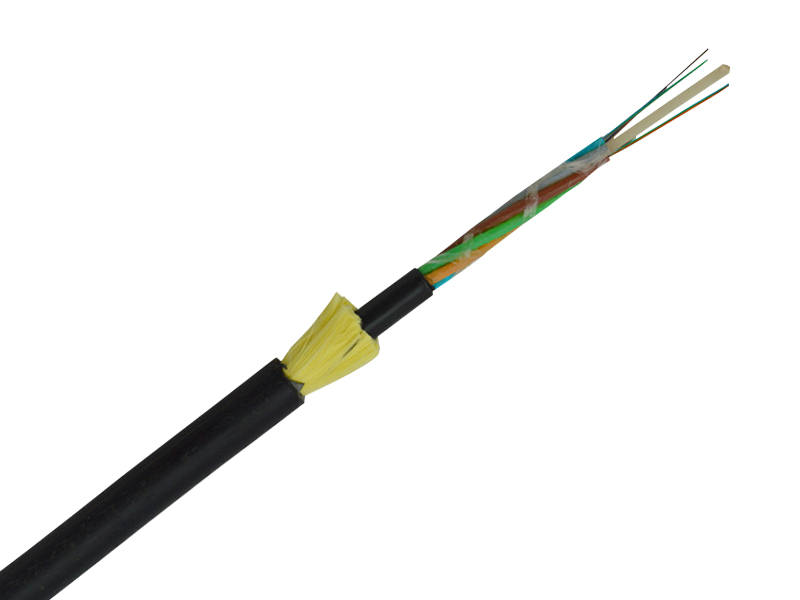

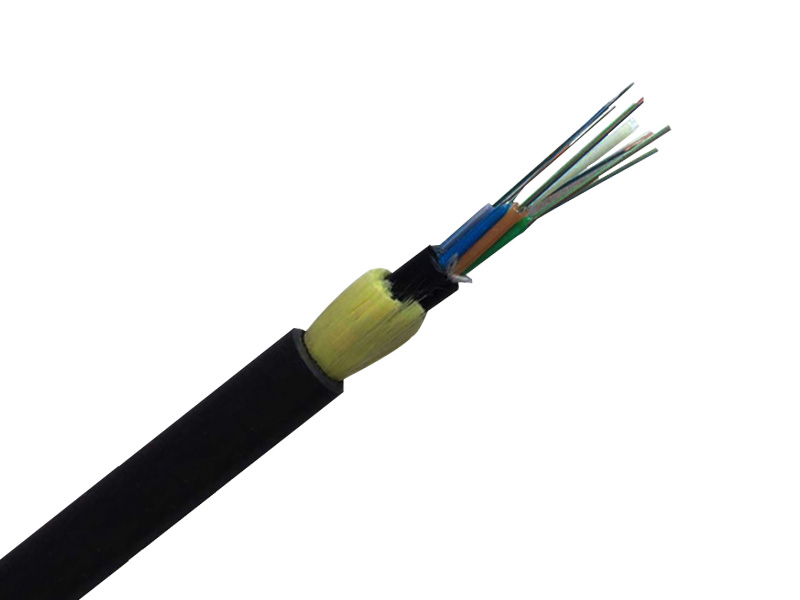

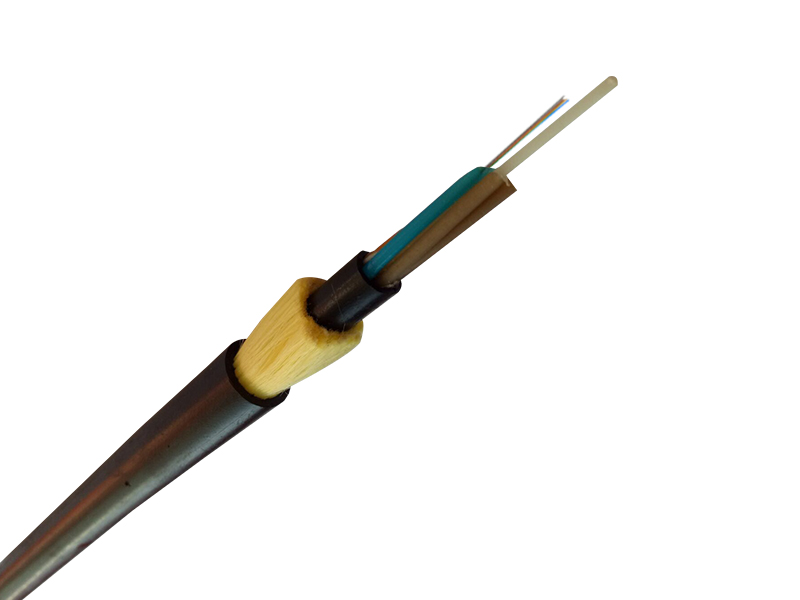

All Dielectric Self-Supporting Optical Fiber Cable – Double Jacket ADSS 400M

adss fiber meaning

ADSS stands for “All-Dielectric Self-Supporting” cable. It is a type of optical fiber cable that is specifically designed for use in overhead applications，such as along power lines，utility poles，or other aerial installations. ADSS cables are unique in that they do not require a metallic conductor or support messenger wire to bear the weight of the cable itself. Instead, ADSS cables are designed to be self-supporting，which means they can be strung along a pole or tower without the need for additional support structures.

Operating temperature：-40℃～65℃

Characteristic：All Dielectric

Cable Type：Stranded Loose tube ADSS Cable

Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath

Fiber Count：12-144Core

Subunit Type：Gel-filled

Environmental Space：Self-supporting Aerial

Armor：Aramid Yarn| KEVLAR

Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

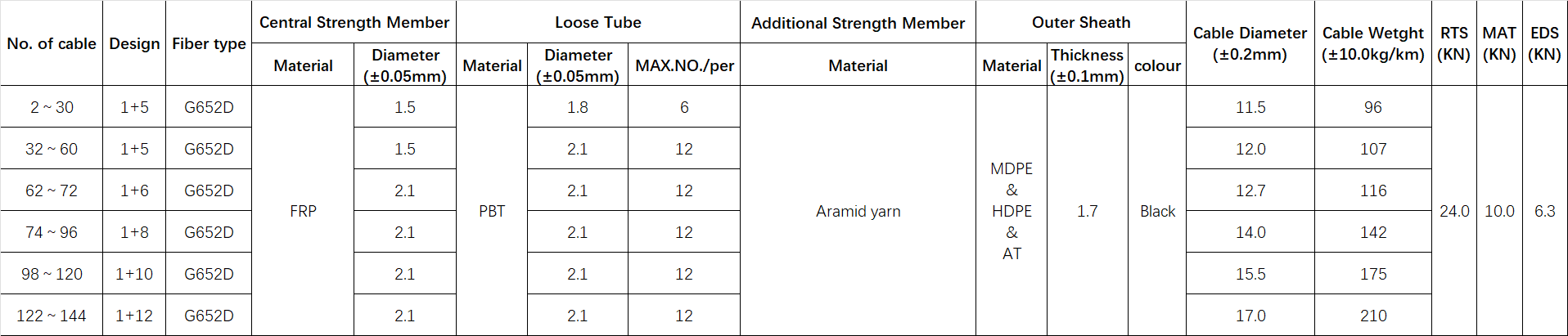

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath

Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.

Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options

g652d standard，g652d fiber specification，g652d fiber optic cable，g652d cable，g652d fiber，g652d fiber cable，g652d g657a1 g657a2，g652d vs g657a1

adss cable meaning：

1、Dielectric Construction：ADSS cables are made entirely of dielectric (non-metallic) materials，including the central optical fibers and the outer sheath. This dielectric design makes them suitable for high-voltage environments where electrical conductivity could be a safety concern.

2、Strength Members：To provide the necessary tensile strength for the cable to withstand wind and ice loads，ADSS cables typically incorporate aramid or fiberglass strength members within the cable’s core. These strength members help the cable maintain its shape and position on the supporting structure.

3、Weather Resistance：ADSS cables are designed to withstand various weather conditions，such as high winds，ice，and UV radiation. The outer sheath of the cable is typically UV-resistant to protect it from the sun’s harmful effects.

4、Lightweight：ADSS cables are relatively lightweight compared to traditional metallic cables and are easier to install on existing infrastructure.
