ADSS is used for high-voltage transmission lines and utilizes power system transmission tower trunks. The entire optical cable is a non-metallic medium and is self-supporting and suspended on the power tower at the position with the smallest power intensity. It is used in existing high-voltage transmission lines. It has high safety，no electromagnetic/strong current interference，and a large span. It is favored by the majority of power system users and has been widely used in the communication construction of urban power system transformation and rural power grid transformation. Applications
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath

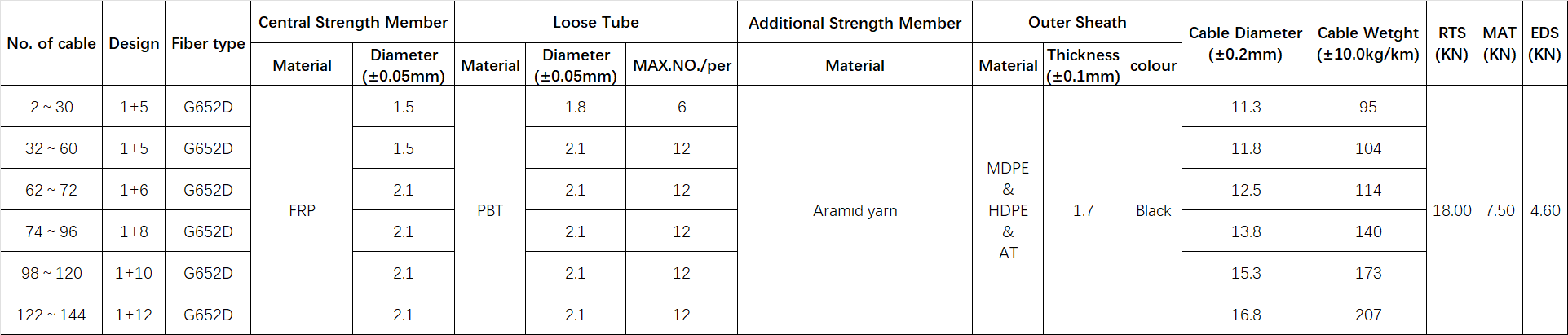

Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

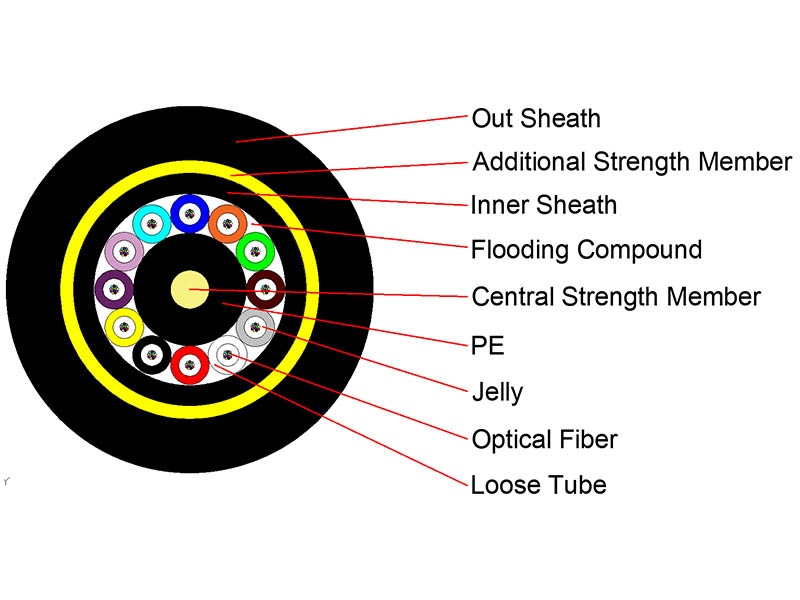

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、Construction work is simple. It eliminates the need for standing poles，erecting steel strand suspension wires，and hanging pulleys on the suspension wires to lay optical cables. It can fly directly across fields，ridges，and rivers just like power lines.
2、Communication lines and power lines form separate systems. No matter which line fails，maintenance and inspection will not affect each other.
3、Compared with the bundled and twisted optical cables used in power systems，ADSS does not rely on power lines or ground wires and is erected separately on towers，allowing construction without power outages.
4、Optical cables have superior performance in high-intensity electric fields and are not subject to electromagnetic interference. The outer sheath made of special materials protects them from lightning strikes.
5、It eliminates the communication line survey and tower construction process，and simplifies the project construction.
6、The small diameter and light weight of the optical cable reduce the impact of ice and wind on the optical cable, and also reduce the load on the tower and supports. To maximize the utilization of pole and tower resources，high-voltage transmission cables below 500KV will be widely used.
Standard length：2000m, other lengths are also available
