adss cable–200M

ADSS optical cable is also called all-media self-supporting optical cable. All-media means that the optical cable uses all-media materials. Self-supporting means that the reinforced components of the optical cable can withstand its own weight and external loads. This name points out the usage environment and key technologies of this optical cable: because it is self-supporting, its mechanical strength is very important；the use of all-dielectric materials is because the optical cable is in a high-voltage and strong electric environment and must be able to withstand strong electric current. Impact： Since it is used overhead on a power tower，there must be matching pendants to fix the optical cable on the tower.

Send Email

Product description

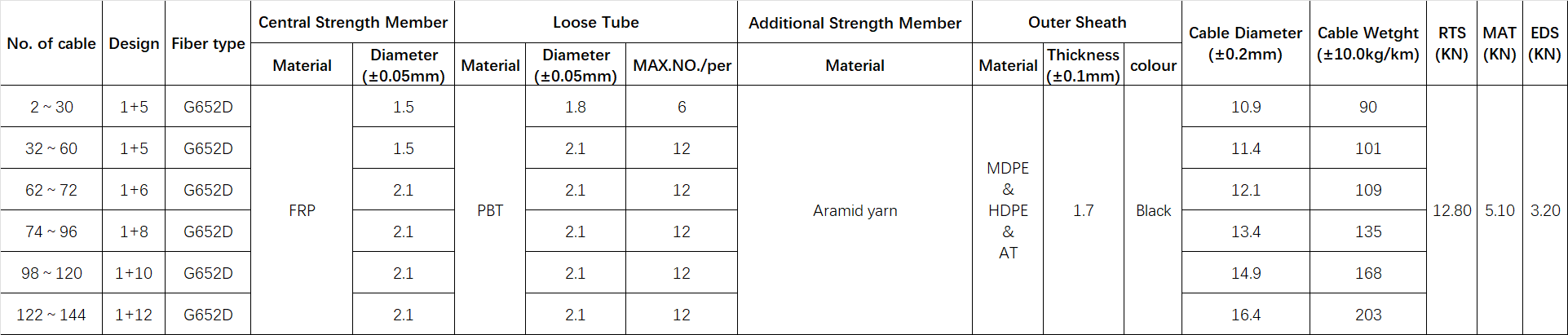

All Dielectric Self-Supporting Optical Fiber Cable – Double Jacket ADSS 200M

adss fiber meaning

Operating temperature：-40℃～65℃

Characteristic：All Dielectric

Cable Type：Stranded Loose tube ADSS Cable

Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath

Fiber Count：12-144Core

Subunit Type：Gel-filled

Environmental Space：Self-supporting Aerial

Armor：Aramid Yarn| KEVLAR

Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath

Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.

Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options

om3-150，om3-150 fiber，fr-om3-150-usc-ulc，is om3 fiber single mode or multimode，single mode om3，om3 vs om4，om3 fiber distance，om3 fiber cable，150 ft fiber optic cable， om3 cables，om3 fiber specs， om3 single mode，OM1, OM2, OM3,OM4

adss cable meaning：

(1) Use it as the incoming and outgoing optical cable of the OPGW system relay station. Based on its safety attributes，it can well solve the power isolation problem when introducing and outgoing the relay station.
(2) Use it as a transmission cable for optical fiber communication systems in high-voltage (110kV-220kV) power networks. In particular，many places conveniently make use of it when renovating old communication lines.
(3) Use it for optical fiber communication systems in 6kV~35kV~180kV distribution networks.
