ADSS optical cable，All-dielectric Self-supporting Optical Cable(also known as all-dielectric self-supporting optical cable). A full-dielectric (metal-free) optical cable is independently hung along the transmission line frame on the inside of the power conductor(the hanging position is mainly determined by factors such as the electric field strength at the hanging place、distance from the ground、construction and maintenance convenience conditions、etc. Currently、most of them are framed Hanging below the power conductor)to form an optical fiber communication network on the transmission line. This optical cable is called ADSS.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath
Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

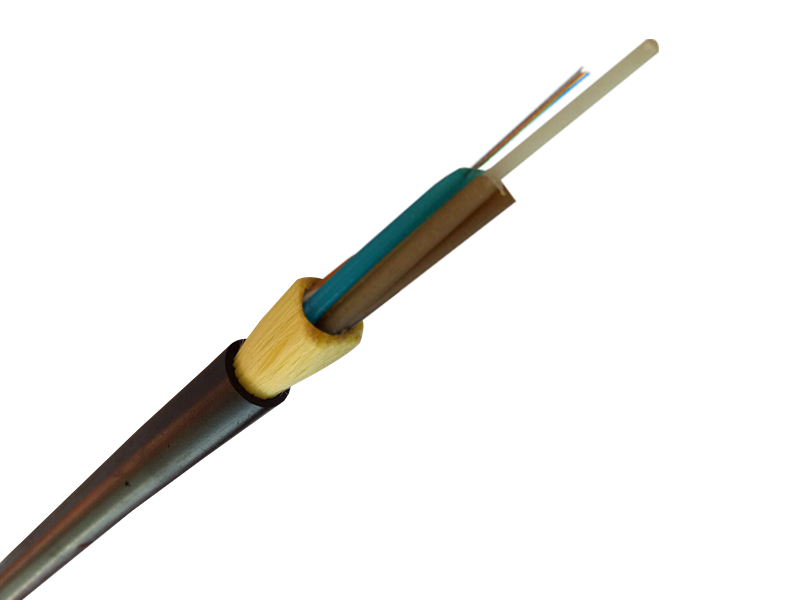

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、Used as the lead-in and lead-out optical cable of the OPGW system relay station. Based on its safety attributes，it can well solve the power isolation problem when introducing and leading out the relay station.
2、As a transmission cable for optical fiber communication systems in high-voltage (110kV-220kV) power networks. In particular， many places conveniently make use of it when renovating old communication lines.
3、Used in optical fiber communication systems in 6kV~35kV~180kV distribution networks.
Standard length：2000m, other lengths are also available
