ADSS optical cable can be installed without cutting off the power supply，and has the characteristics of large span，good tensile strength performance，light weight，small diameter，strong structure，flexible，reliable，fast，easy to install and maintain，low cost，and immune to the influence of ice and wind. It has the advantages of being small，able to withstand its weight and external loads，eliminating bonding and grounding，resisting electrical corrosion，suitable for harsh climates，non-metallic structure，good insulation，and lightning protection.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath
Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

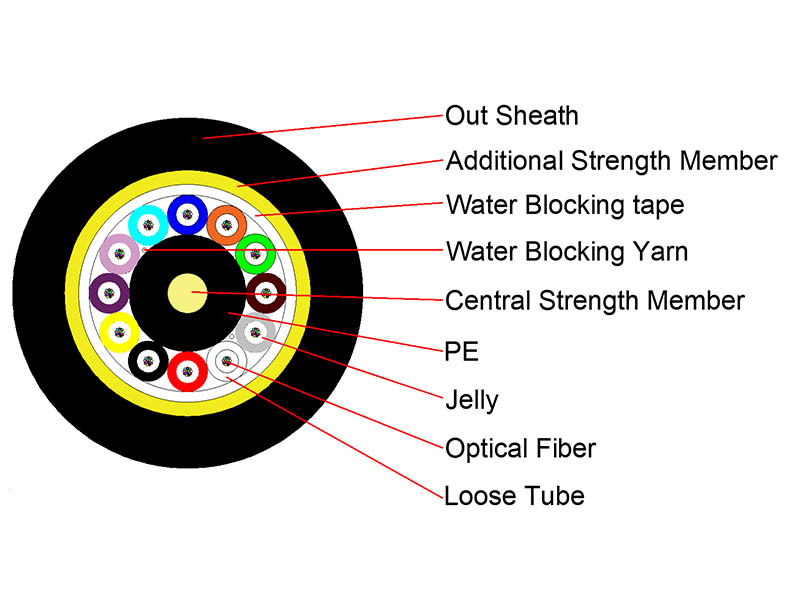

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
1、Used as the lead-in and lead-out optical cable of the OPGW system relay station. Based on its safety attributes，it can well solve the power isolation problem when introducing and leading out the relay station.
2、As a transmission cable for optical fiber communication systems in high-voltage (110kV-220kV) power networks. In particular， many places conveniently make use of it when renovating old communication lines.
3、Used in optical fiber communication systems in 6kV~35kV~180kV distribution networks.
Standard length：2000m, other lengths are also available
