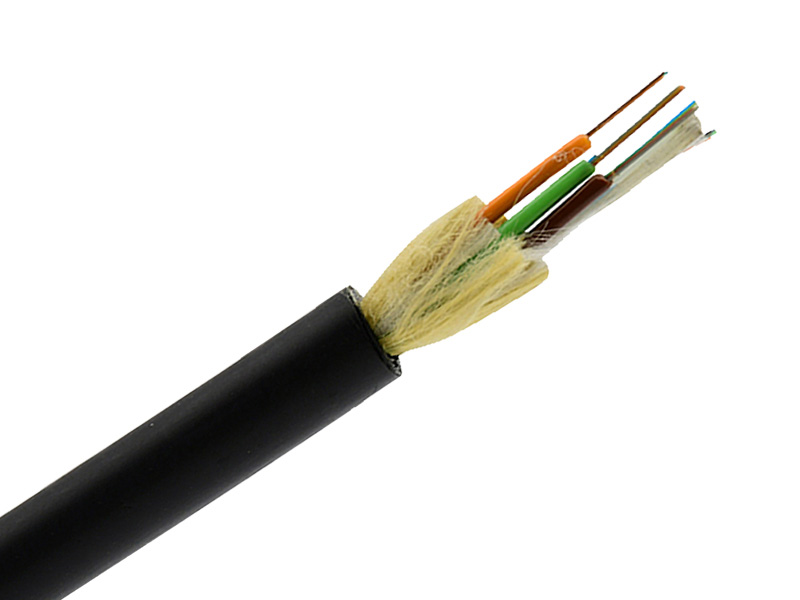

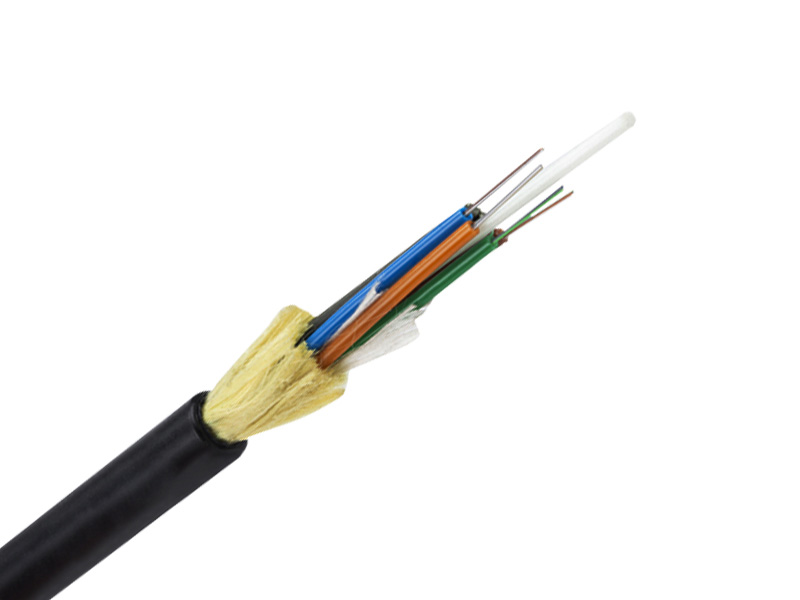

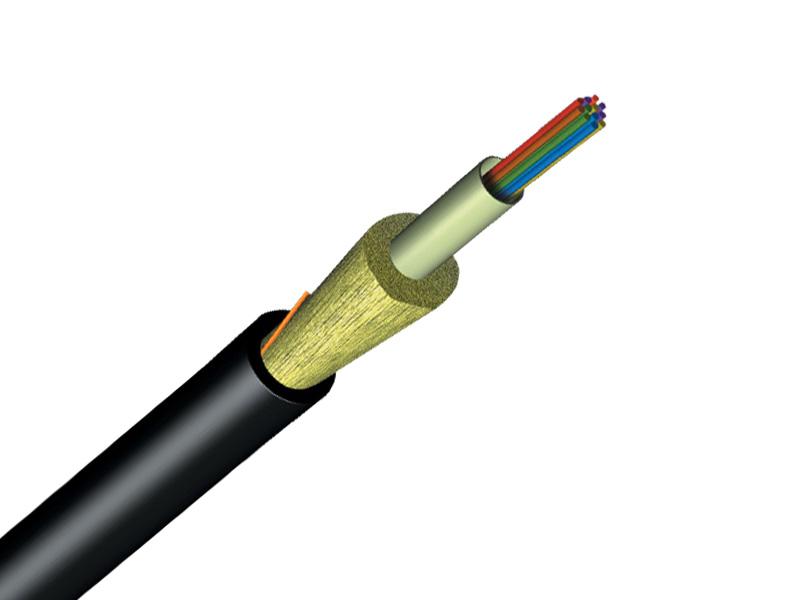

All-dielectric self-supporting optical cable (ADSS) has the characteristics of metal-free, tension-resistant, self-supporting, high insulation, non-inductive, thin diameter, light, easy to construct and economical. It is a composite optical cable made by winding the optical fiber bundle around the central strengthening member and taking protective measures such as insulation, waterproofing, reinforcement, and sheathing.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath
Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

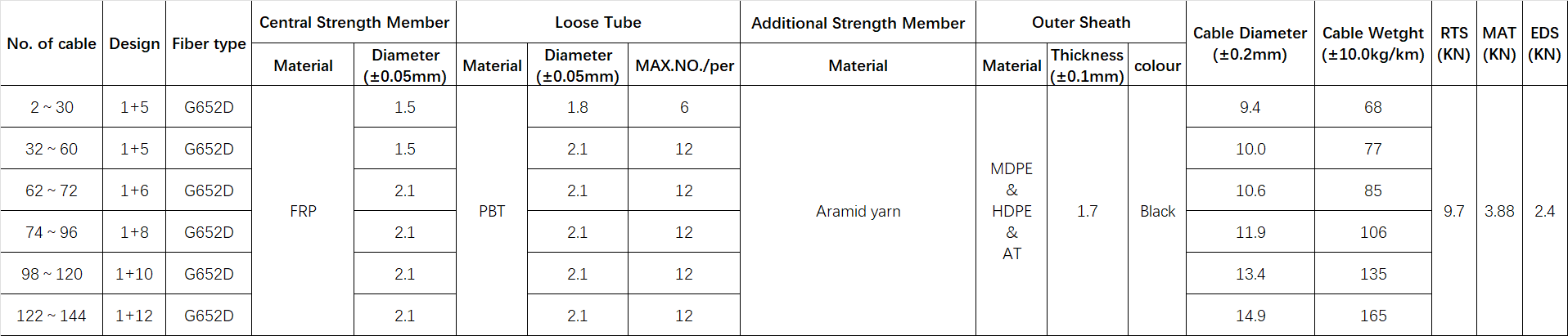

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
1、ADSS optical cable design elements：
2、The environmental meteorological area：(1) wind speed、(2) ice thickness、(3) temperature、(4) topography
3、The power lines being erected：rated high voltage and maximum operating voltage
4、Tower type、model and arrangement of wires and ground wires
5、Tension section length、standard blocking distance (representative blocking distance、maximum horizontal blocking distance、maximum vertical blocking distance)
6、The maximum sag of the wires and ground wires in each tension section.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
Standard length：2000m, other lengths are also available
