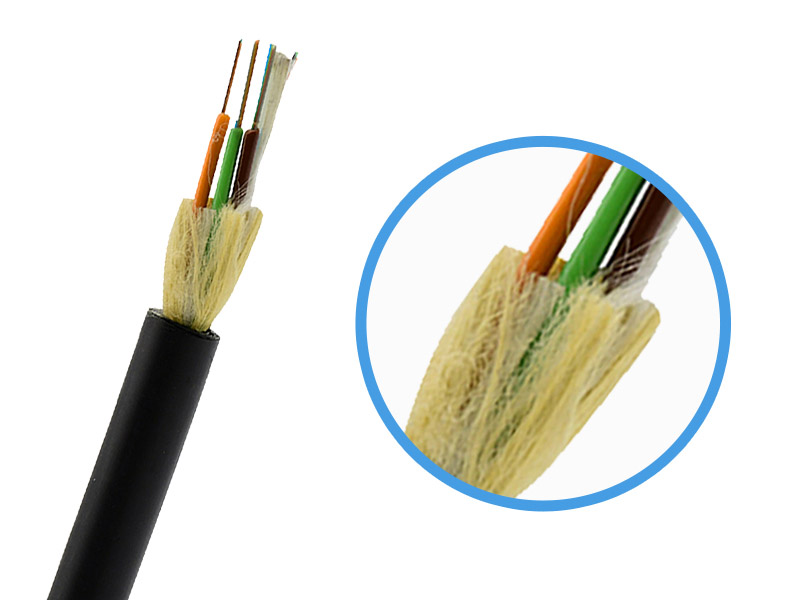

All-dielectric self-supporting optical cable (ADSS) has the characteristics of metal-free，tension-resistant，self-supporting，high insulation，non-inductive，thin diameter，easy construction and economical. A composite optical cable made by winding the optical fiber bundle around the central reinforcement and taking protective measures such as insulation，waterproofing，reinforcement，and sheathing. The number of cores is 4-144 cores, and the specific production can be customized.
Operating temperature：-40℃～65℃
Characteristic：All Dielectric
Cable Type：Stranded Loose tube ADSS Cable
Jacket Material：Polyethylene (PE) | AT(anti-tracking)Sheath
Fiber Count：12-144Core
Subunit Type：Gel-filled
Environmental Space：Self-supporting Aerial
Armor：Aramid Yarn| KEVLAR
Standards：Comply with standard IEC 60794-4、IEC 60793、TIA/EIA 598 A.

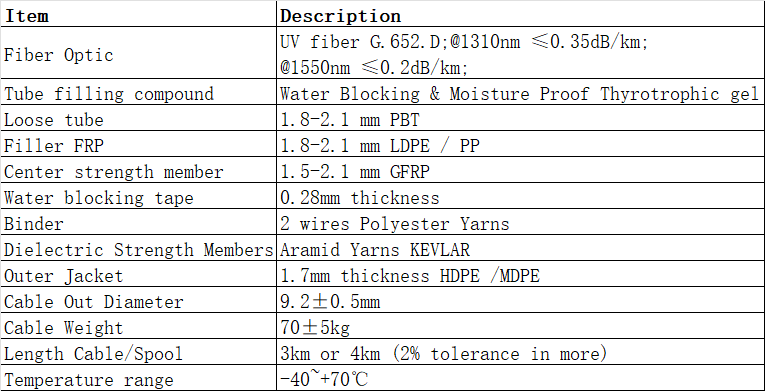

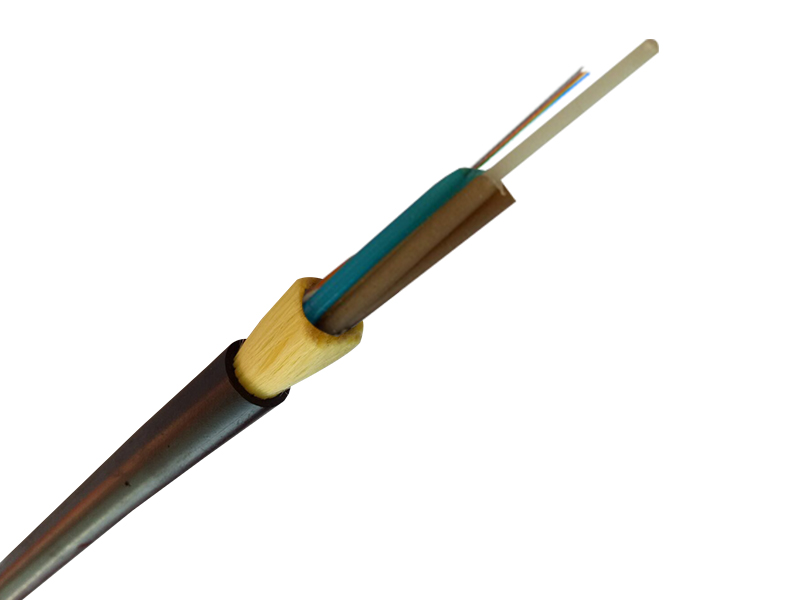

Product structure：PBT loose tube，non-metallic central reinforcement (FRP)，PE inner sheath，aramid fiber layer，PE outer sheath or anti-tracking outer sheath
Applications：Self-support Aerial Installation，Used for communication lines in overhead high-voltage transmission systems，lightning-prone areas，large-span and other overhead laying environments.
All-dielectric self-supporting ADSS (All Dielectric Self Supporting) optical cables provide fast and economical transmission channels for power communication systems due to their unique structure，good insulation, high temperature resistance，and high tensile strength. Generally speaking, ADSS optical cable is cheaper than optical fiber composite ground cable OPGW (OPtical fiber composite ground wh) in many applications，and it is easier to install. It is advisable to use power lines or towers near them to erect ADSS optical cables，and even in some places it is necessary to use ADSS optical cables. The main uses of ADSS optical cables are：
(1) Use it as the incoming and outgoing optical cable of the OPGW system relay station. Based on its safety attributes，it can well solve the power isolation problem when introducing and outgoing the relay station.
(2) Use it as a transmission cable for optical fiber communication systems in high-voltage (110kV-220kV) power networks. In particular，many places conveniently make use of it when renovating old communication lines.
(3) Use it for optical fiber communication systems in 6kV~35kV~180kV distribution networks.
Fiber Type: G652D；G655C；G657A1；G657A2；50/125；62.5/125；OM3-150；OM3-300；OM4 As Options
Standard length：2000m, other lengths are also available
