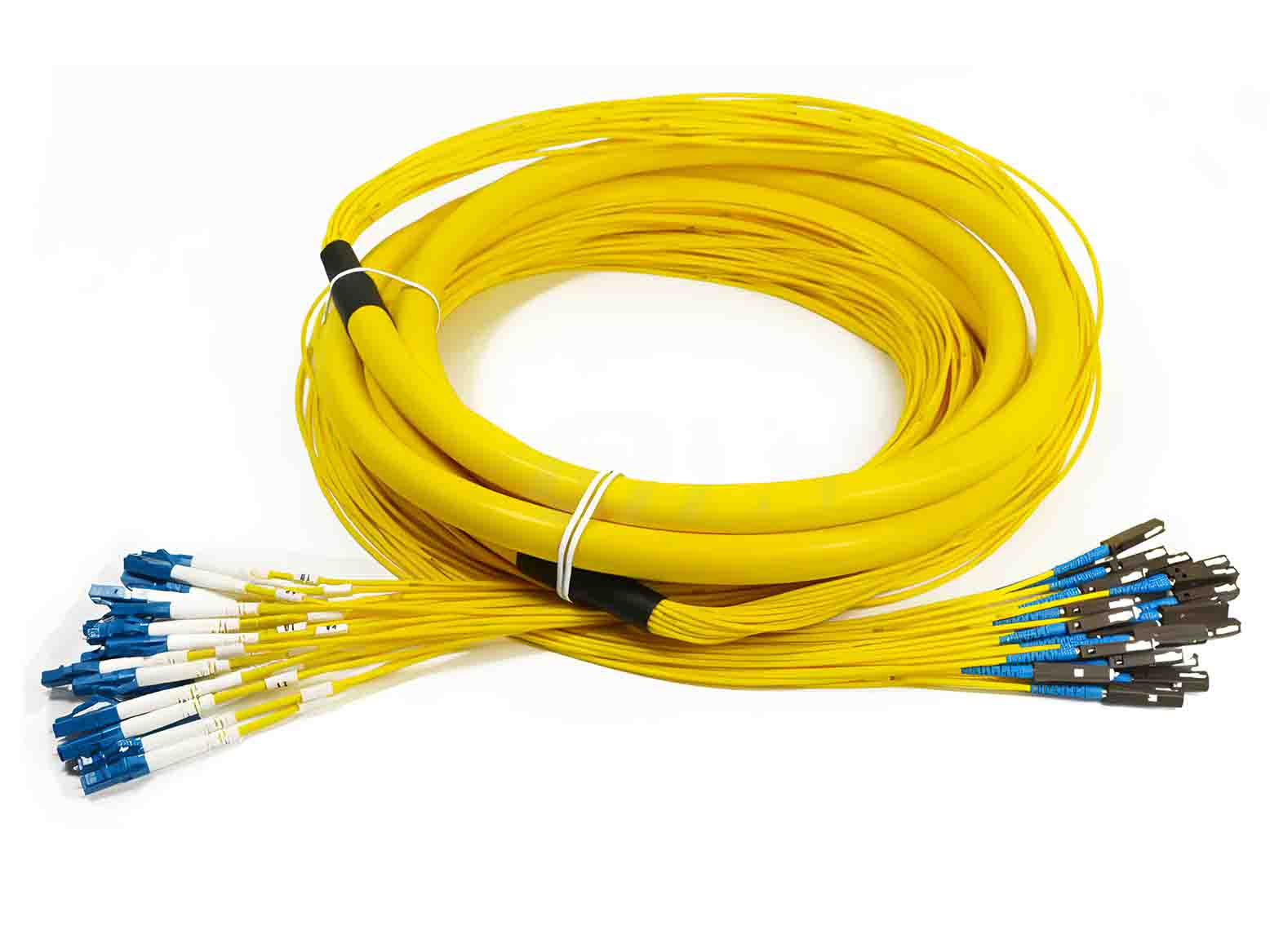

LC to MU Breakout Fanout Patch Lead 32 fibers PVC G652D

Optic Jumper Description

Fiber Optical breakout patch lead is a low-cost and convenient fiber accessory for FTTH applications. Our breakout patch lead can be PVC, OFNR, OFNP and LSZH jacket. MU, LC, SC, FC and ST connectors are available for chosen. We also can meet customers’ specific requests to be your OEM factory.



Optical Specification



Geometric Specification (For special request)



Physical Information

LC Pigtail Fanout drawing



SC Pigtail Fanout drawing



ST Pigtail Fanout drawing



Quality Control

1、Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB）
2、All products factory tested
3、Geometrical Characteristics comply with IEC 61755-3-1
4、All materials comply with IEC and ROHS
