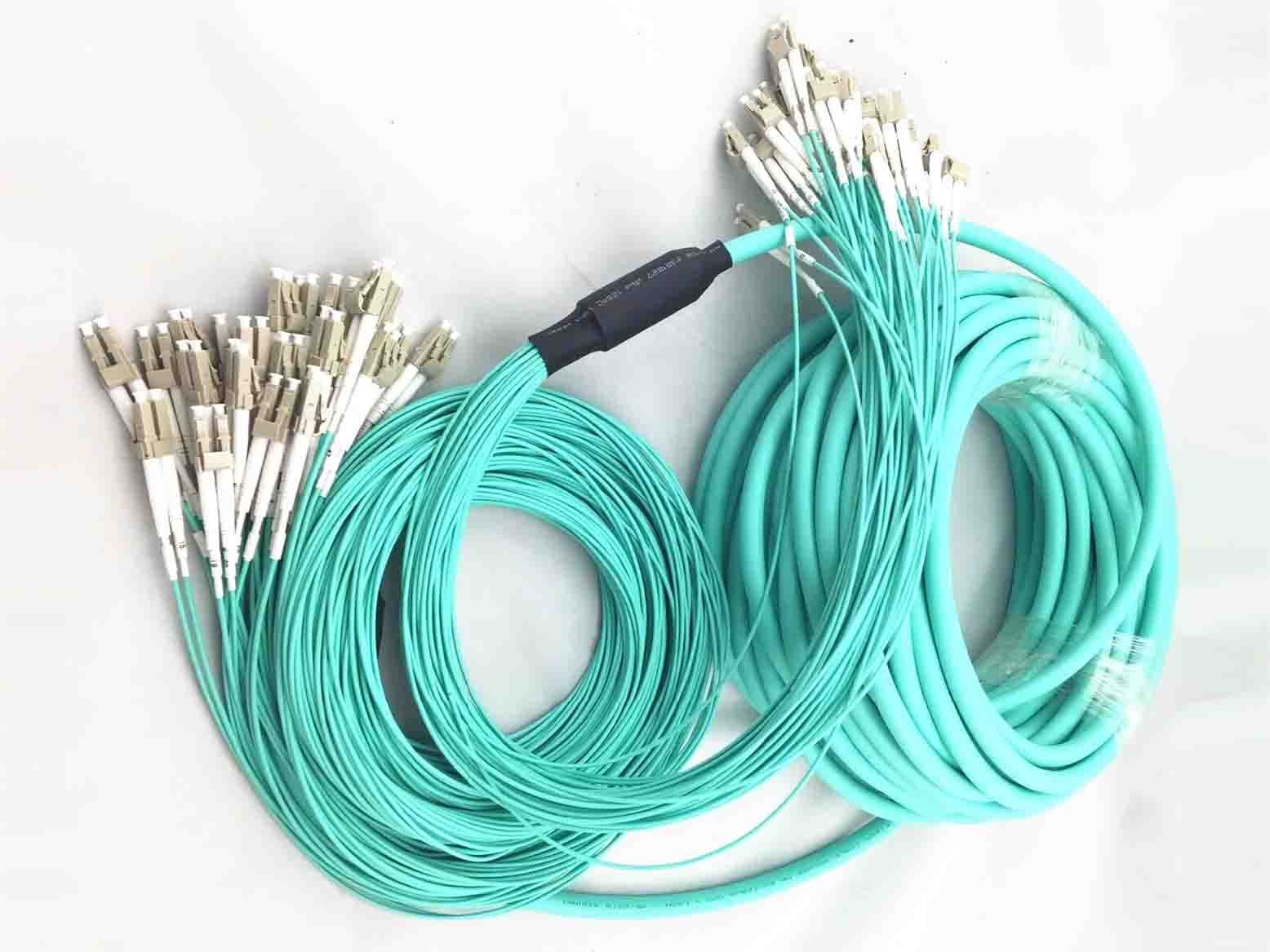

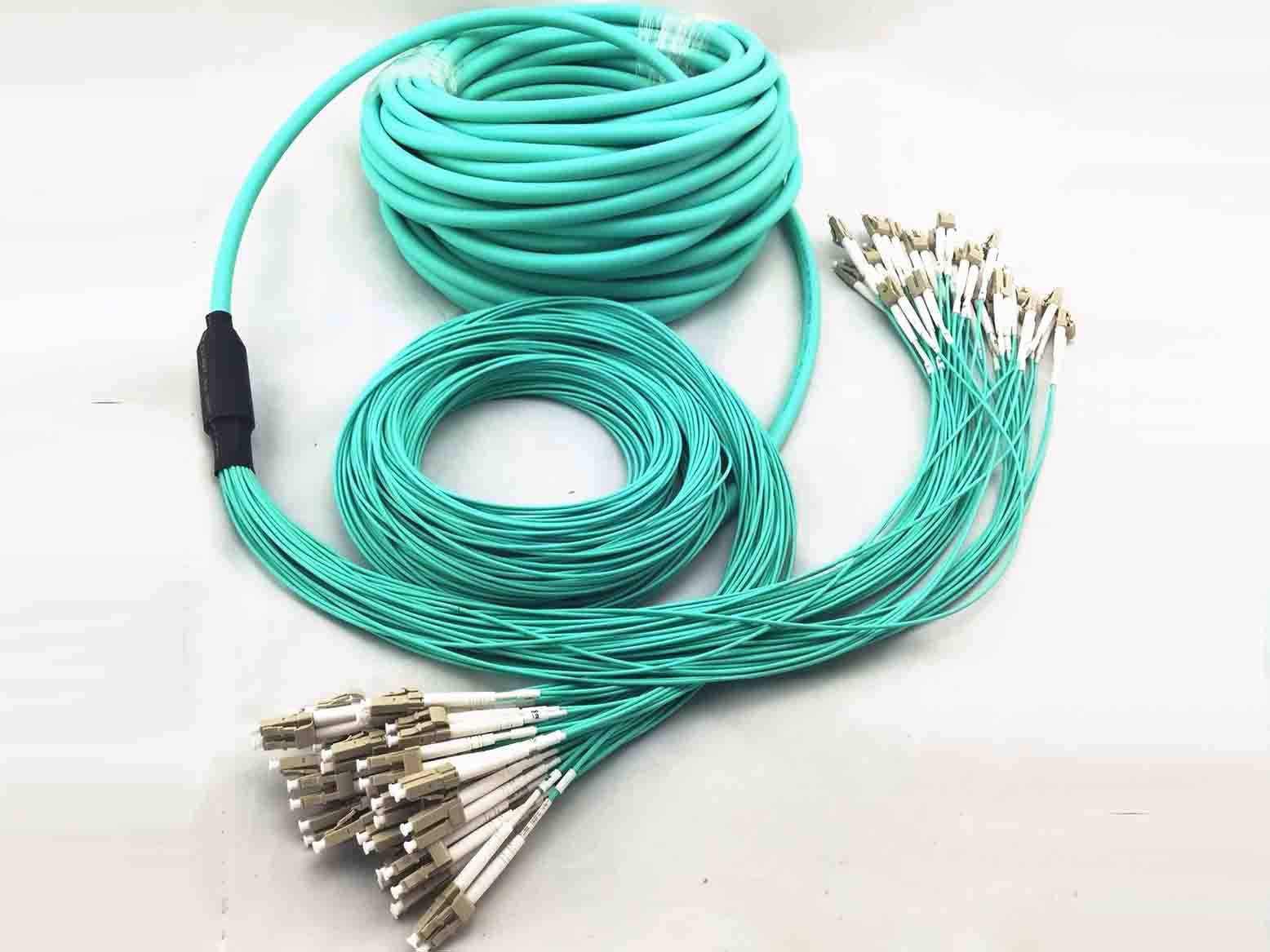

Bundle Fiber Optical Jumper 72 cores 10Gigabit OM3 LC connectors for Data Center Cabling

Optic Jumper Description

Provides high density 72 cores, 96cores, 144cores bundle fiber optical jumpers for data center cabling.The cable is more convenient and economic fiber optical assemble in network applications.



fiber optic jumper Applications

1、Telecommunications networks
2、CATV, LAN, MAN and WAN application
3、Data processing networks
4、Cable television
5、Fibre-To-The-Home (FTTH)
6、Premises distribution



fiber optic jumper cables Characteristics

1、100% pre-terminated and tested in factory to ensure transfer performance
2、Rapid configuration and networking, reduce installation time
3、Supports 40G and 100G network applications
4、Jacket material: LSZH, OFNR, OFNP available
5、Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
6、Supports up to 4F, 8F, 12F, 24F, customized products are available
7、OEM service is available



Optical Specification



Geometric Specification (For special request)



Physical Information

LC Pigtail Fanout drawing



SC Pigtail Fanout drawing



ST Pigtail Fanout drawing



Quality Control

1、Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB）
2、All products factory tested
3、Geometrical Characteristics comply with IEC 61755-3-1
4、All materials comply with IEC and ROHS
