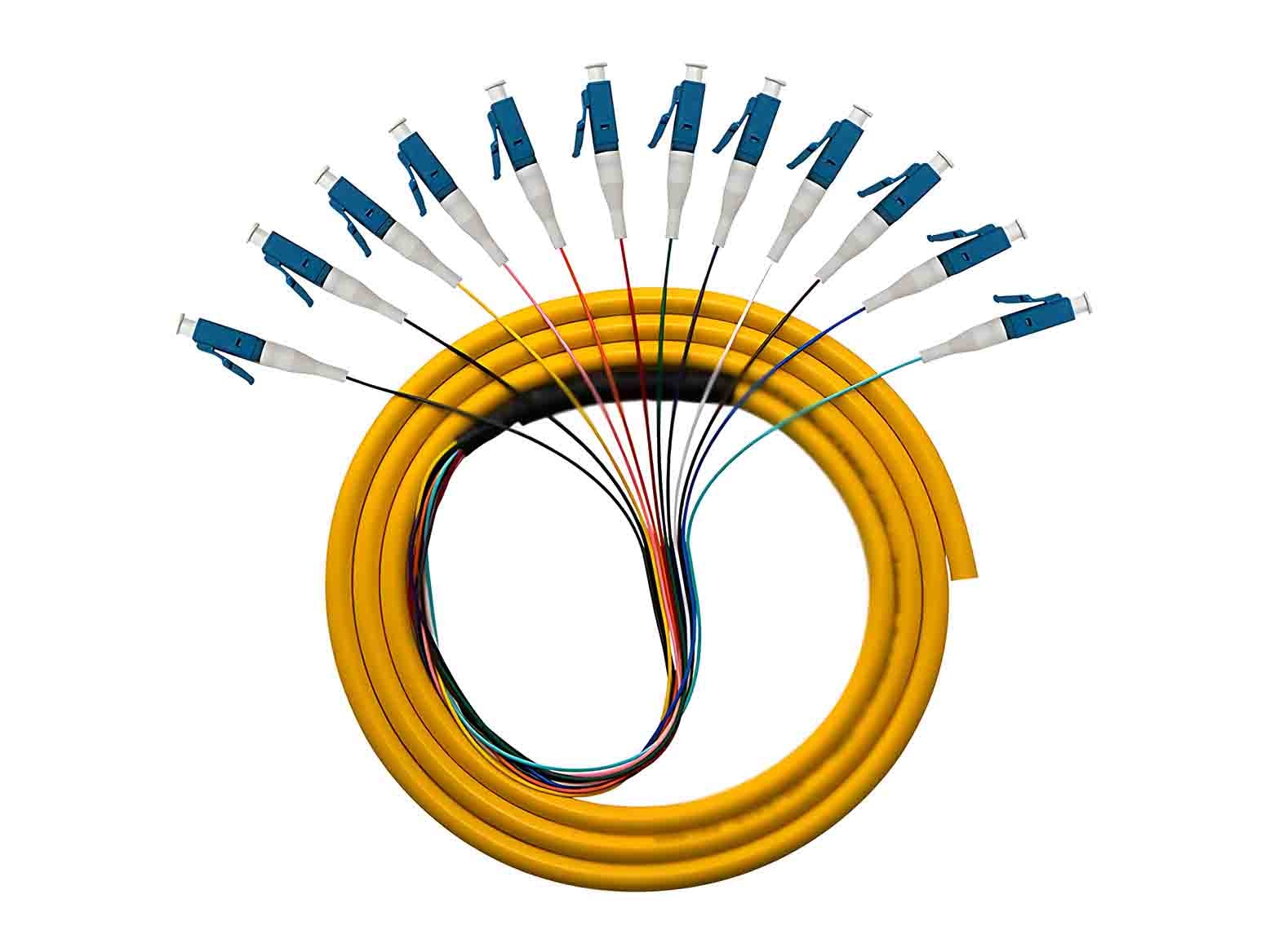

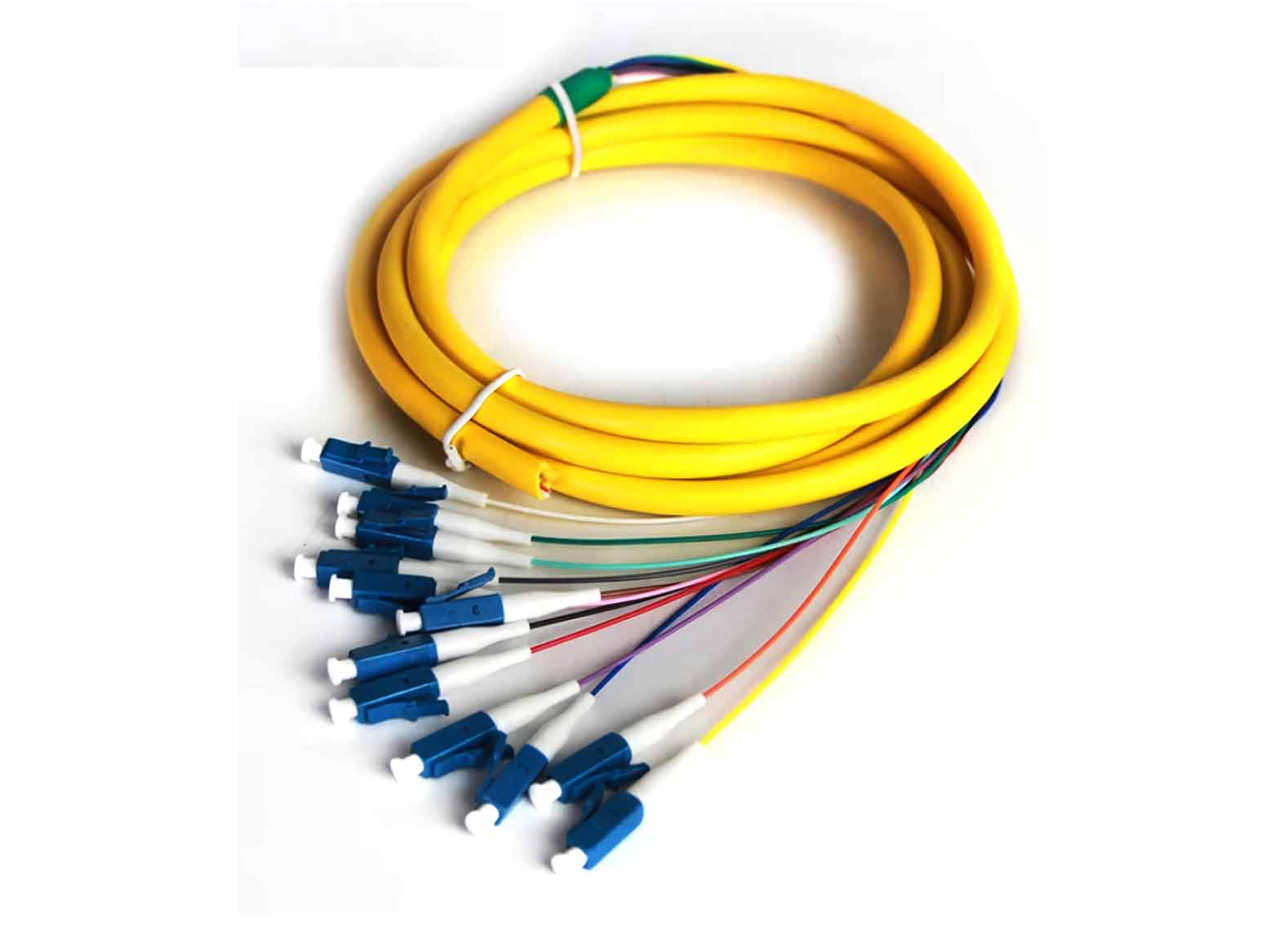

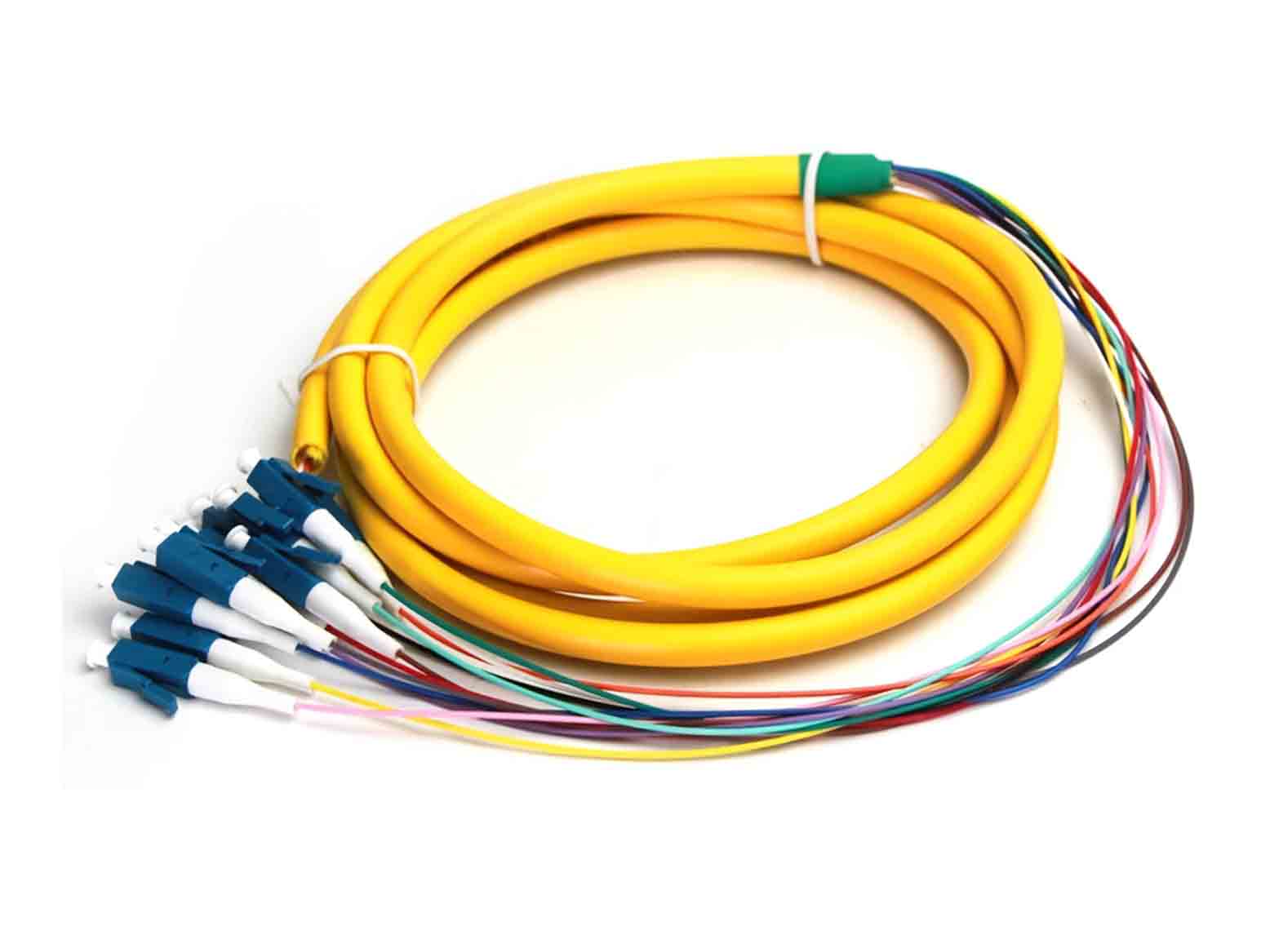

Bulk Fiber Optic Distribution pigtail 12 fibers LC SM 3M Corning OFNR

Optic Jumper Description

Bulk fiber distribution pigtails are designed to realize simplex or duplex multimode fiber’s interactive connections. The pigtails support network speed updating transmission and transportation area signal transfer. Our pigtails are available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass.



fiber optic jumper Applications

1、Telecommunications networks
2、CATV, LAN, MAN and WAN application
3、Data processing networks
4、Cable television
5、Fibre-To-The-Home (FTTH)
6、Premises distribution



fiber optic jumper cables Characteristics

1、100% pre-terminated and tested in factory to ensure transfer performance
2、Rapid configuration and networking, reduce installation time
3、Supports 40G and 100G network applications
4、Jacket material: LSZH, OFNR, OFNP available
5、Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
6、Supports up to 4F, 8F, 12F, 24F, customized products are available
7、OEM service is available



Optical Specification



Geometric Specification (For special request)



Physical Information

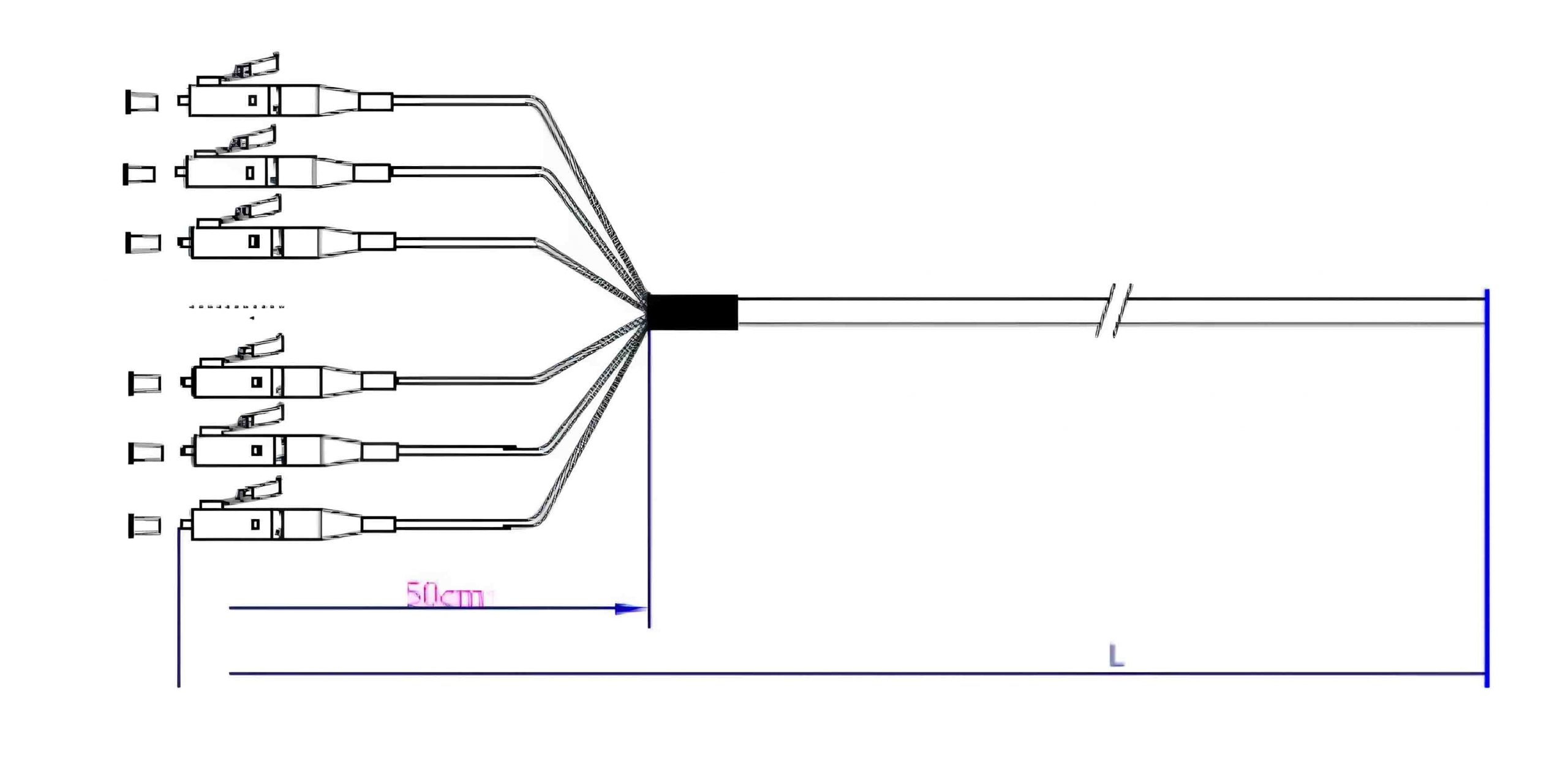

LC Pigtail Fanout drawing

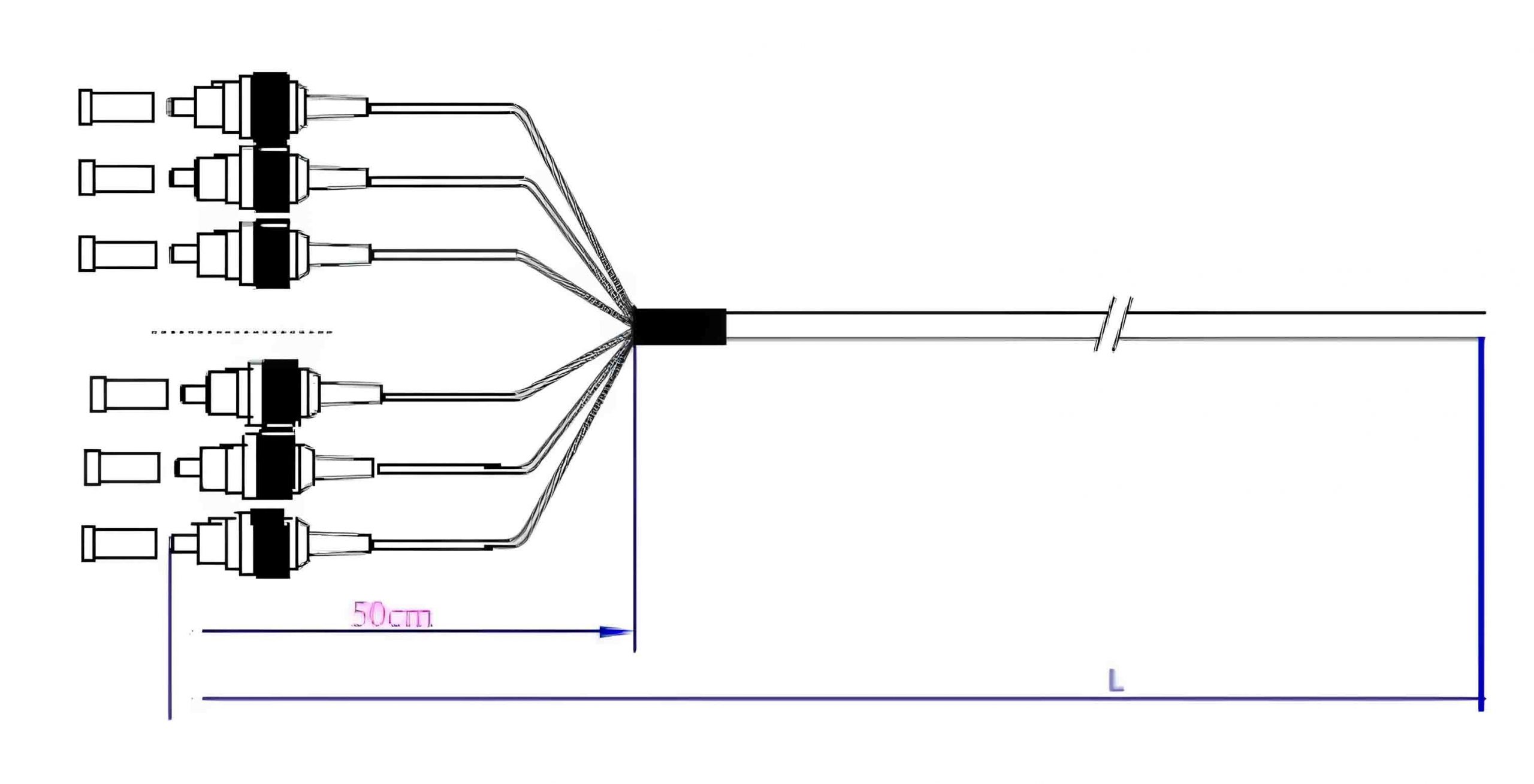

FC Pigtail Fanout drawing

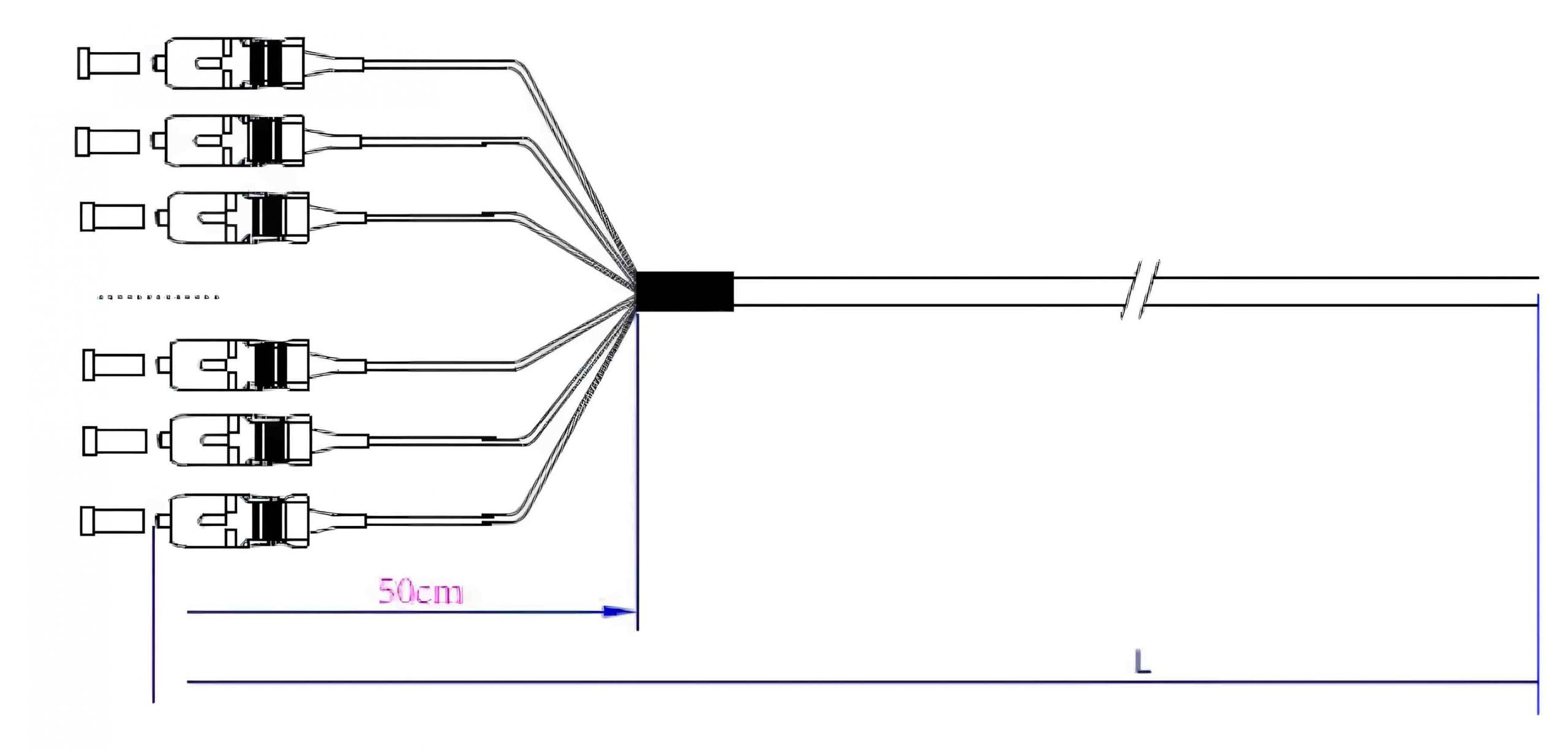

SC Pigtail Fanout drawing

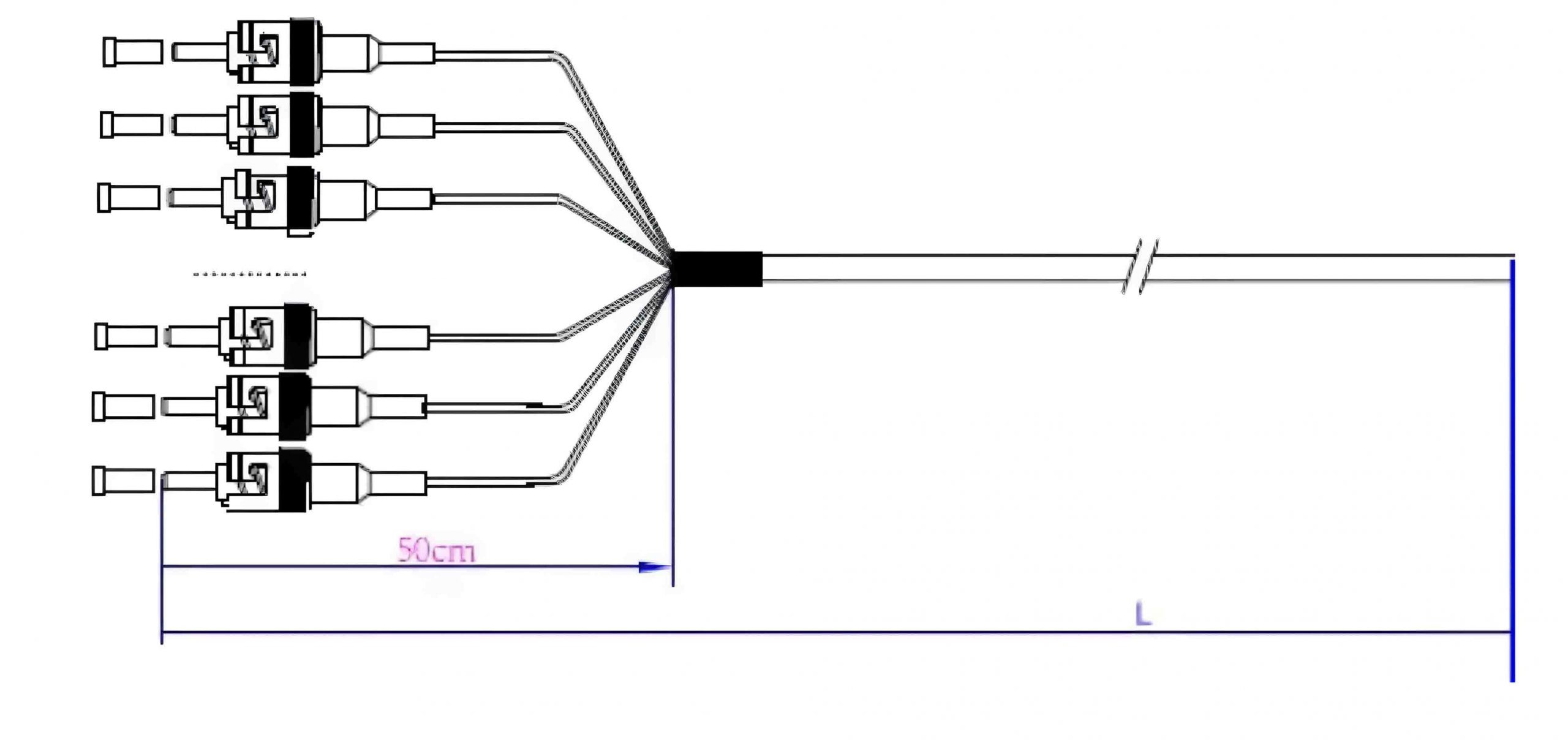

ST Pigtail Fanout drawing



Quality Control

1、Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB）
2、All products factory tested
3、Geometrical Characteristics comply with IEC 61755-3-1
4、All materials comply with IEC and ROHS
