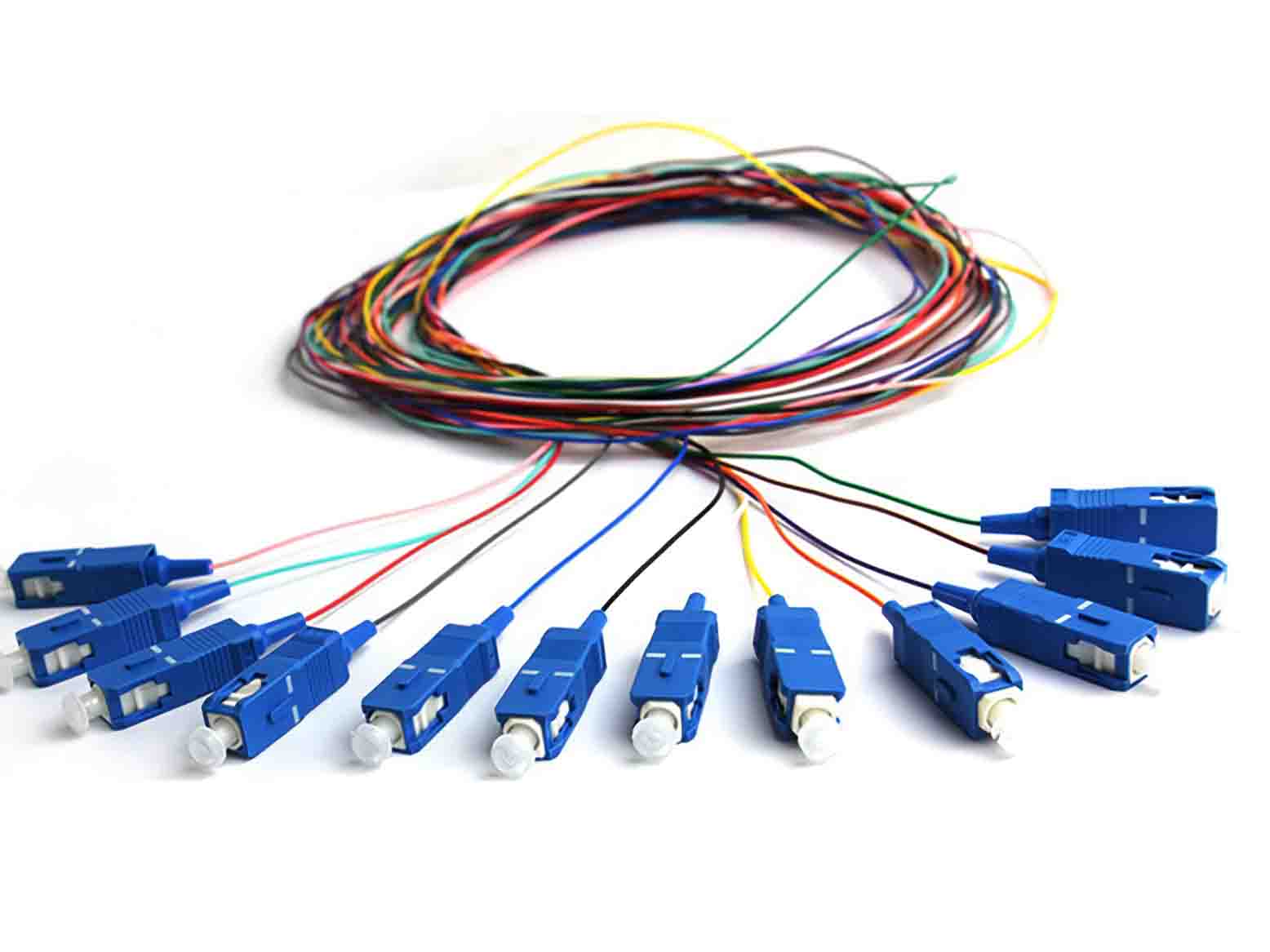

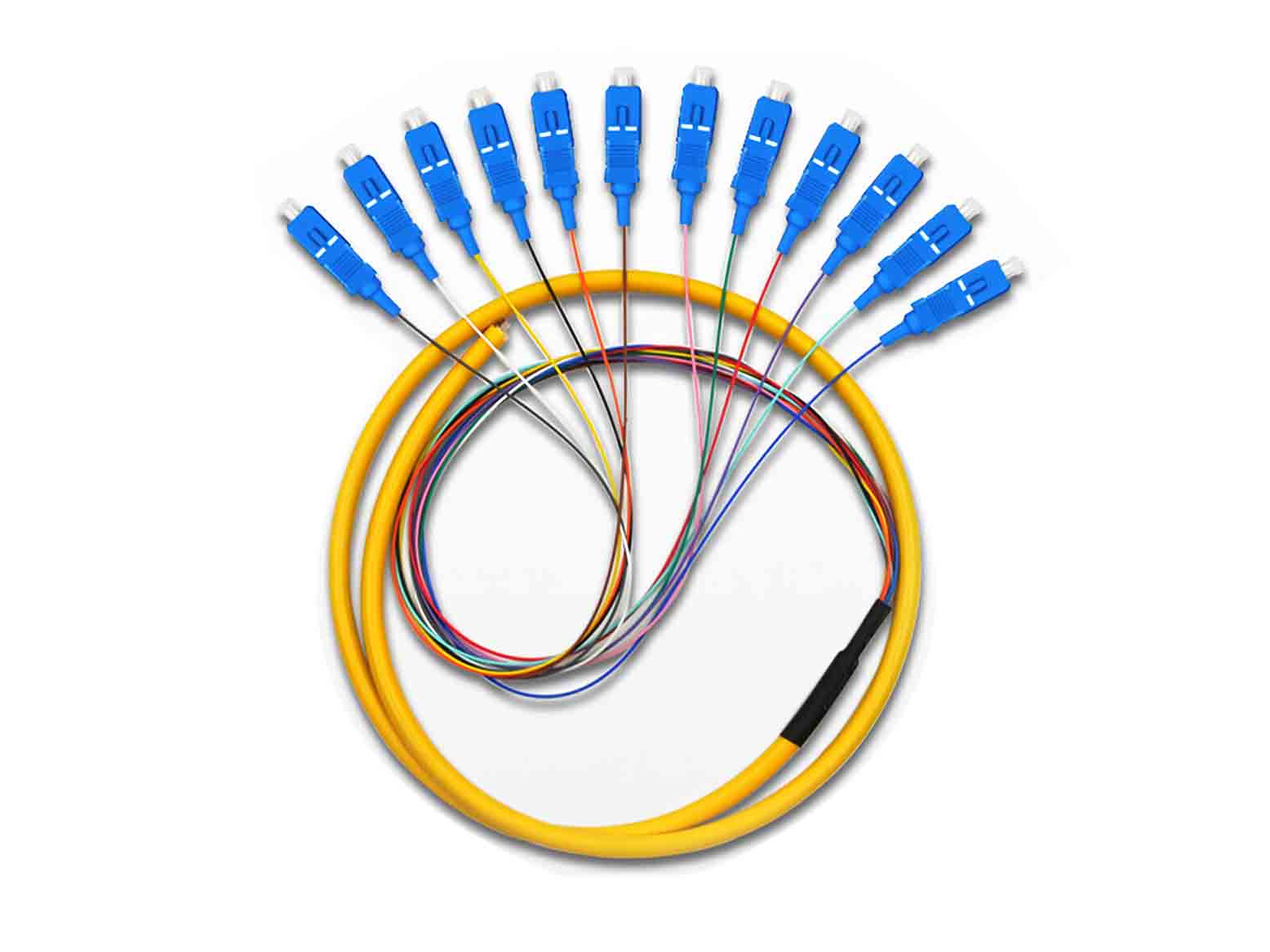

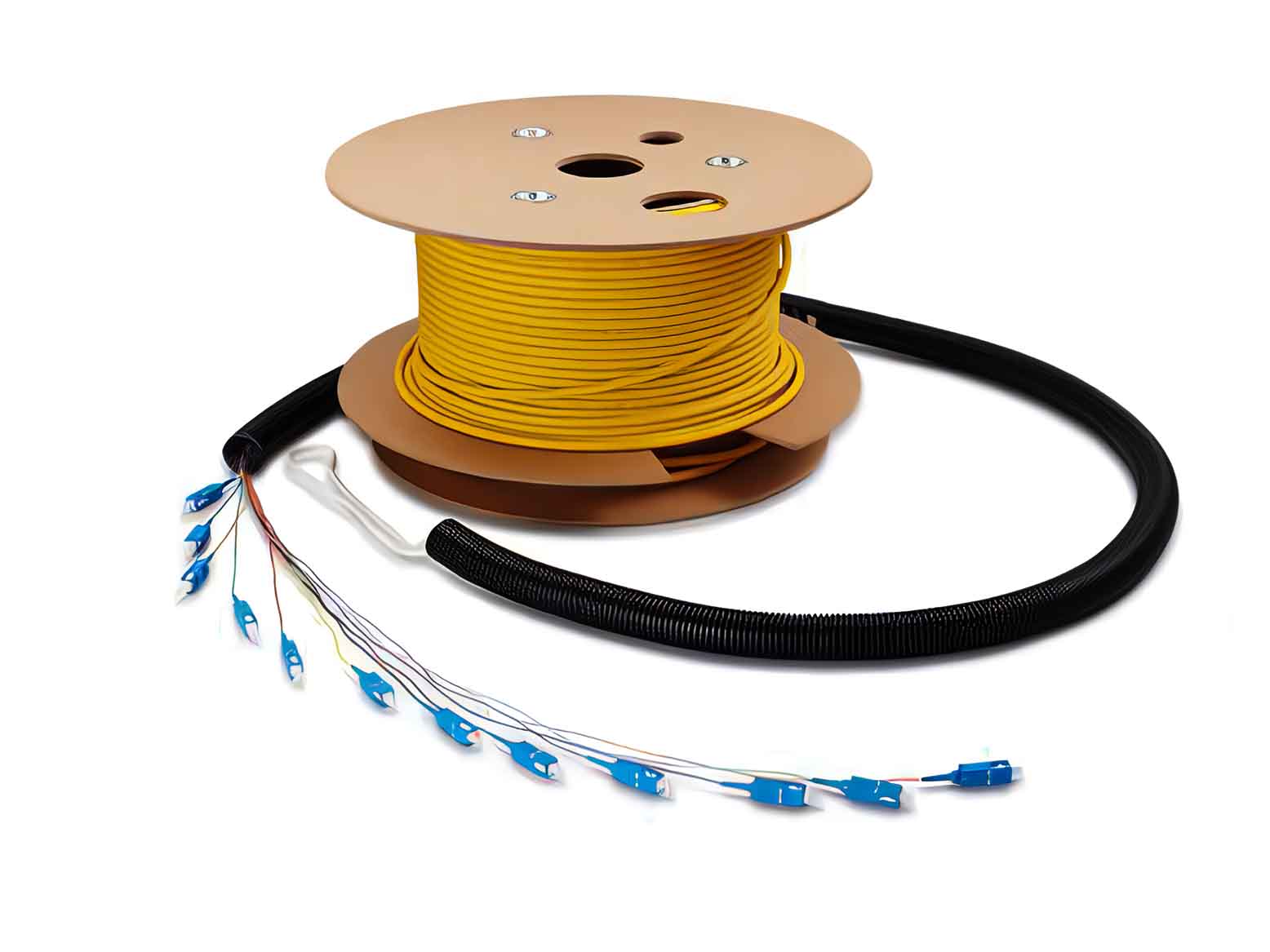

Provides Bundled pigtail fanout.The fanout can be 4,8, 12, 24 cores with LC, SC, FC and ST connector etc. LSZH, PVC jacket is available to choose according to customers’ demands. All the fanouts are 100% pre-terminated and tested in factory to ensure transfer performance.
1、Telecommunications networks
2、CATV, LAN, MAN and WAN application
3、Data processing networks
4、Cable television
5、Fibre-To-The-Home (FTTH)
6、Premises distribution
1、100% pre-terminated and tested in factory to ensure transfer performance
2、Rapid configuration and networking, reduce installation time
3、Supports 40G and 100G network applications
4、Jacket material: LSZH, OFNR, OFNP available
5、Available in OM1, OM2, OM3, OM4, G652D, G657 fiber glass
6、Supports up to 4F, 8F, 12F, 24F, customized products are available
7、OEM service is available
Geometric Specification (For special request)
Physical Information
Quality Control
1、Connector attenuation comply with “Grade A” according to IEC 61753 and IEC 61300-3-34(0.12dB mean,<0.25dB Max for >97% of samples,Return Loss >55dB）
2、All products factory tested
3、Geometrical Characteristics comply with IEC 61755-3-1
4、All materials comply with IEC and ROHS
