48 cores MPO&MTP Cable Patch Cord

mtp/mpo meaning

MPO fiber optic jumper, MPO (Multi fiber PushOn) connector is one of the MT series connectors. The MT series connectors use two guide holes with a diameter of 0.7mm on the left and right sides of the plug end face to accurately connect with the guide pin (also known as PIN pin). MPO connectors and fiber optic cables can be processed to produce various forms of MPO jumpers. MPO jumpers can have a design of 2-12 cores, up to 24 cores, and the most commonly used MPO connectors are 12 cores. The compact design of MPO connectors allows for a larger number of MPO jumper cores and a smaller size. MPO jumpers are widely used in wiring environments that require high-density integrated fiber optic lines, such as FTTX, 40/100GSFP, SFP+, and other transceiver modules or equipment connections.



mtp fiber optic Application

1、Data communication network.
2、Optical System Access network.
3、Storage area networking fiber channel.
4、High density architectures。



mtp fiber optic cable

1、100% pre-terminated and tested in factory to ensure transfer performance.

2、Rapid configuration and networking, reduce installation time.

3、Supports 40G and 100G network applications.

4、Cable Jacket material: LSZH, OFNR, OFNP available.

5、Supports up to 12F, 24F,48F,72F,96F, 144F, customized products are available

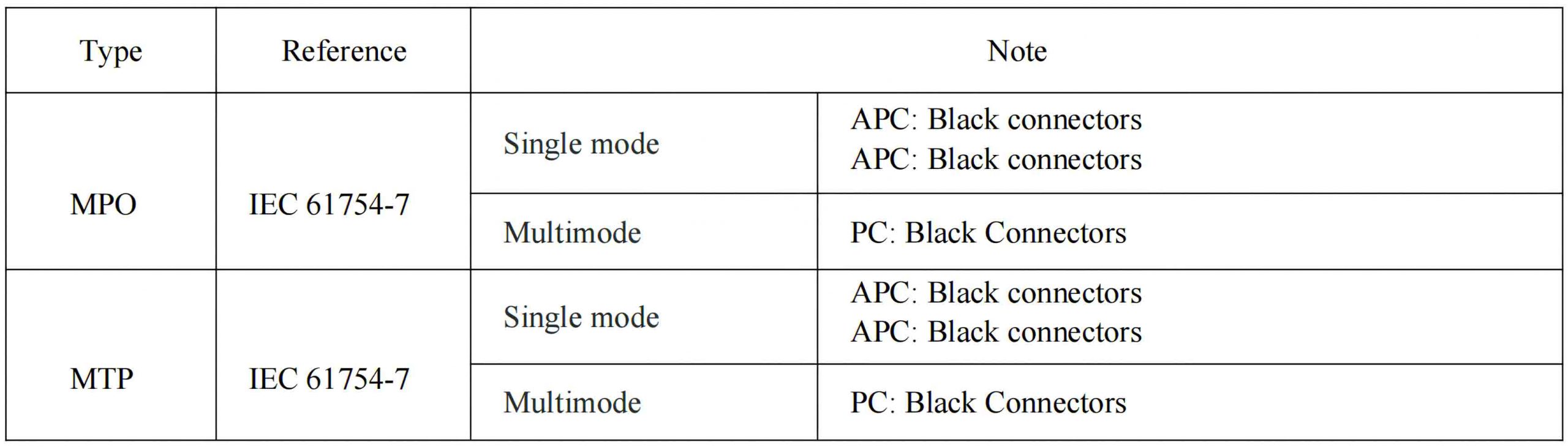

mtp fiber Connector Type

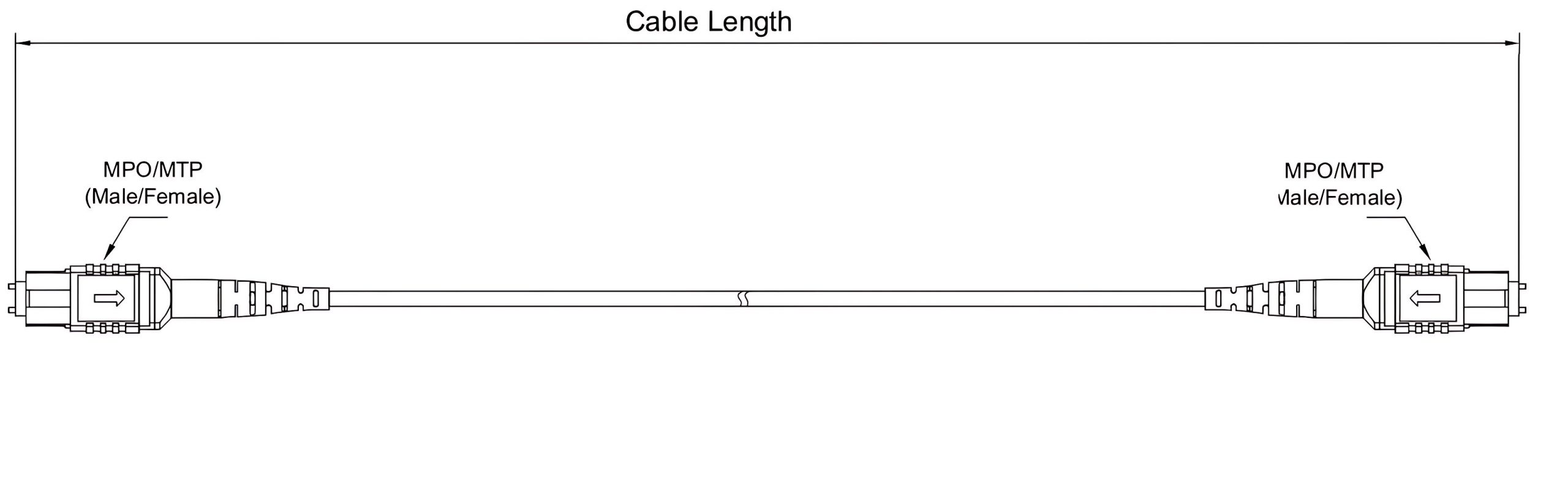

MPO Dimensional Diagrams

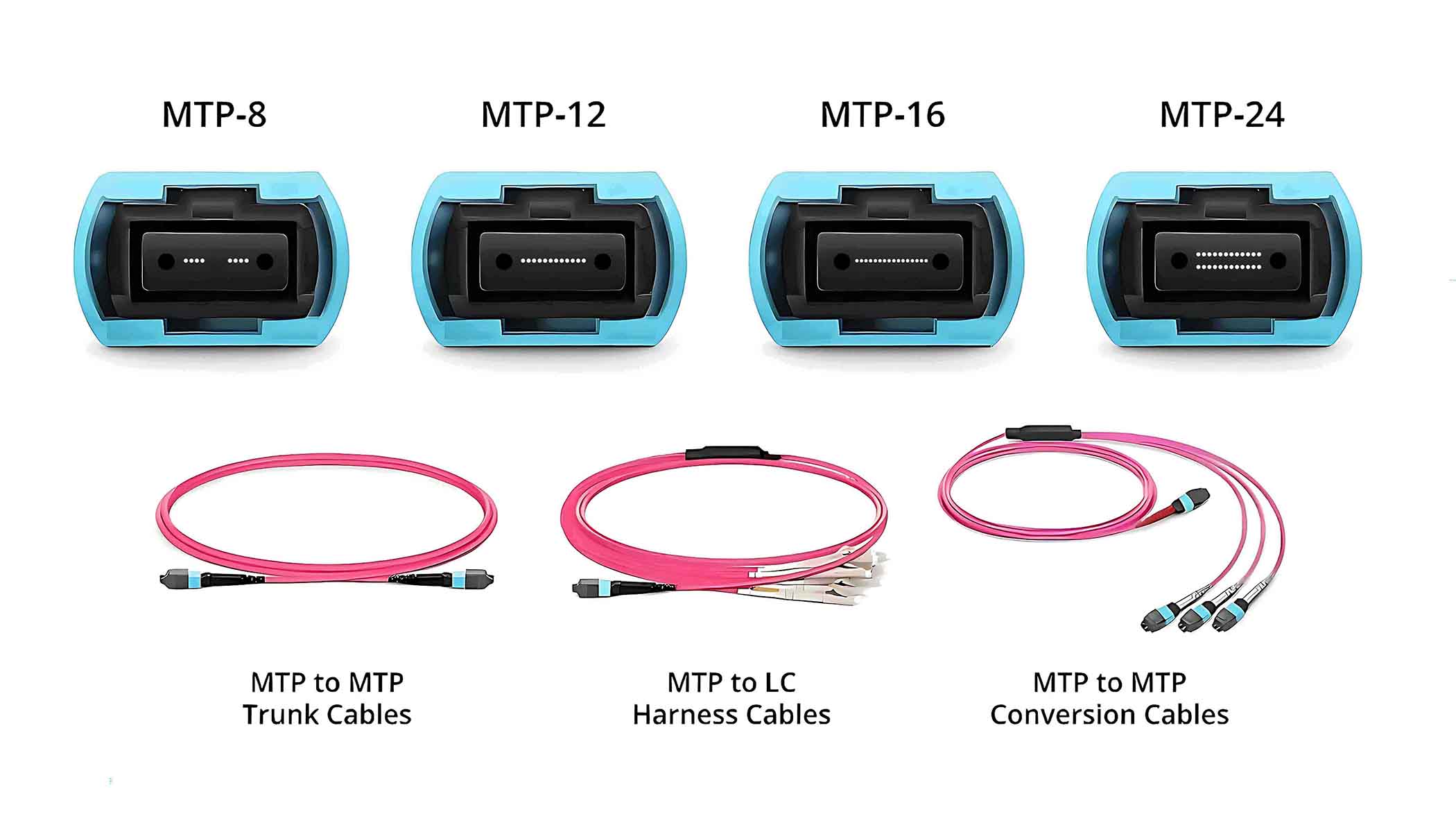

MPO/MTP Cable Assemblies

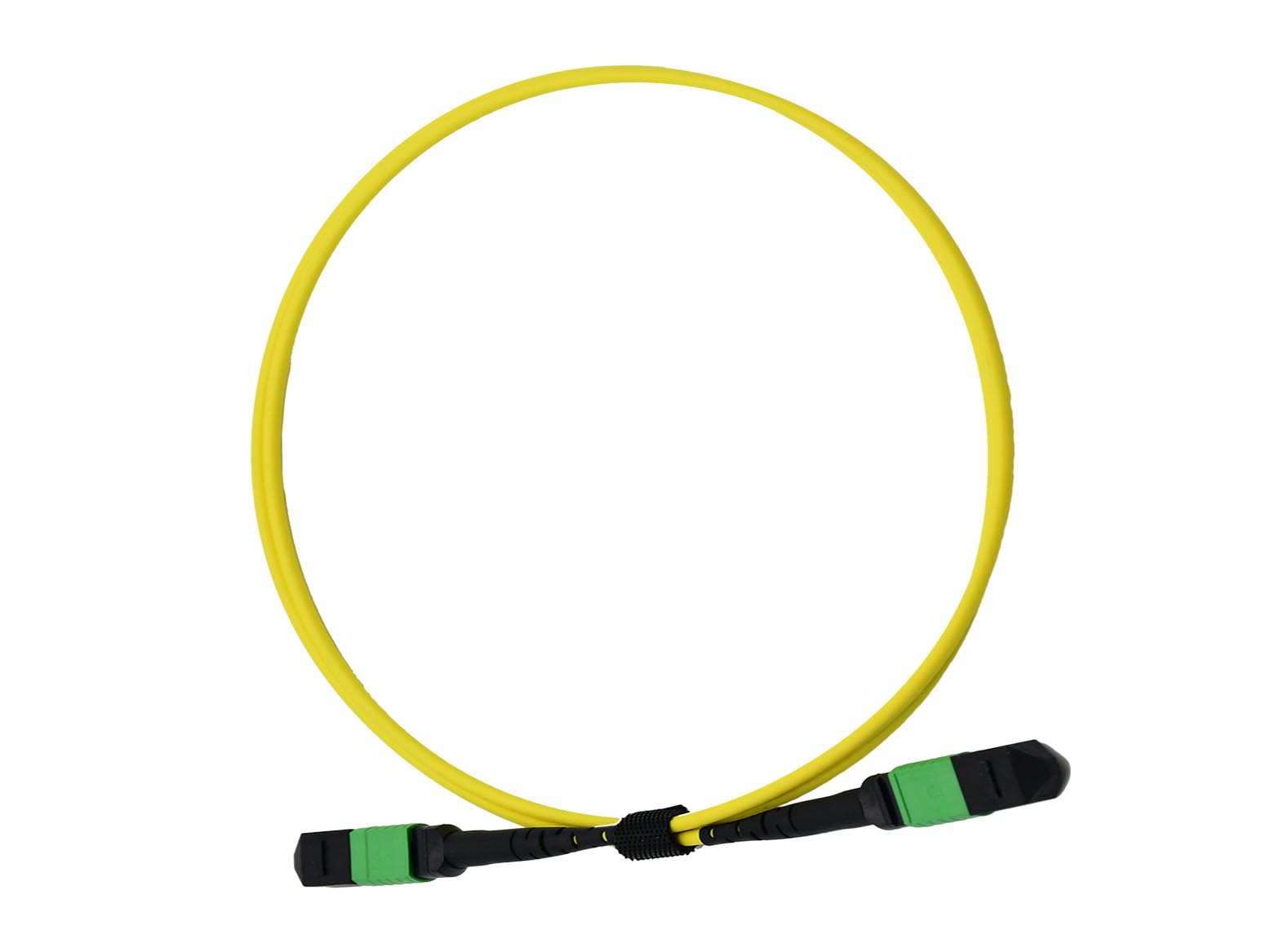

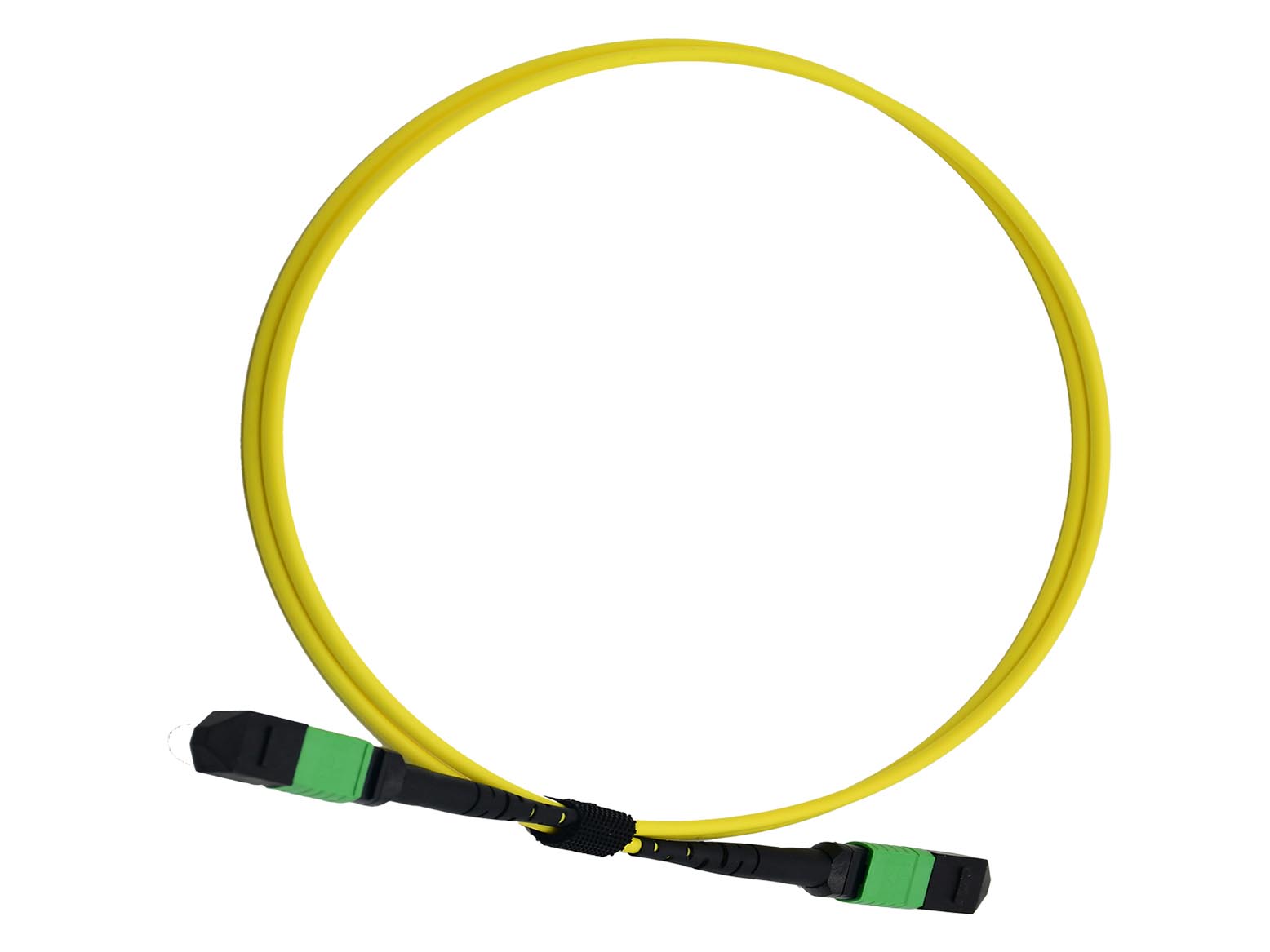

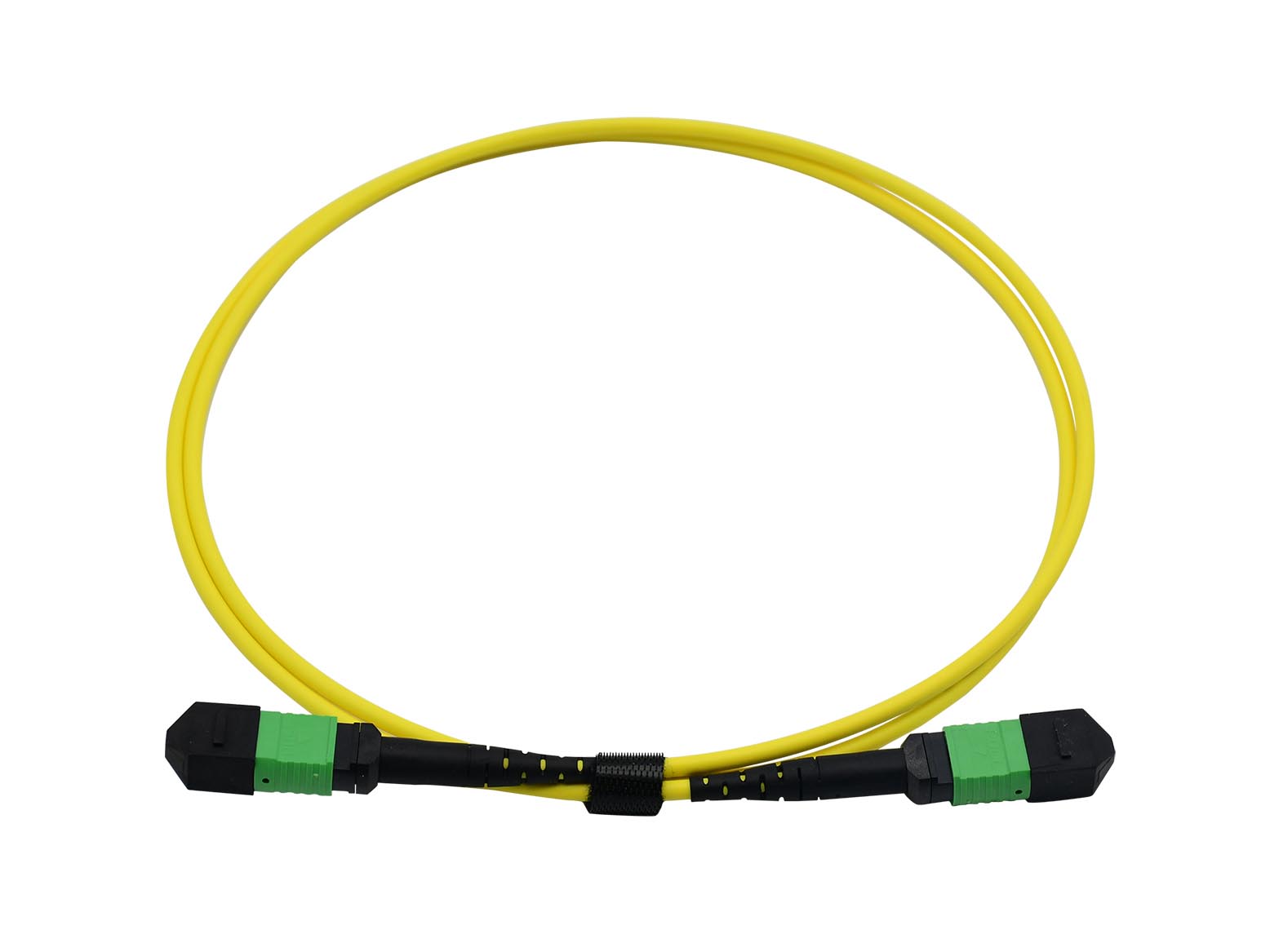

mtp fiber optic Patch cord versions

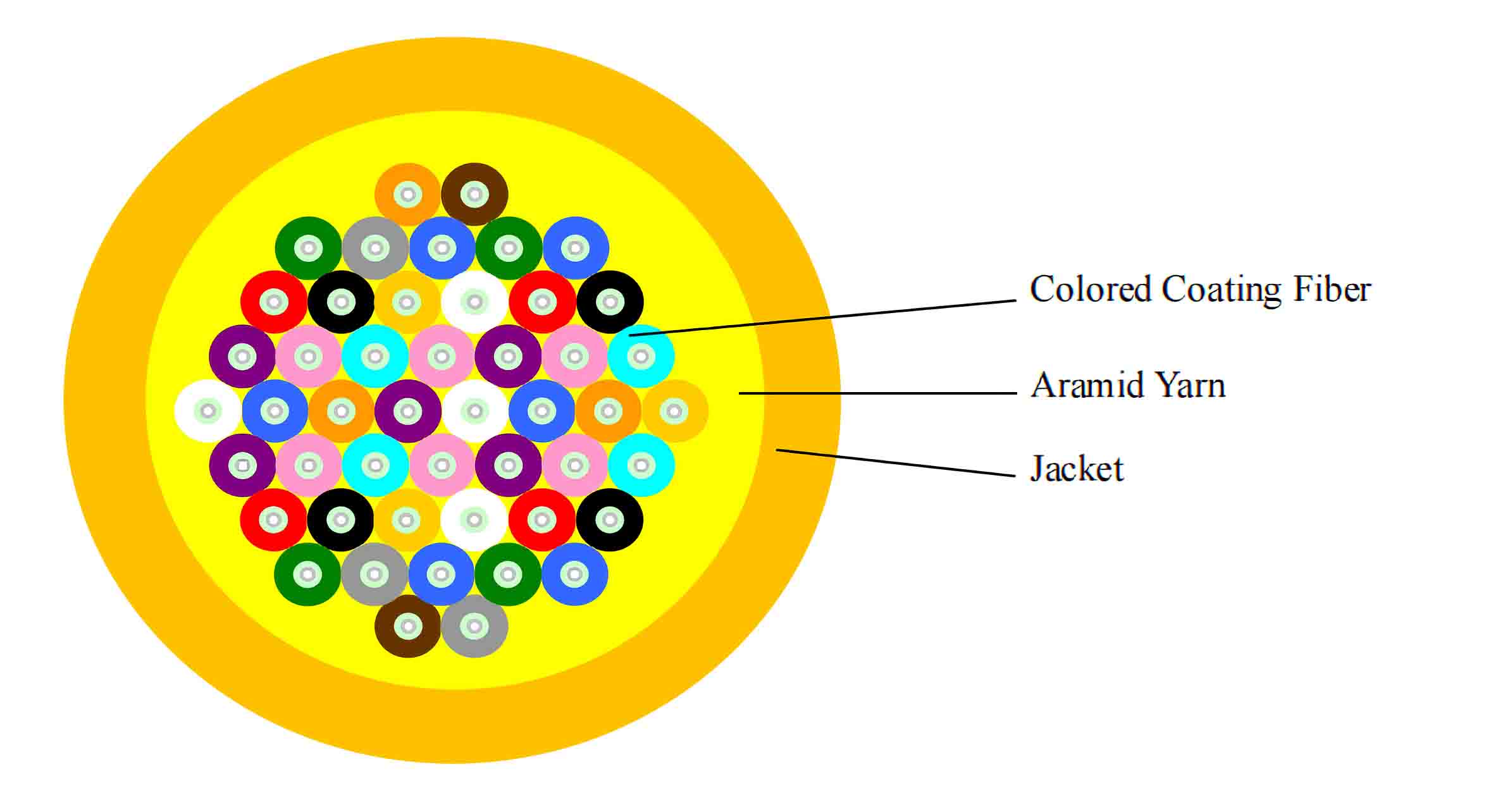

mtp fiber optic Cable Structure

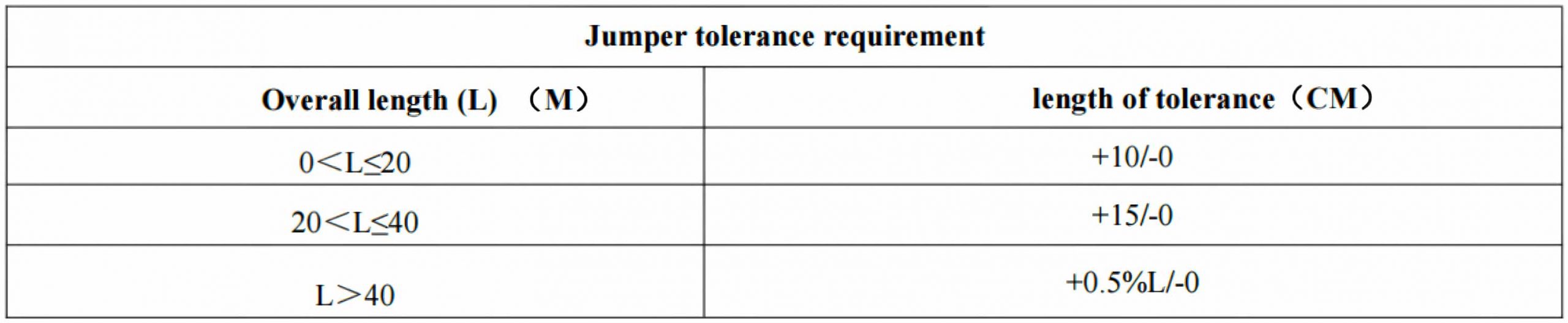

General requirements of optical cable

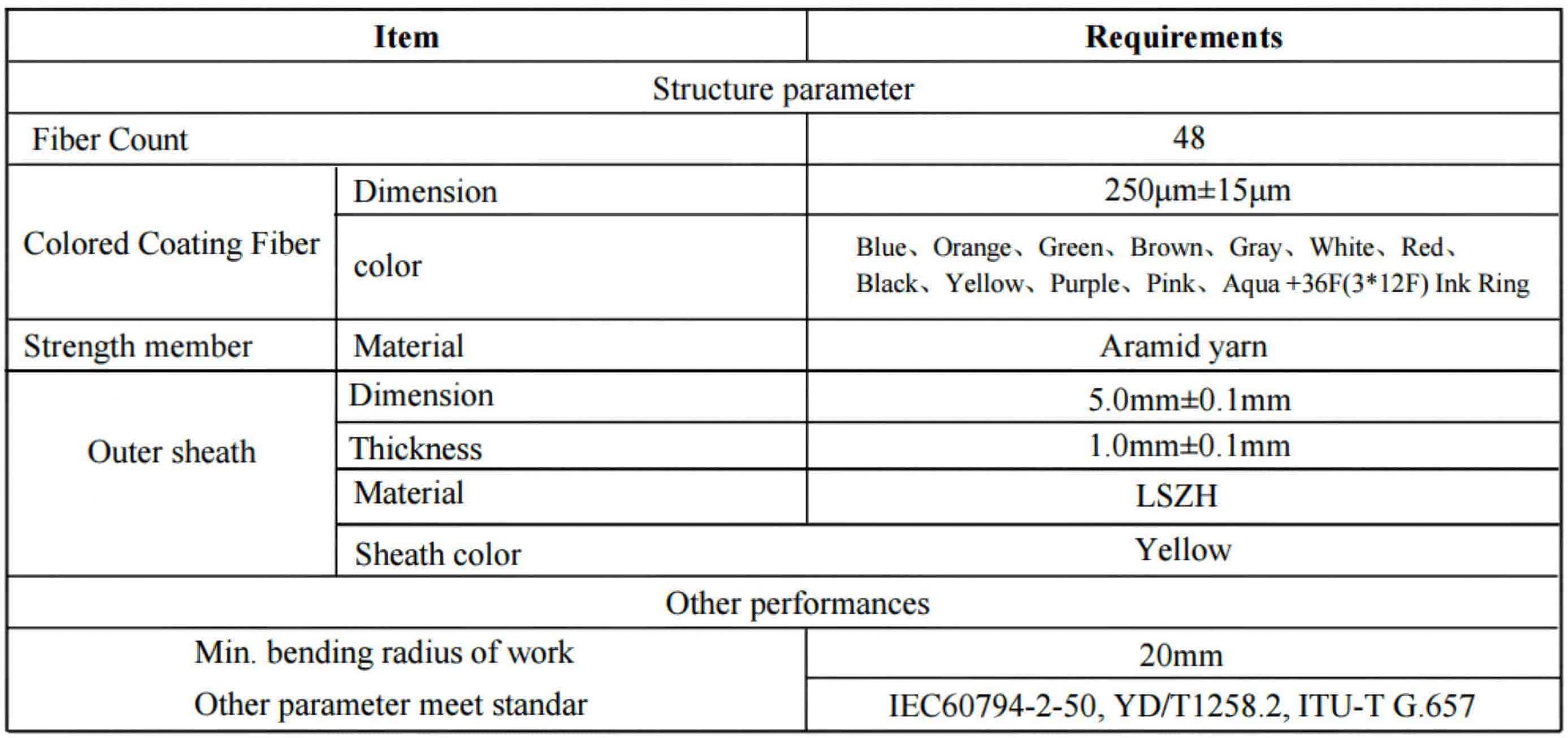

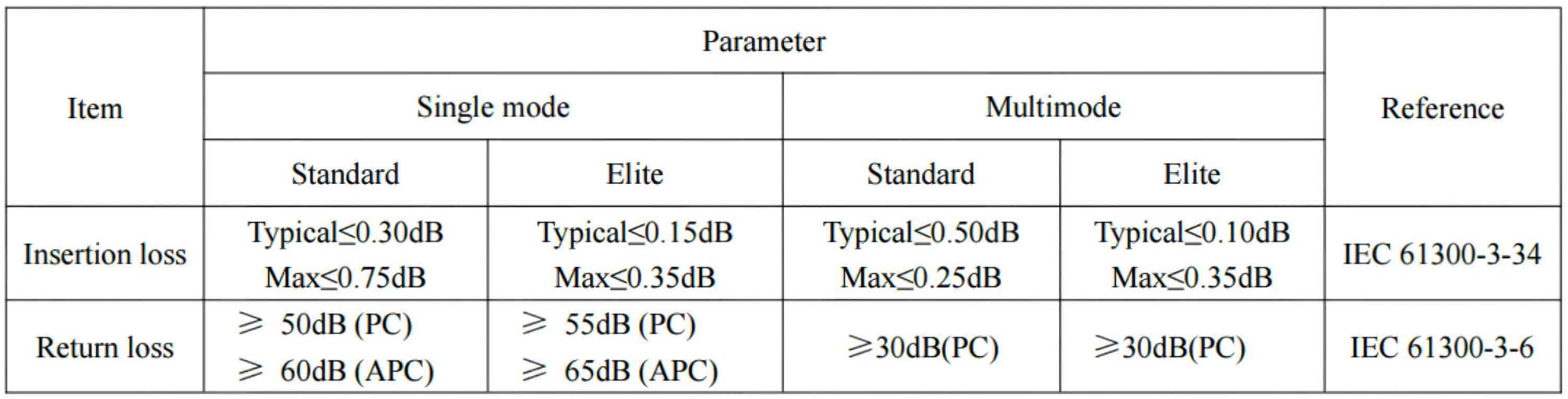

mtp fiber optic Cable Parameters



mtp fiber optic Characteristics

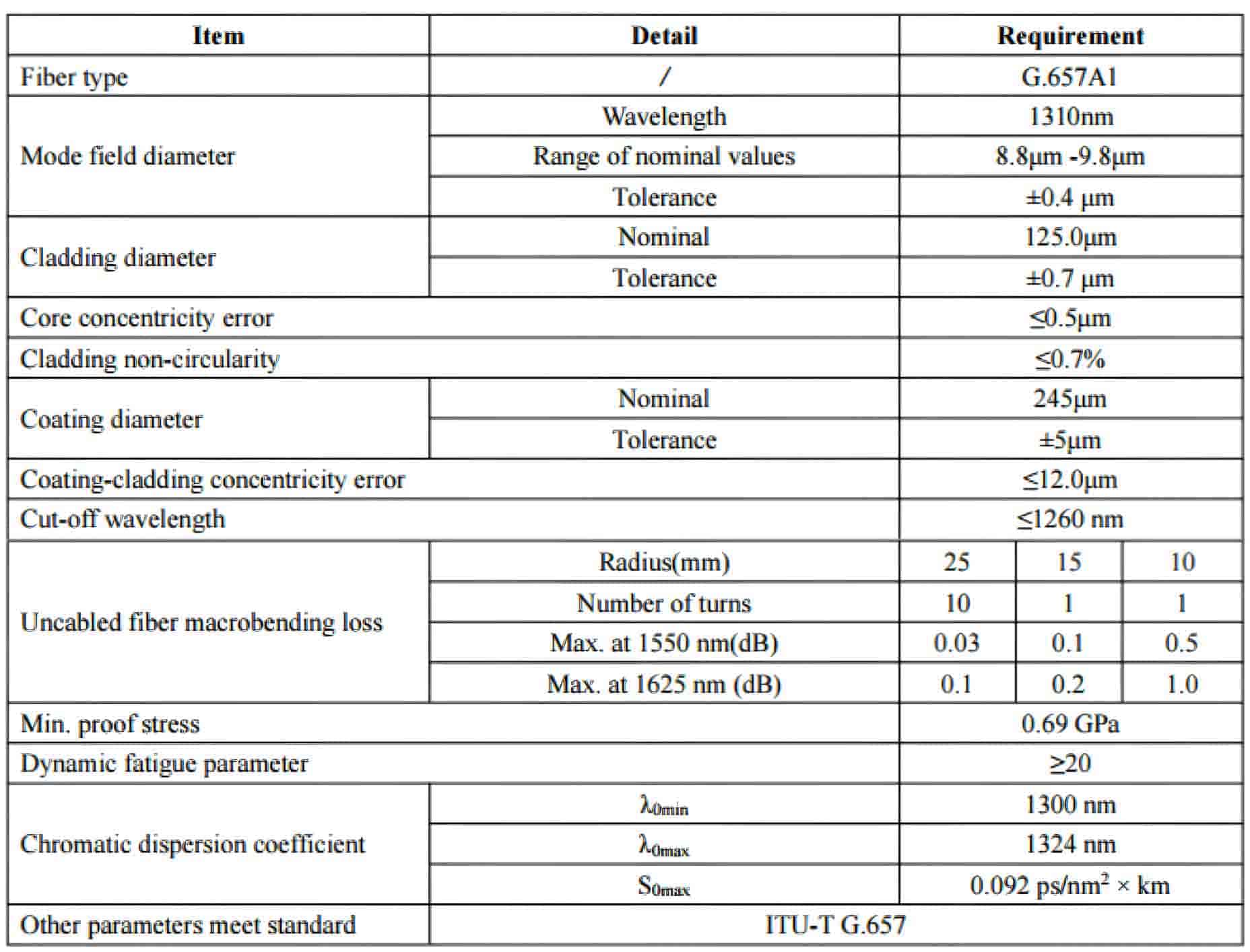

MTP Fiber requirements

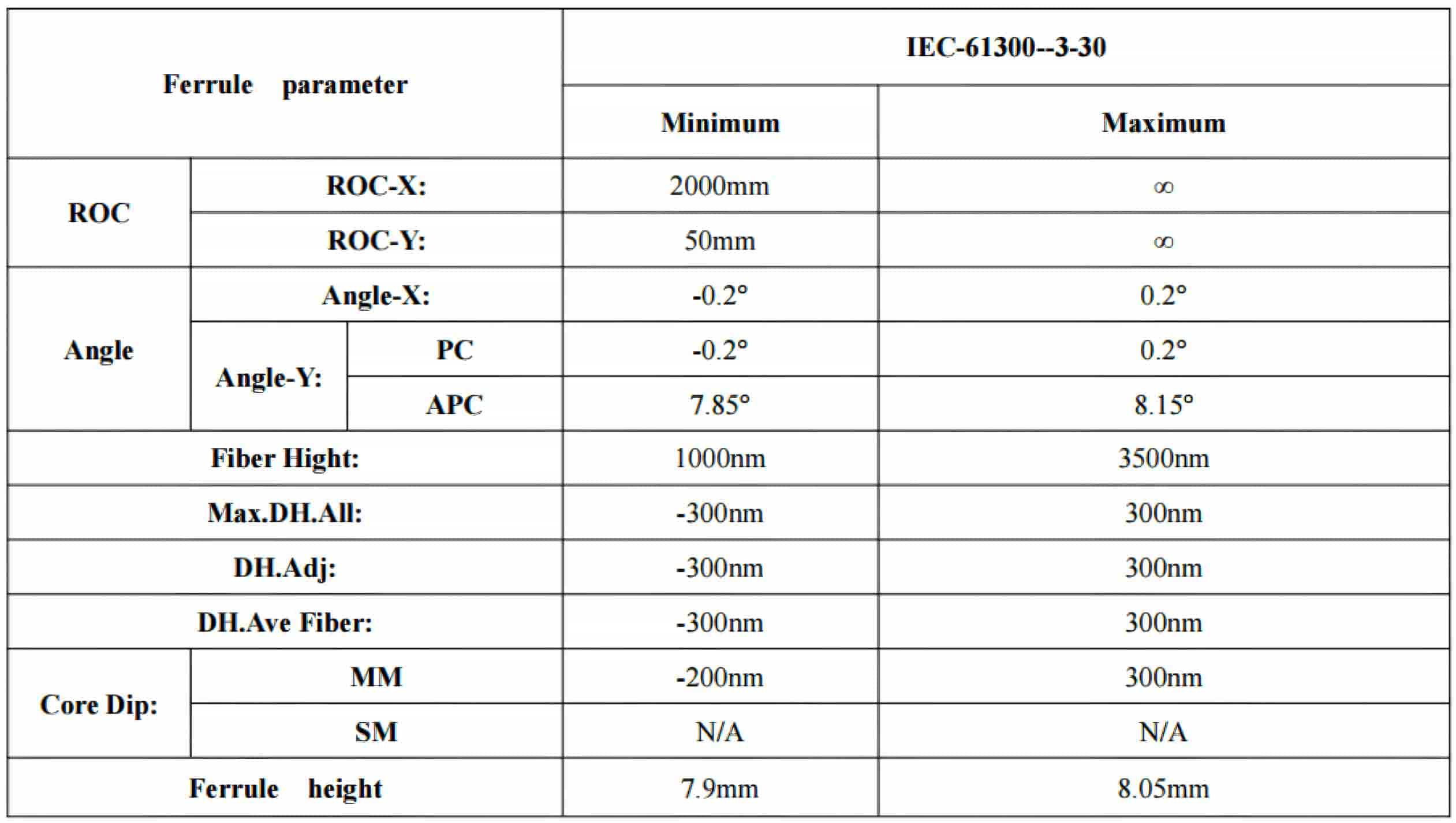

MPO&MTP End-Face Geometry

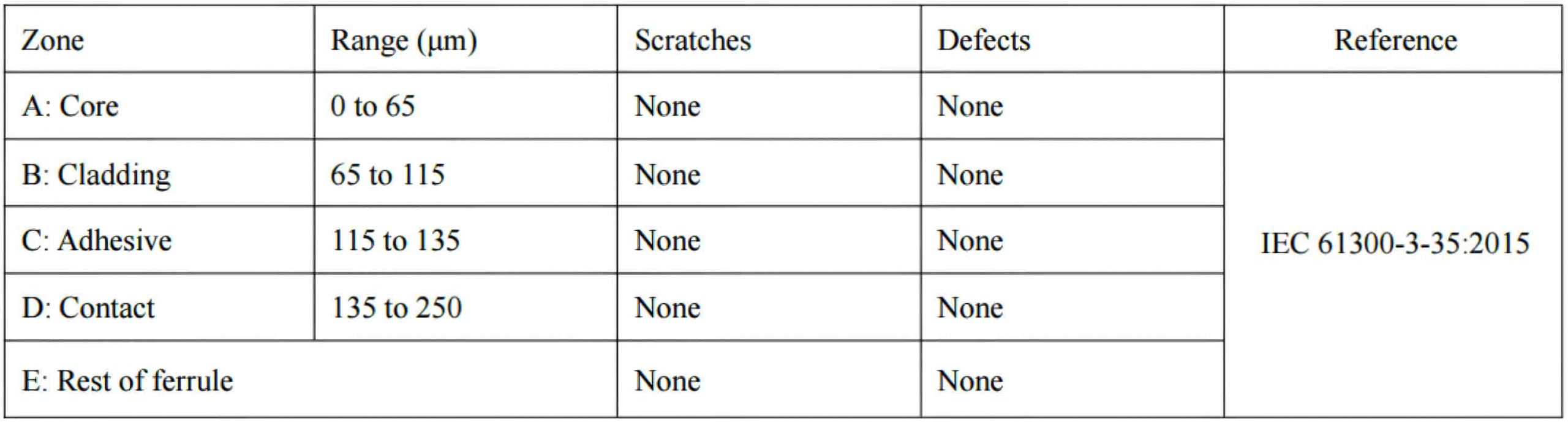

End-Face Qualty (SM)

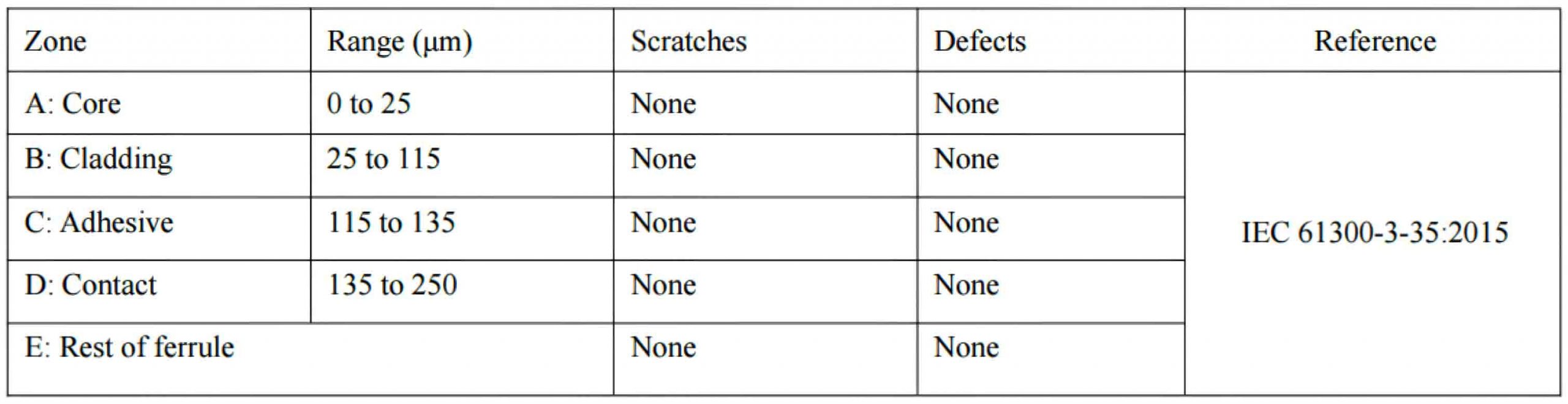

End-Face Qualty (MM)

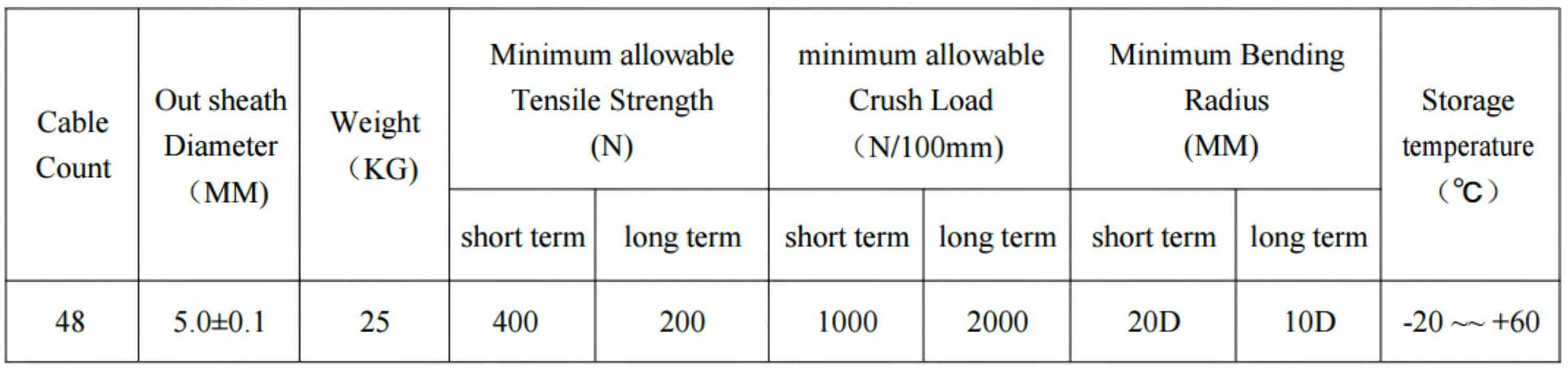

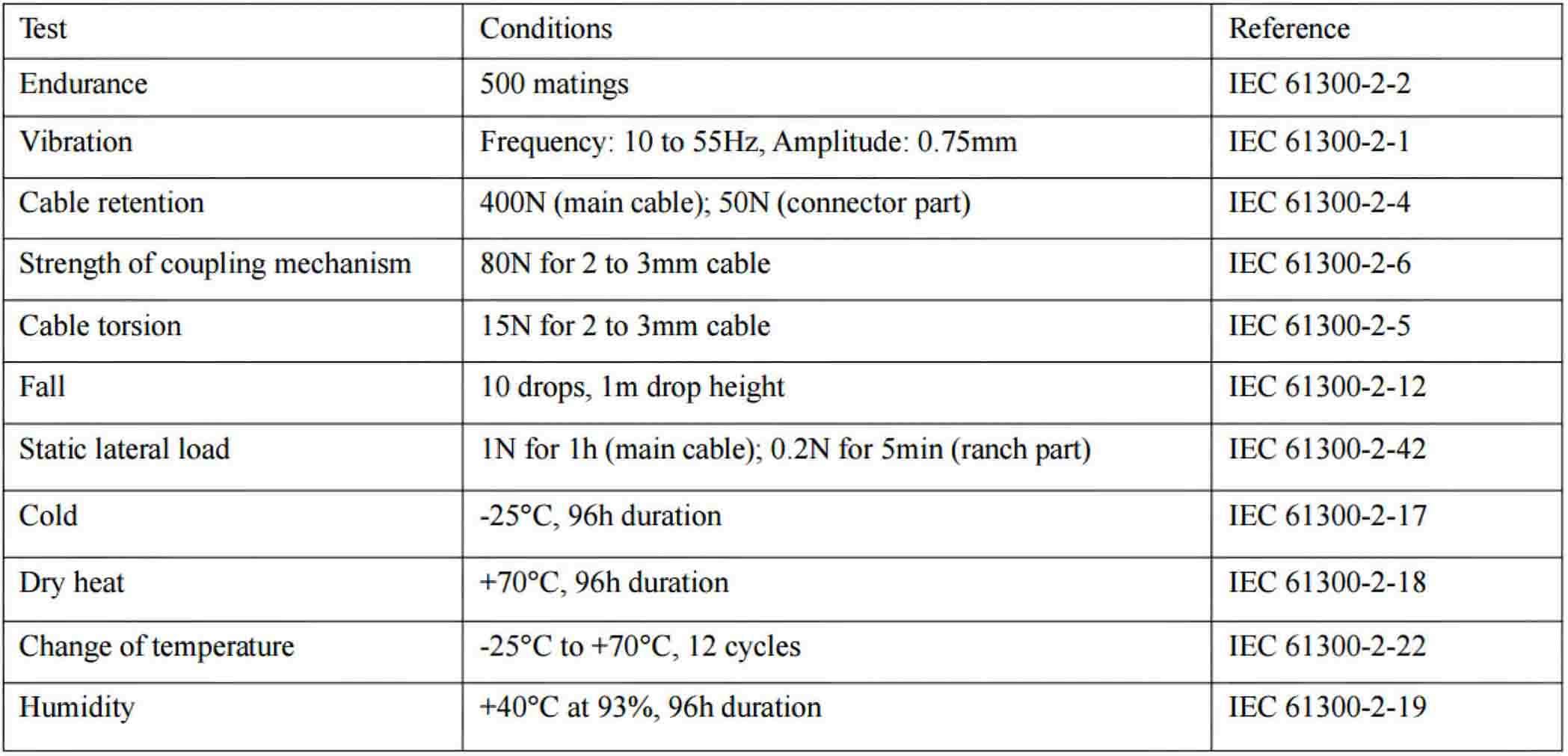

Mechanical Characteristics
