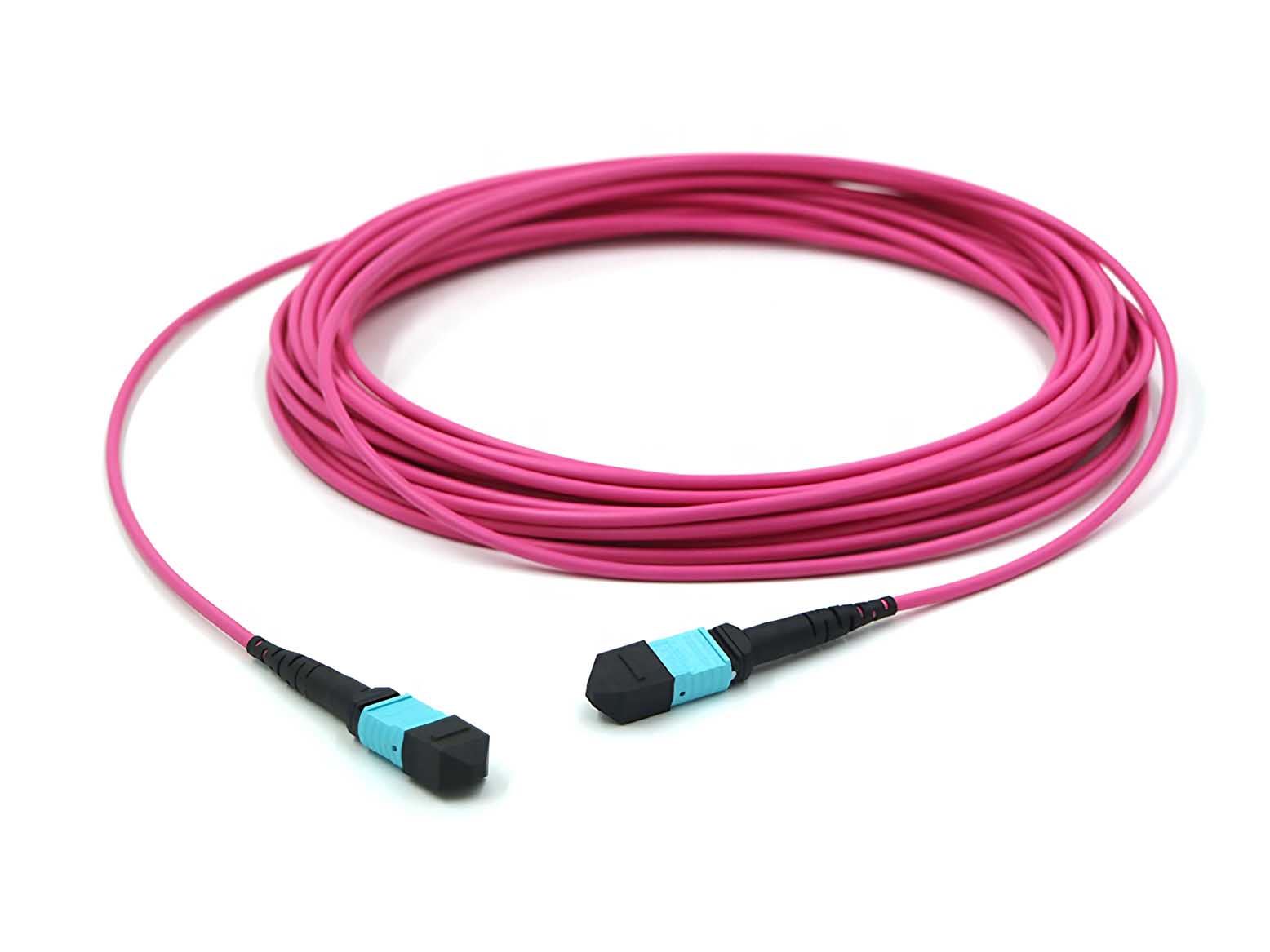

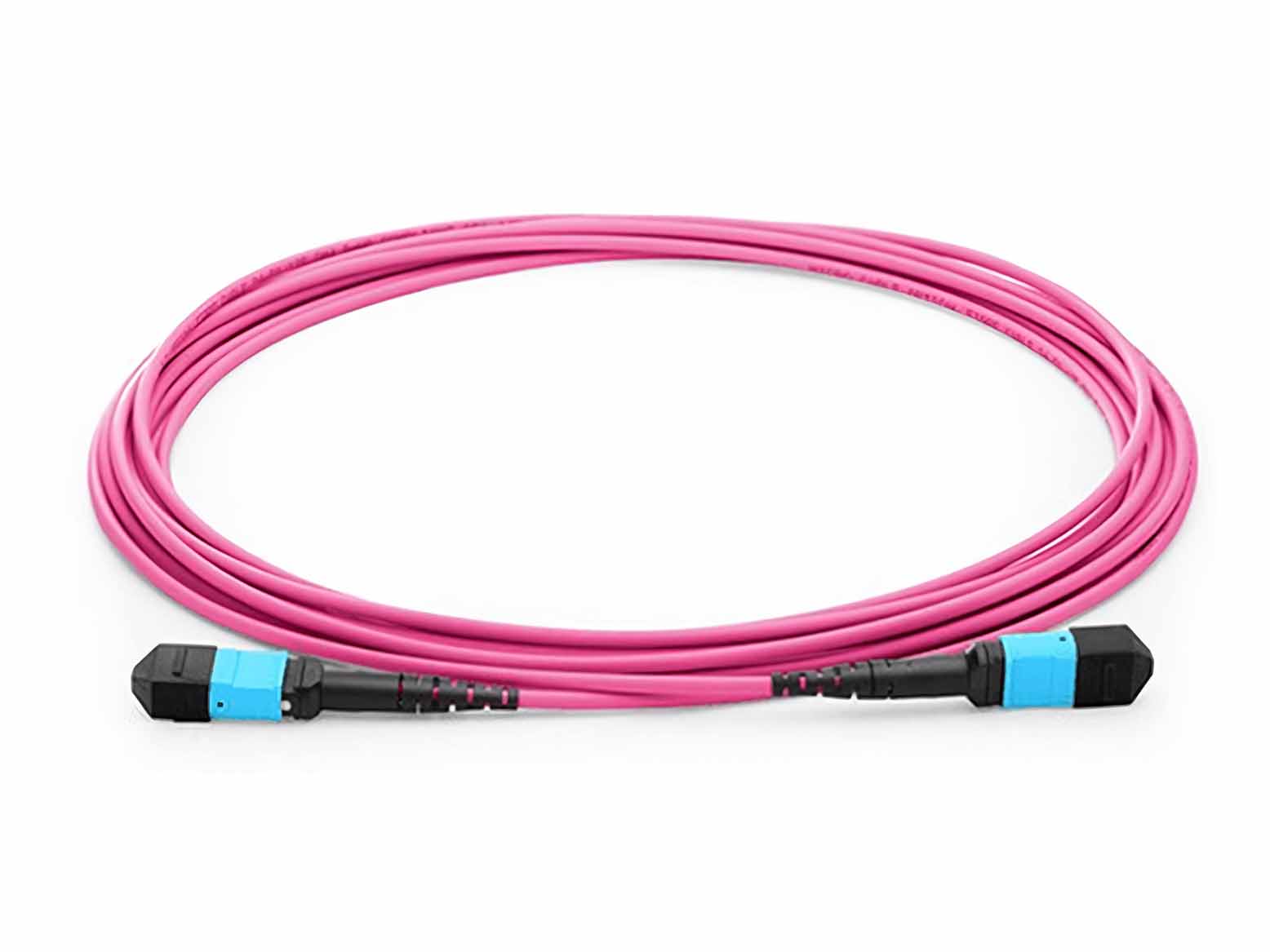

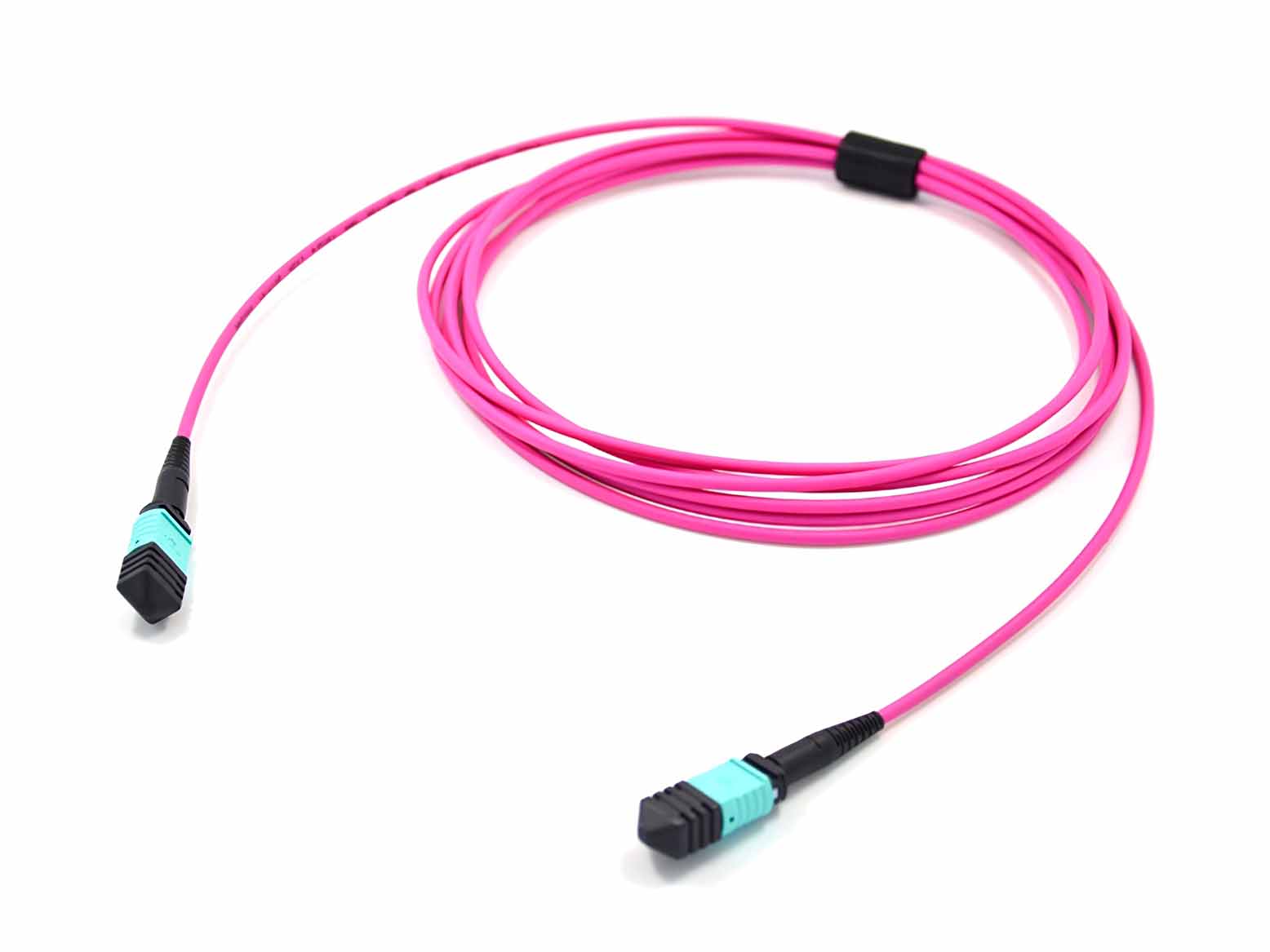

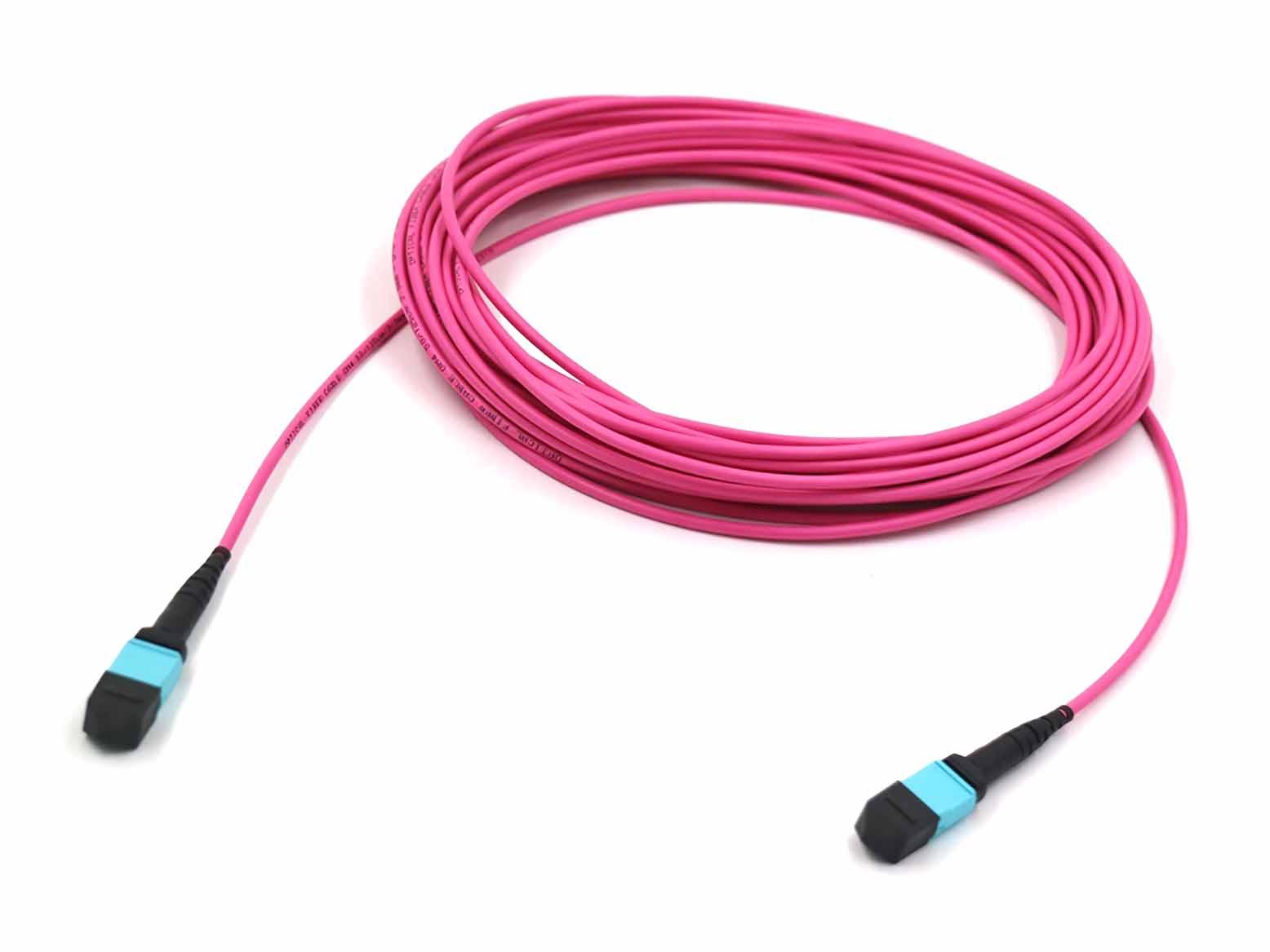

Type B OM3 OM4 12 Cores 24 Cores Fiber Optic MTP MPO Patchcord

mtp/mpo meaning

The B-type MPO/MTP optical jumper has the opposite arrangement of the fiber cores at both ends of the jumper, and the position of the core 1 at one end is 12 at the other end, and the positioning keys at both ends have the same direction..



mpo fiber patch cord

1、MTP and MPO are available
2、High performance in IL&RL
3、100% pre-terminated tested
4、Pulling eye design easy for cabling
5、8F,12F, 24F, 48F, 72F, 96F, 144F or customized
6、SM,OM1,OM2,OM3,OM4 or customized
7、LSZH, OFNR, OFNP available
8、Compliance with Telcordia GR-326-CORE Compliant
9、RoHS compliant



mtp fiber optic Application

1、Backbone installation
2、Data center cabling
3、Support 40G and 100G network
4、Telecommunication network
5、Industrial & Military





mpo fiber jumpers Technical Parameter



mpo fiber Color Code
