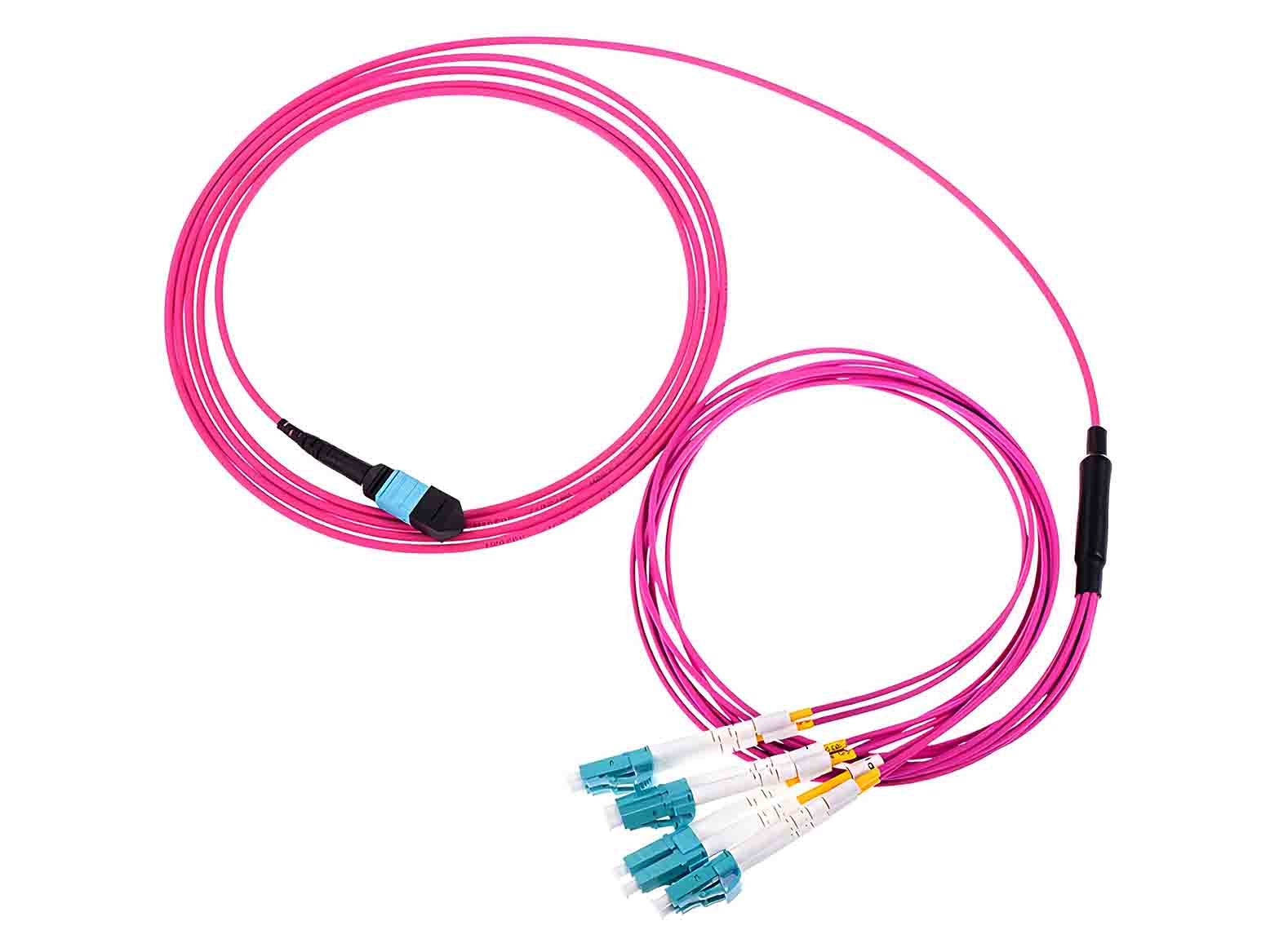

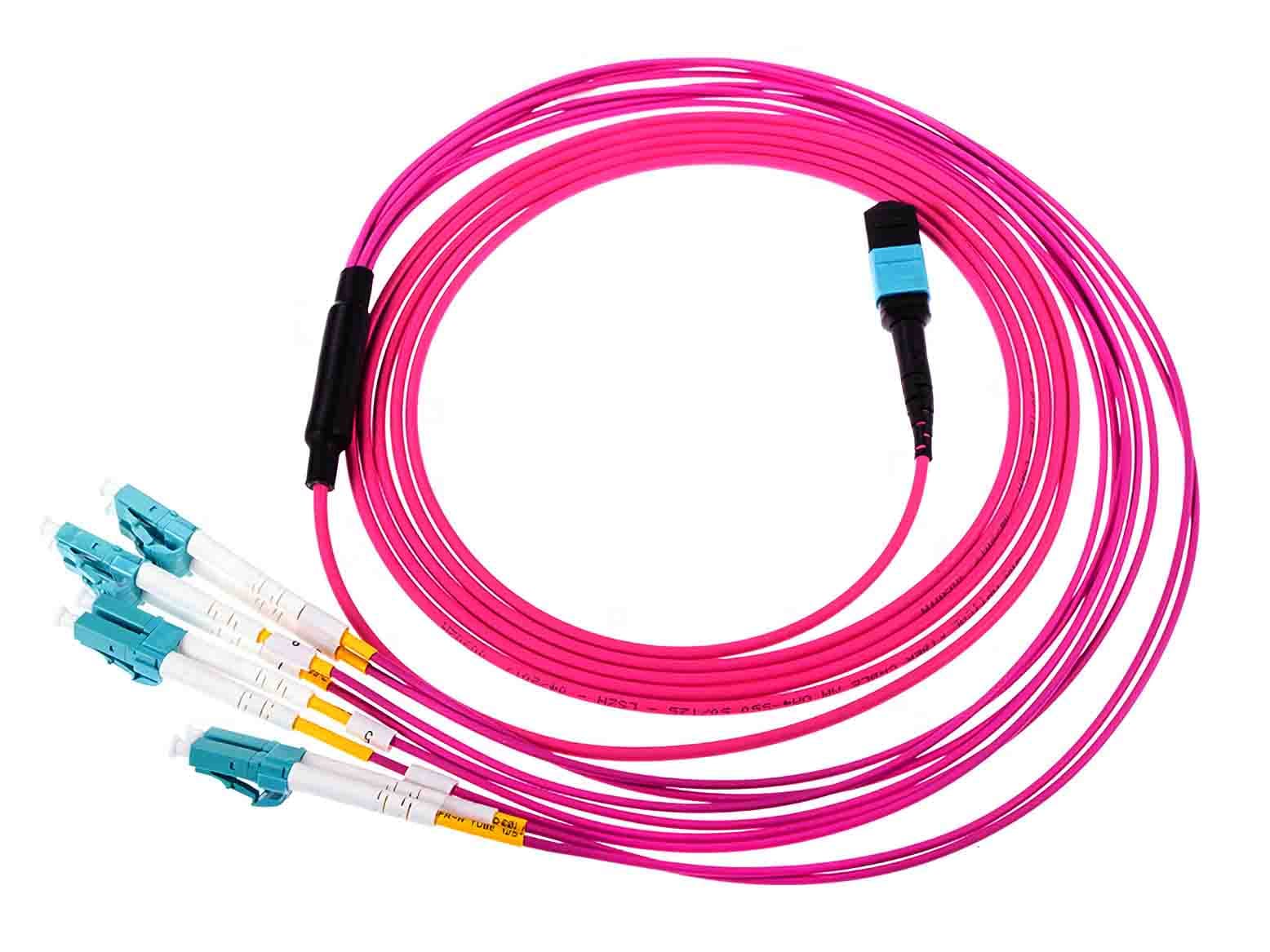

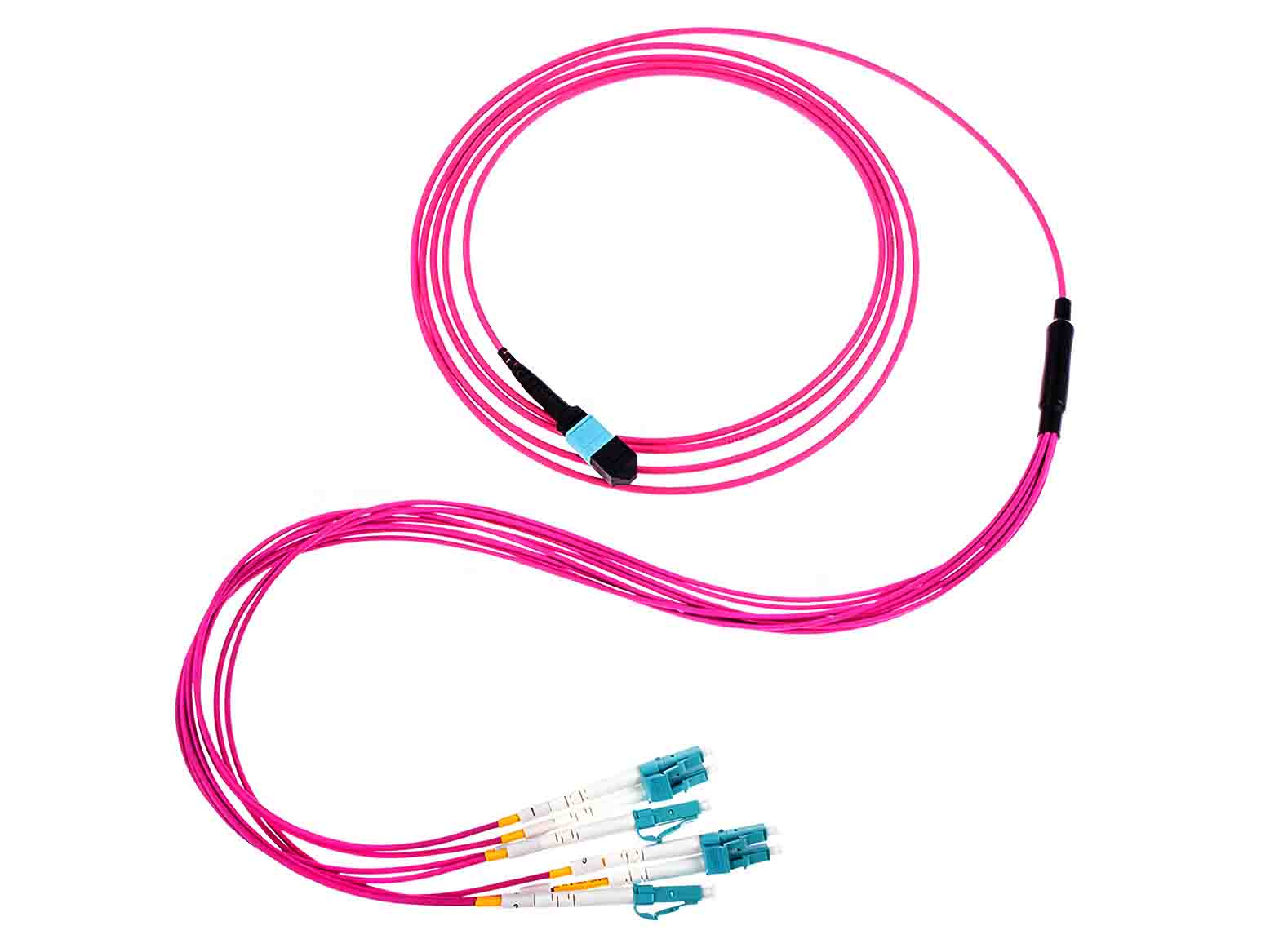

Data Center Cabling MTP MPO Fiber Optical Jumper OM3 12 Fibers



mtp/mpo meaning

MTP/MPO (Multi-fiber Push On) fiber jumper, the connector is one of the MT series connectors. The guide holes on the left and right sides of the end face of ferrule are accurately connected with the guide pin (also called PIN pin). MPO connectors and fiber optic cables can be processed to produce various forms of MPO jumpers.



mpo fiber patch cord

1、MTP and MPO are available
2、High performance in IL&RL
3、100% pre-terminated tested
4、Pulling eye design easy for cabling
5、8F,12F, 24F, 48F, 72F, 96F, 144F or customized
6、SM,OM1,OM2,OM3,OM4 or customized
7、LSZH, OFNR, OFNP available
8、Compliance with Telcordia GR-326-CORE Compliant
9、RoHS compliant



mtp fiber optic Application

1、Backbone installation
2、Data center cabling
3、Support 40G and 100G network
4、Telecommunication network
5、Industrial & Military

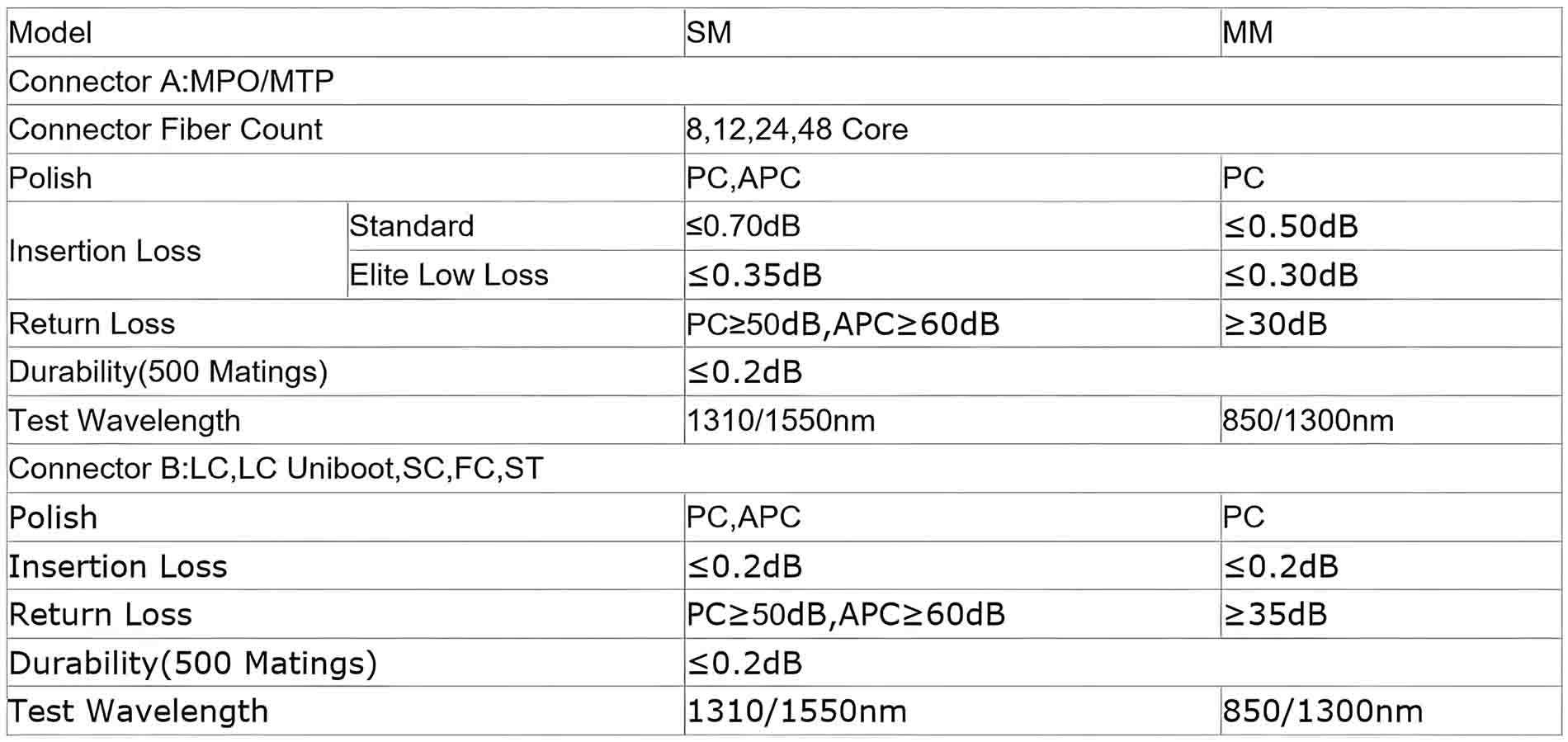

mpo fiber jumpers Technical Parameter

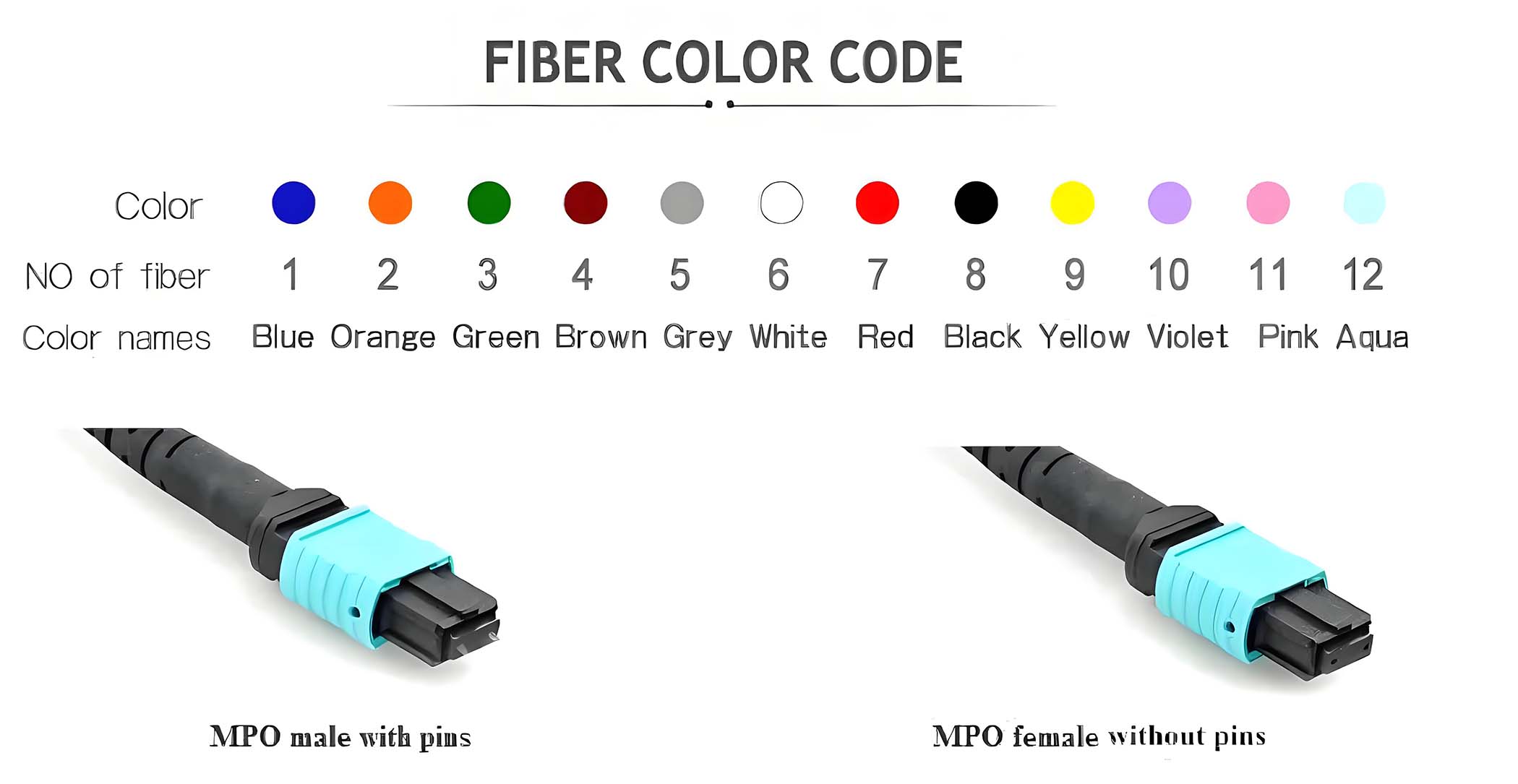

mpo fiber Color Code
