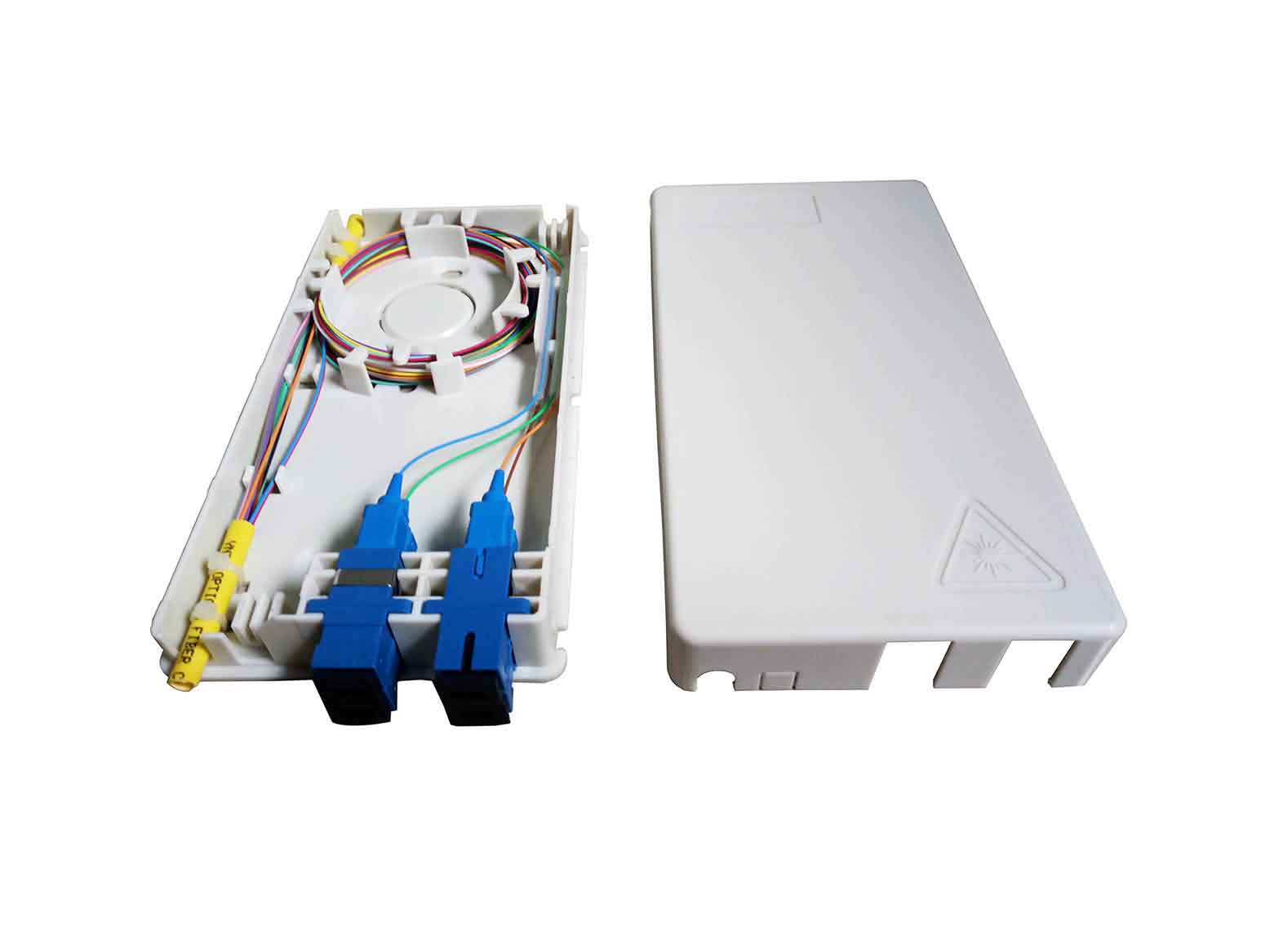

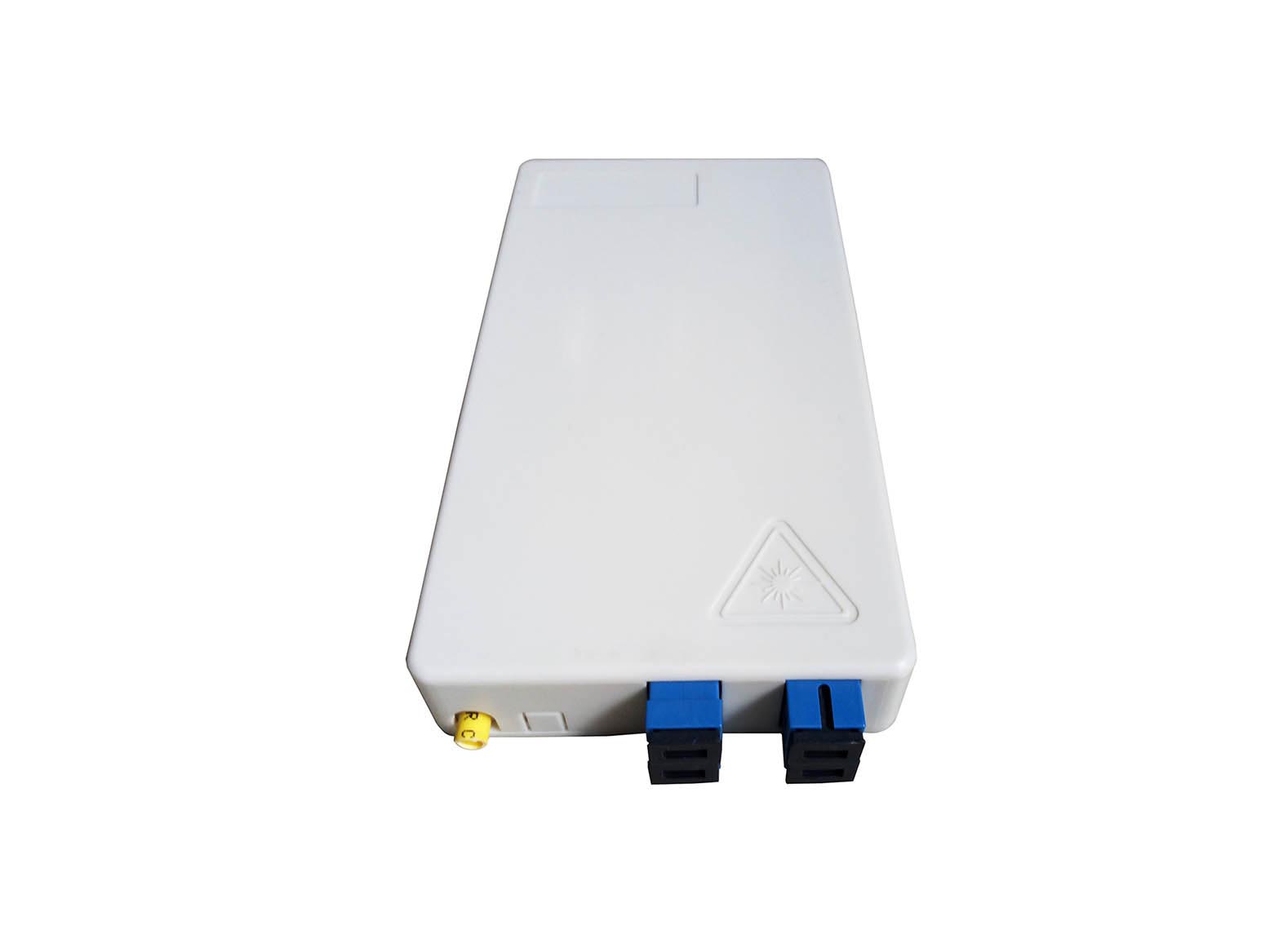

Fiber Optic Terminal Box – BOX-BC04D

BC04D is an indoor wall mounted fiber optic terminal box that can load 4pcs SC simplex adapters for fiber splicing and distribution.



Features:
1、Made of ABS plastic, the cover is inserted into base.
2、Reasonable design, suitable for 4pcs SC simplex adapter, pigtail, and fast connector.
3、2pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.
4、4pcs drop cable entry ports, easy use.
5、Can put one 1*4 PLC splitter.
6、Used in the end termination of residential building and villas, to fix and splice with pigtails.

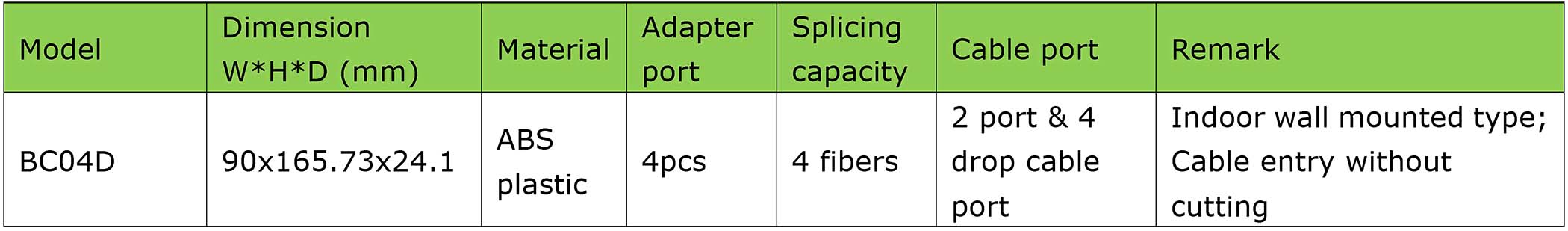

Specification:

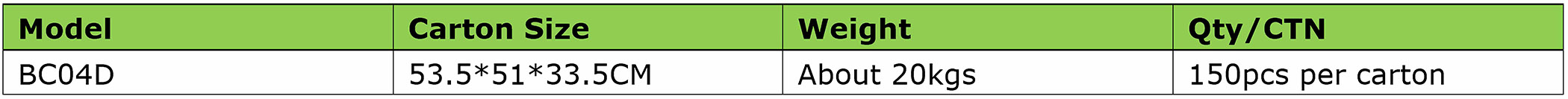

Packing information:

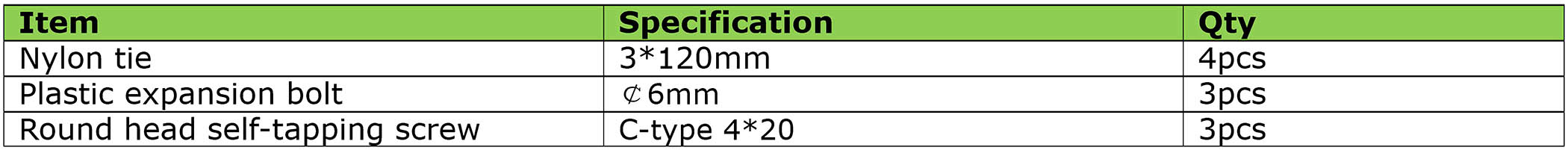

Accessories:

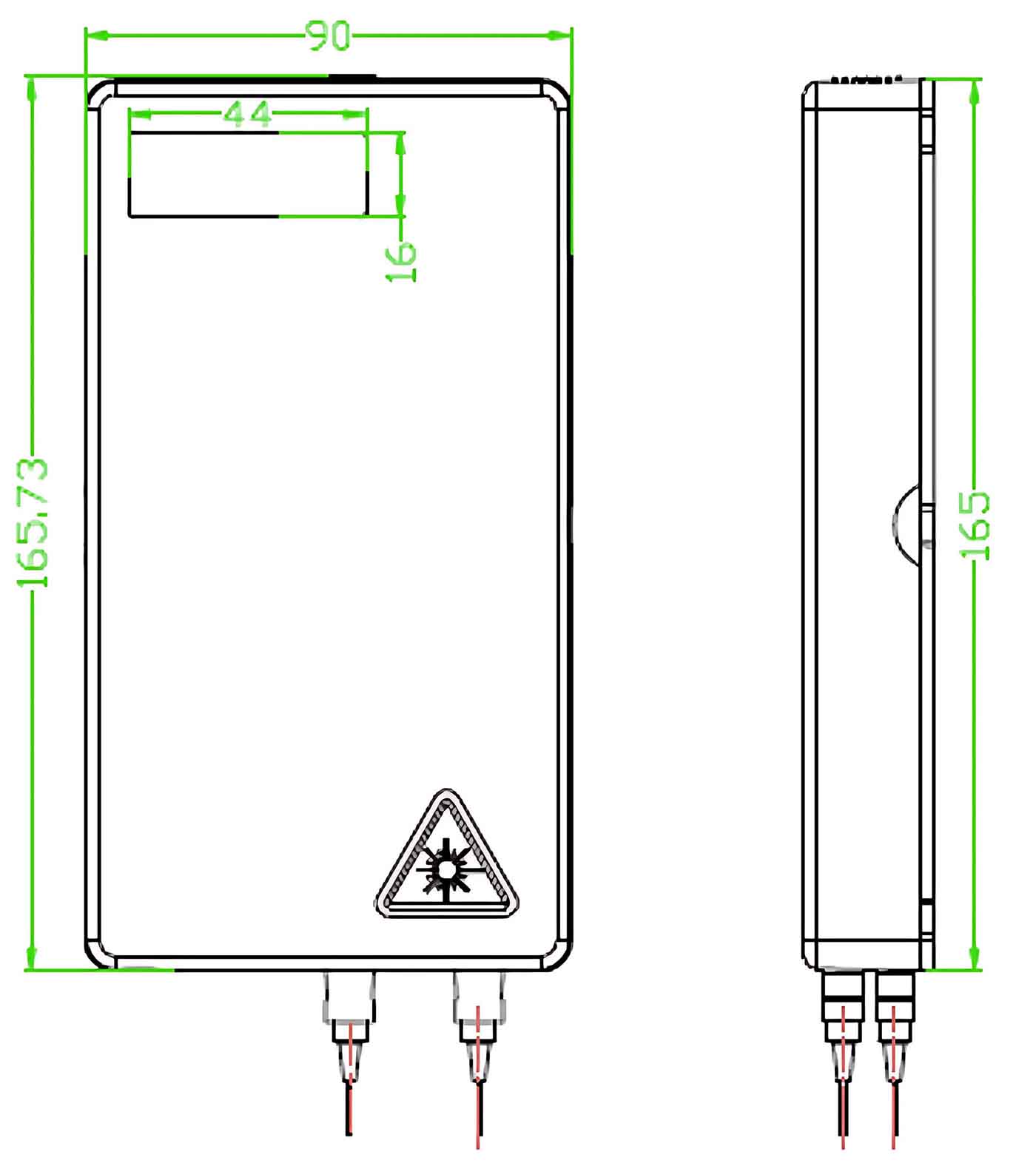

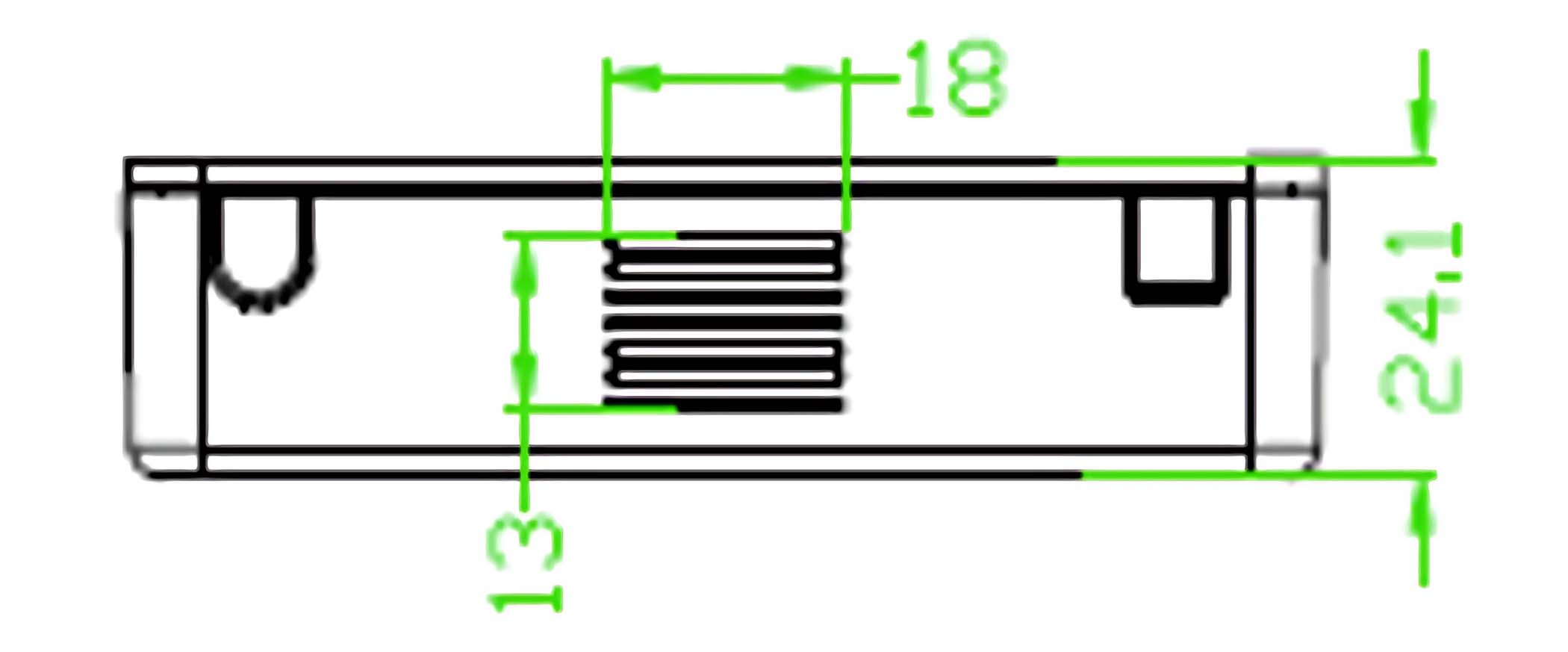

Dimension: (mm)
