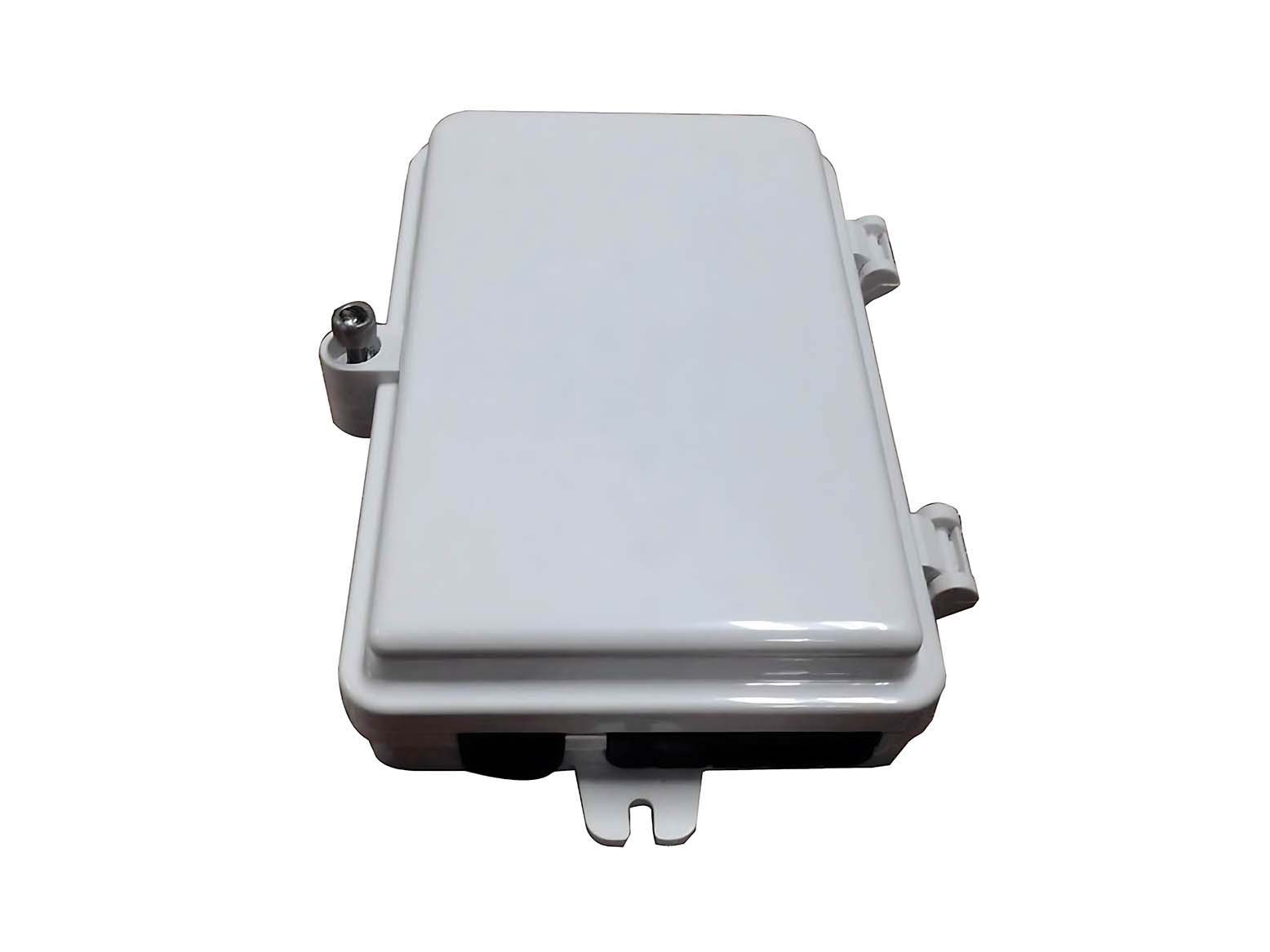

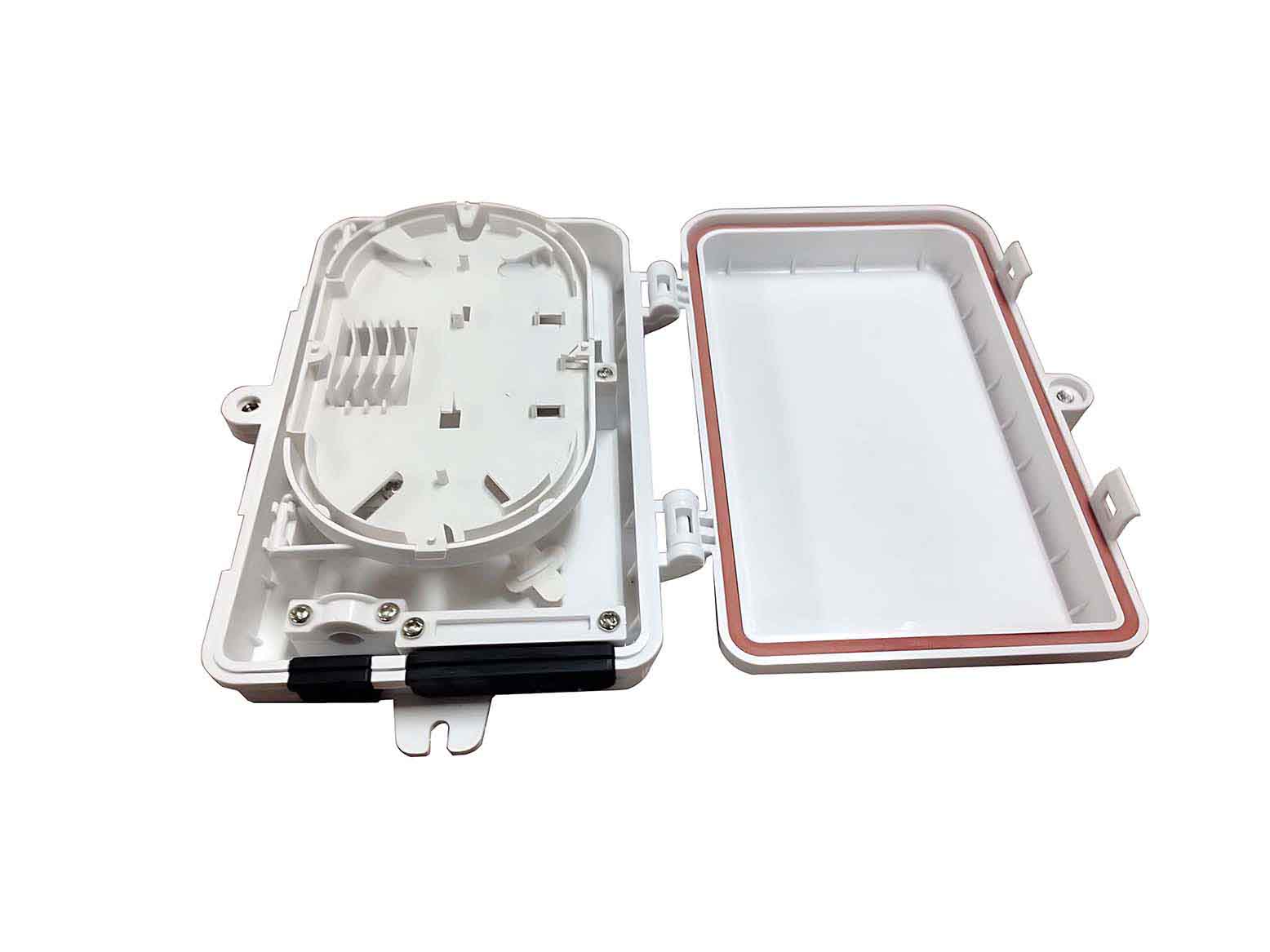

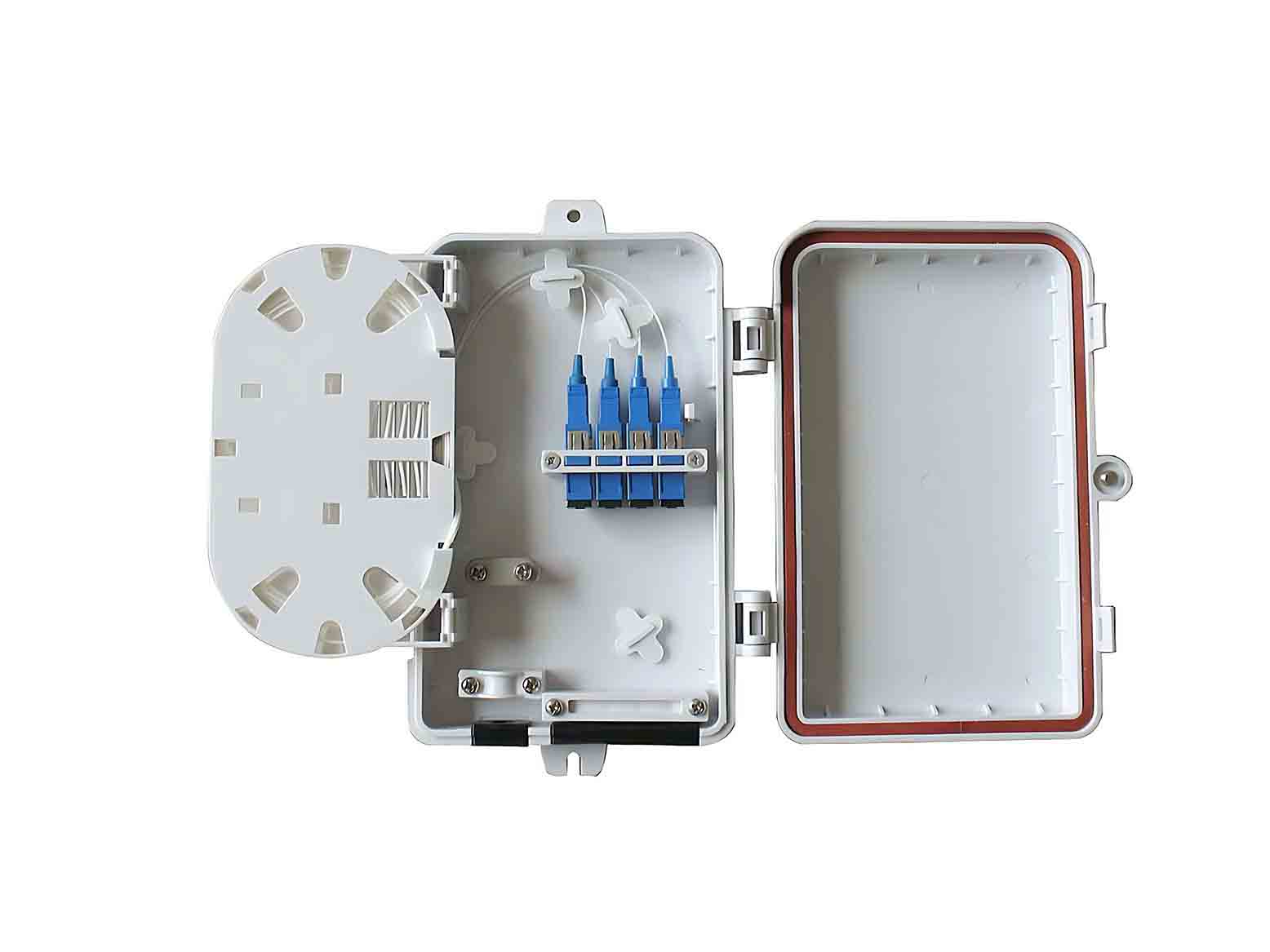

Fiber Optic Terminal Box BC04A

BC04A is used in the end termination of residential building and villas, to fix and splice with pigtails. It can be installed on the wall, and adapt variety of optical connection styles.



Features:
1、Outdoor wall mounted, IP65.
2、Max capacity 4 fibers
3、Can load 1pc PLC 1:4 steel tube type splitter
4、Cable port diameter 7-10mm
5、Suitable for SC, FC, LC duplex … adapter
6、ABS plastic, light weight
7、Reasonable design for fiber arrangement, bend radius more than 30mm
8、Suitable for 1pc 4 way splitter or 1pc 8 way splitter with LC connector (Steel tube type)



Parameters:
1、Operate temperature:-5℃+40℃
2、Relative humidity:≤90%(+30℃)
3、Atmospheric pressure: 70Kpa-106Kpa
4、Storage Temperature:-40℃+70℃
5、Optical parameter: Insertion loss≤0.3dB;  Excess loss:≤0.2B;  Return loss≥50dB
6、IP standard:IP55

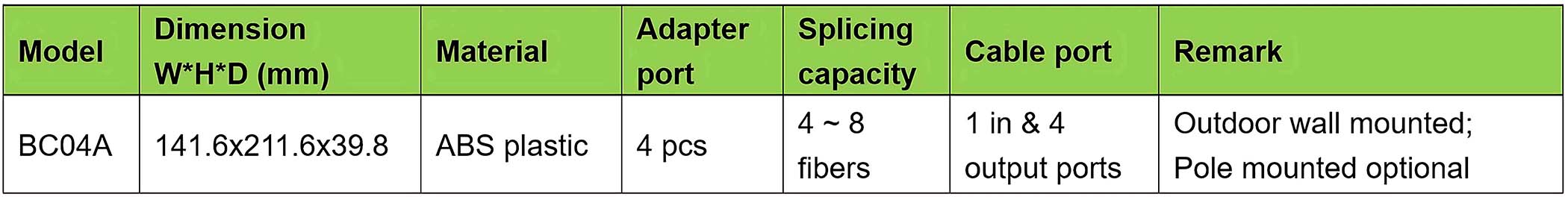

Specification:

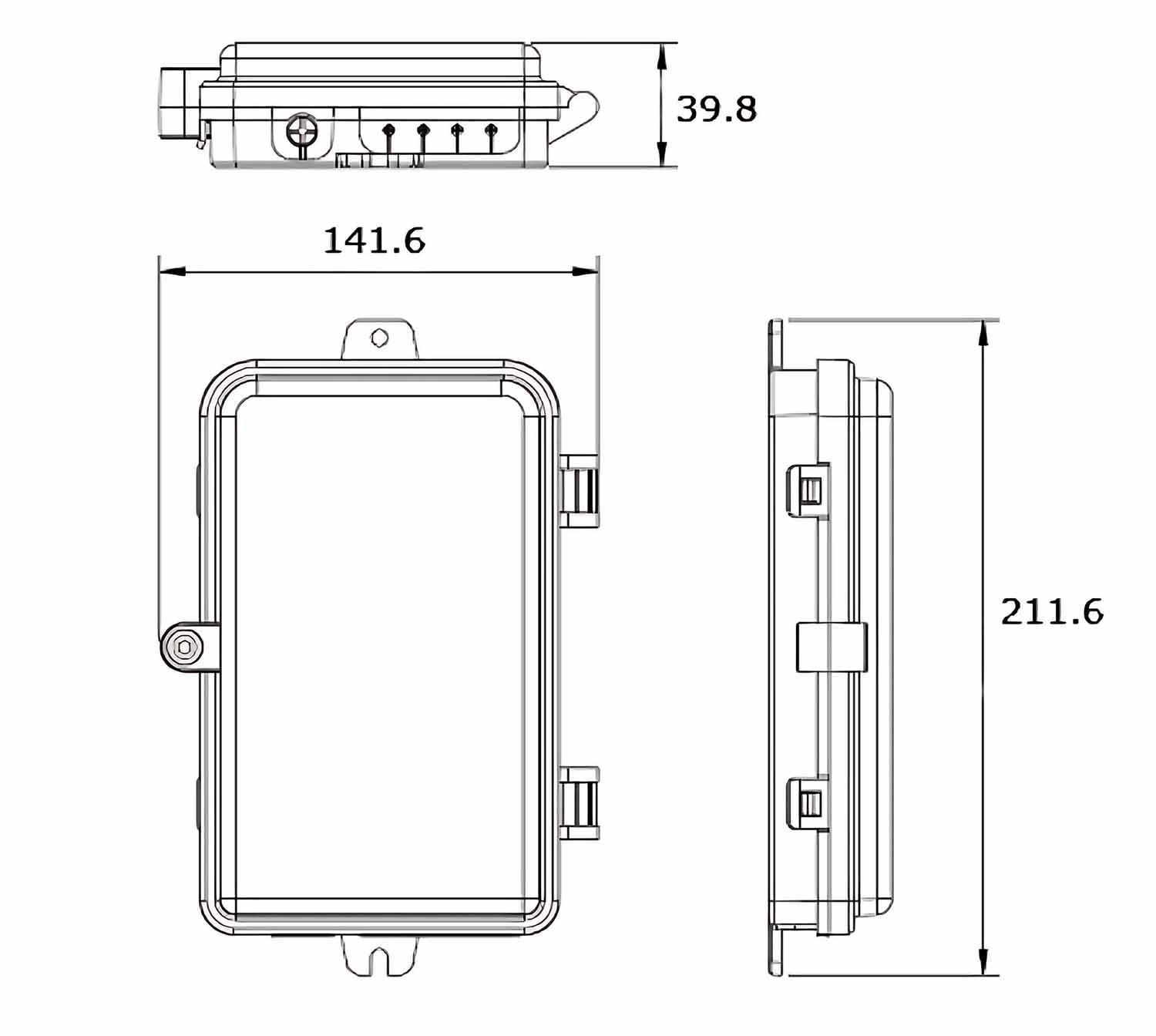

Dimension: (mm)

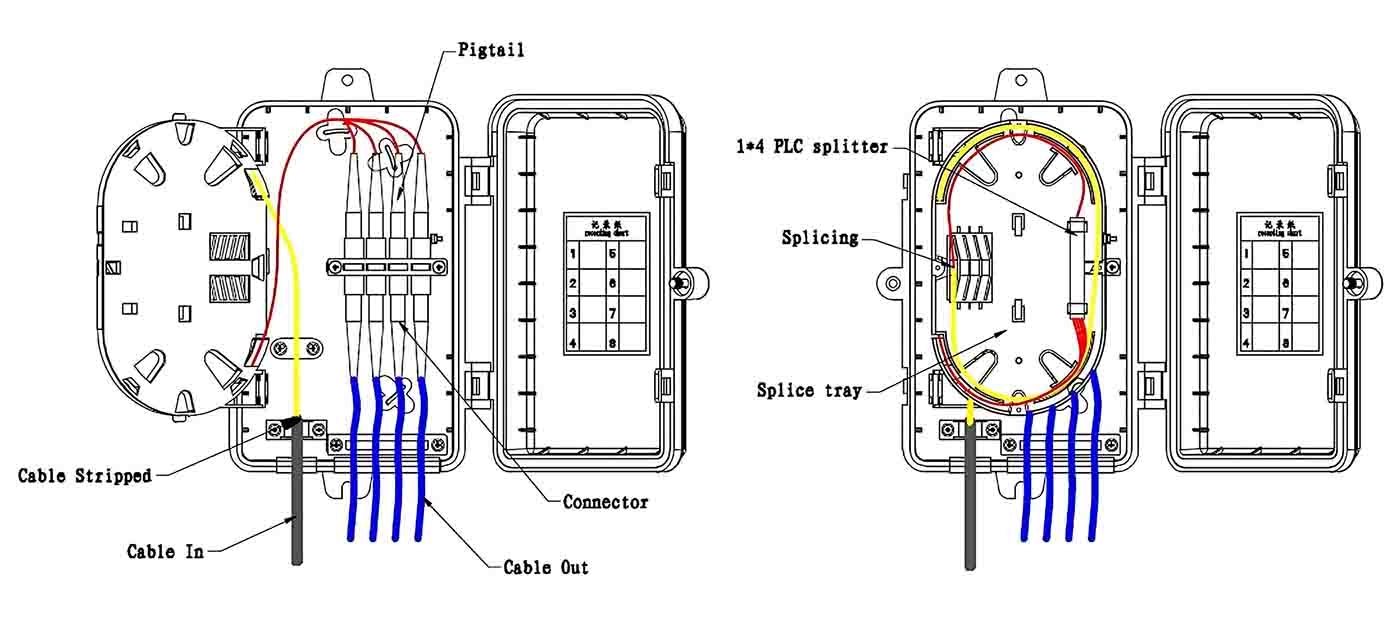

Using instruction drawings；

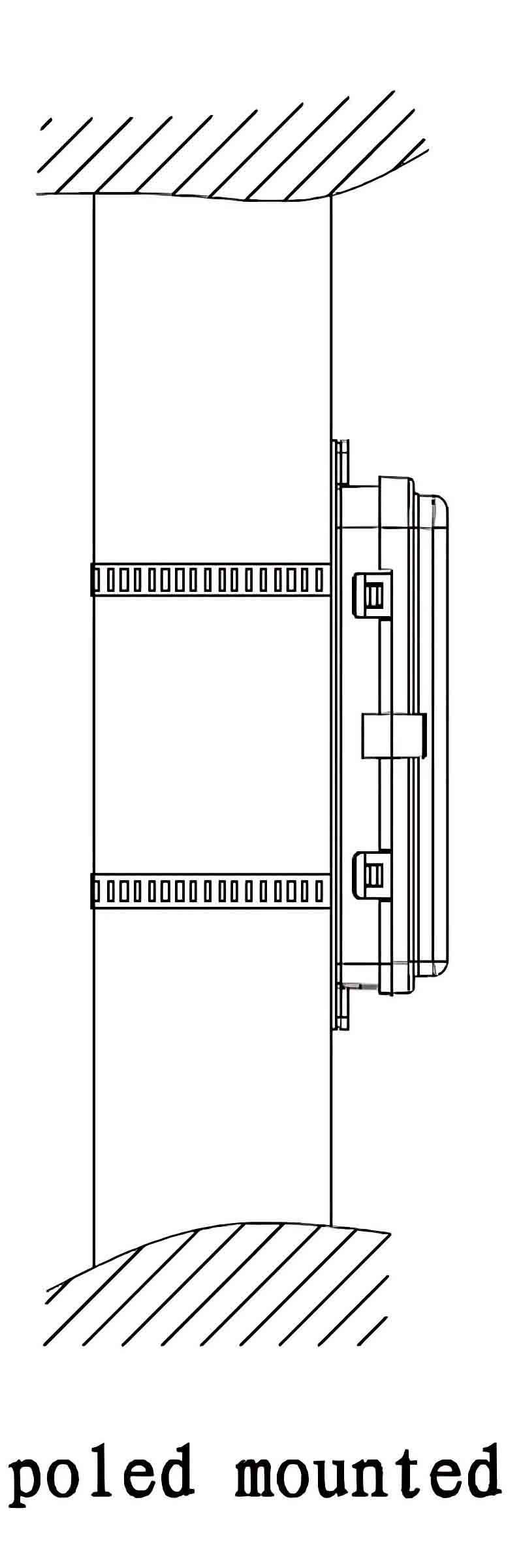

Pole mounted using drawings:

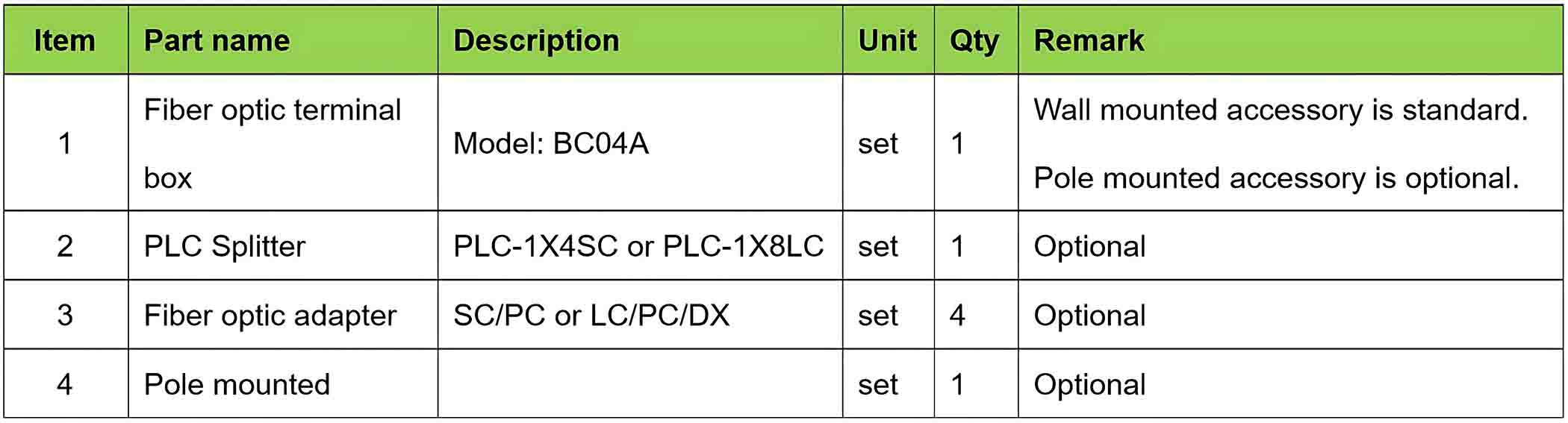

Accessories:

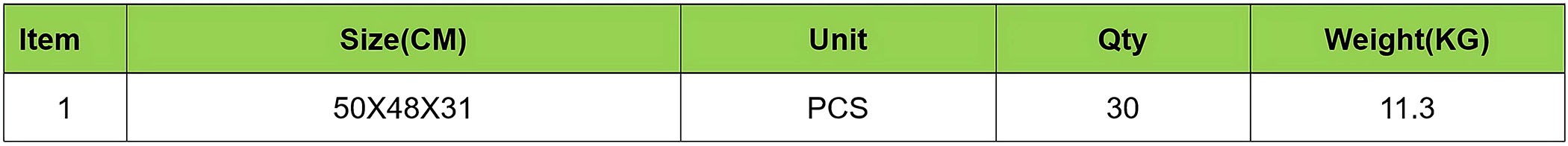

Packing information:
