Fiber Optic Terminal Box BC02

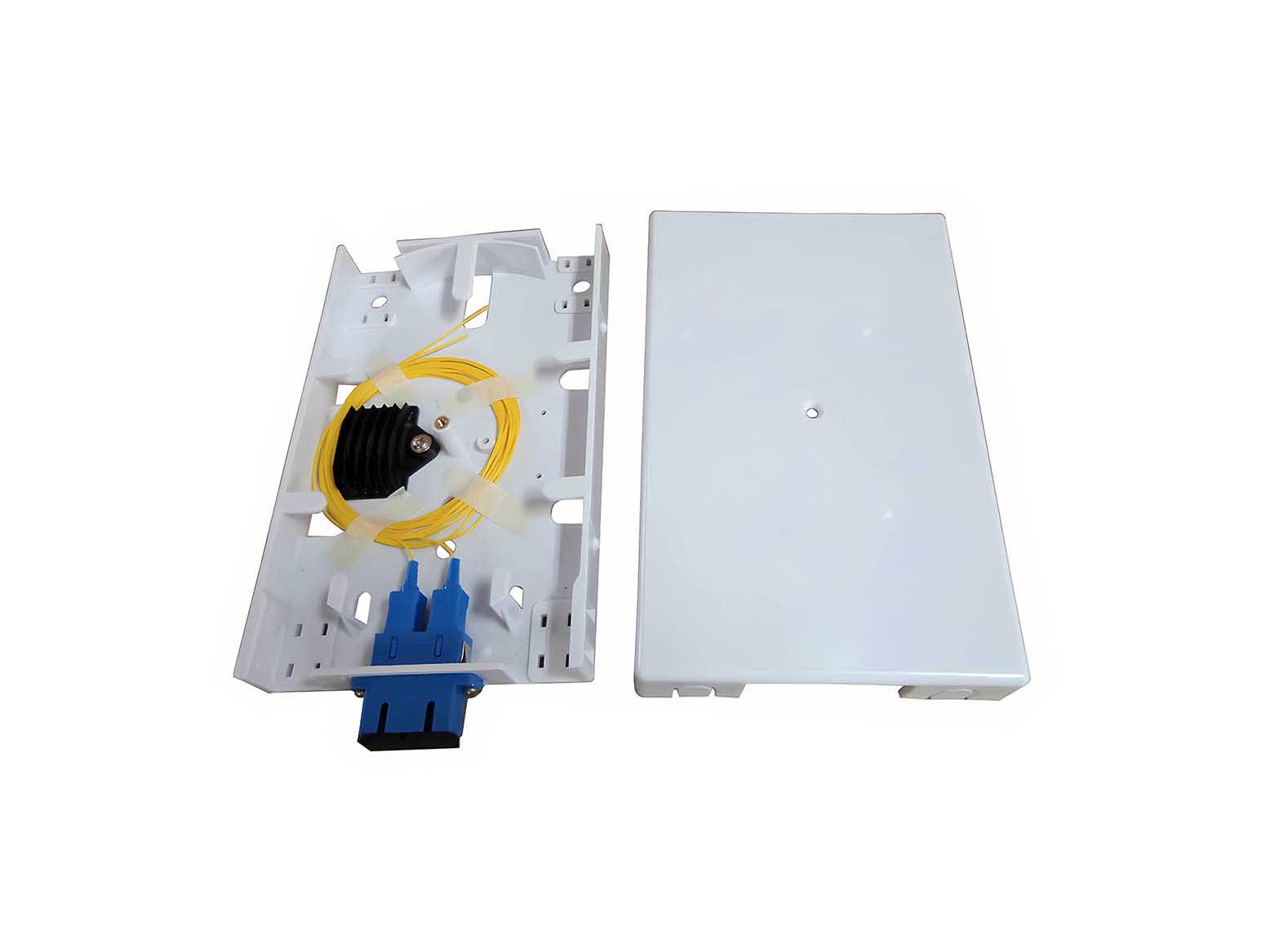

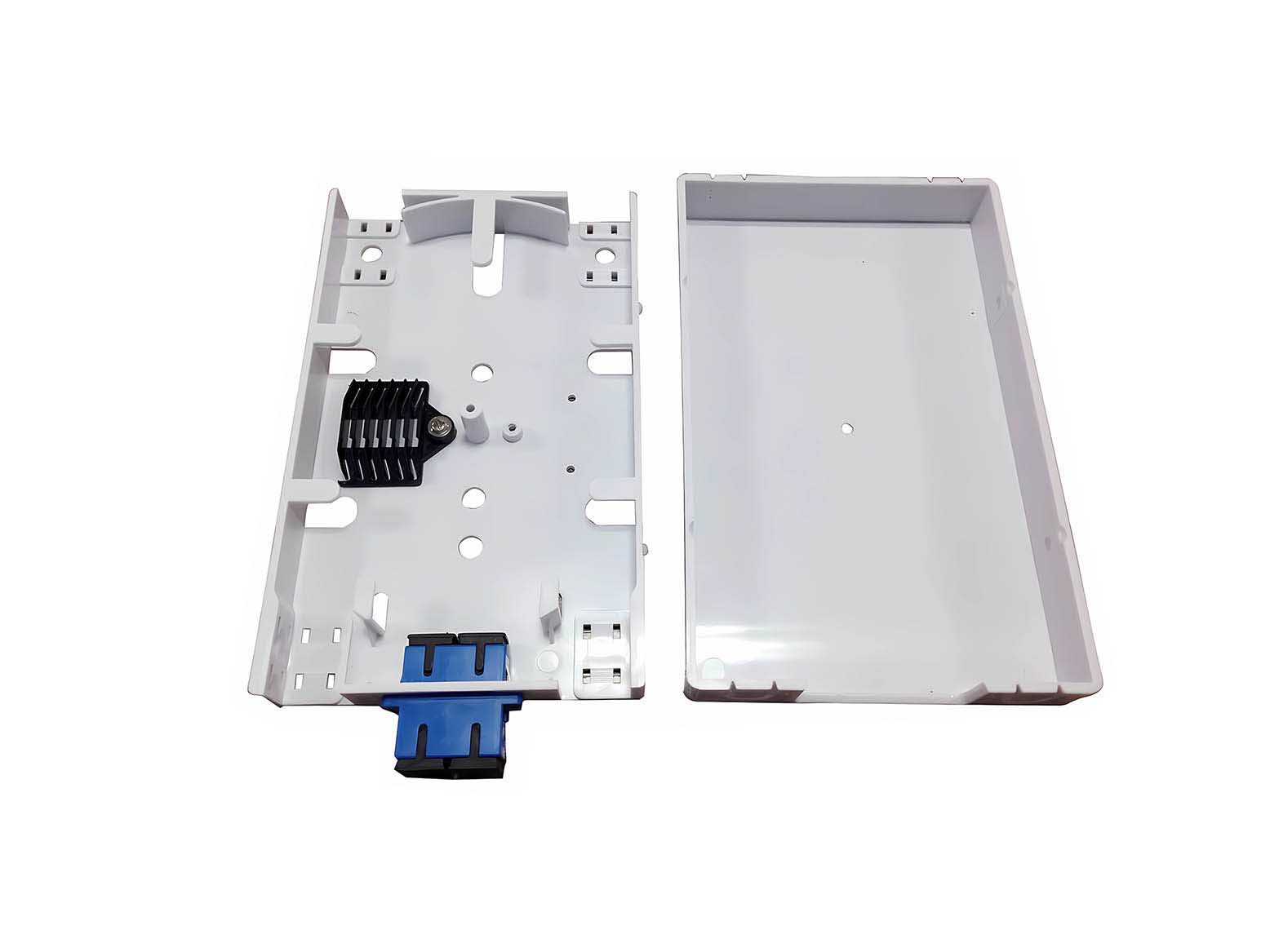

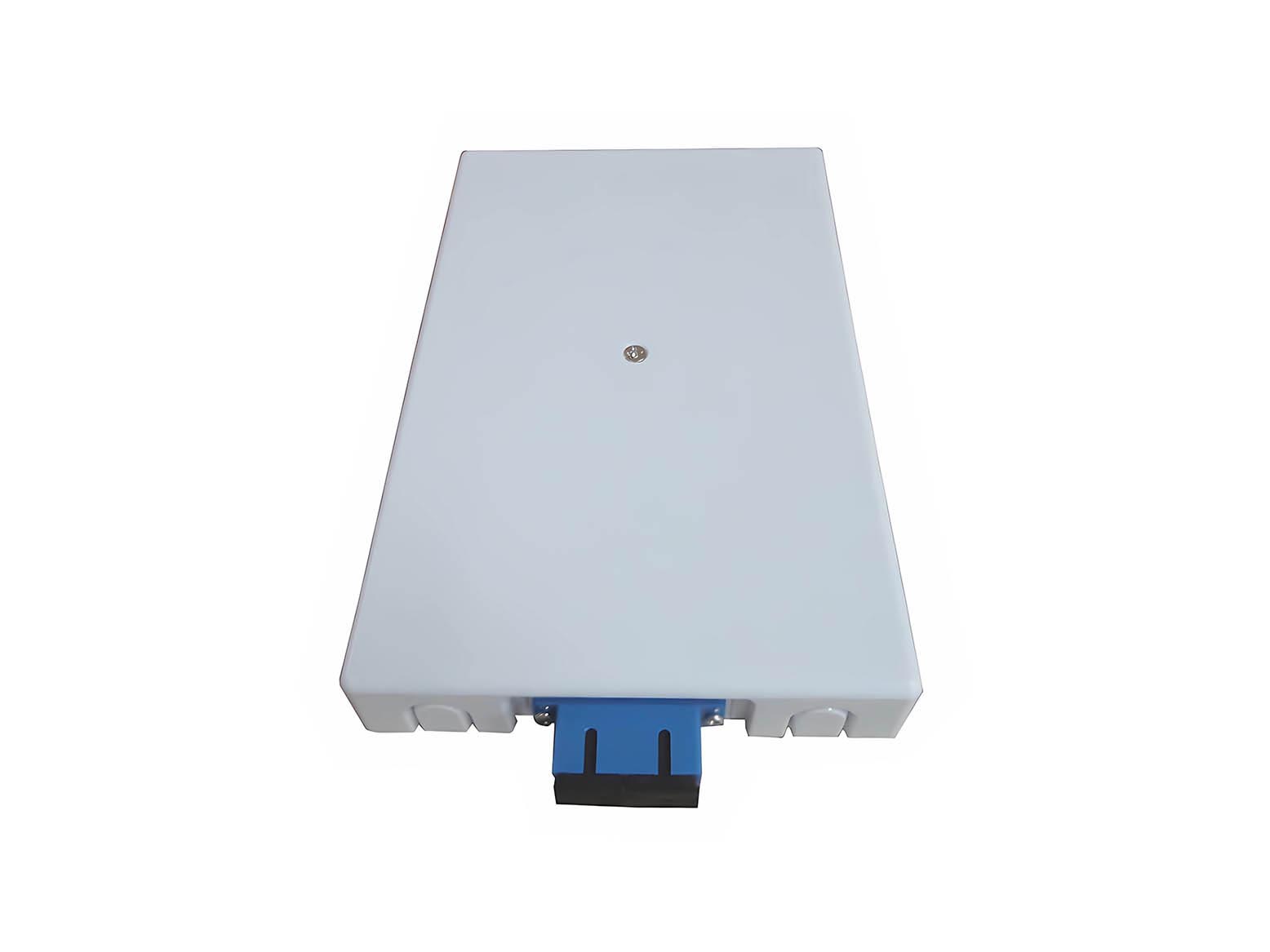

BC02 is an indoor wall mounted fiber optic terminal box that load 1pc SC duplex adapter & 2 splice modules for fiber splicing and distribution.



Features:
1、Made of ABS plastic, the cover is inserted into base.
2、Reasonable design, suitable for 1pc SC duplex adapter
3、4pcs cable entry ports, max cable dimension 8mm, cable can be entry without cutting.
4、It can be installed on the wall and table.
5、Used in the end termination of residential building and villas, to fix and splice with pigtails.

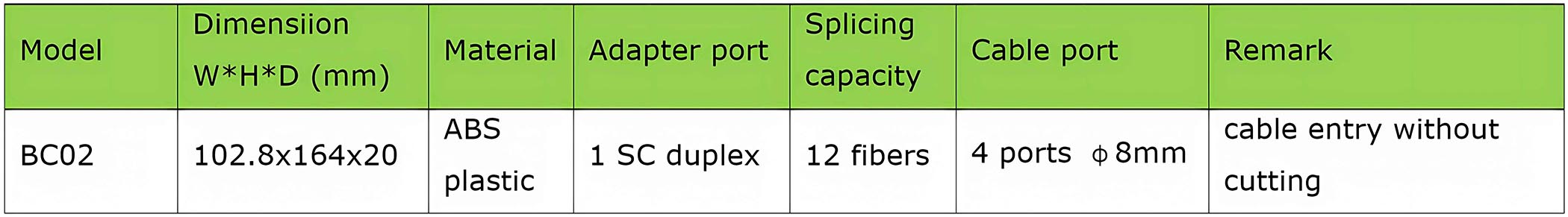

Specification:

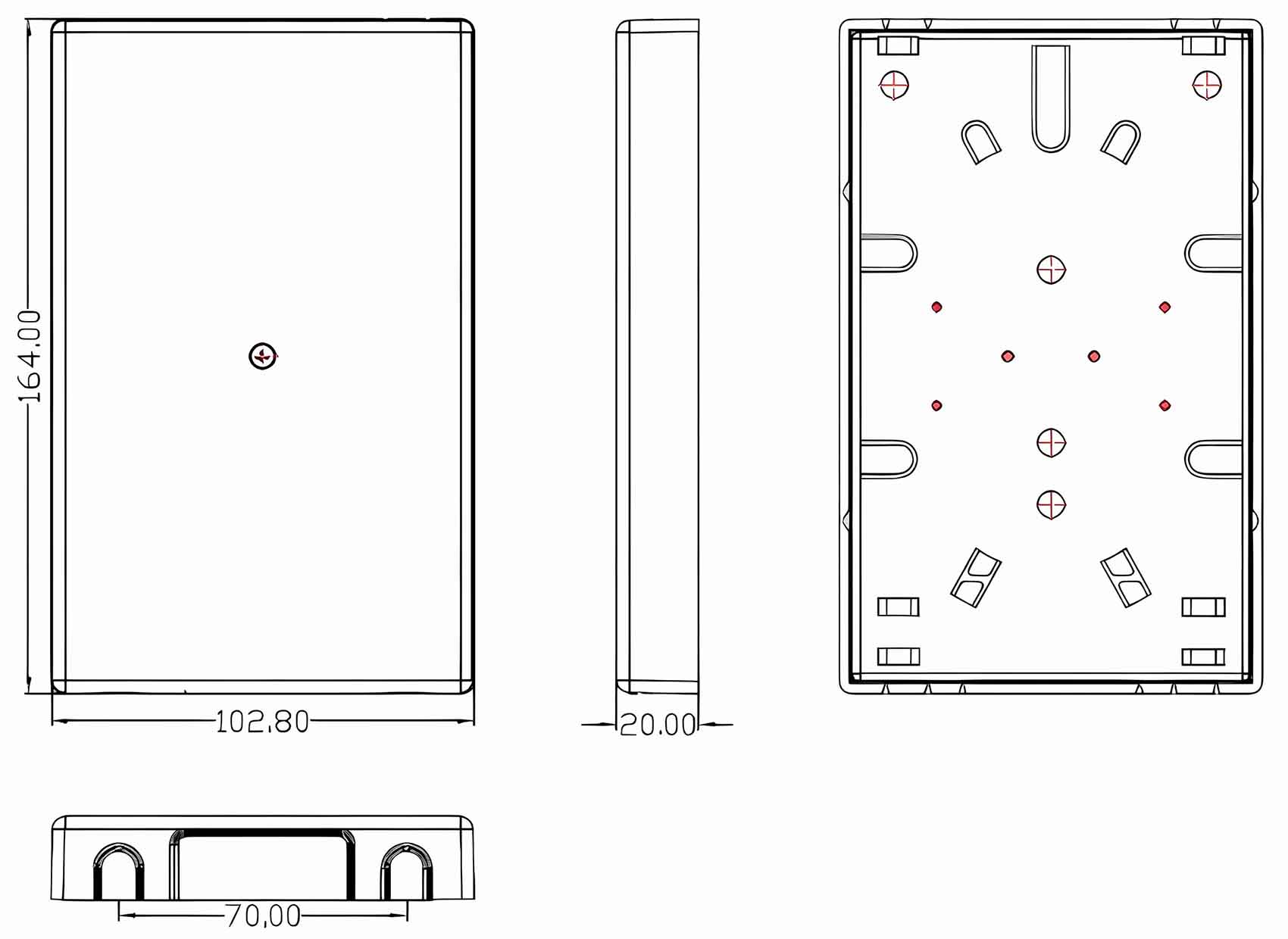

Dimension: (mm)
