Features:
1、Industry Standard User Interface, made of High quality ABS plastic.
2、Can accommodate 1×8 and 1X16 PLC splitter.
3、Rainfall resistant, IP65 outdoor using.Wall mounting and pole mounting application.
4、2 inlet ports suitable for diameter 6~12mm cable or cable uncut function is optional.16 outlet ports for dimension 2*3mm FTTH cable.
5、Can loaded with 16pcs SC adapters; Splice tray 12 Splice groove for Max. 24Fiber splice.

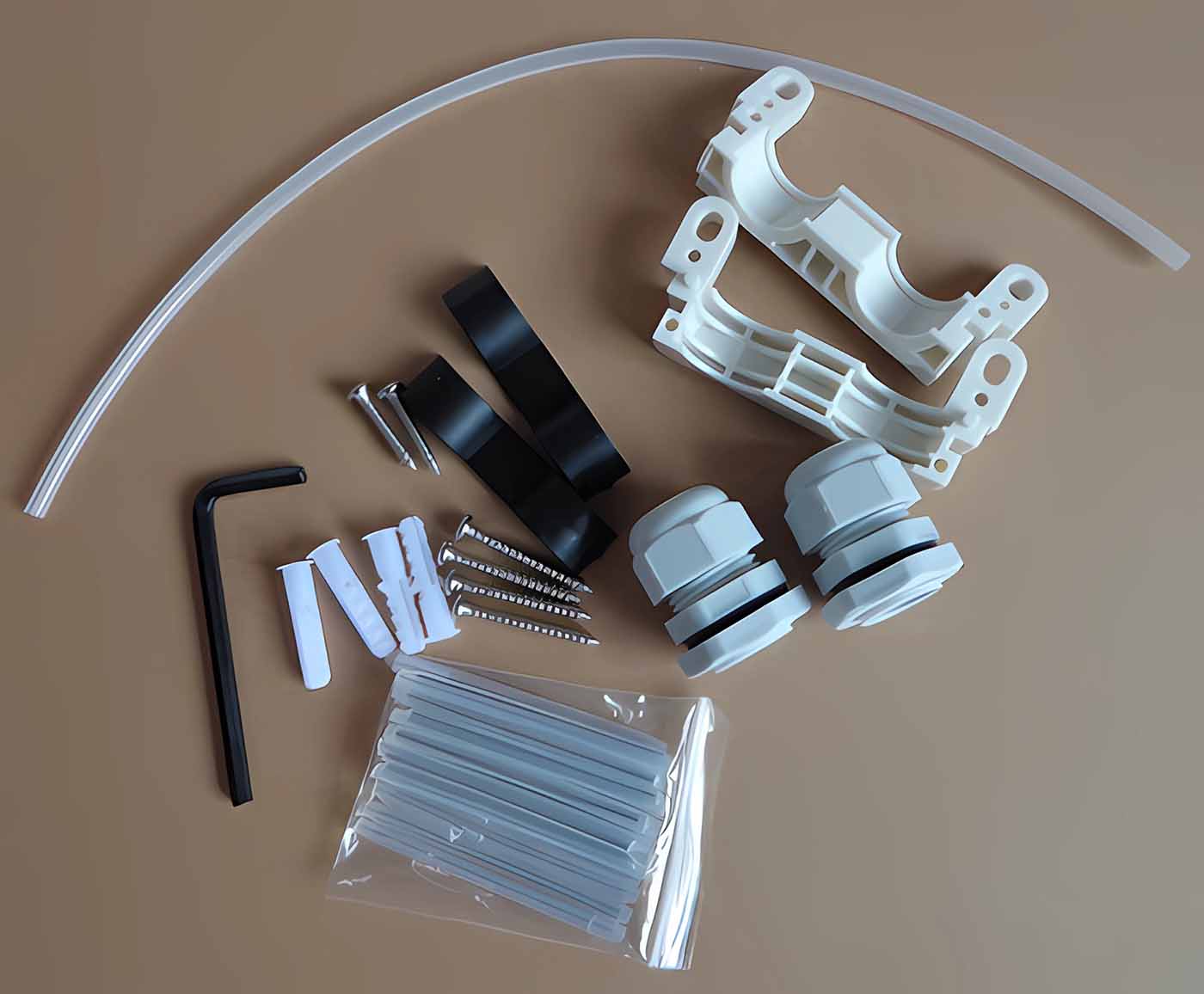

Accessories:
Remark: We supply wall-mount accessories in the accessories package. If you need Pole-mount accessories need add extra cost.
Application:
1、FTTH access network
2、Telecommunication Networks
3、CATV Networks
4、Data communications Networks
5、Local Area Networks

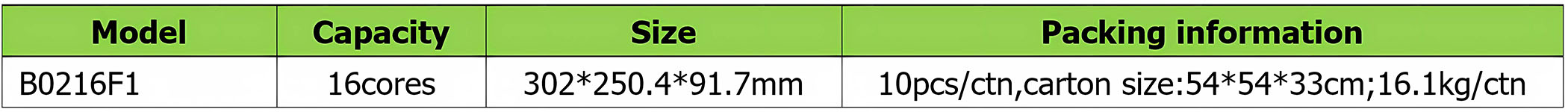

Specification:

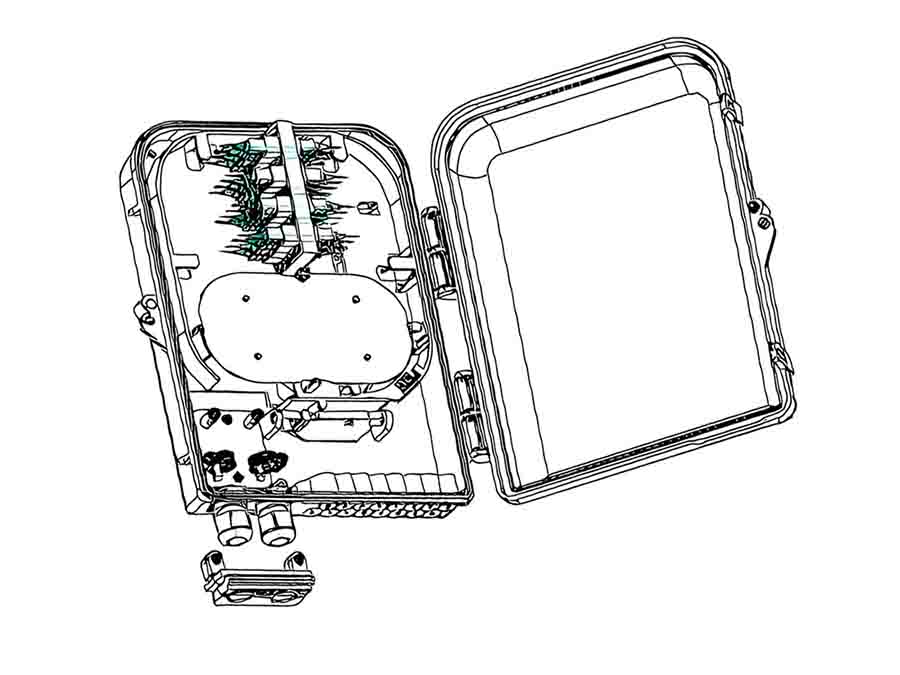

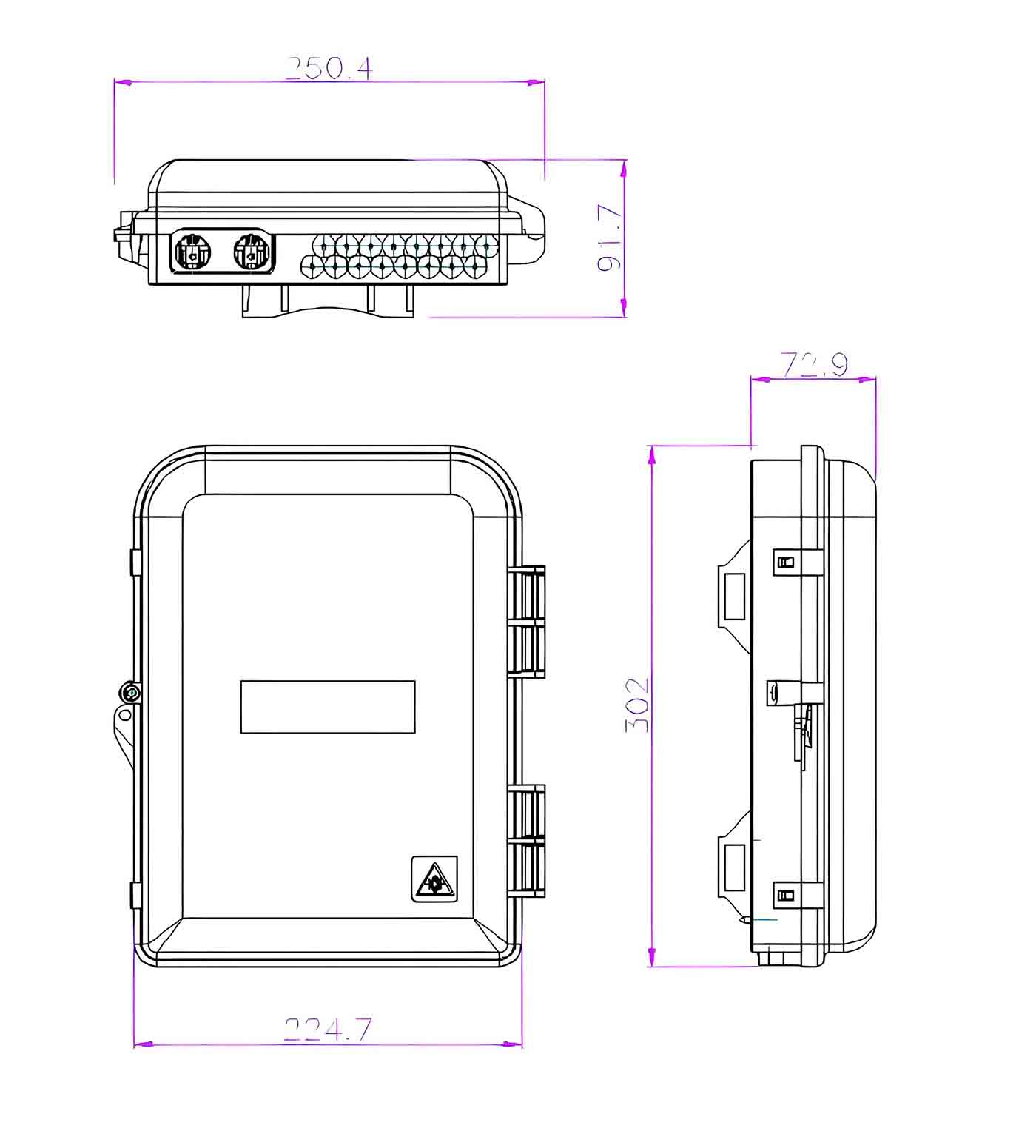

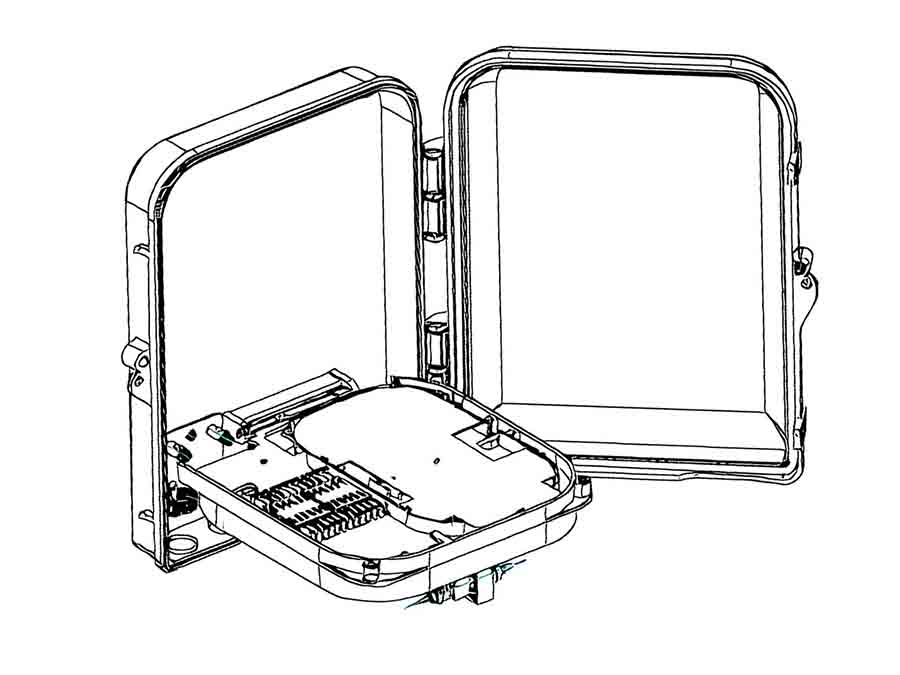

Design drawing:
