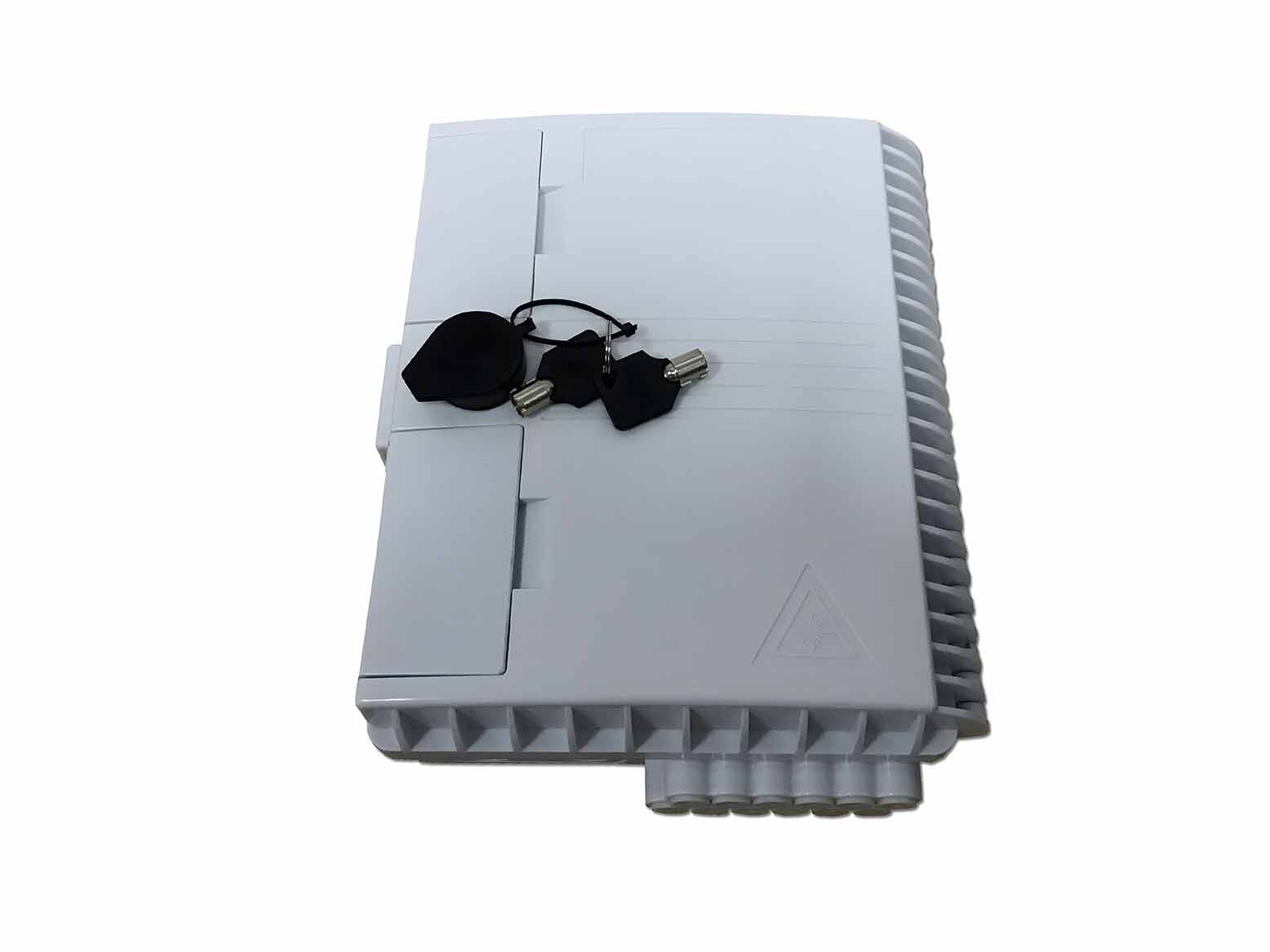

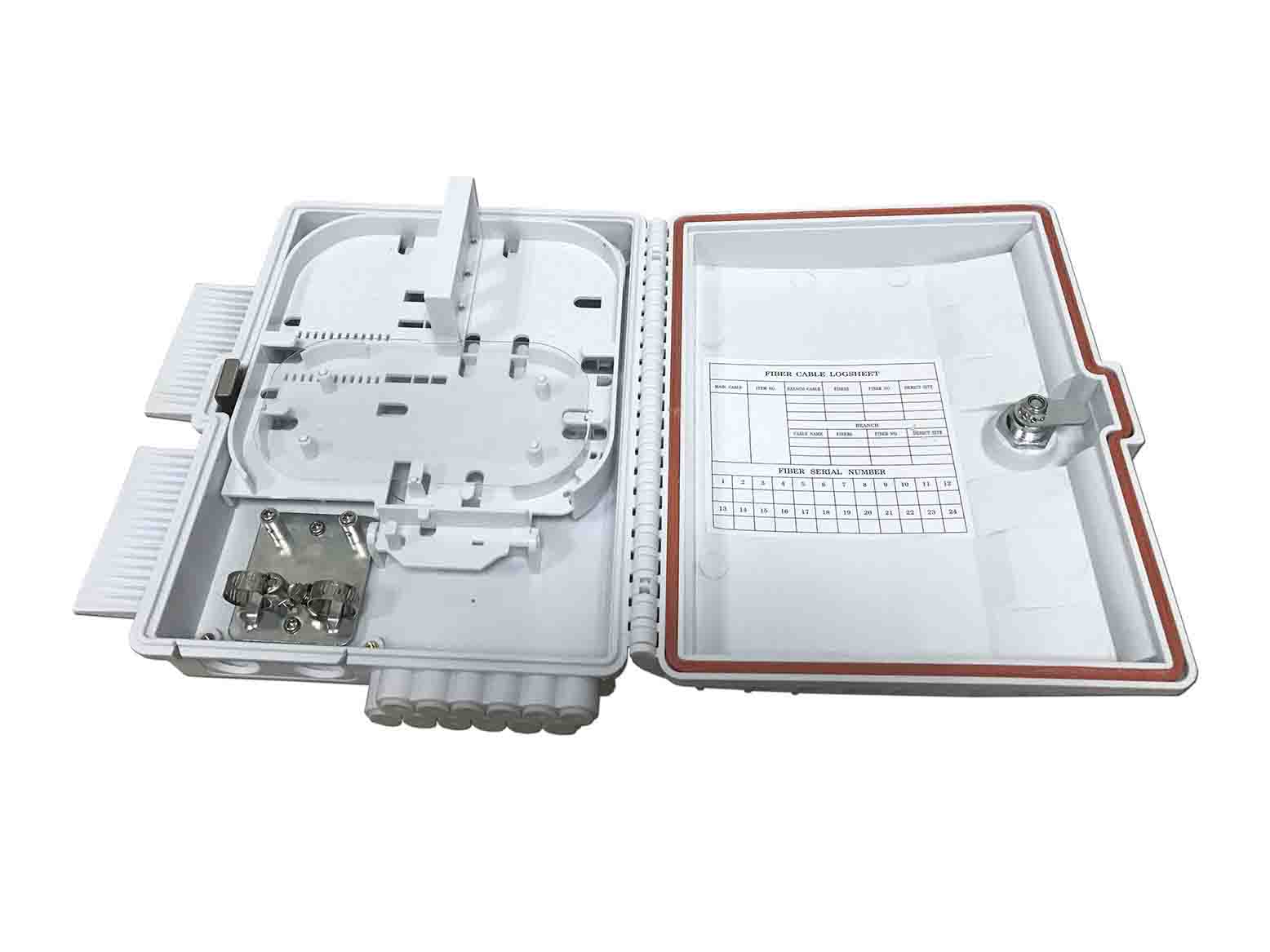

Fiber Optic Terminal Box B0212A

Fiber optic terminal box OTB-0212-A is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution.



Features:
 Material: PP plastic.
 Can accommodate 1×4,1×8 PLC splitter.
 Rainfall resistant, IP65 outdoor using.
 Can load 12pcs LC, FC, ST, SC … adapters.
 Wall mounting and pole mounting application.
 The cover with 2 reinforcing closing pieces, easy to open and close.
 2pcs cable entry ports (max. diameter 8mm cable) for cable entry without cutting；or 2pcs cable entry ports M20 PG cable gland (max. Cable diameter 12mm)；12pcs exit ports for FTTH drop cable.

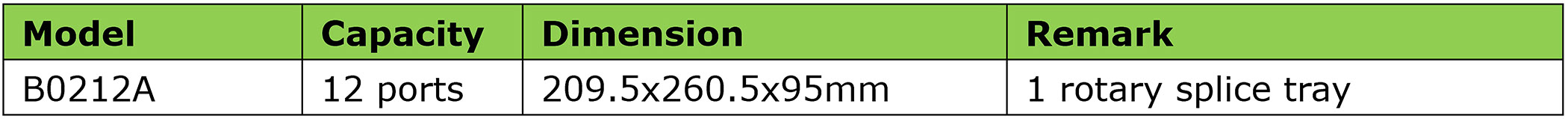

Specification:



Application:
 FTTH access network.
 Telecommunication Networks
 CATV Networks
 Data communications Networks

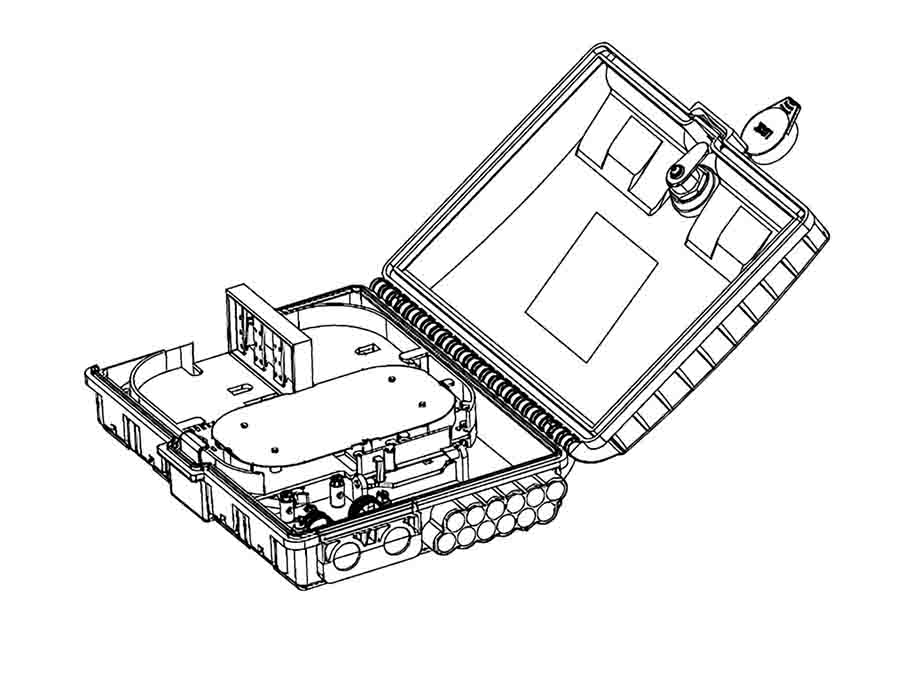

Drawings (mm):

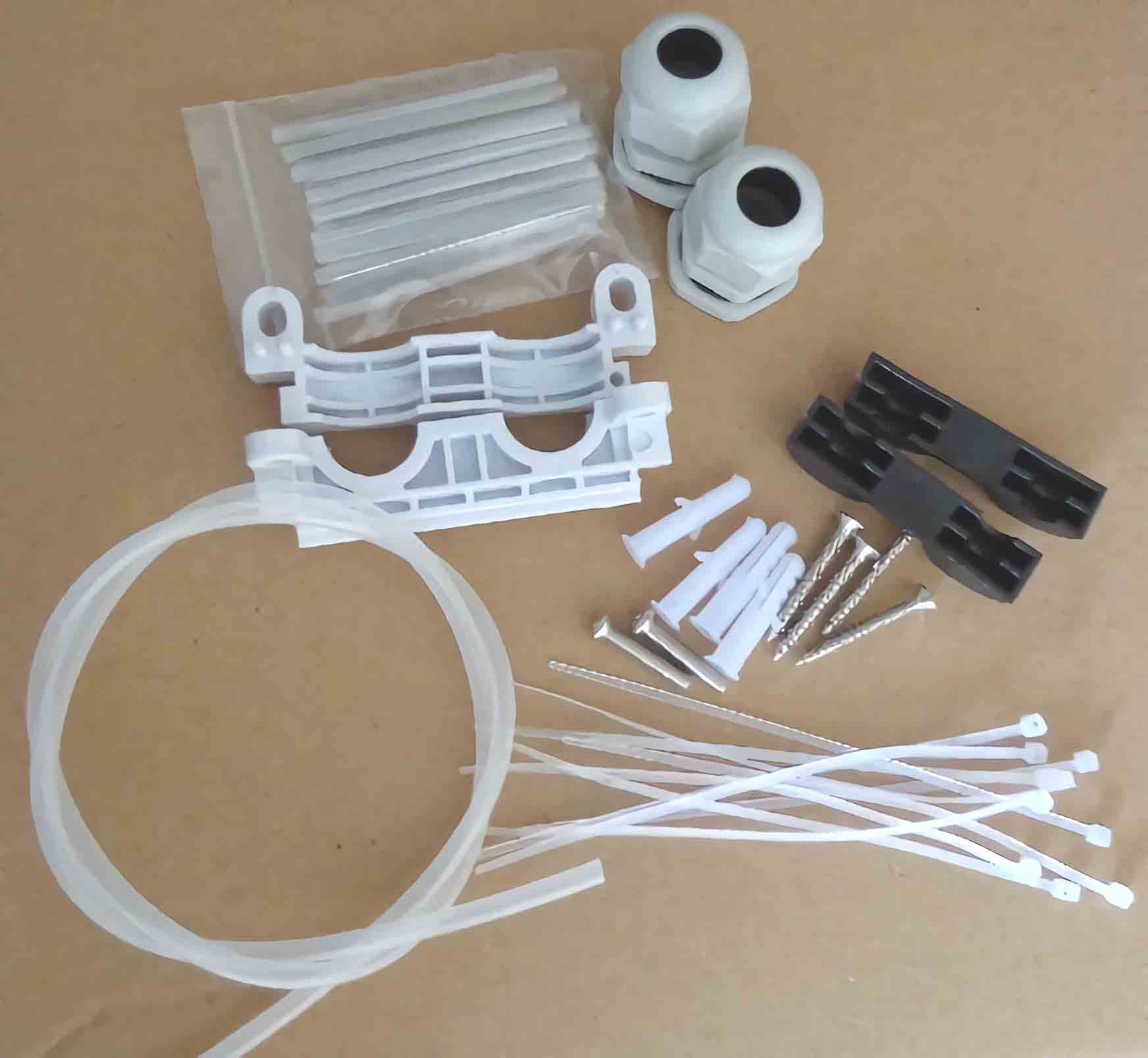

Accessories:
