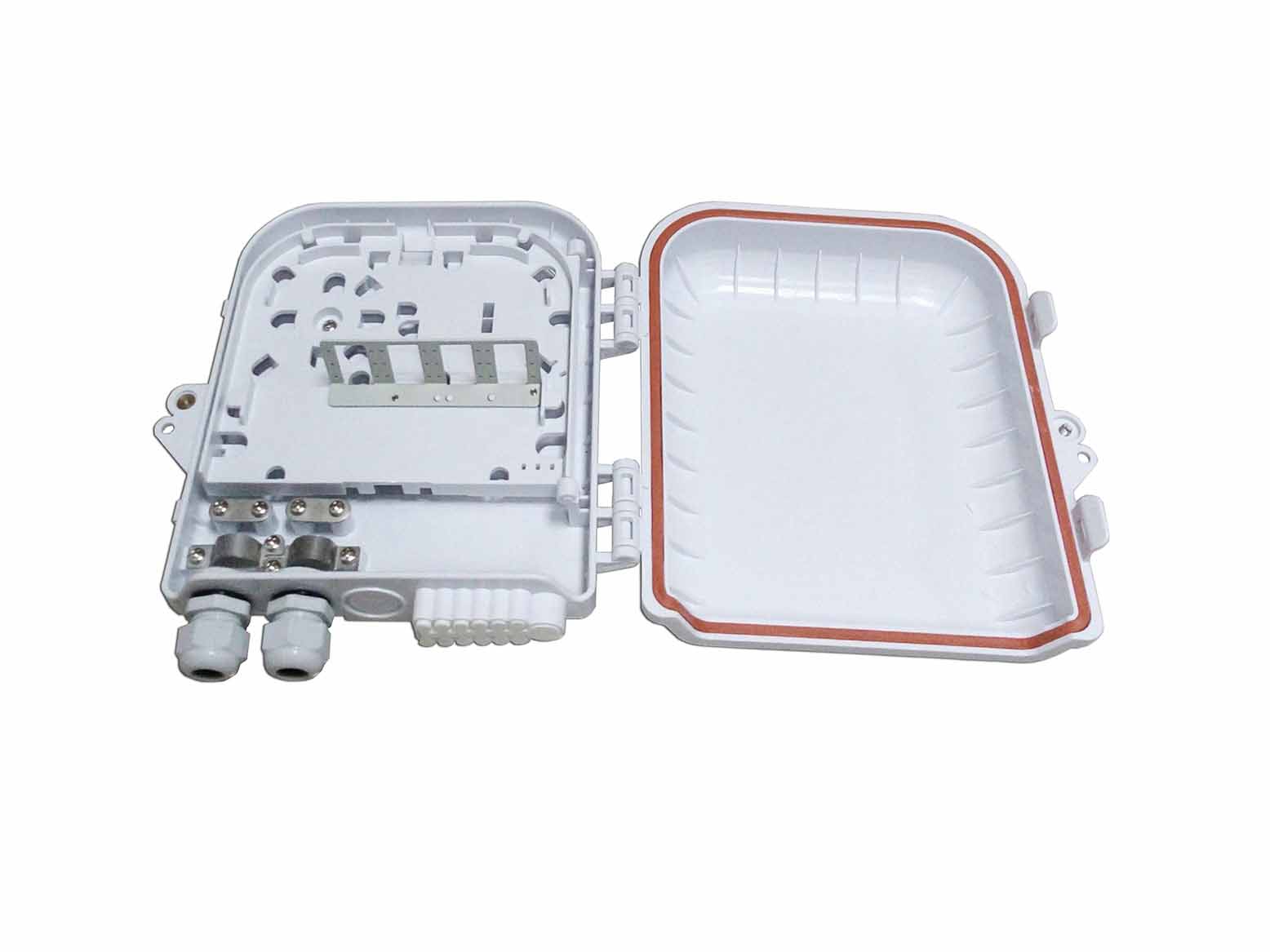

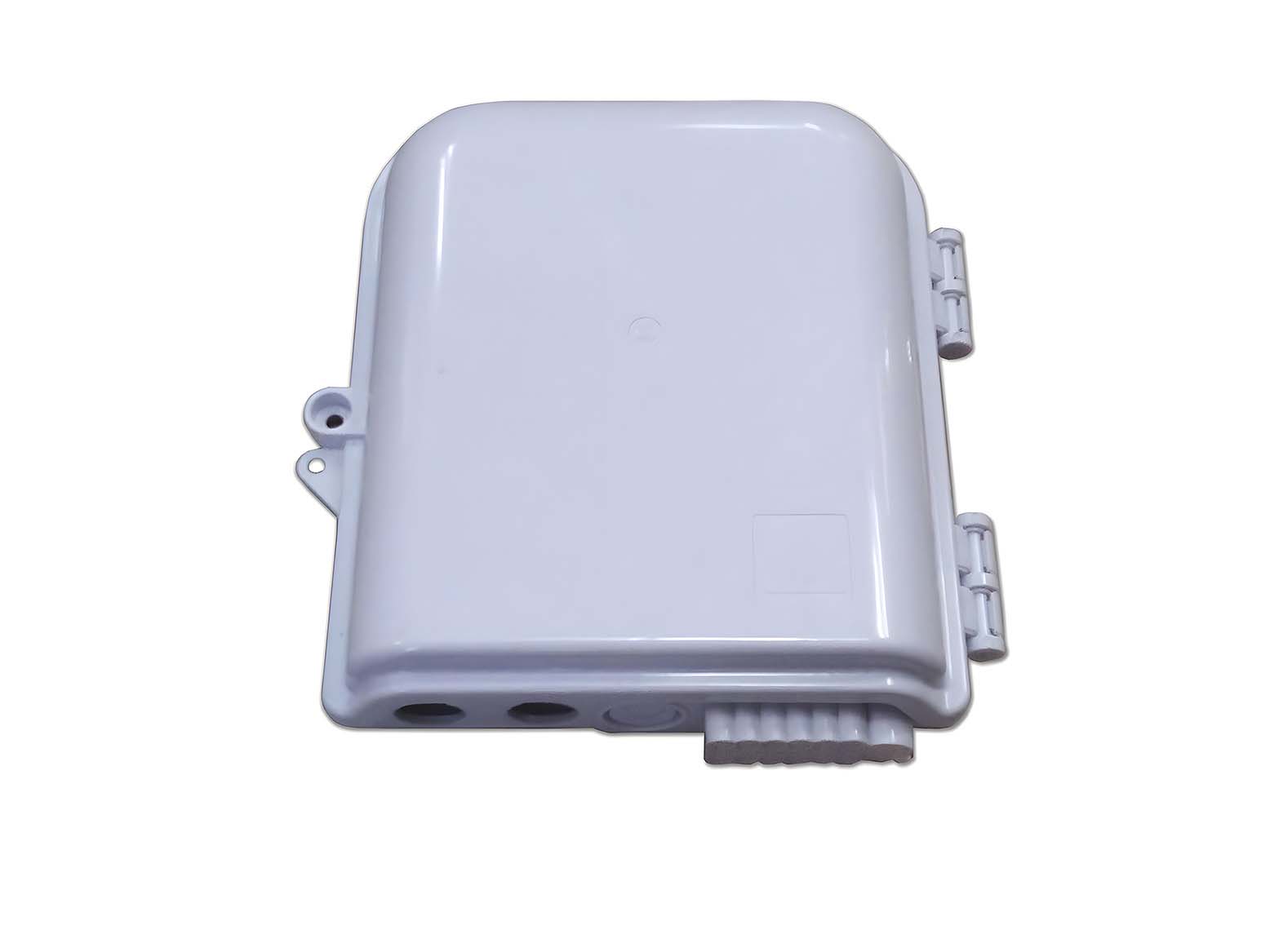

Fiber Optic Terminal Box B0212

Fiber optic terminal box OTB-0212 is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution.



Features：
 Material: ABS plastic.
 Can accommodate 1×4,1×8 PLC splitter.
 Rainfall resistant, IP65 outdoor using.
 Can load 12pcs LC, FC, ST, SC … adapters.
 Wall mounting and pole mounting application.
 2pcs cable entry ports with M20 cable gland (Max. cable diameter 12mm)12pcs exit ports for FTTH drop cable.

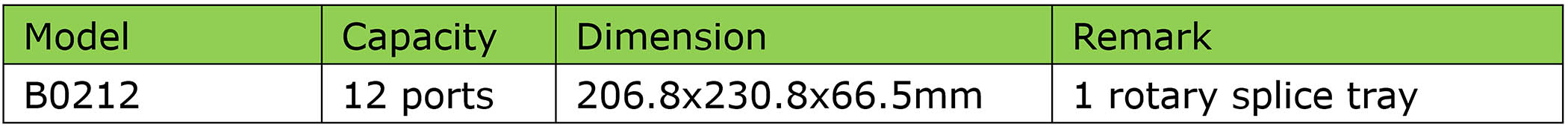

Specification:



Application：
 FTTH access network.
 Telecommunication Networks
 CATV Networks
 Data communications Networks

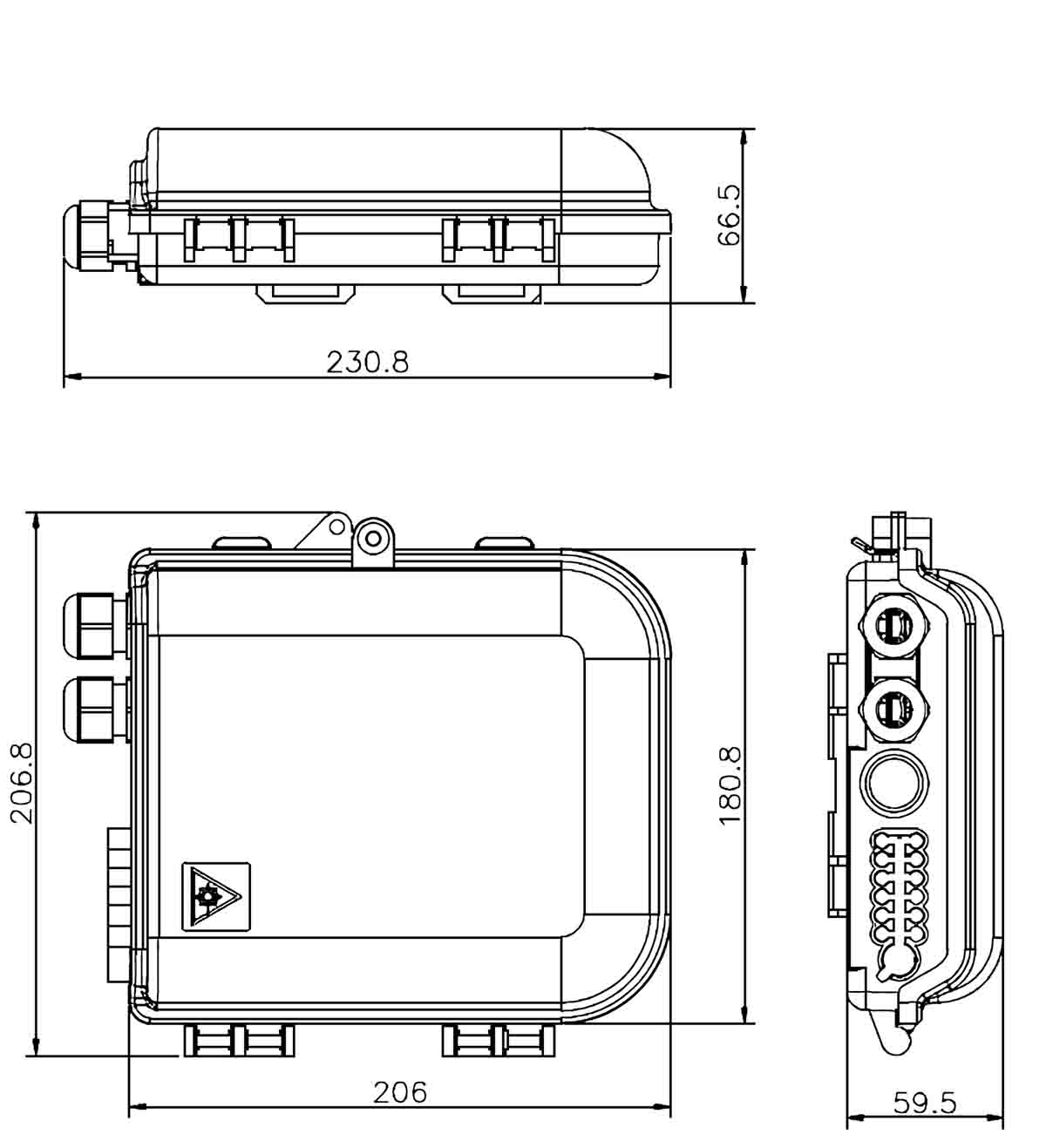

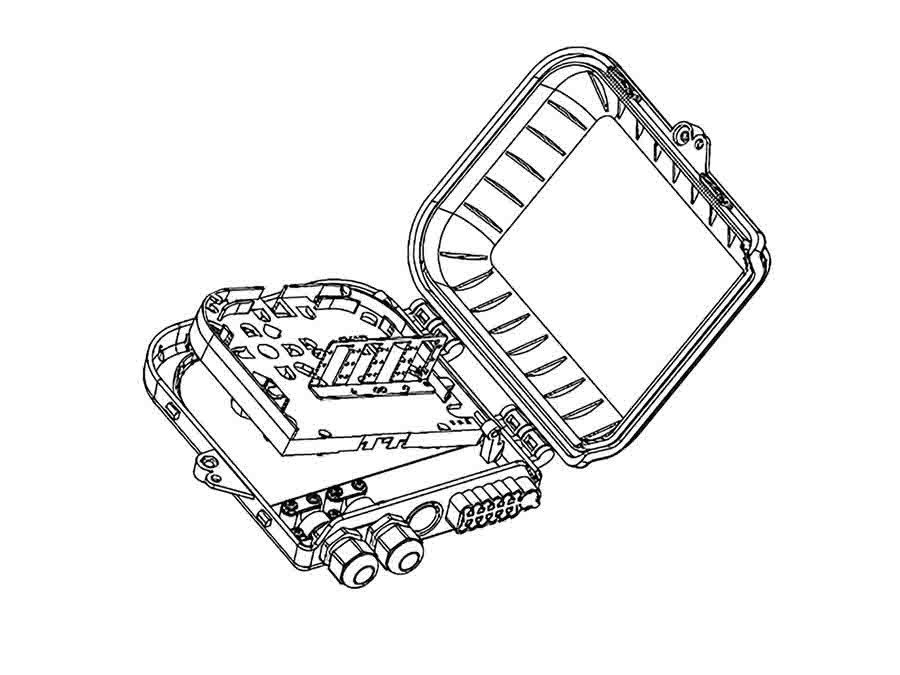

Drawings (mm):

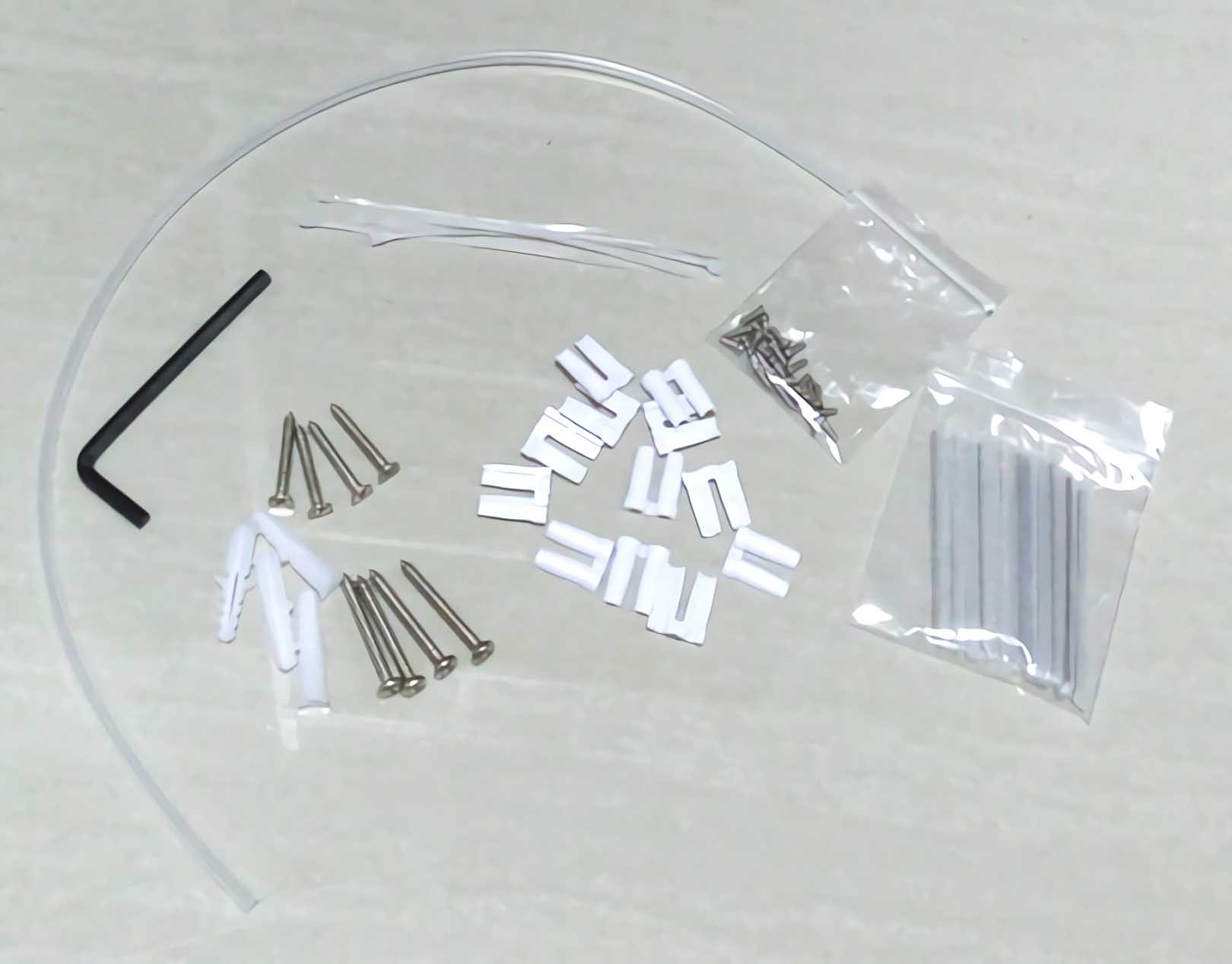

Accessories:
