Fiber Optic Terminal Box BSP16

Fetures：
1、used for indoor and outdoor wall mount,the inside and outside of box is static powder spraying,nice and compact appearance.
2、It can load splitter,max for 16way,if load with pigtail,can be 24fiber at most.
3、The adaper is for angel fixing,smooth swirl of pigtail,large radius of curvature,It could effectivly reduce the loss of fiber transmission.
4、SC,FC,ST and another adapter panel can be interchangable.
5、The splice tray can be cascade rotary type,it is convenient for increase,decrease,and operation

Parameter：
1、Operating temperature：-5℃+40℃ relative humidity:≤90%(+30℃)；
2、Atmospheric pressure:70Kpa-106Kpa Storage temperature:-40℃+70℃；
3、Photoelectric charactics:IL≤0.2dB;additional loss≤0.2B；
4、RL≥45dB; additional loss≤5dB；
5、Push-pulling endurance life >1000times；
6、The fiber cable conform to GB/T11819 and GB/T7424 standard;
7、The fiber connector comply with GB12507,and related to standard regulation

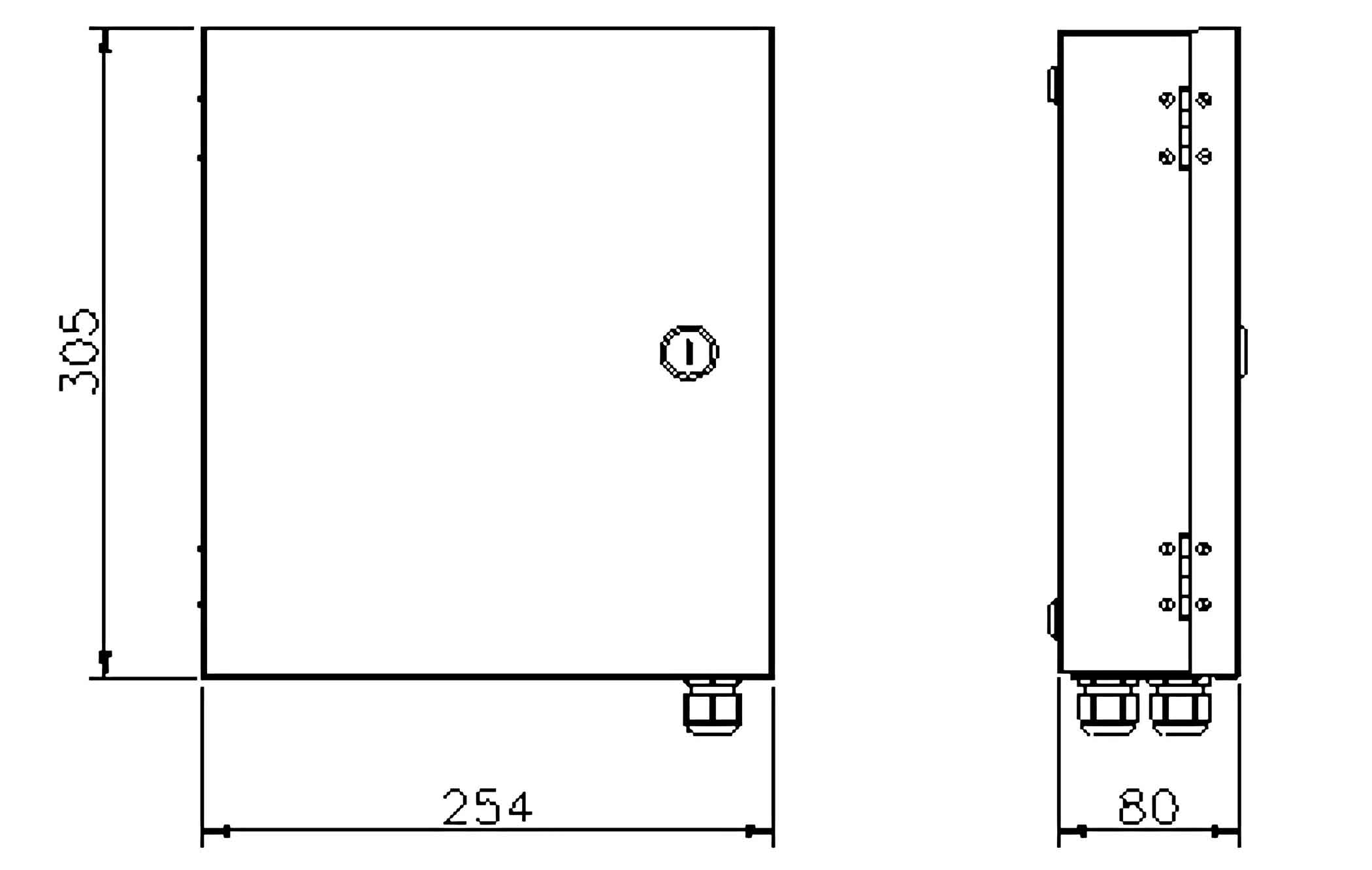

Shape：

diamension：305(height)mm×254（width）mm×80（deepth）mm

Fiber optic cable arrangement diagram：

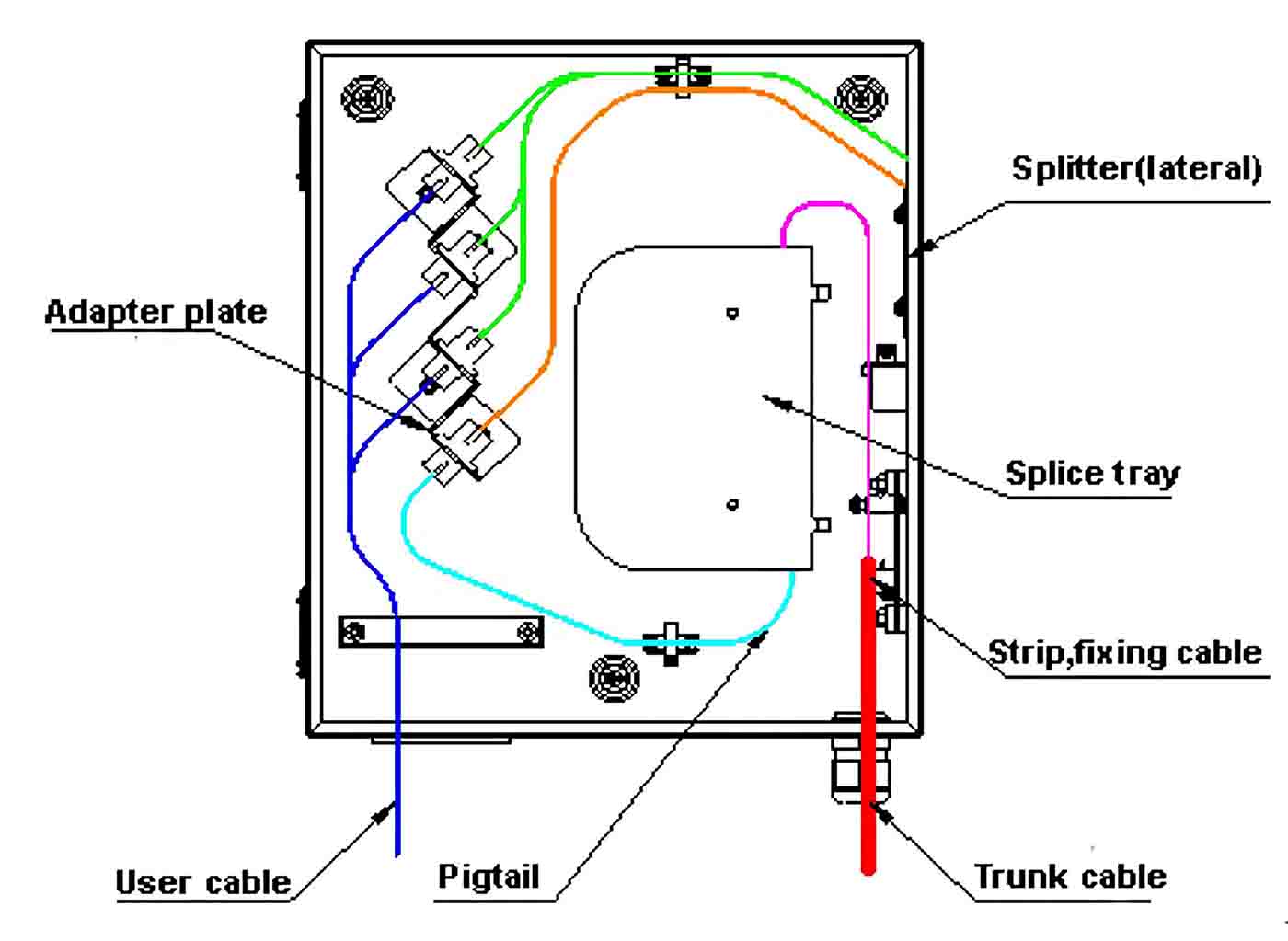

Diagram 2:Splitting cable arrangement.

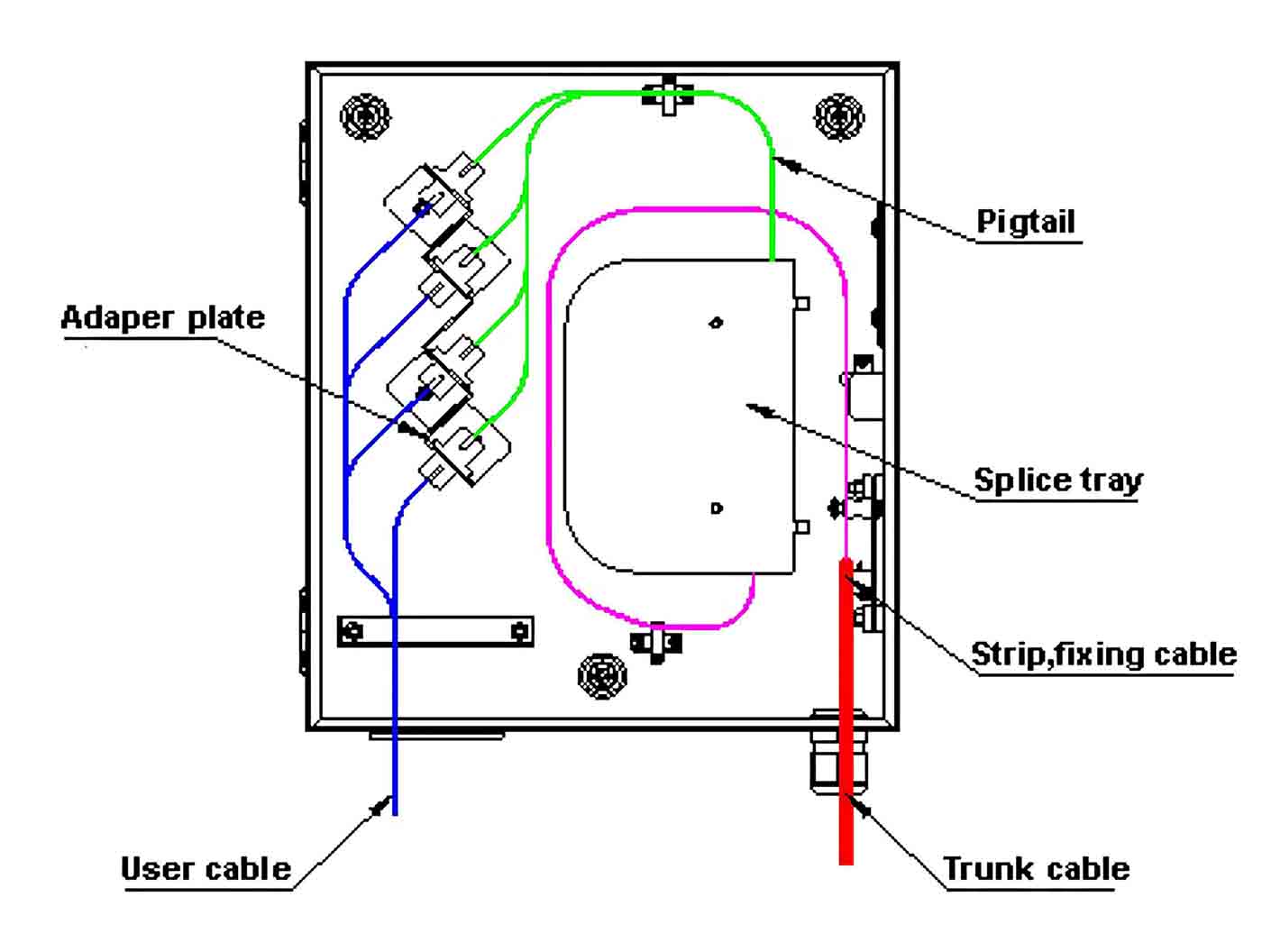

2.When the box don’t load with fiber optic splitter,just loaed with splice tray(diagram 3)：

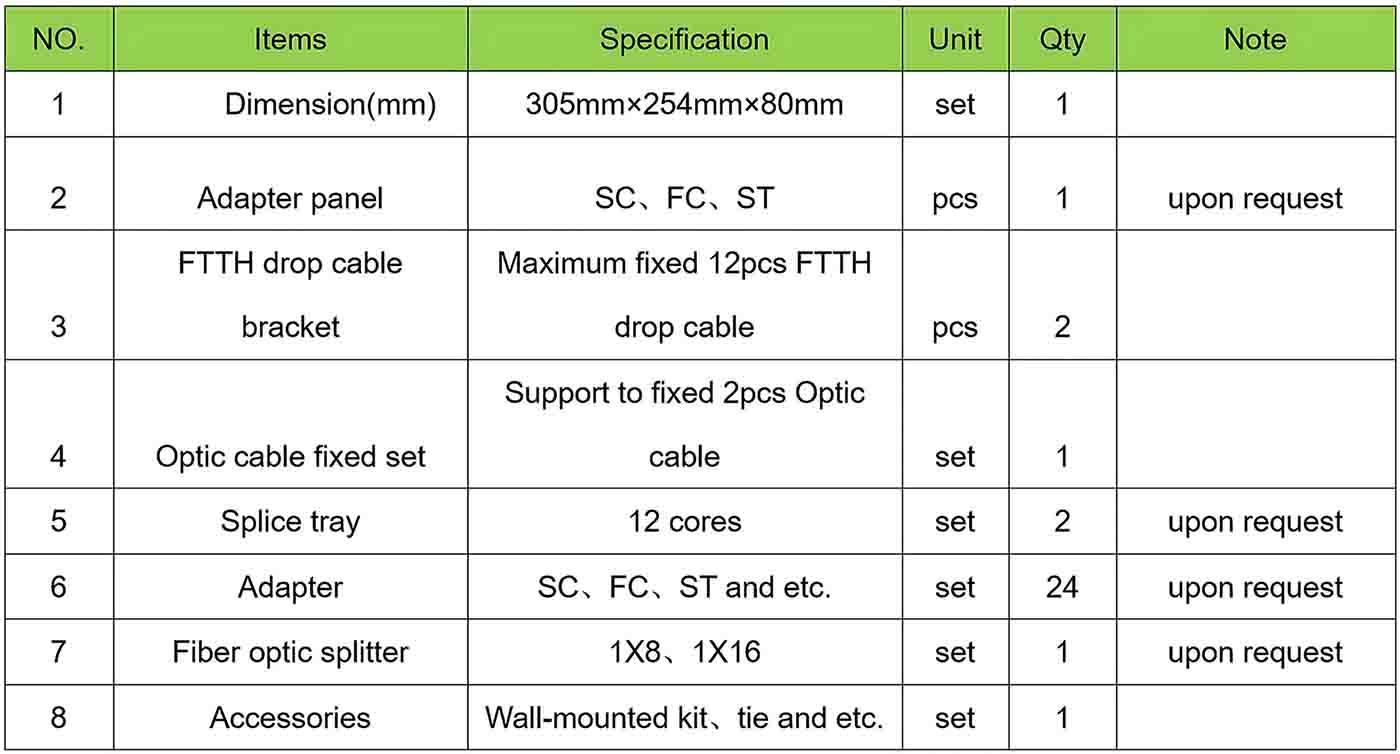

Components：
