4F Fiber Optic Terminal Box Specification

Fiber Optic Terminal Box is made of cold-roll steel box, small size, with plastic splice tray inside. It provides an economical way for terminating small optical fiber.



Features:
1、Non-sealed type, fixed by bolt.
2、Two cable ports for indoor cable connection
3、Easy for operation, has high containing ability for surplus pigtails
4、Can connect/reconnect to adapters more than 200 times
5、Connector for FC, SC, ST or LC



Applications:
1、Suitable for Pigtail, ribbon and bunch cable connectors distribution
2、Used in wall or terrace installation

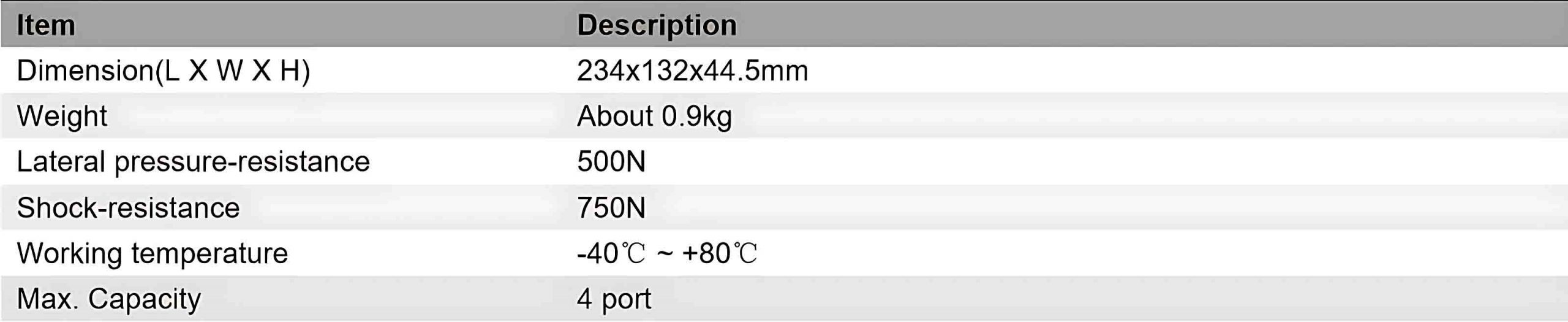

Specification:

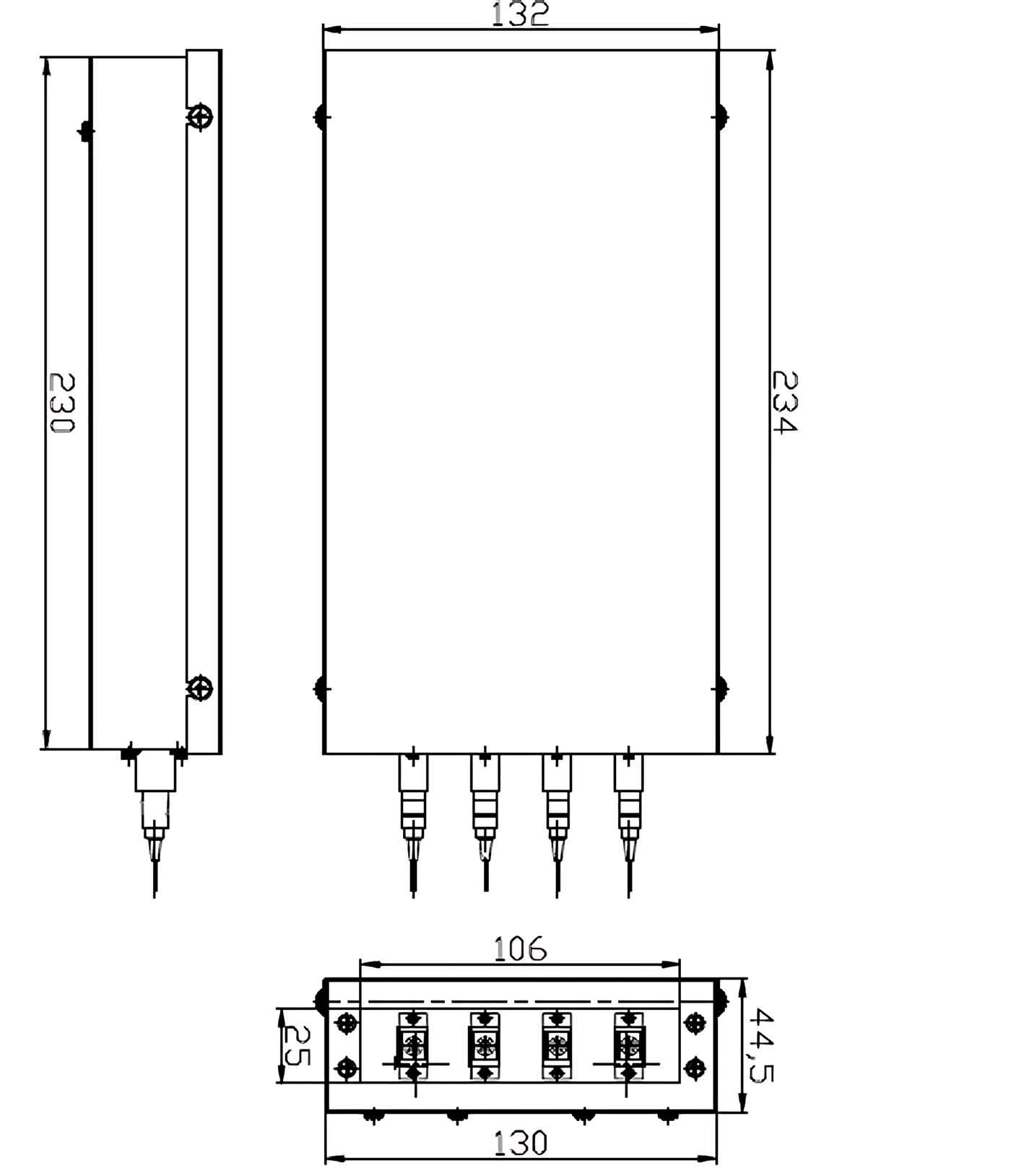

Drawings:
