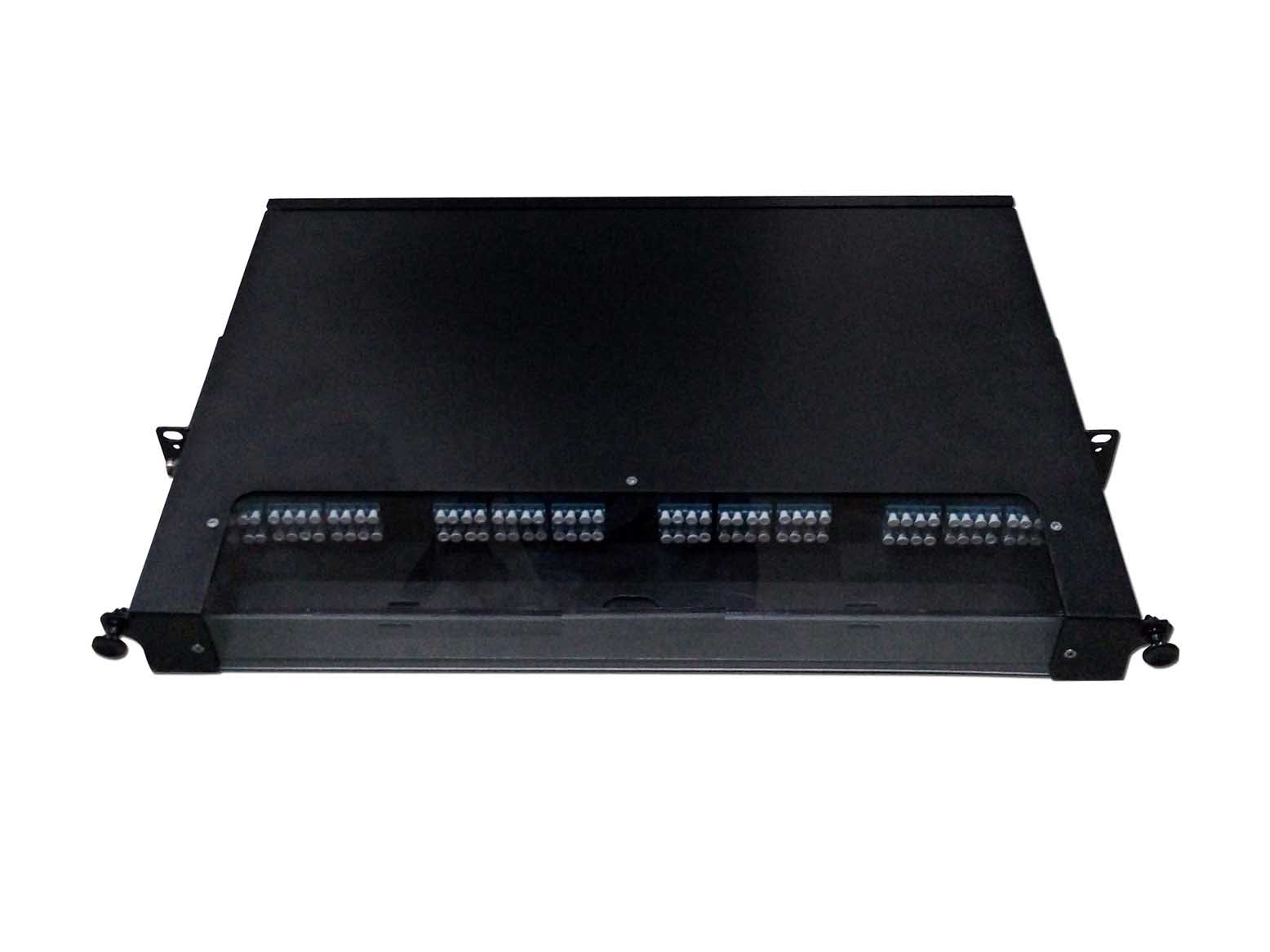

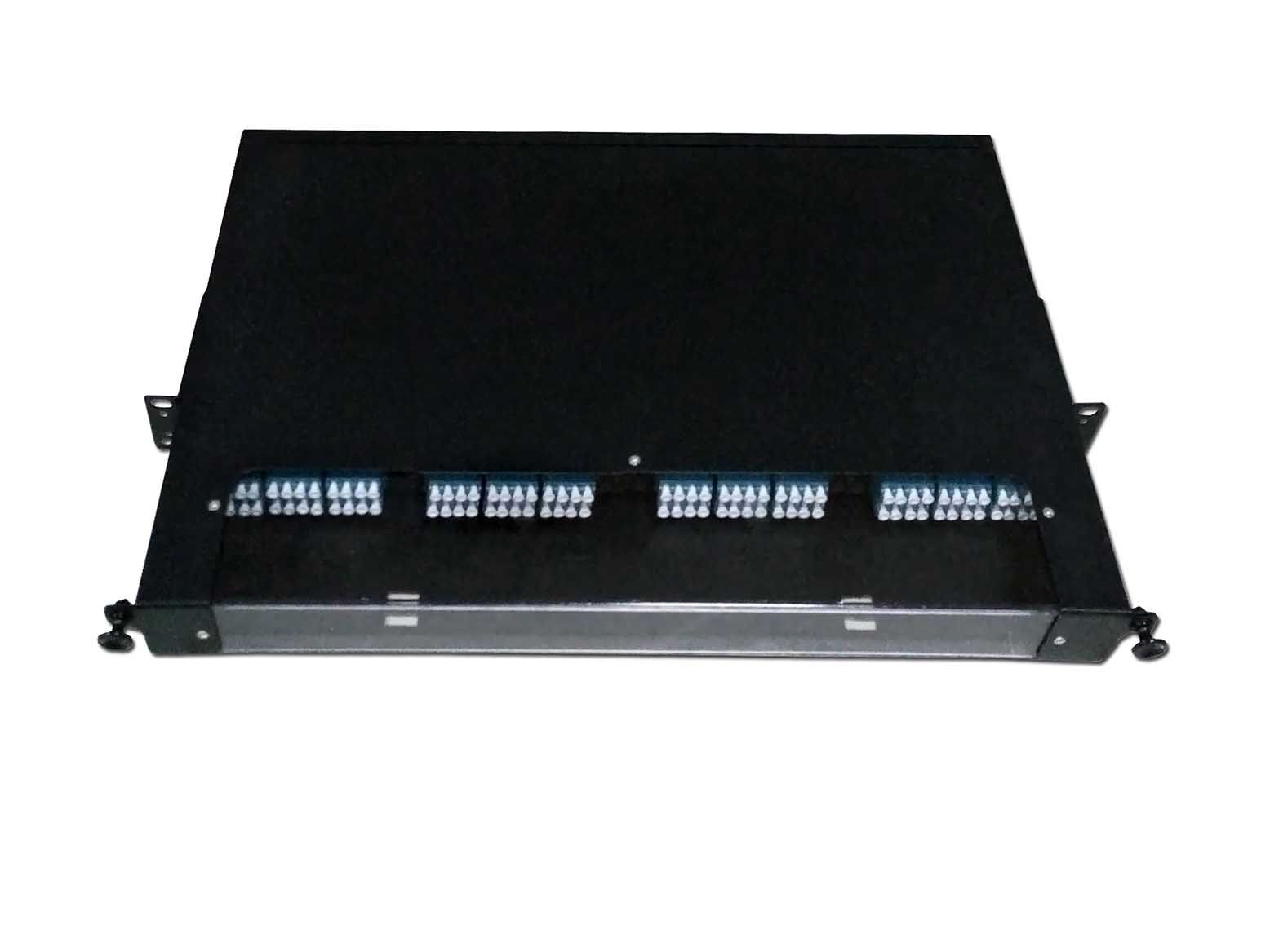

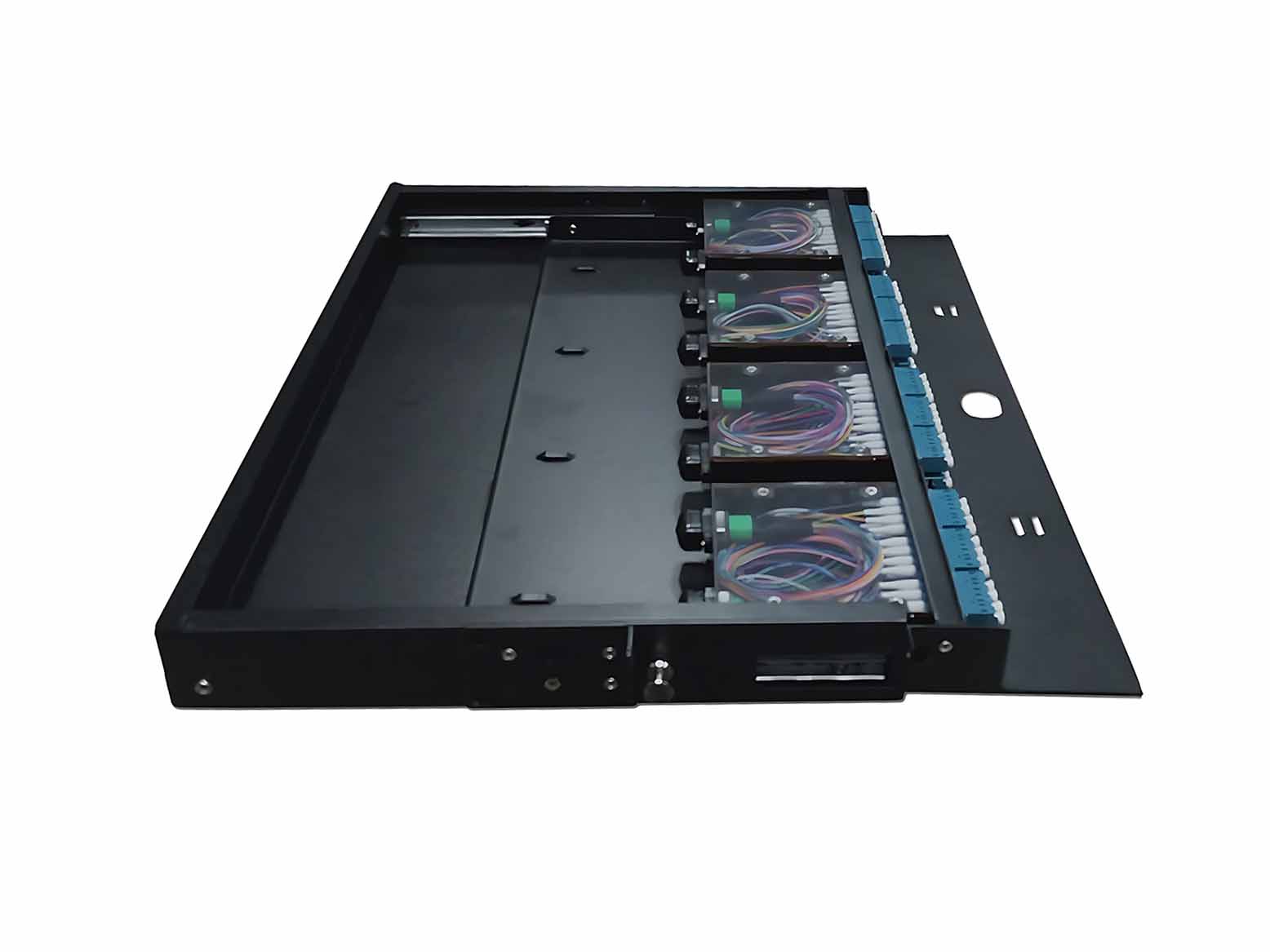

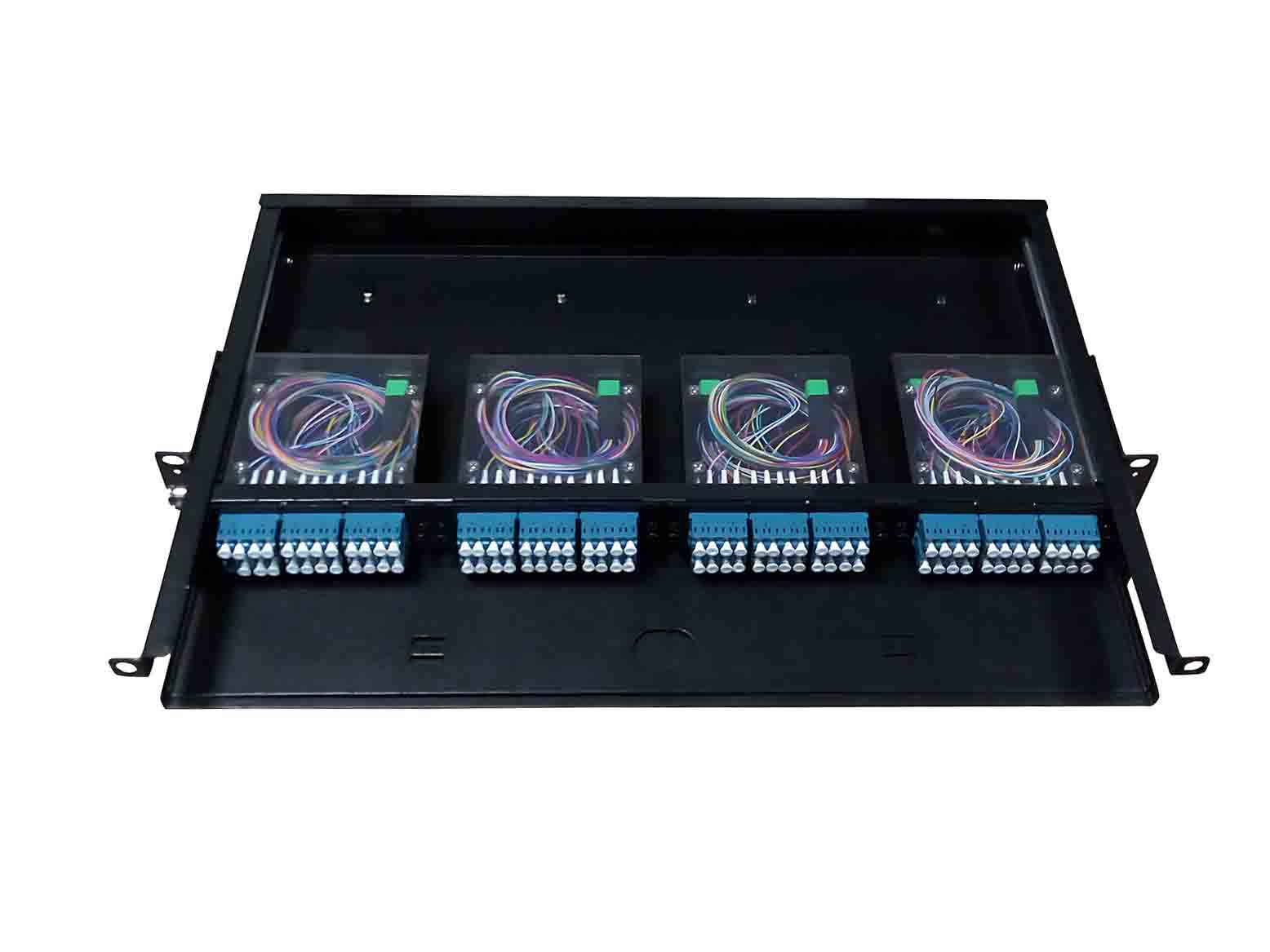

This high capacity fiber optic distribution frame support fiber cable fast connection and distribution. It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug. It is an ideal equipment for supporting the fiber distribution in high-density capacity data center. It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Features:
1、Made by cold roll steel, electrostatic powder spraying.

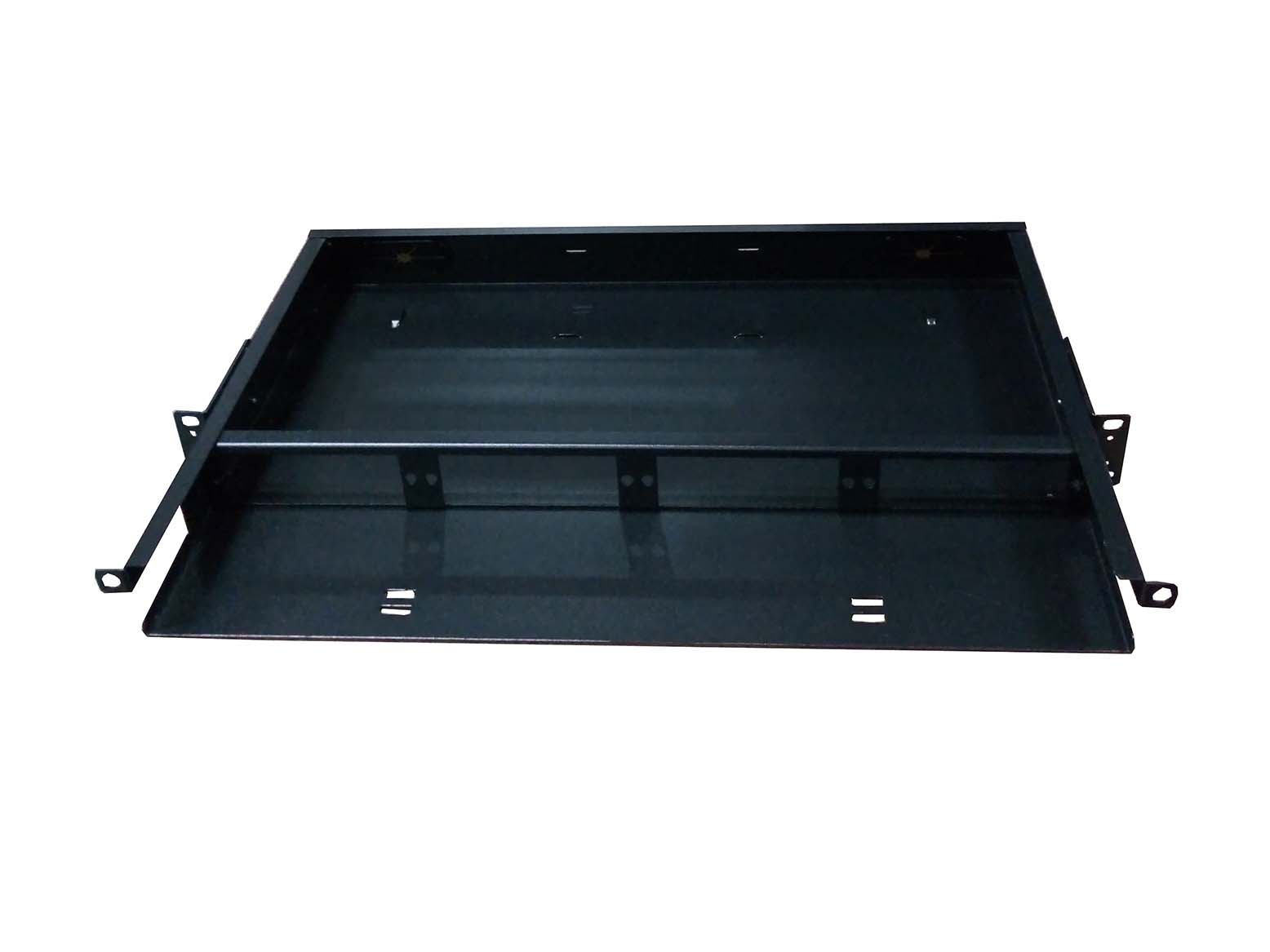

2、Drawer type, with PC material front transparent cover, convenient for observation and maintenance.
3、Its cover is easy to open and close by using button.
4、It has a locking device prevent the drawer from falling when moved.
5、Back side with 2 oval port 22*60mm for cable entry.

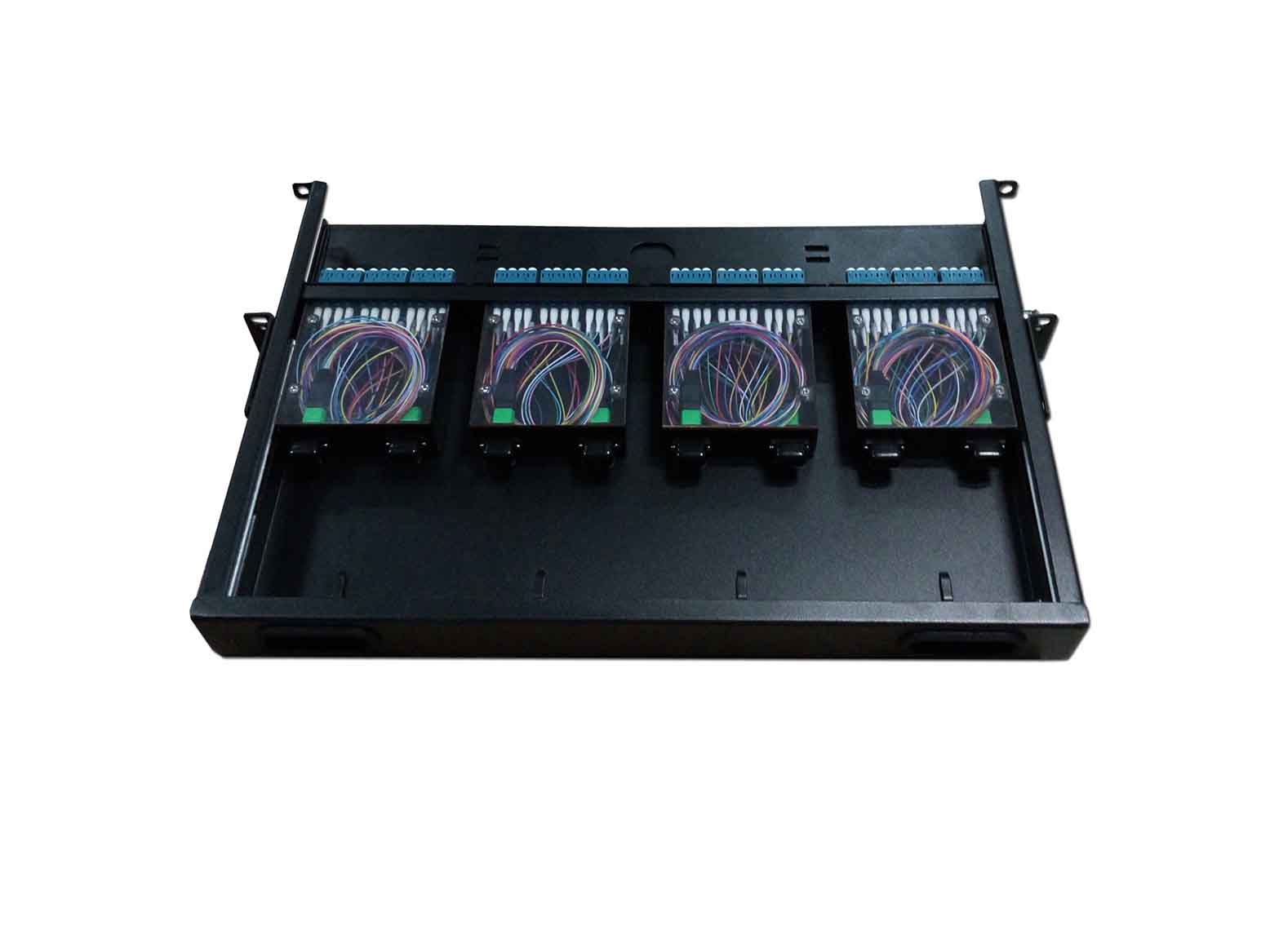

6、Load max. 4pcs MTP/MPO cassette (Model: MB-M015).
7、Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
8、The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.
Application:
Data center, Network room

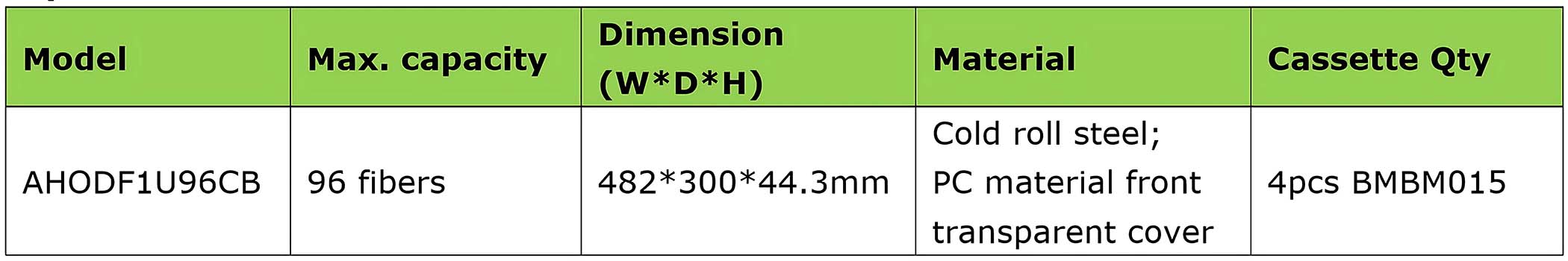

Specification:

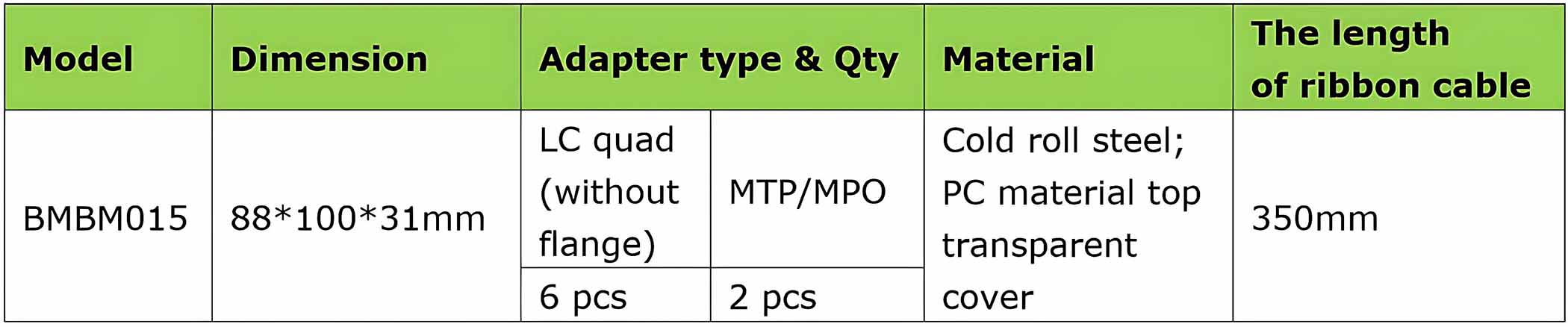

Cassette Specification:

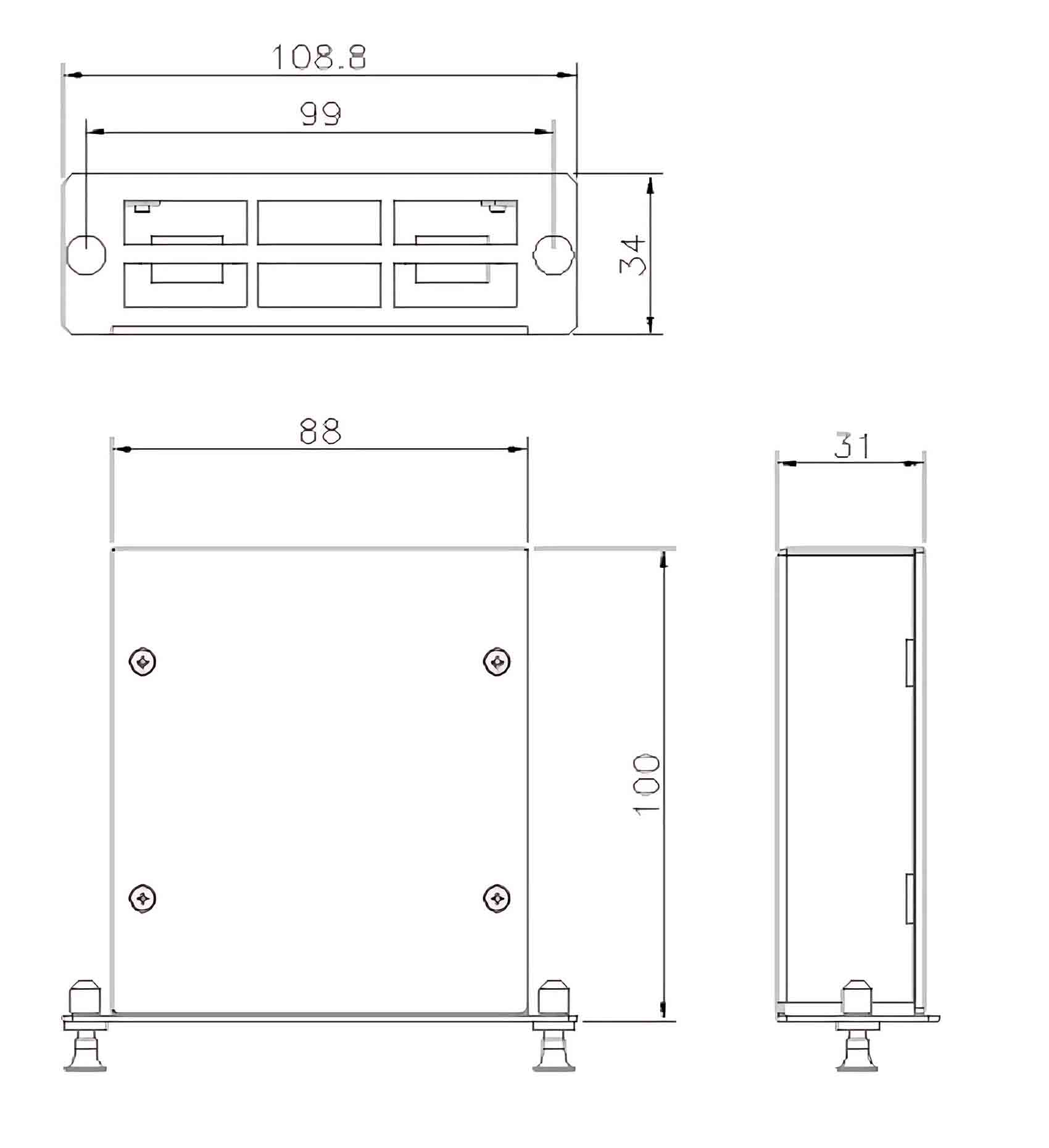

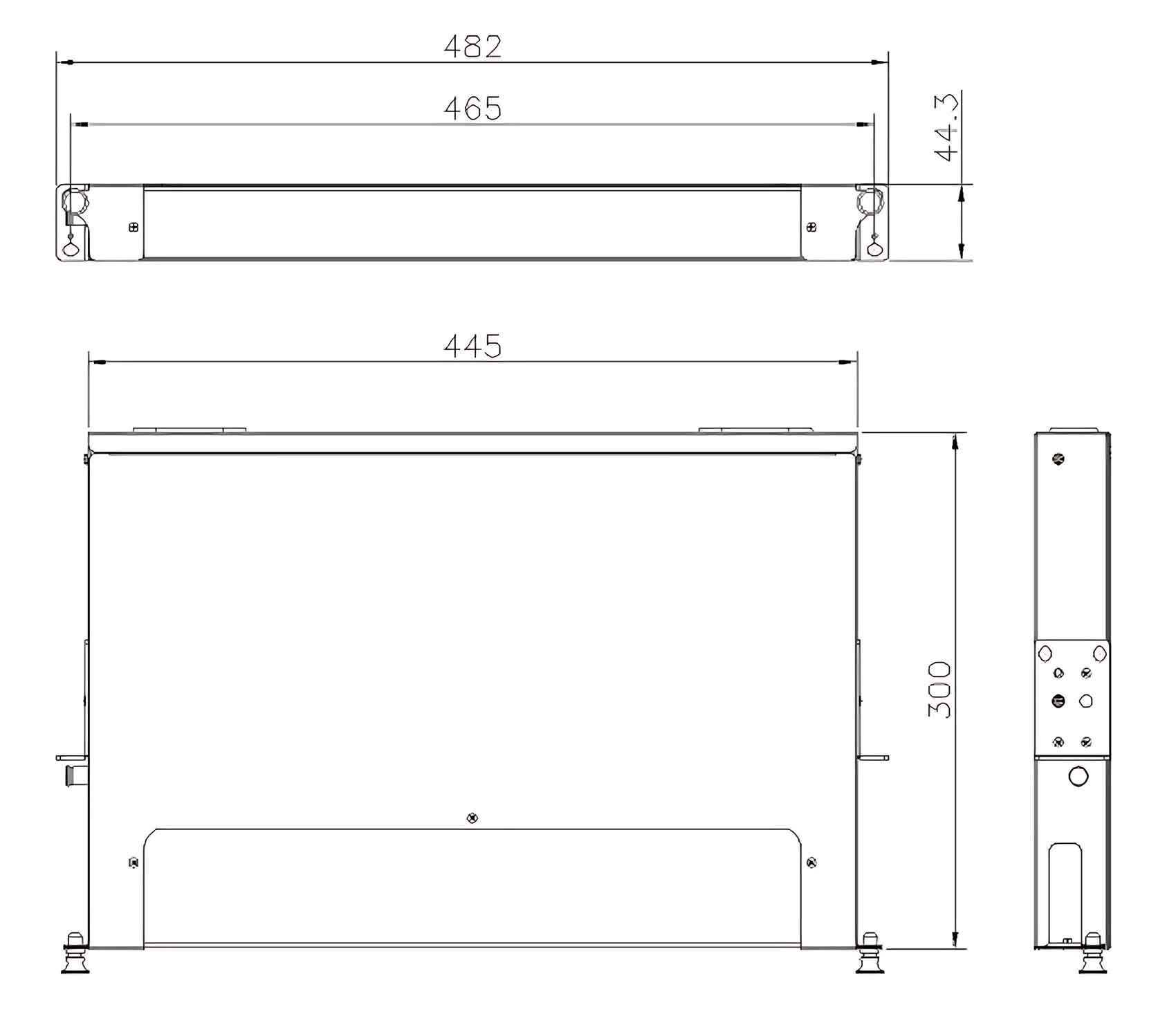

Dimension drawings:
