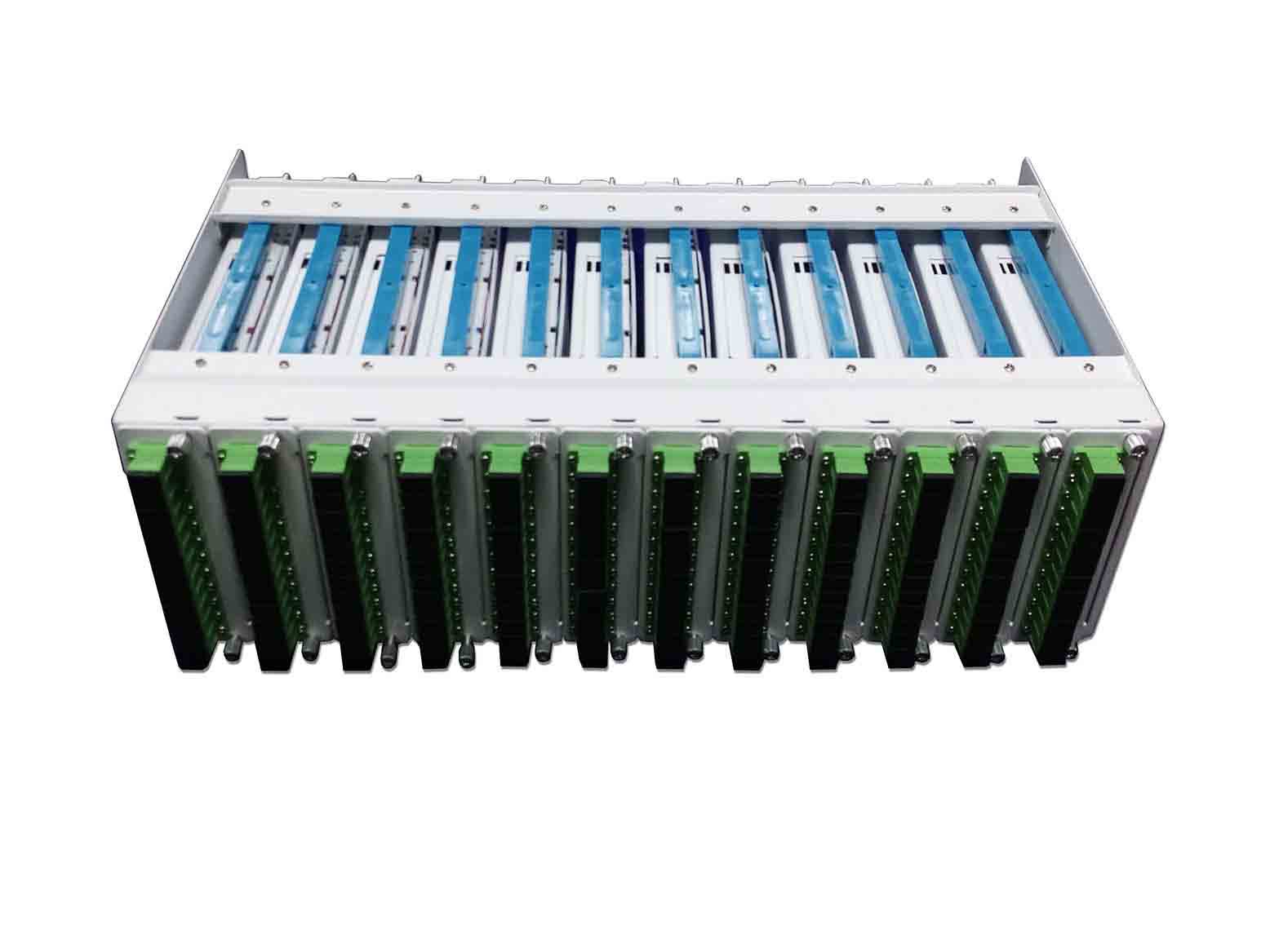

3U MPO Sub rack and MPO Cassettes

This Sub rack design to accommodate MPO terminals.Suitable for different kinds of equipment which is designed according to 19’’ cabinet.3U Sub rack Can loaded with Max.12pcs MPO cassettes.Comply to ETSI standard.



Model:ACH3U12PA
3U Sub rack dimension: 482.6*225*133.5mm
Material: cold-roll steel.

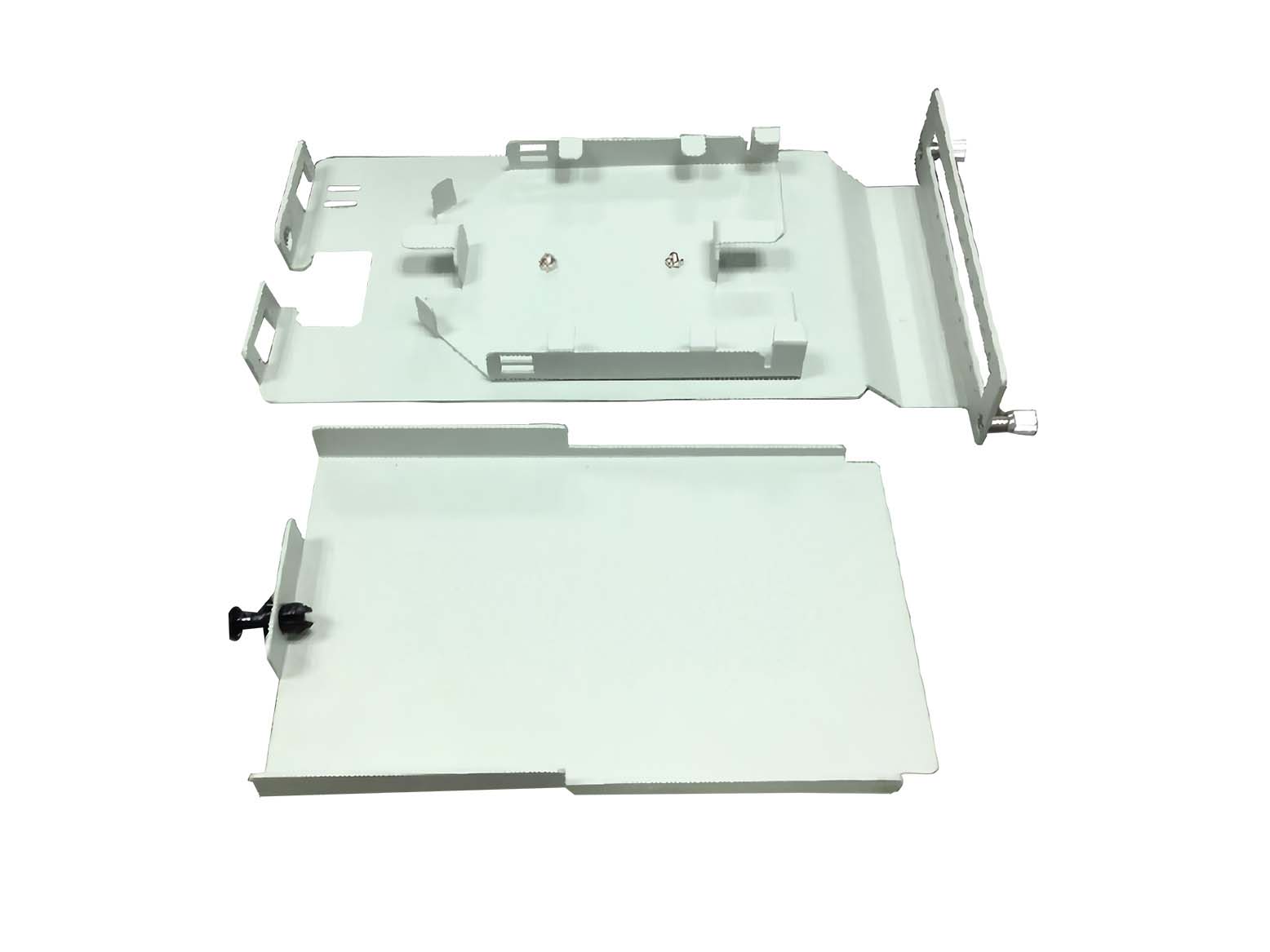

Model:BCSCS12CA
MPO cassettes Dimension:225.5*130*35mm
Material:Aluminum.



Cassettes drawing:



Features:
1、Compact design for space saving
2、Manual Screws fixation,Easy for management and operation.
3、Slide rail on 3U subrack for fixing the MPO cassettes and easy sliding out.
4、MPO cassettes:12cores for SC simplex adapters.24cores for LC duplex adapters.back side have 1pcs 24cores splice tray



Painting:
1.Electrostatic Powder anti-rust spraying,Black or grey color optional.
Note:If customer no special requirement,we will spray grey color.
