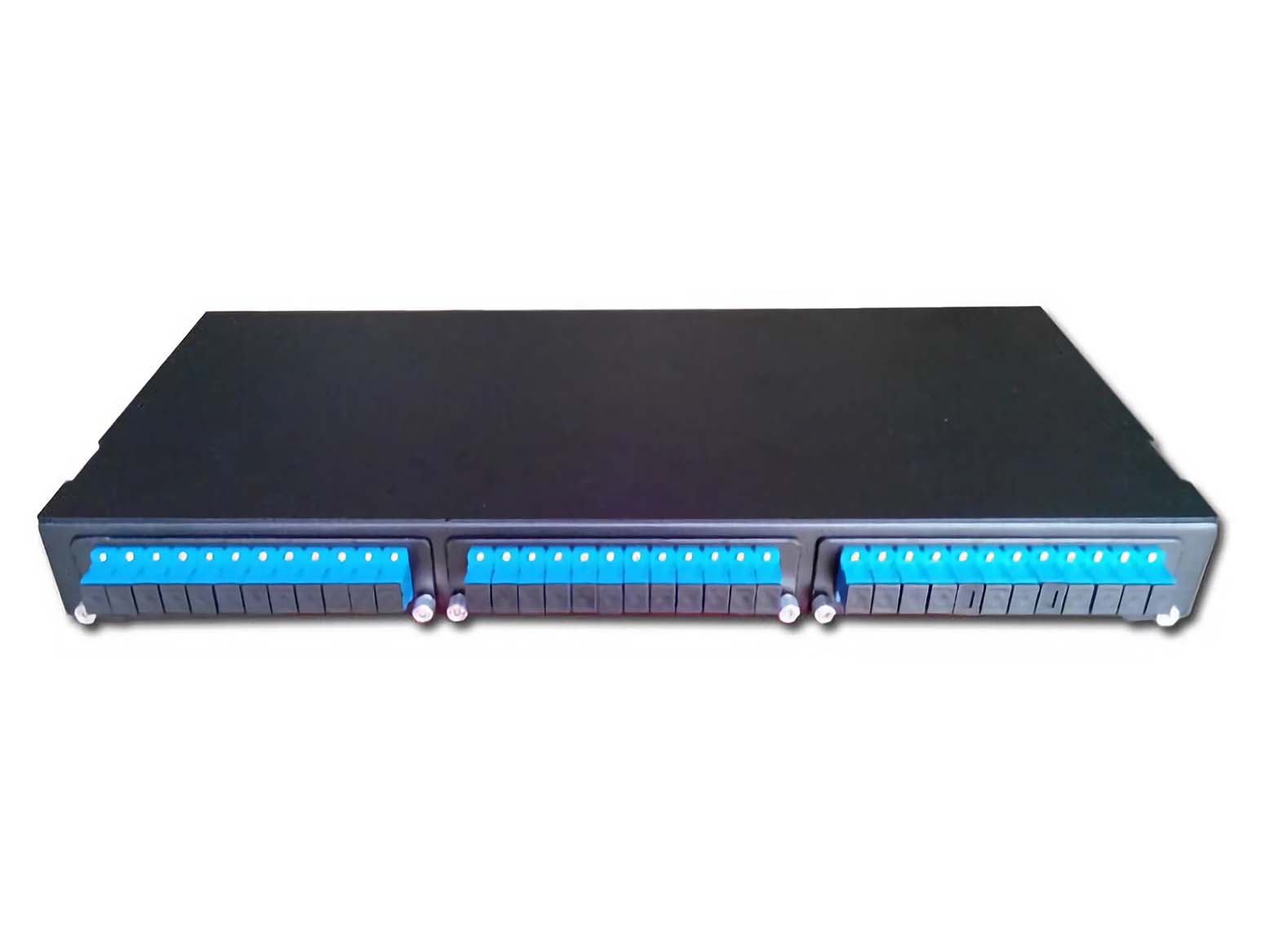

1U MPO Sub rack & Cassettes

This Subrack design to accommodate MPO terminals.Suitable for different kinds of equipment which is designed according to 19’’ cabinet.1U Subrack can loaded with 3pcs MPO cassettes.Comply to ETSI standard.



Model: ACH1U03P

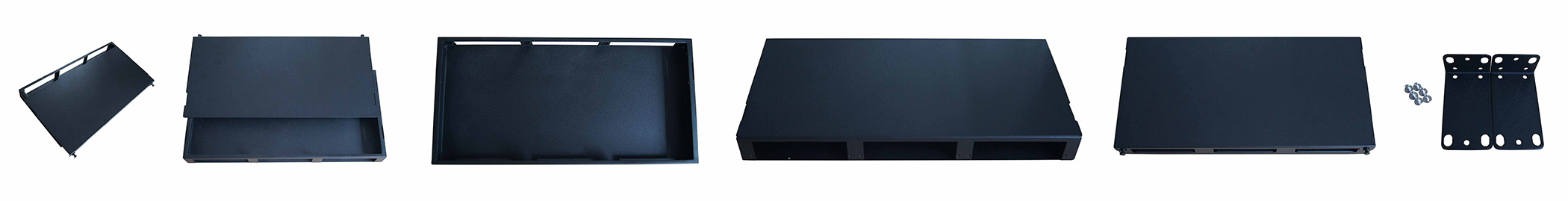

1U Sub rack Dimension:482*209*44.5mm
Material:cold-roll steel.

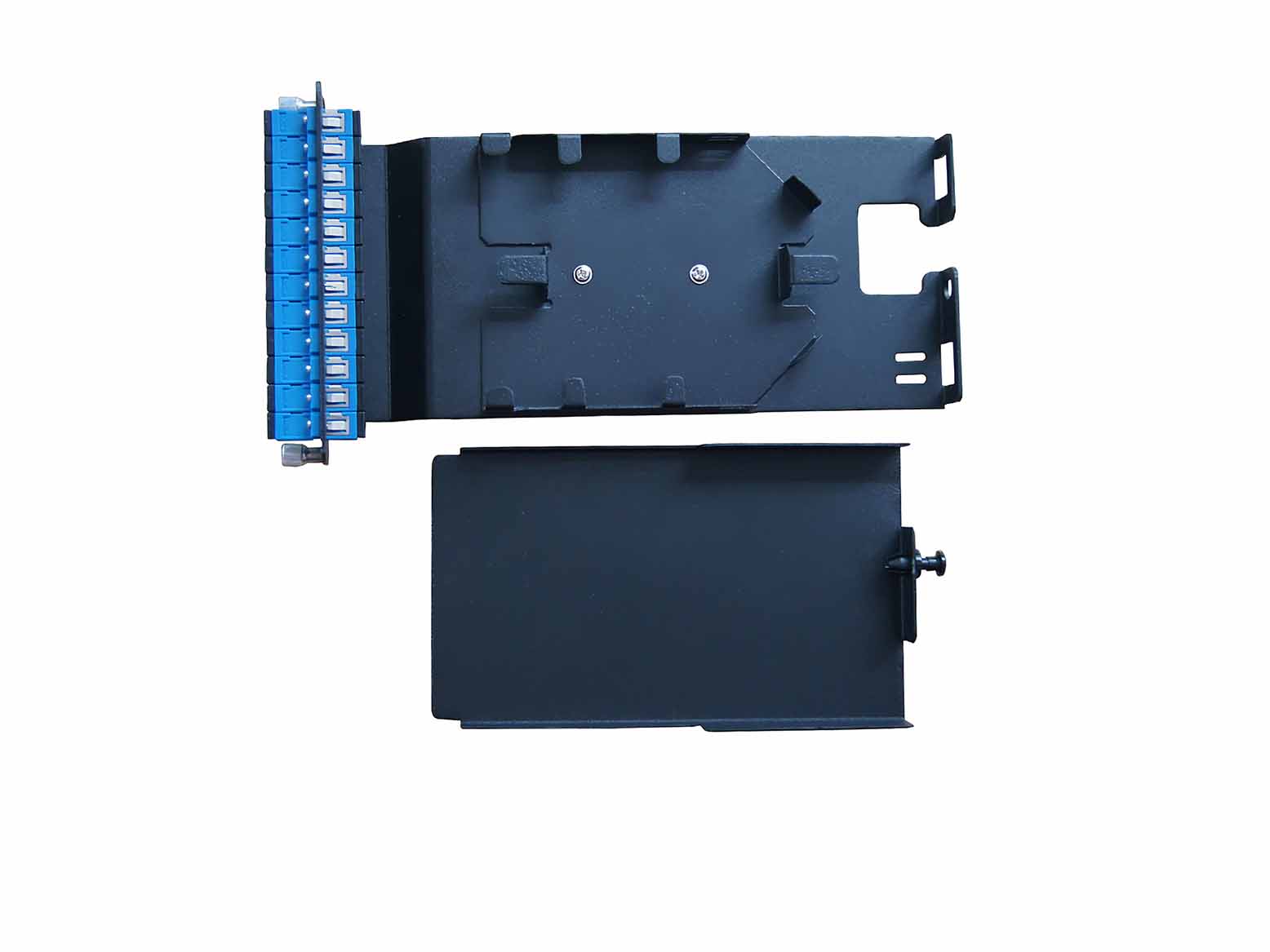

Model:BCSCS12C
MPO cassettes Dimension:225.5*100*35mm
Material: Aluminum.

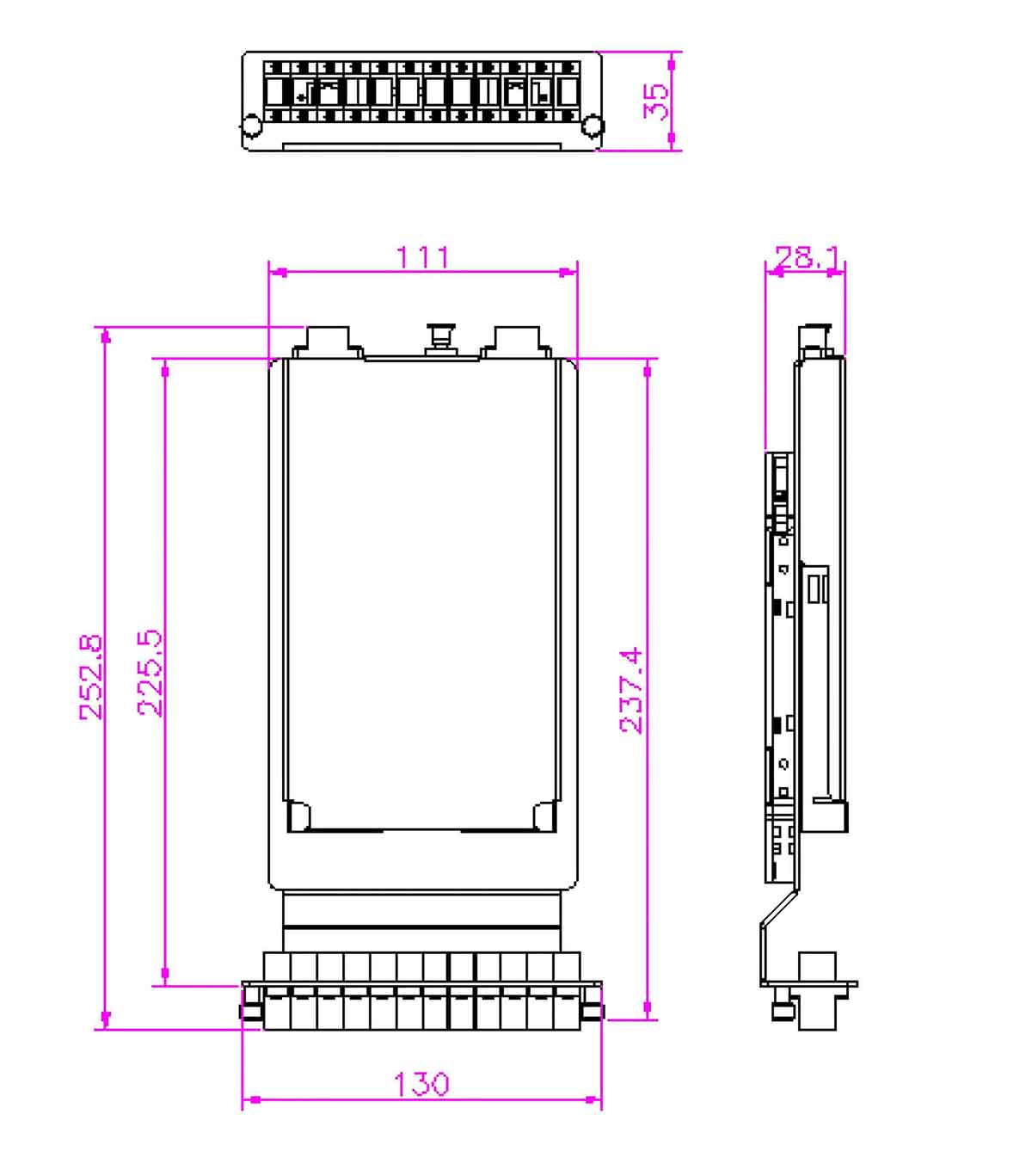

Cassettes drawing:



Features:
1、Standard size,light and reasonable structure
2、Manual Screws fixation,Easy for management and operation.
3、Compact design for space saving
4、MPO cassettes:12cores for SC simplex adapters.24cores for LC duplex adapters.



Painting:
1.Electrostatic Powder anti-rust spraying,Black or grey color optional.
Note:If customer no special requirement,we will spray black color.
