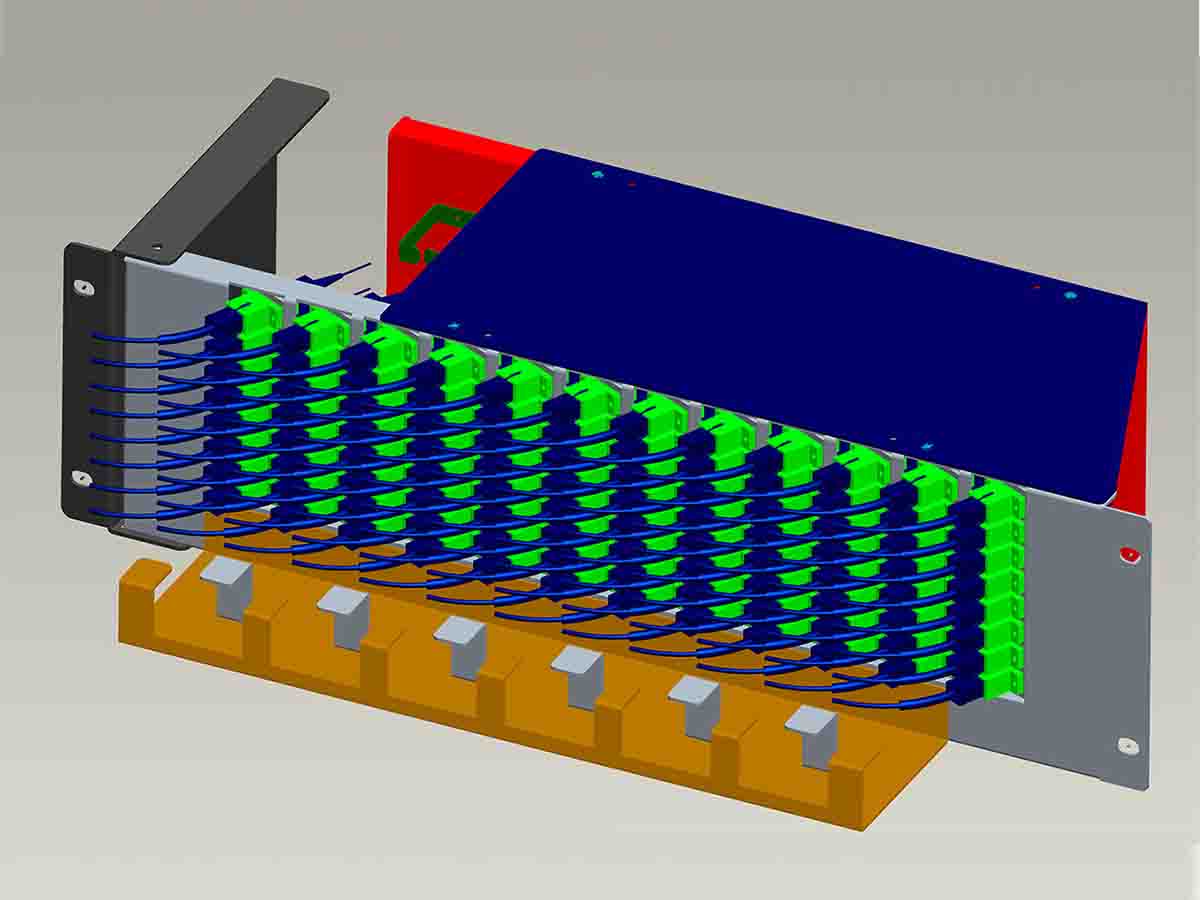

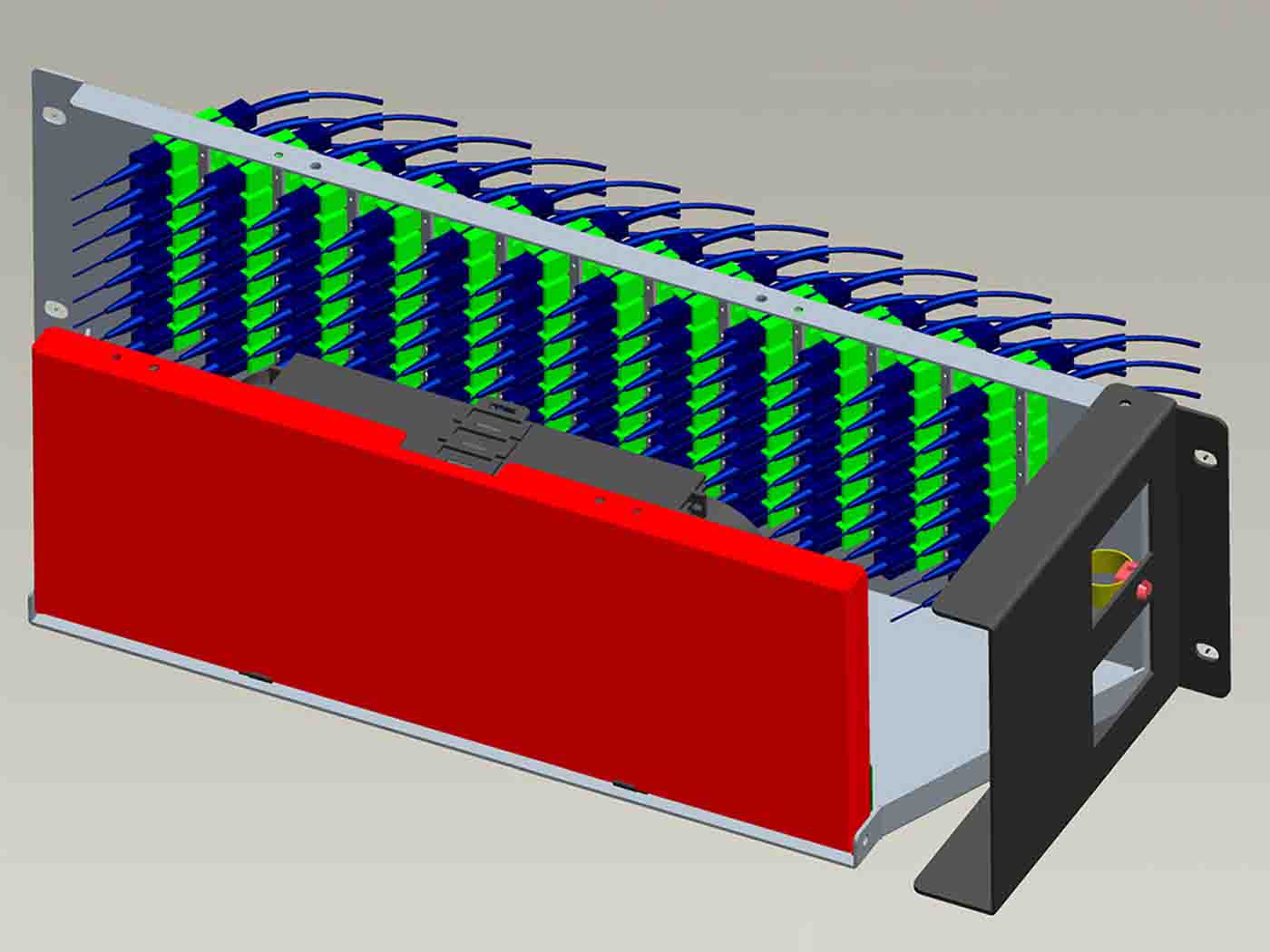

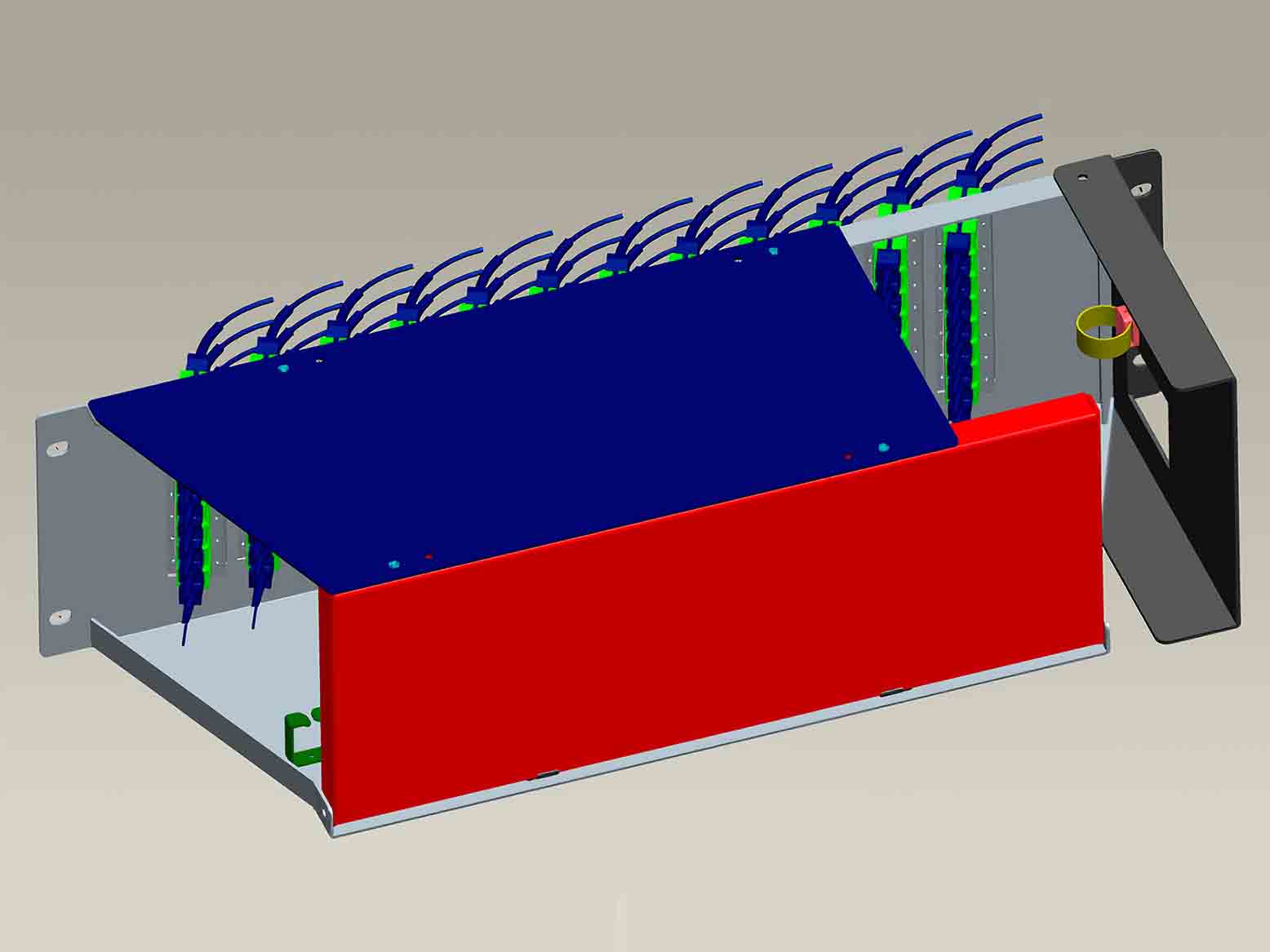

Rotary Type Fiber Optic Patch Panel

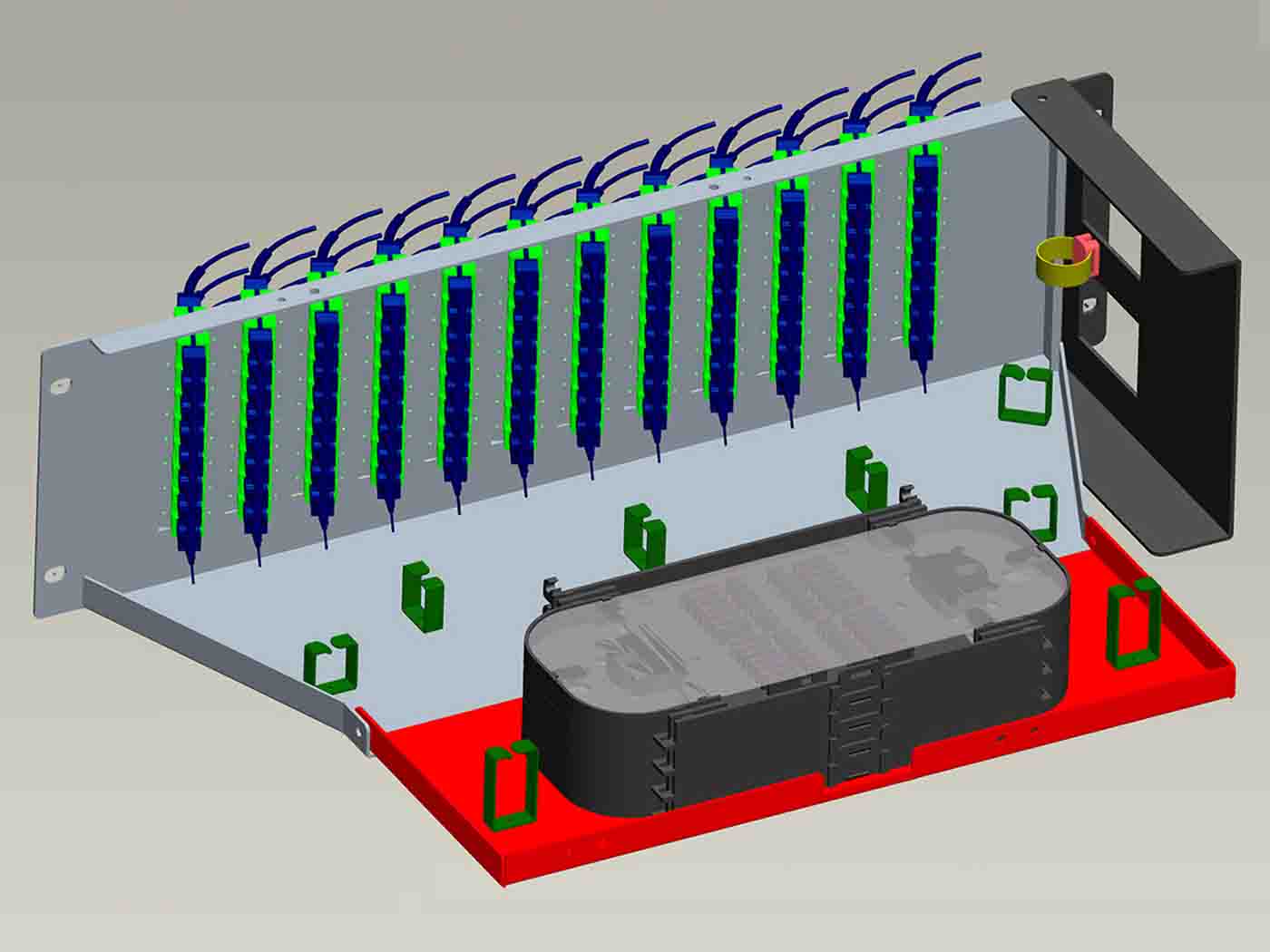

It is made of cold roll steel, splice tray can be rotated out. It could be pre-installed with various kinds of fiber optic adapters and pigtails. It is ideal for indoor fiber optic cables connection storage, distribution and management.



Features:
1、Standard size, can be rack-mounted
2、Splice tray inside changeable
3、Can be used in 19” standard distribution frame
4、Suitable for ribbon and single fiber
5、Various panel plate to fit different adapter interface
6、Front mark on the plate is easy for identification and operation



Specification:
Material: Cold-roll steel
ABS material splice tray
5pcs splice trays; each splice tray 24 cores
Capacity: 96 cores

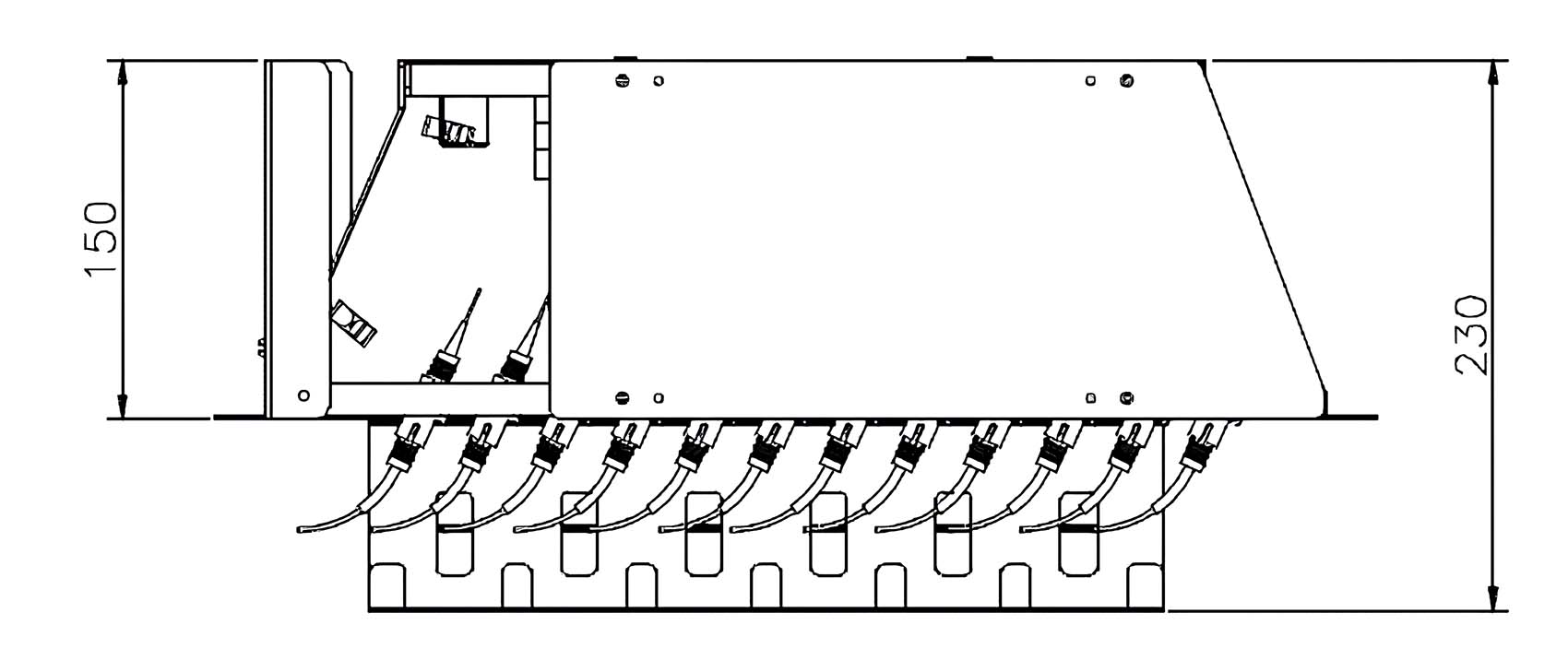

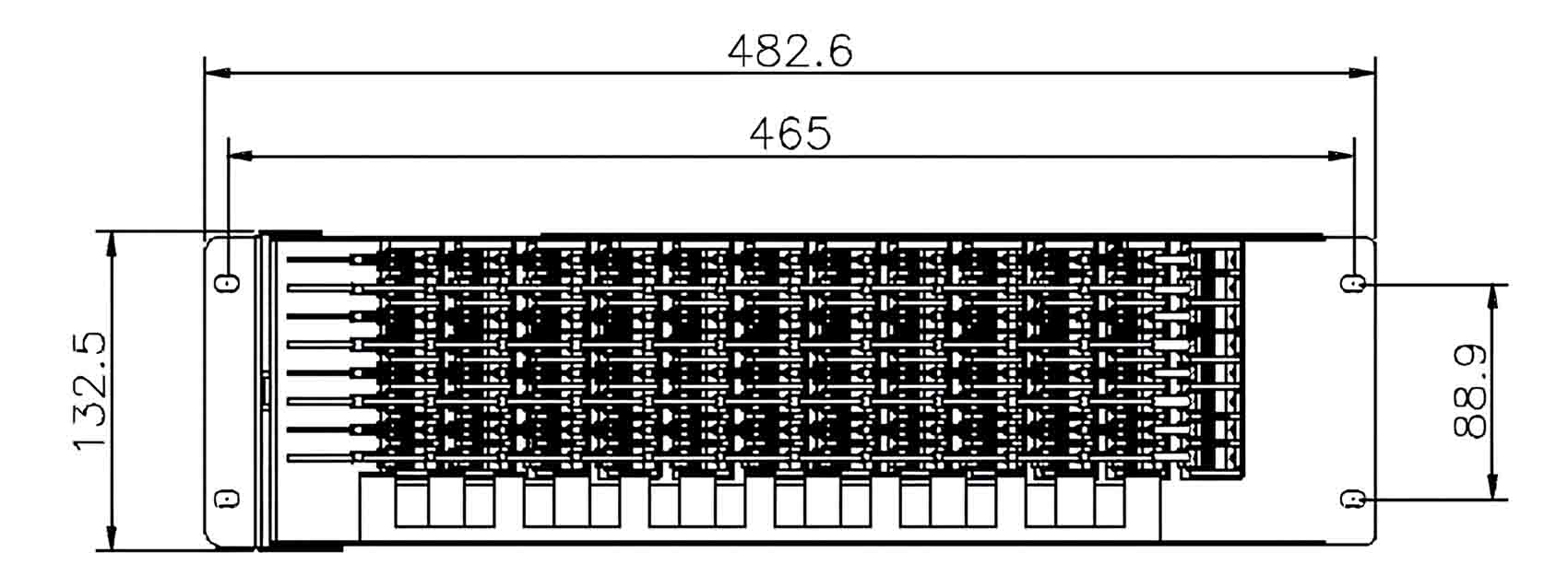

Dimension: 482.6x230x132.5mm



Application:
1、Telecommunications subscriber loop
2、Fiber to the home (FTTH)
3、LAN/WAN
4、CATV
