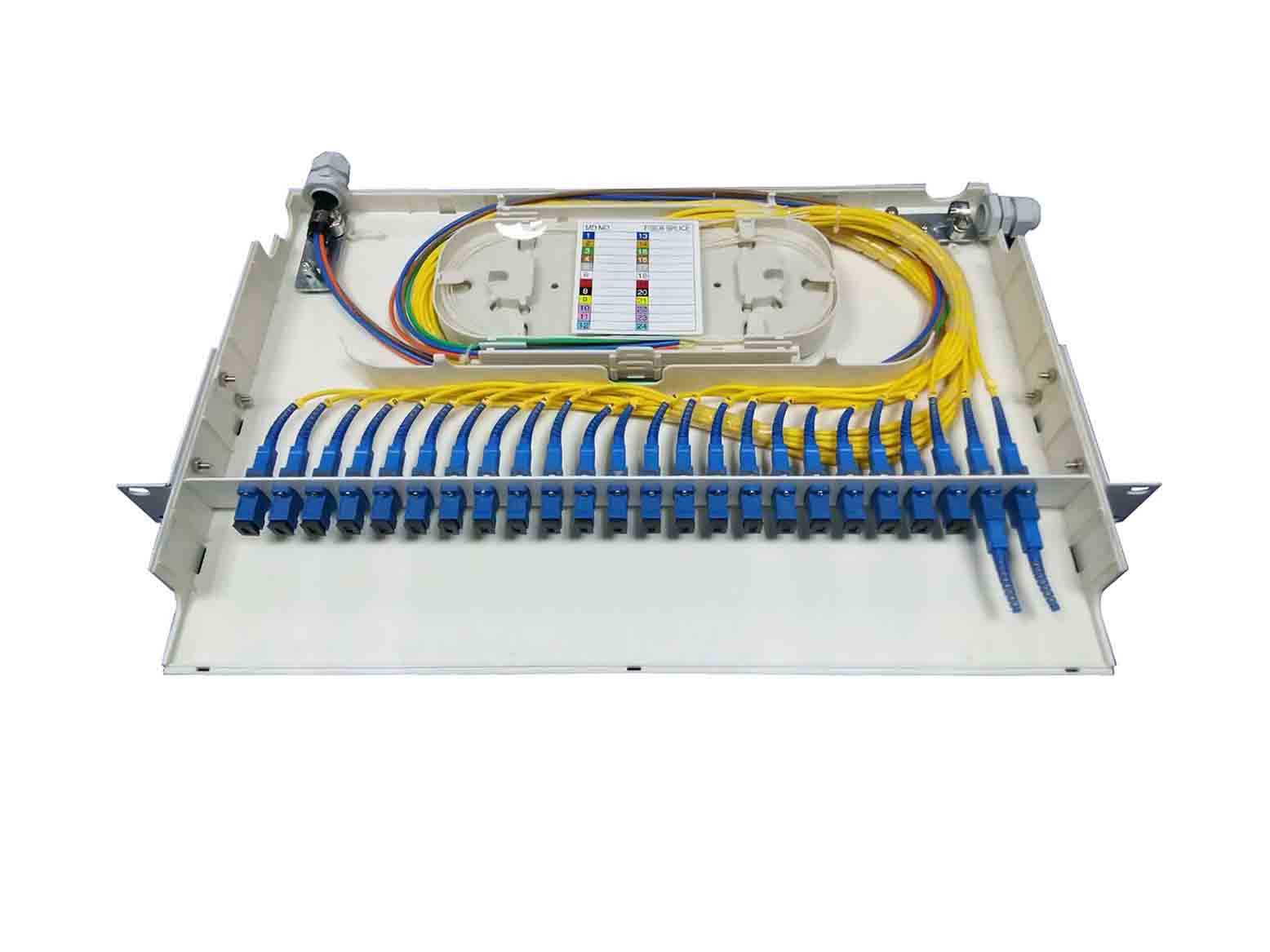

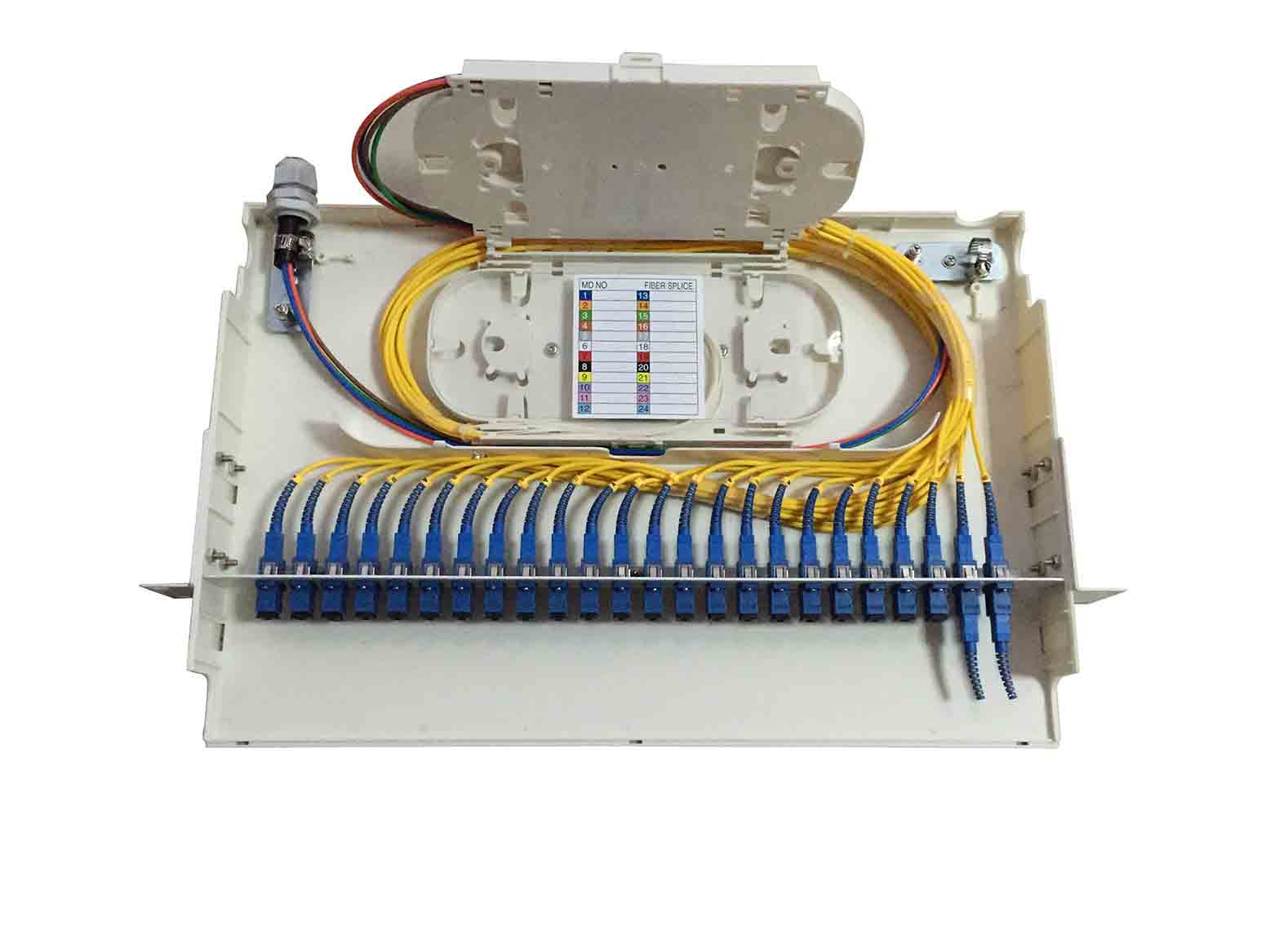

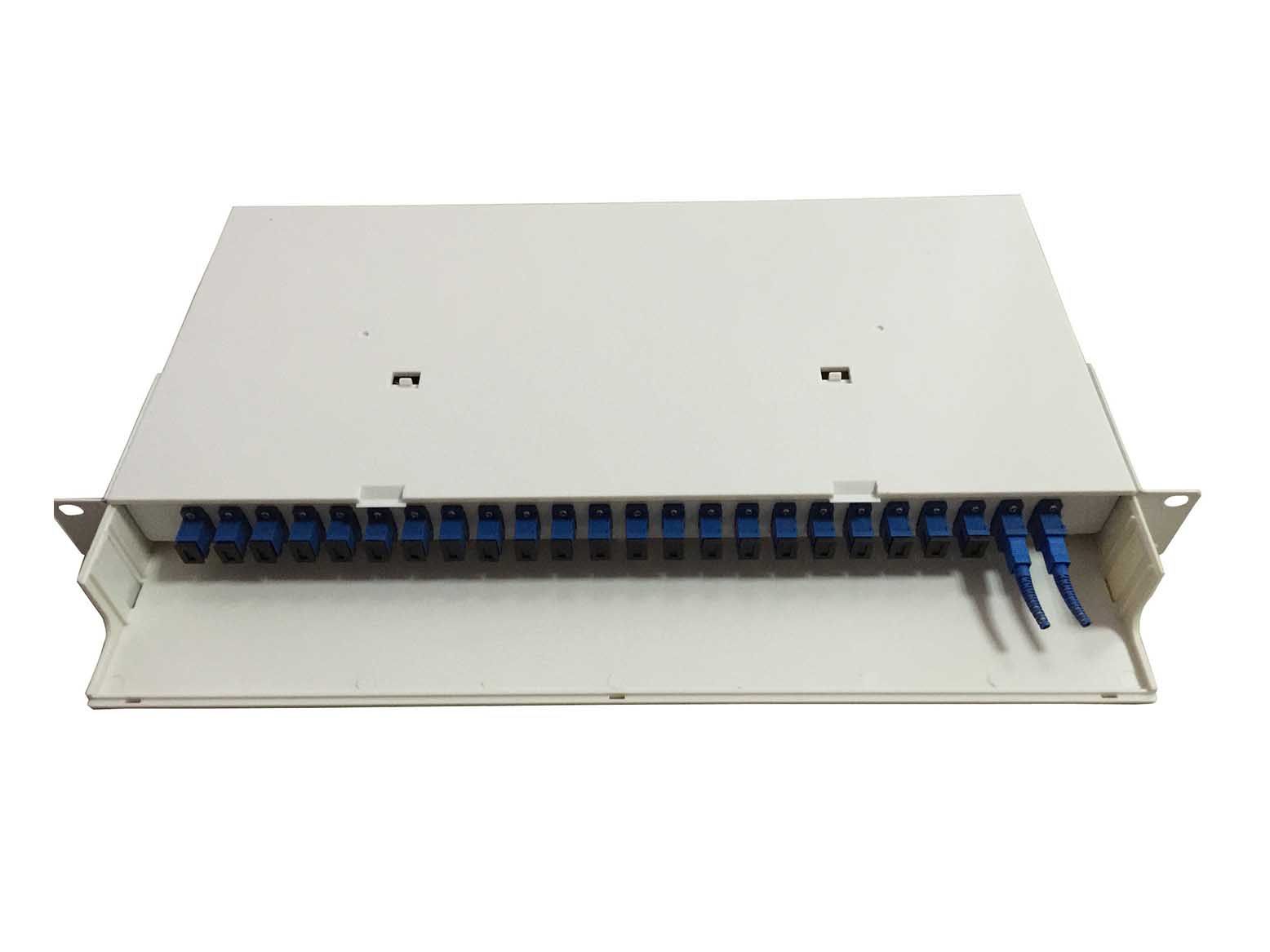

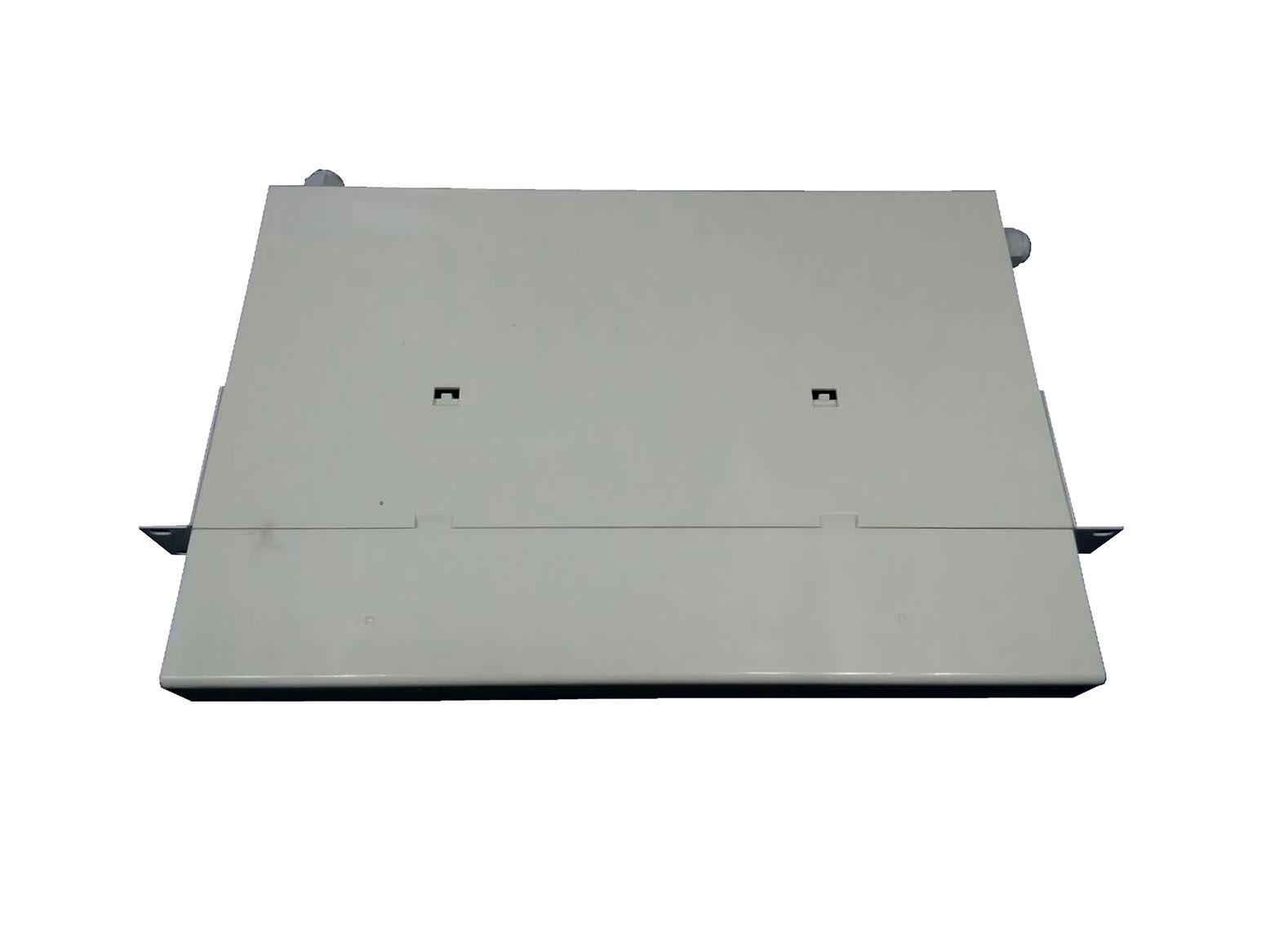

It is fixed type, 19inch, 1U, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. It provides an economical way of splicing fiber cables in communication room or existing equipment racks where space is constrained.
Features:
1、Standard size, light weight and reasonable structure
2、FC, SC, ST, LC adapter patch panel for option
3、Front access panel design for easy operation
4、Suitable for 19’’ standard optic distribution cabinets
5、Max. capacity 24 fibers
6、4 fiber cable entry ports
7、Grey or black color
Application:
1、Telecommunications
2、Fiber to the home (FTTH)
3、LAN/WAN
4、CATV

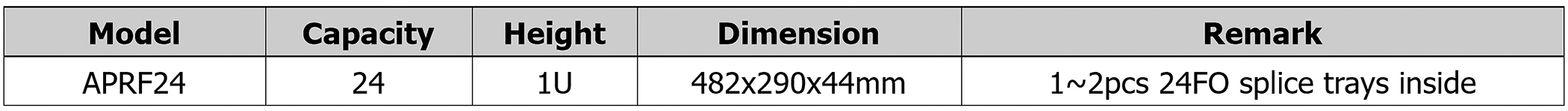

Specification:

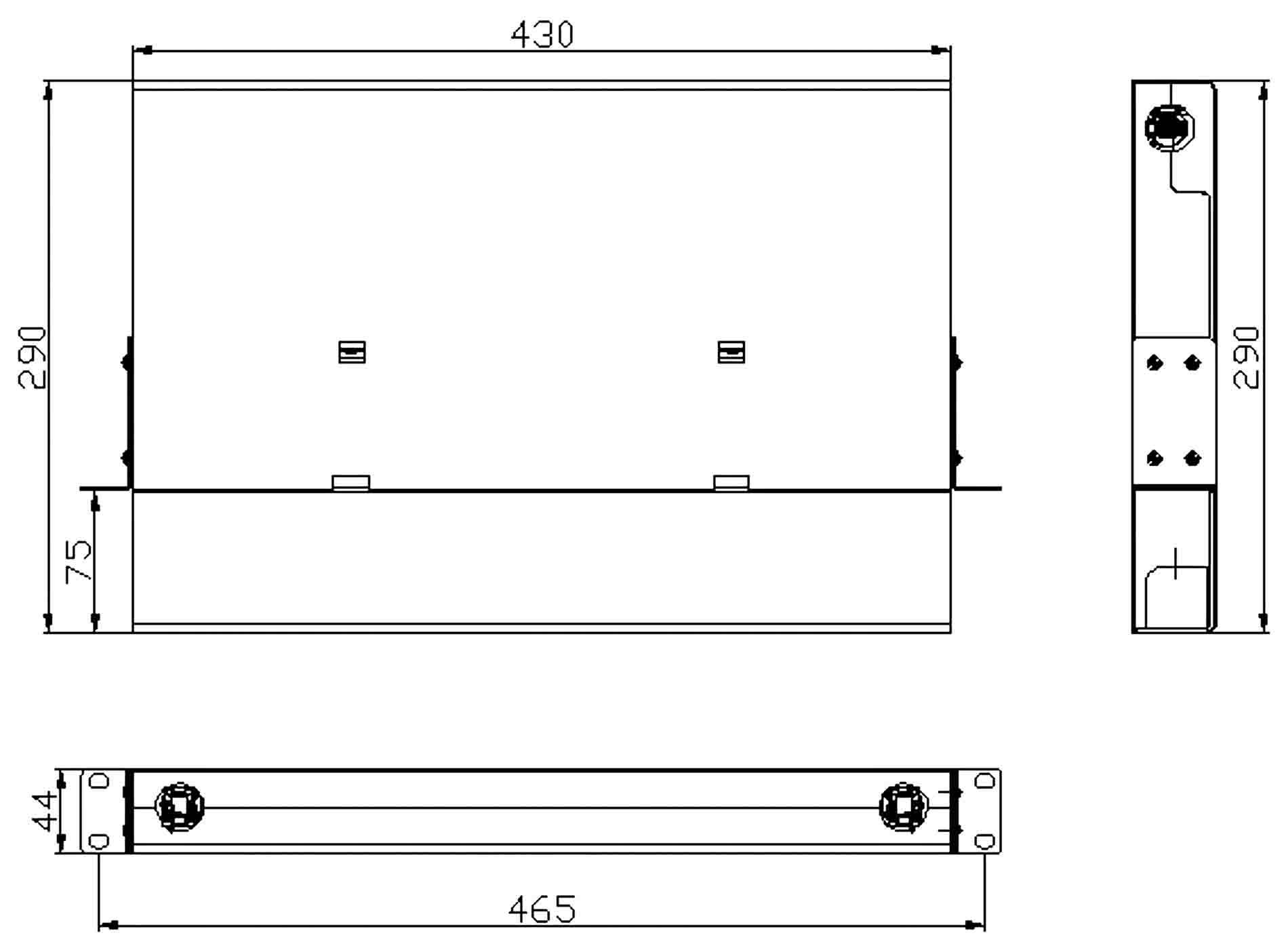

Dimension drawing:
