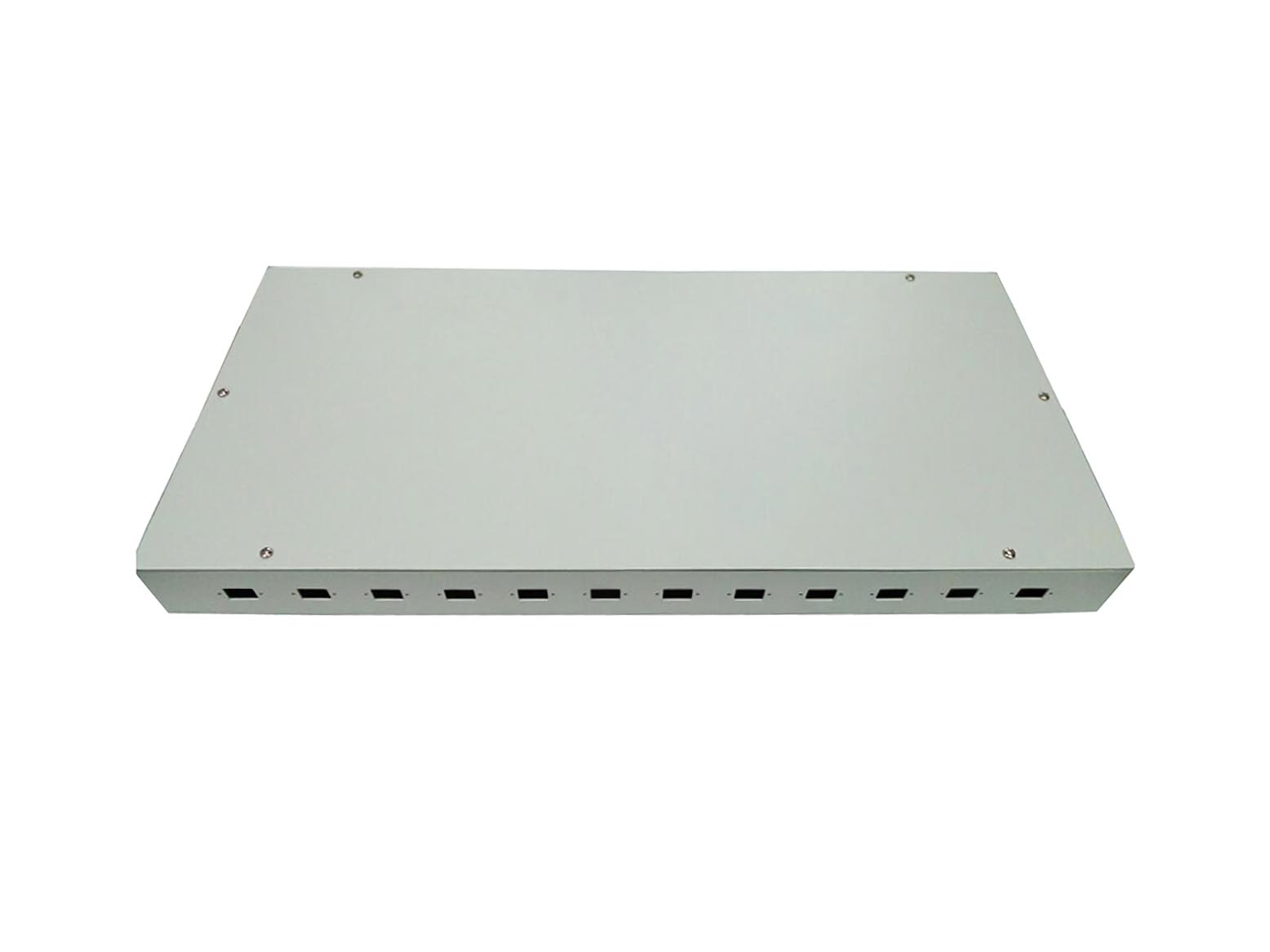

Mini Fixed Fiber Optic Patch Panel

Mini. size fixed fiber optic patch panel with 1U height, 19inch. It is used in fiber optic cabinet and provides an economical way for cable splicing, cable management and cable connection



Features:
1、Small size, light weight and reasonable structure
2、Rack mount 19”or 21” for Cabinet
3、Color: white/black/grey
4、Material: Cold-rolled steel, with excellent electrostatic painting.
5、Adapter plate: SC,FC,LC,ST…
6、Fiber core:12core/24core/Max:48core



Application:
1、Telecommunications subscriber loop
2、Fiber to the home (FTTH)
3、LAN/WAN
4、CATV

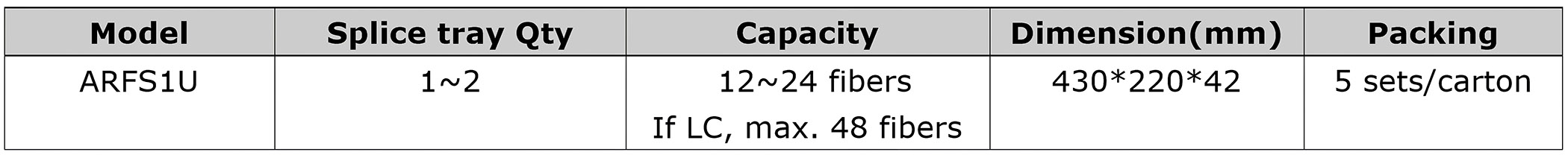

Specification:

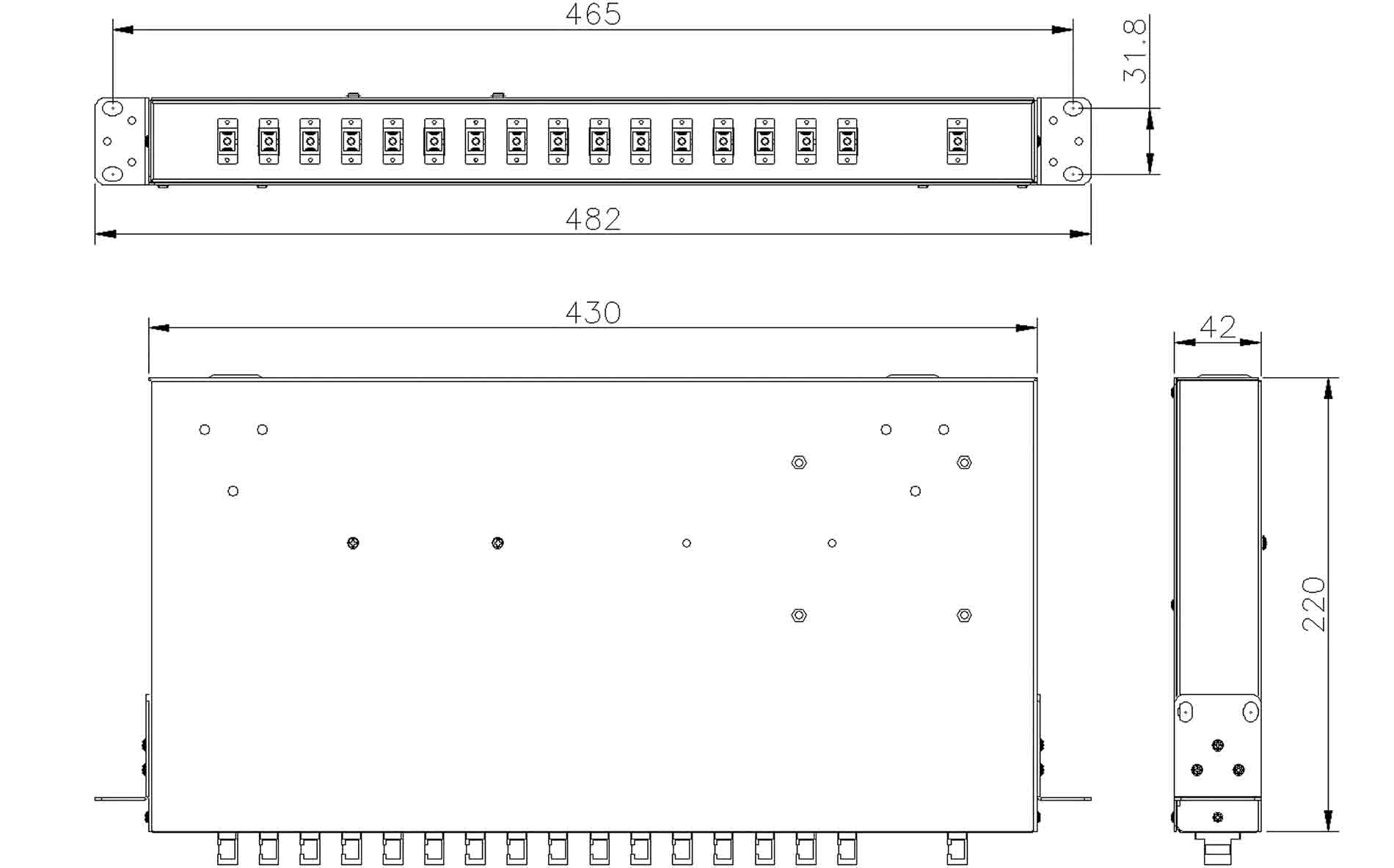

Dimension Drawings (mm):

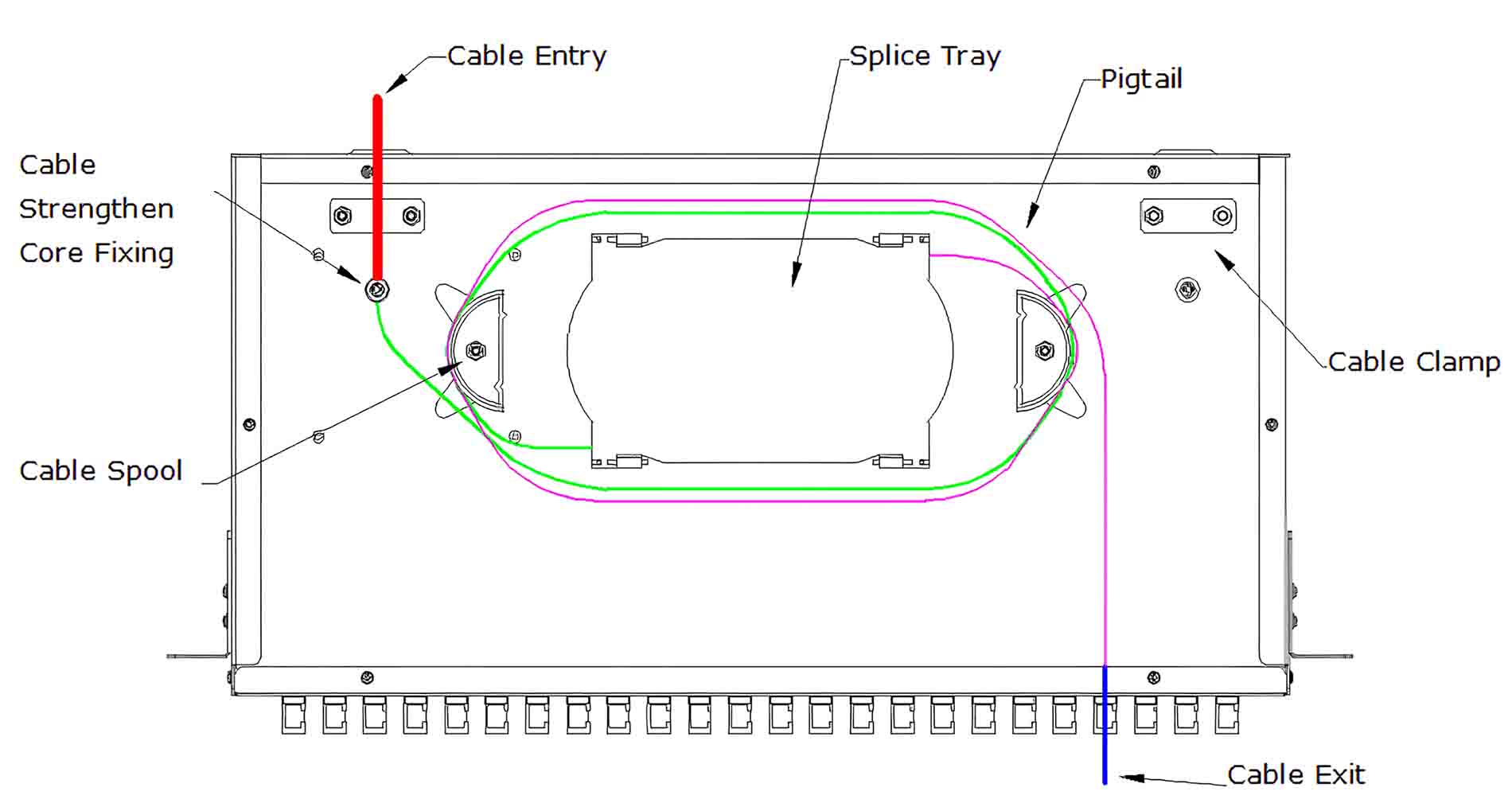

Cable Management:

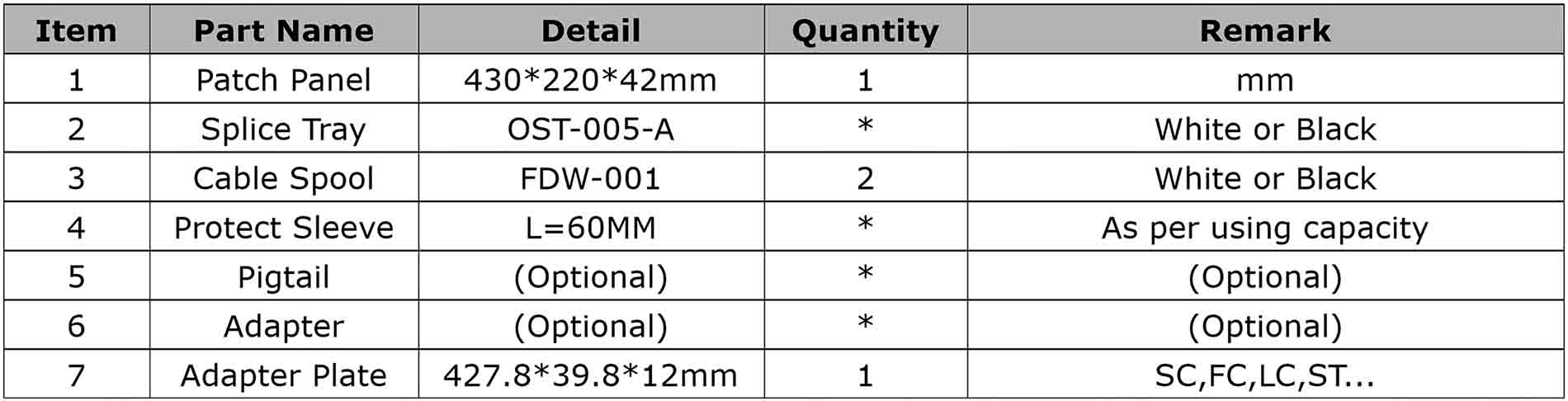

Configuration Table：
