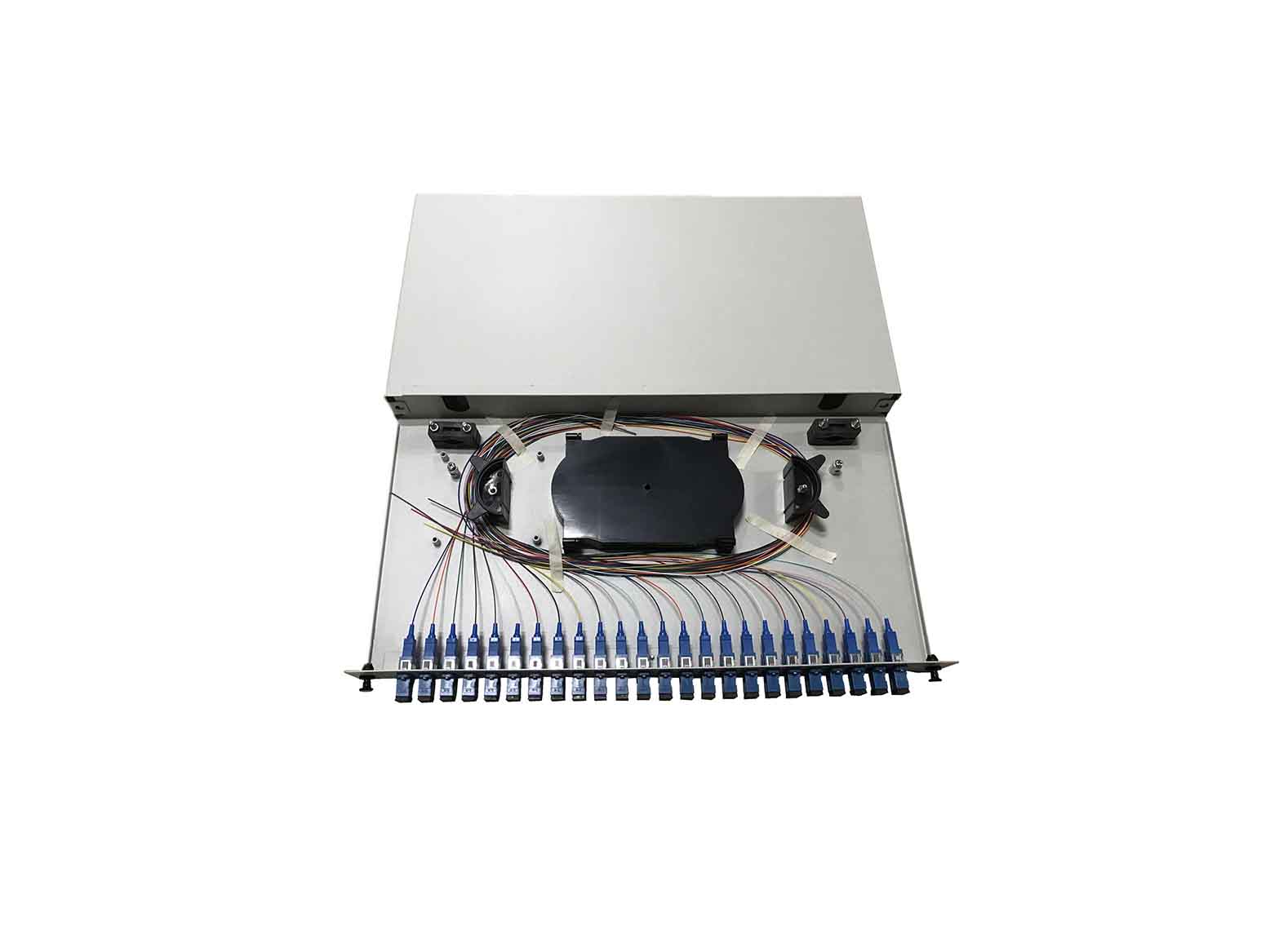

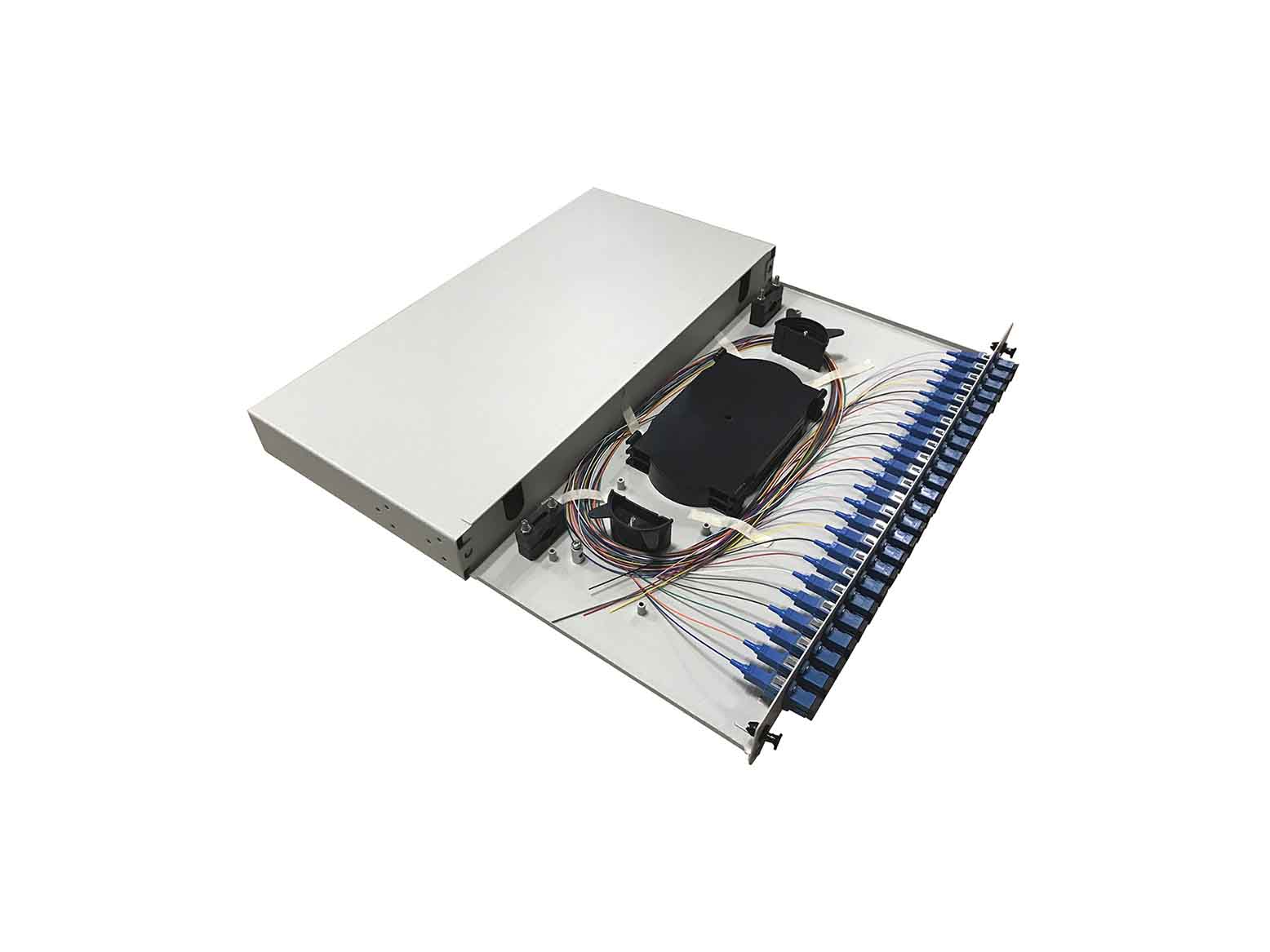

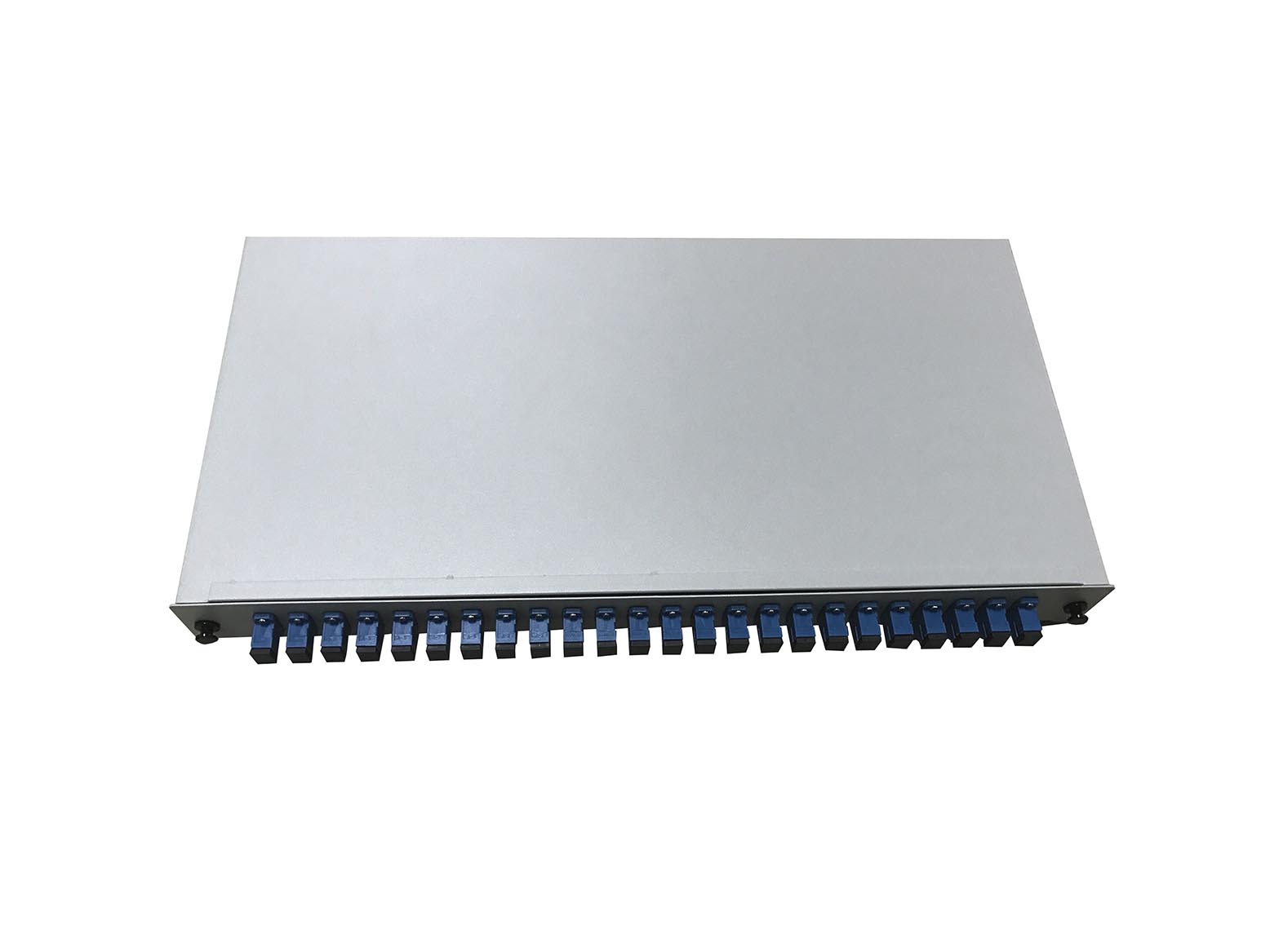

Mini. Slidable Fiber Optic Patch Panel

Mini. size slidable fiber optic patch panel with 1U height, 19inch. It is used in fiber optic cabinet and provides an economical way for fiber splicing, cable connection and management.



Features:
1、Small size, light weight and reasonable structure
2、Rack mount 19”or 21” for Cabinet
3、Color: white/black/grey
4、Material: Cold-rolled steel, with excellent electrostatic painting.
5、Adapter plate: dismountable, easy to operate
6、Adapter: SC,FC,LC,ST…
7、Fiber core:12core/24core/Max:48core



Application:
1、Telecommunications subscriber loop
2、Fiber to the home (FTTH)
3、LAN/WAN
4、CATV



Specification:

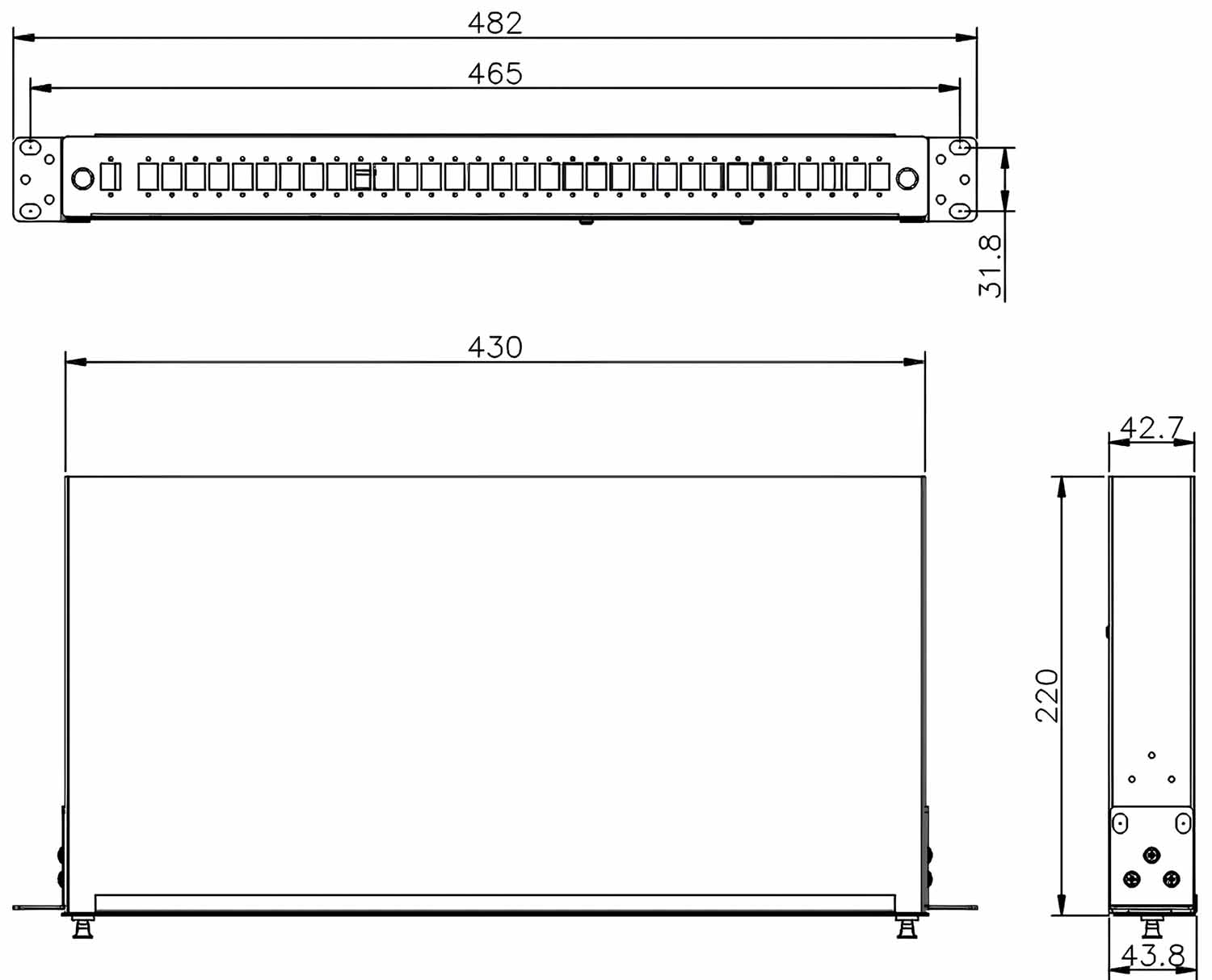

Dimension drawing (mm):

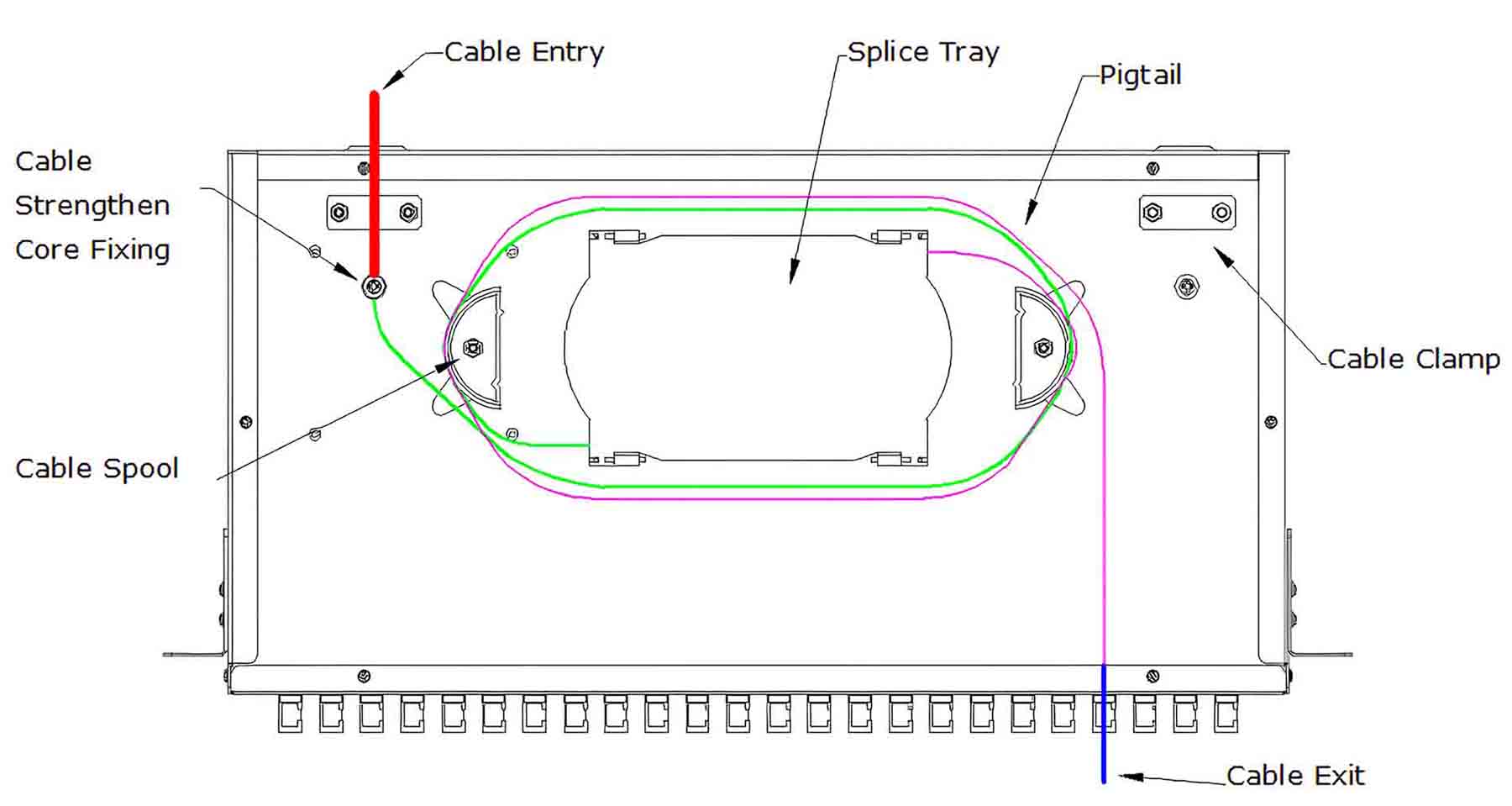

Cable Management:

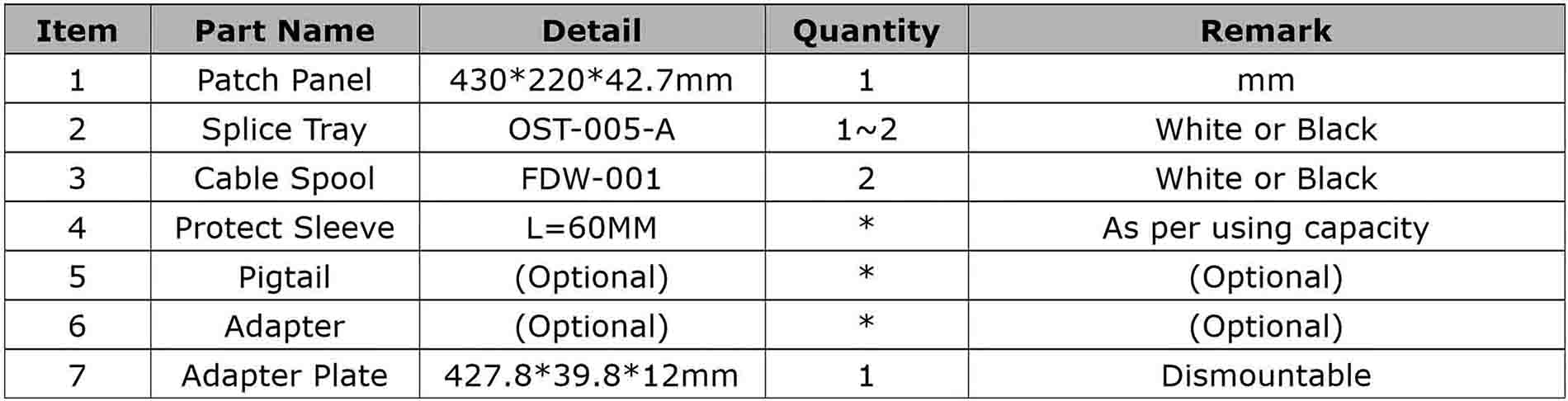

Configuration Table：
