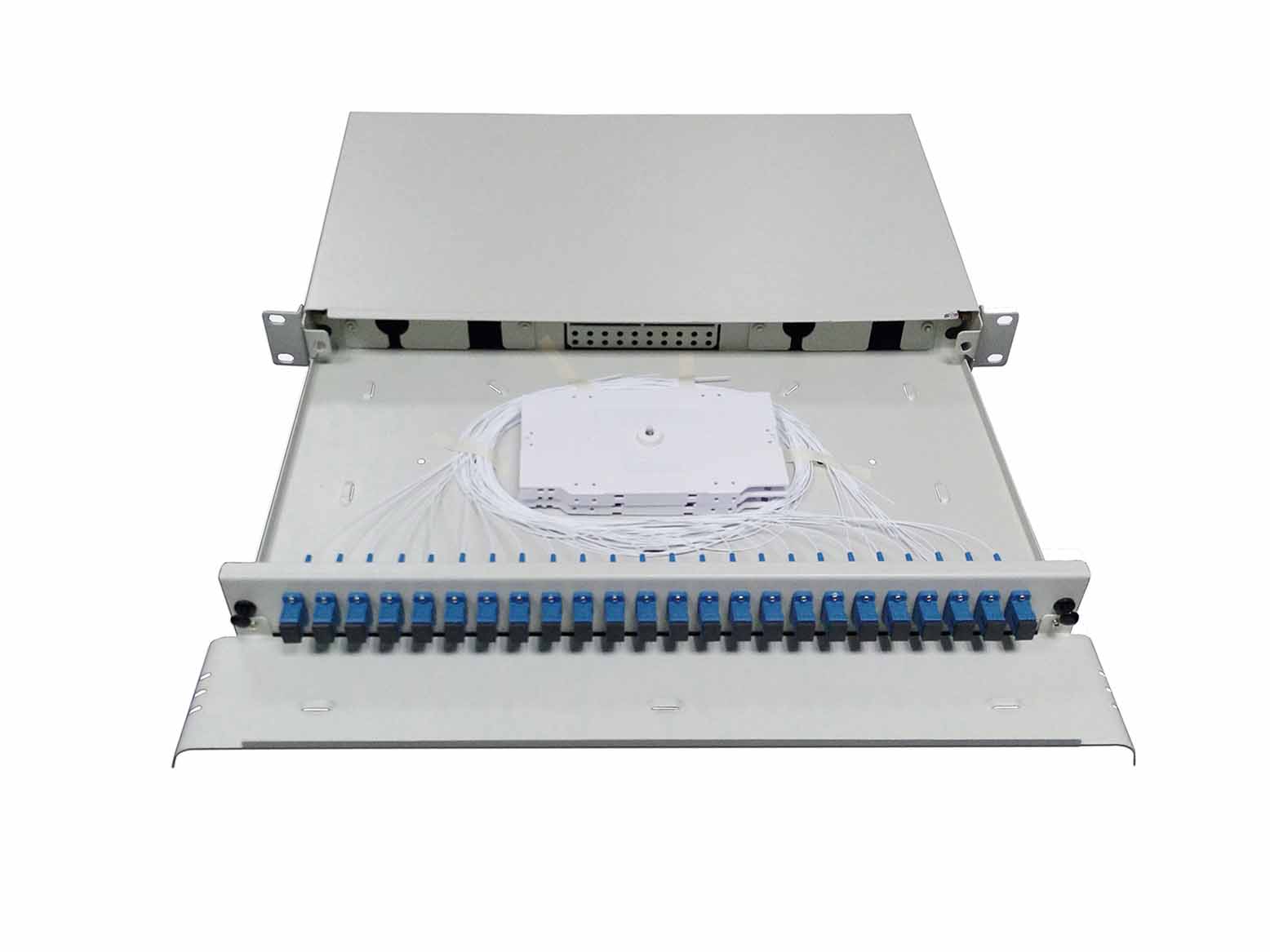

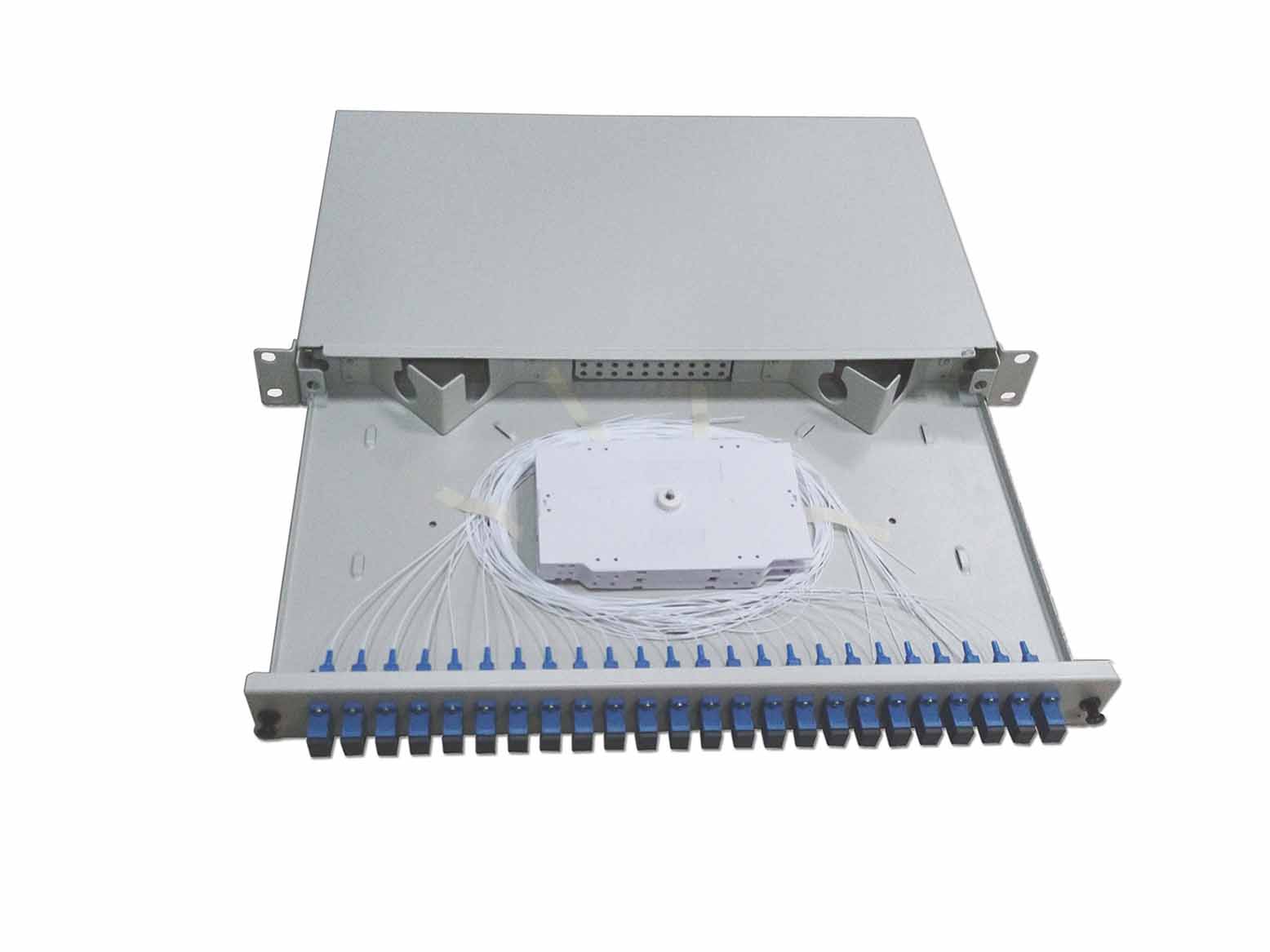

Slidable Fiber Optic Patch Panel

19inch 1U slidable type fiber optic patch panel. It is used in fiber optic cabinet for fiber splicing, connection, protection and management.



Features:
1、19inch rack mounted application;
2、Small size, no sliding rail, light weight and reasonable structure;
3、Material: Cold-rolled steel, electrostatic power painting;
4、Color: grey white or black;
5、Dismountable adatper panel, easy to operate;
6、FC, LC, ST, SC … adapter port available;
7、Capacity: 12, 24, 48 fibers;
8、Max. 4 splice tray of 12FO, max. 48FO;
9、Can load cable arrangement panel (GTP-1U-01) in front of adapter panel
10、4pcs Ф22 mm cable entry ports (with two kinds of design), if load M22 cable gland for 7~13mm cable entry;
11、20pcs Ф4.3mm round cable port at rear side.

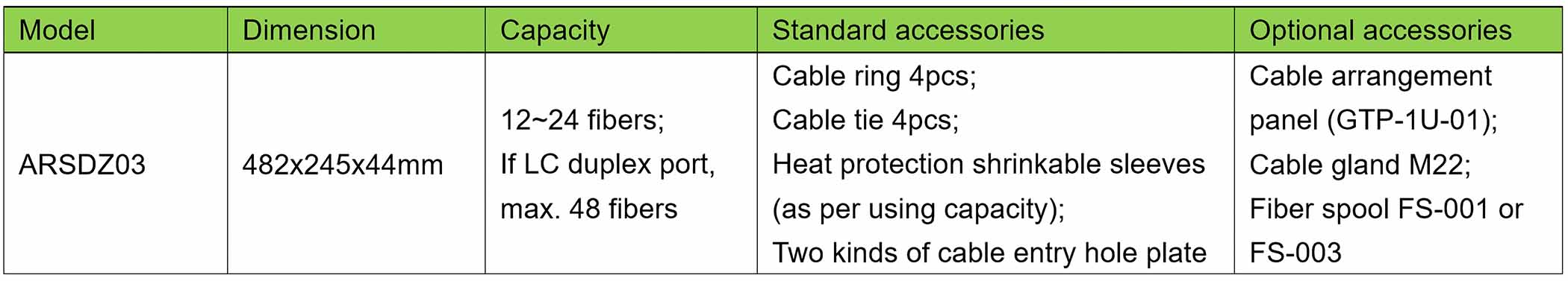

Specification:

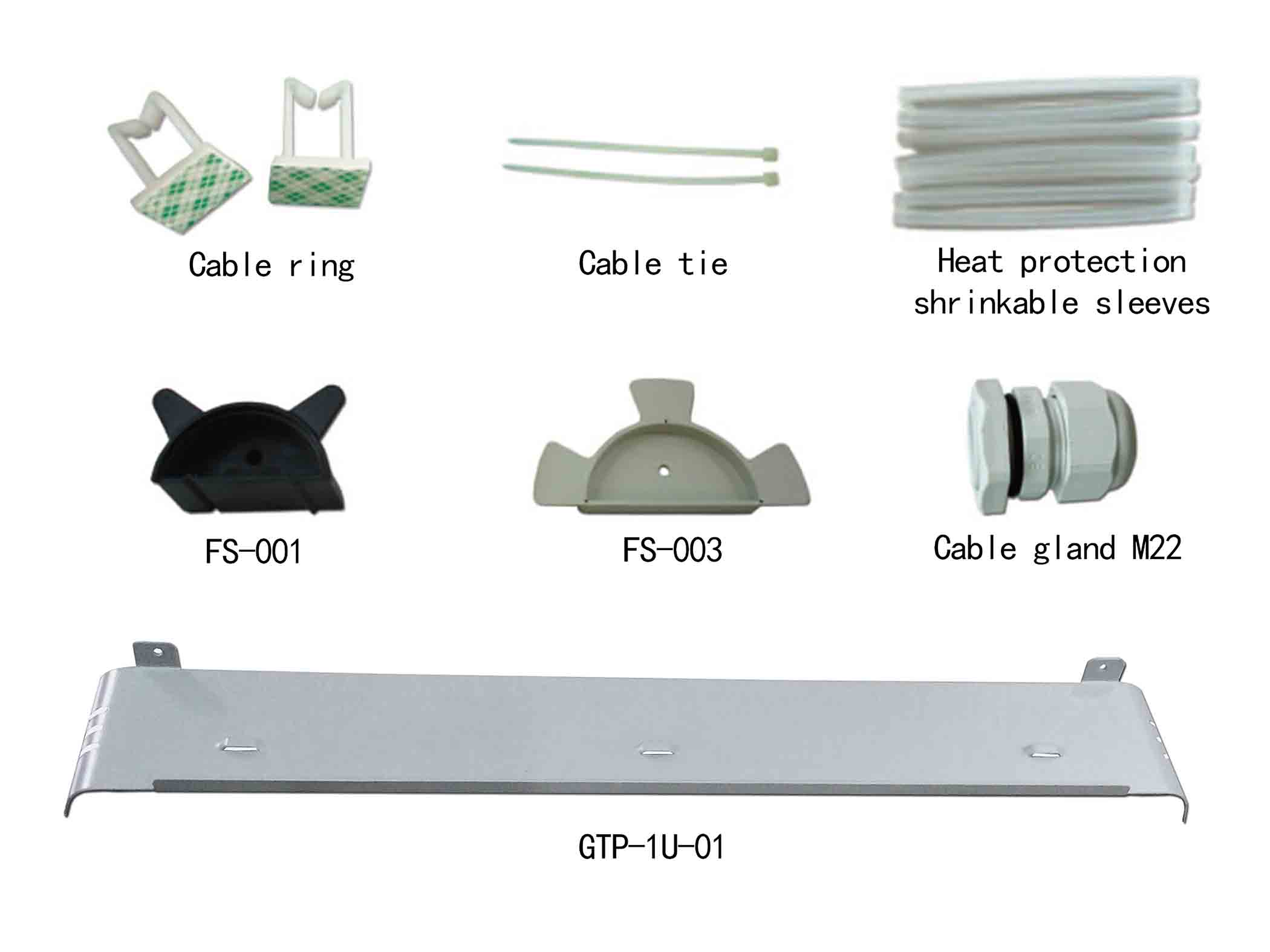

Standard accessories picture:

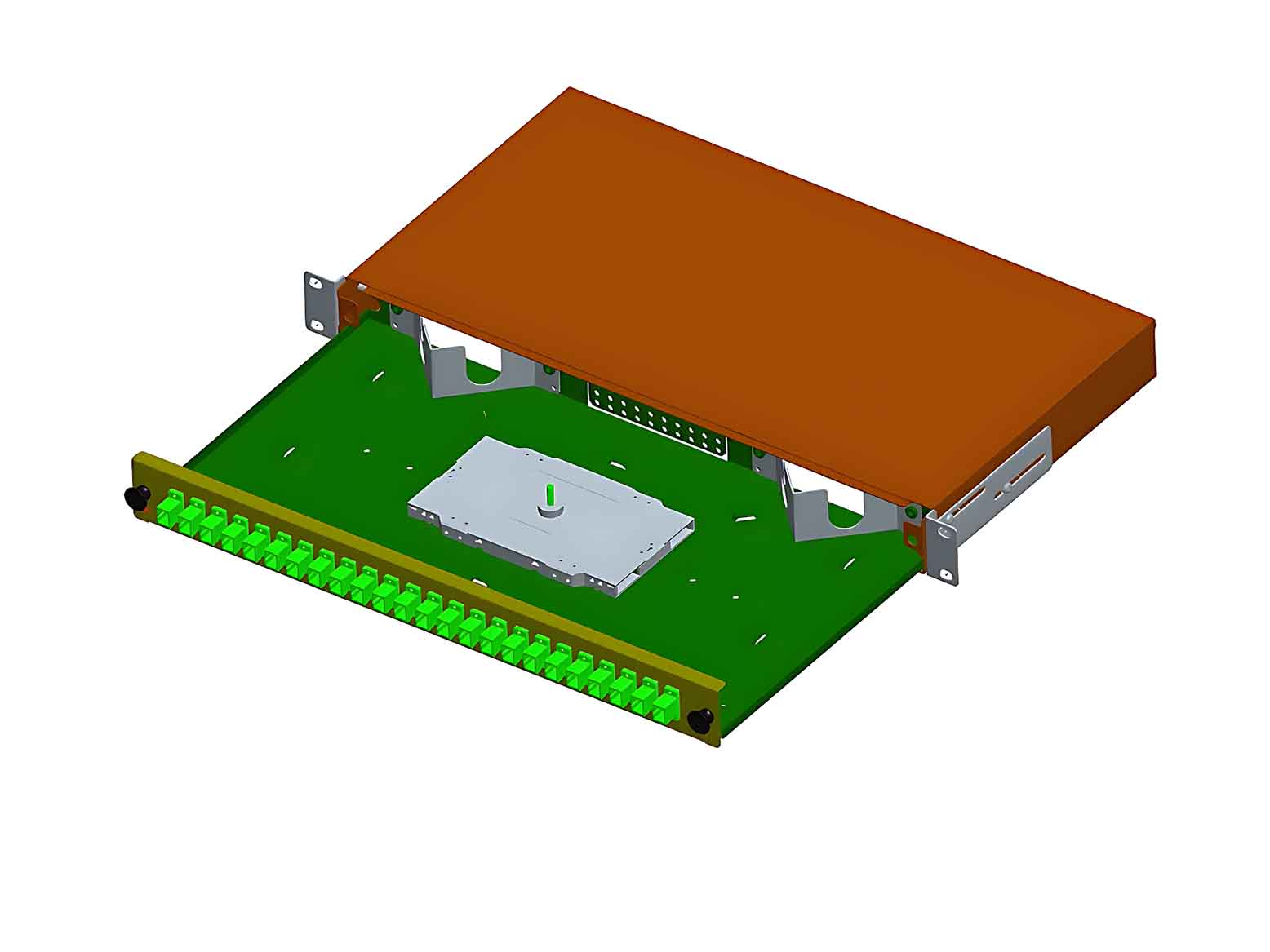

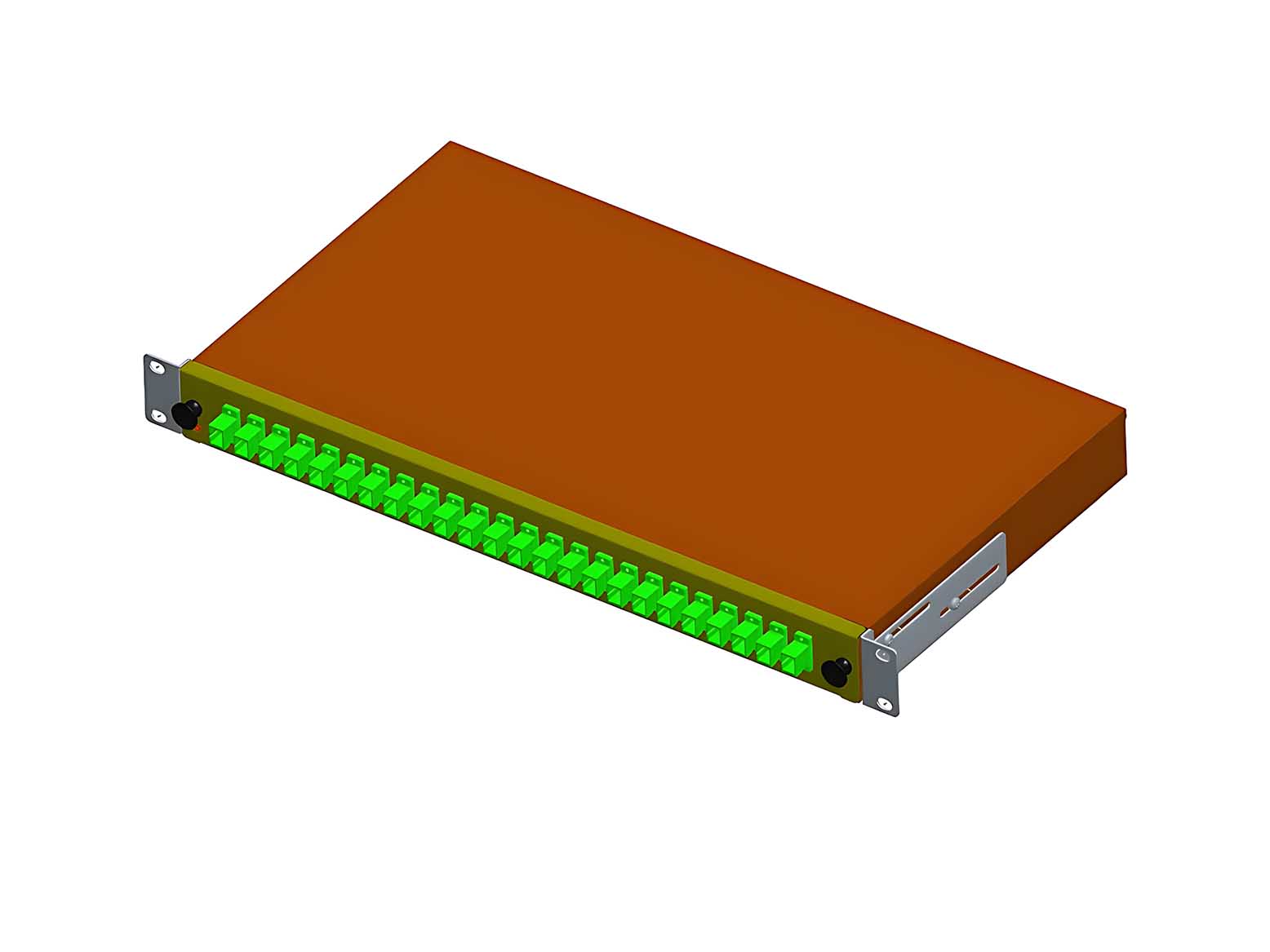

Dimension drawings:

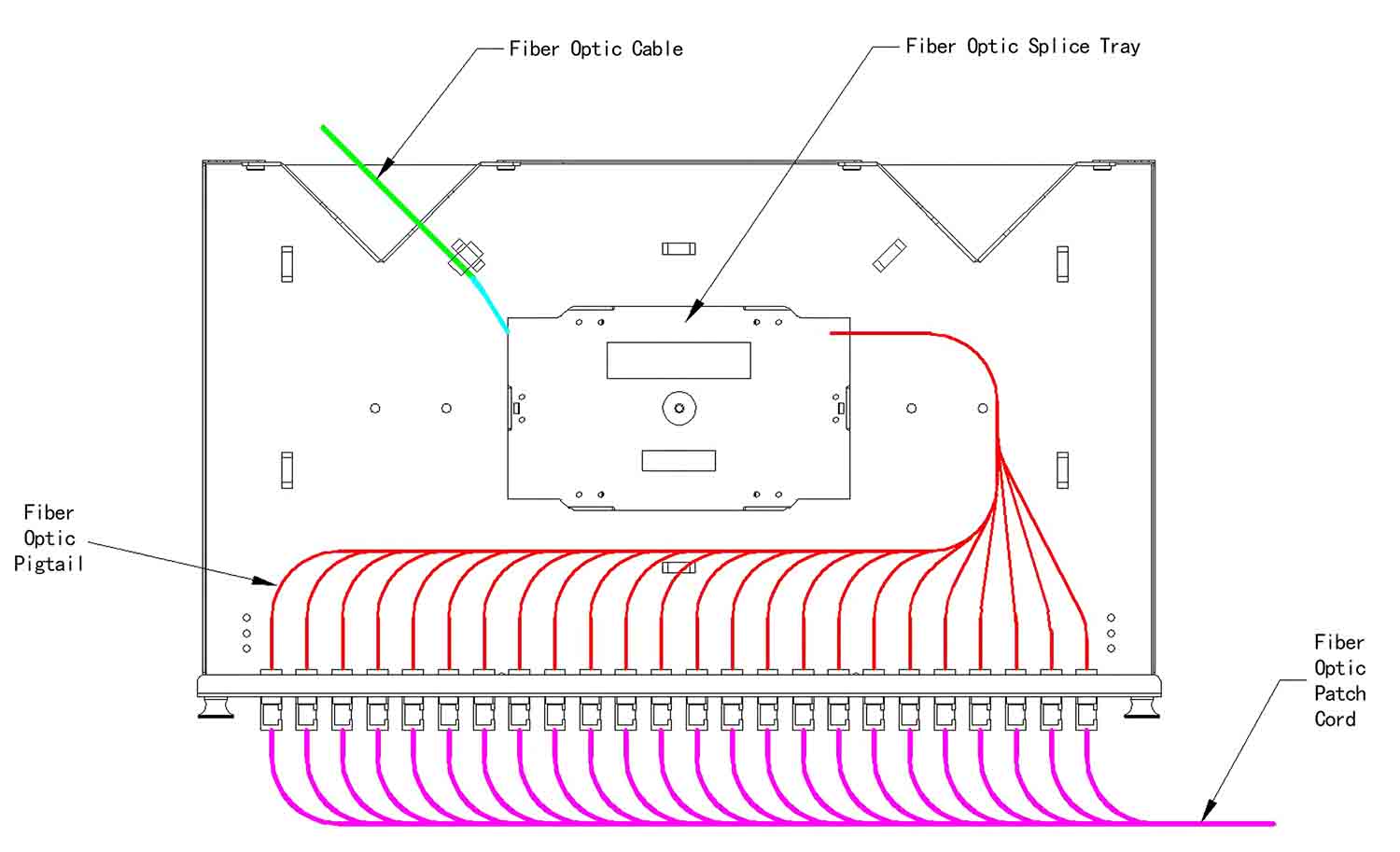

Using illustration:
