72F Slidable fiber optic patch panel

19’’ rack mounted fiber optic patch panel that made of cold-roll steel box, with plastic splice tray inside, suitable for pigtail, ribbon and bunch cable distribution. And it has metal sliding fittings with self-locking functions prevent the drawer from falling when moved.



Features:
1、Standard size, light weight and reasonable structure
2、Slide out drawer for easy cable management
3、FC, SC, ST, LC … adapter patch panel for option
4、Front access panel design for easy operation
5、Suitable for 19’’ standard optic distribution cabinets
6、Capacity 72 fibers, 6pcs splice tray of 12 fibers
7、4 fiber cable entry ports at rear side
8、White or black color

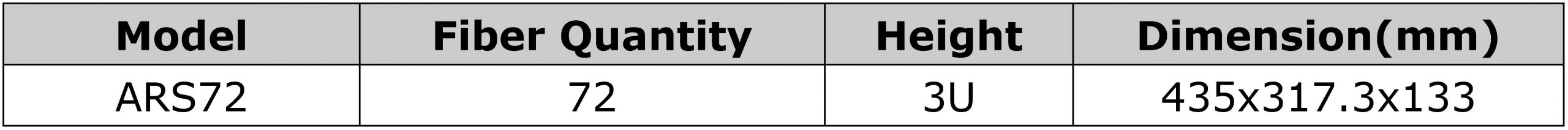

Specification:



Application:
1、Telecommunications
2、Fiber to the home (FTTH)
3、LAN / WAN
4、CATV

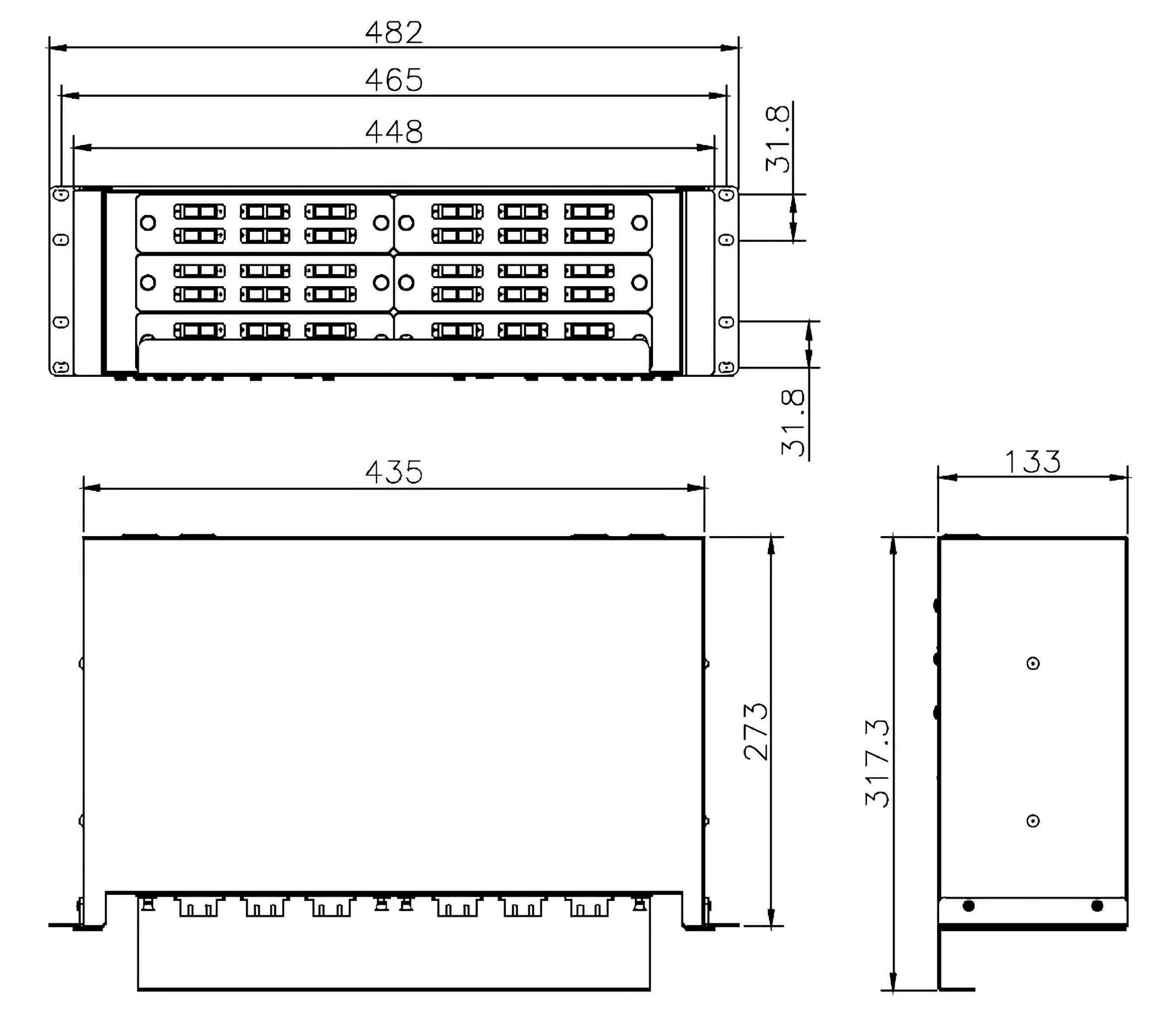

Drawings(mm):
