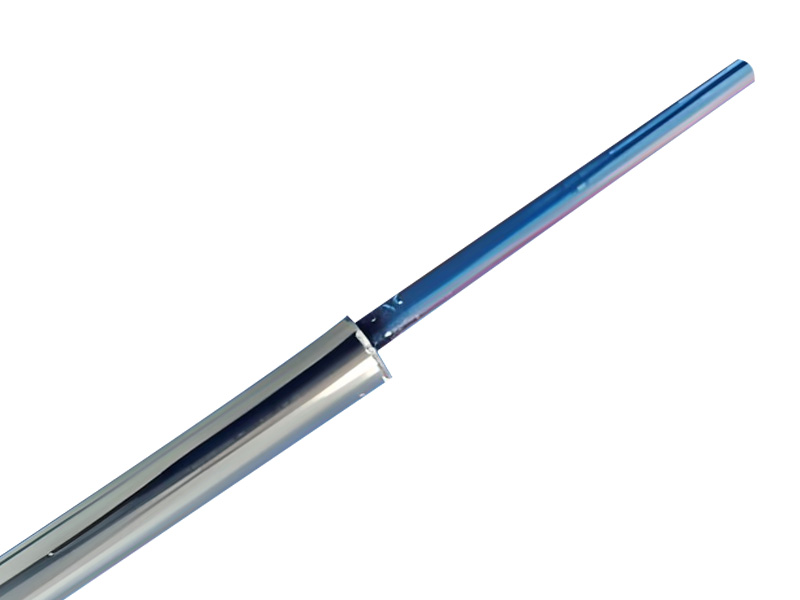

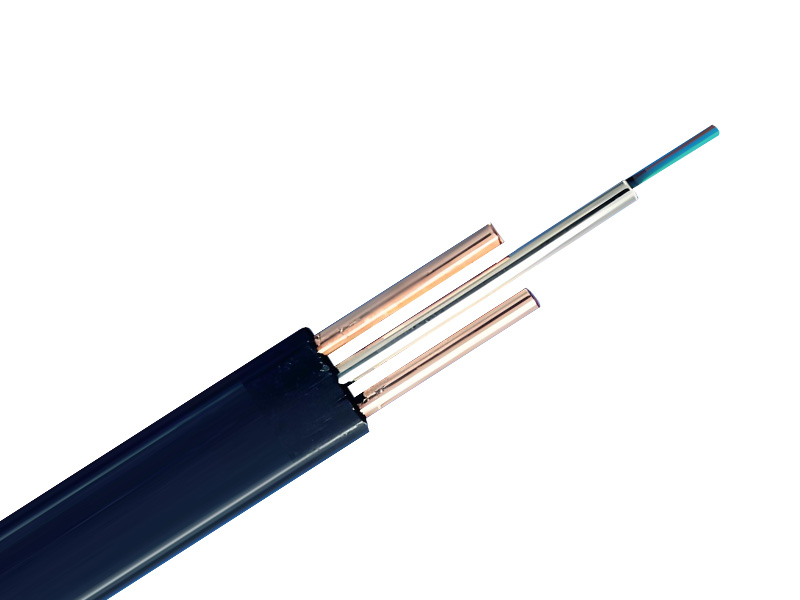

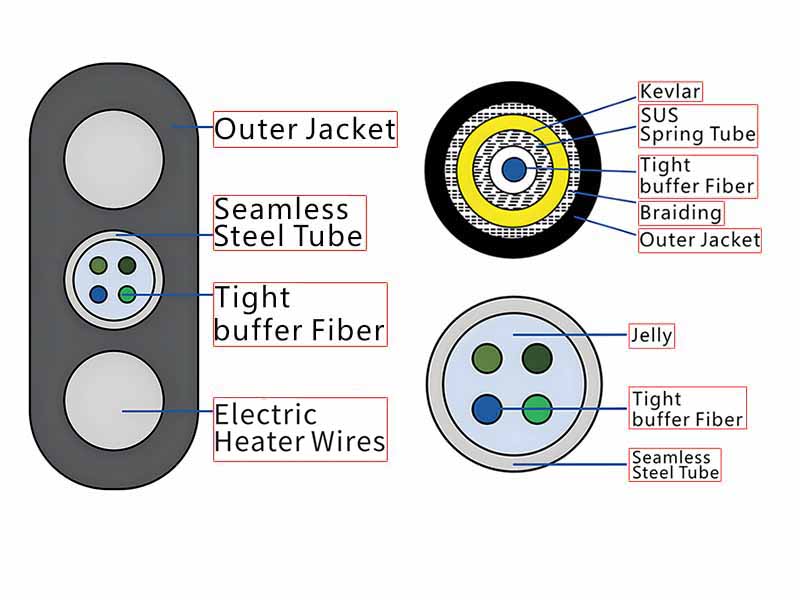

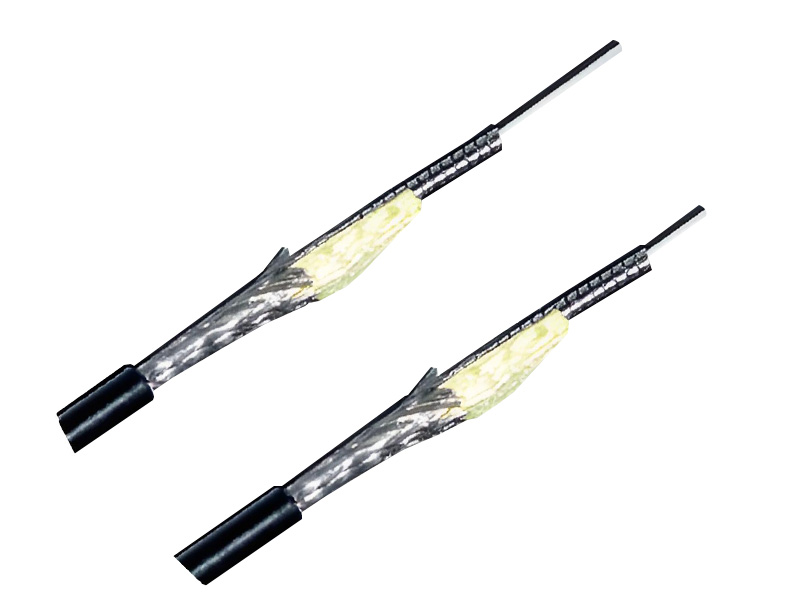

HV Power Cable build-in DTS Sensor Cable is the cable that built-in a high-voltage power cable，in order to inspect the conduct’s temperature when working. By the ultra design，the sensor fiber is put in a stainless steel soft pipe with ultra small diameter，and the soft pipe is strengthened by the aramid yarn，stainless steel braiding，and the semiconductor plastic outer jacket. With simple structure and ultra small diameter，this cable is fit for the narrow space in the cable，with good thermal conductive performance. This cable is embedded in the high-voltage and ultra high-voltage cable to monitor the temperature of the conductor and other physical quantities.
Build-in fiber optical sensing cable of high-voltage power wire
1、Semiconductor plastic jacket with good static conductivity;
2、Ultra small diameter and volume，saving the aluminum jacket space of the cable，and enhancing the water resistance of the cable;
3、High pliability and tenacity，convenient for the machining and shaping，construction and distribution;
